Engine Control Module
>>

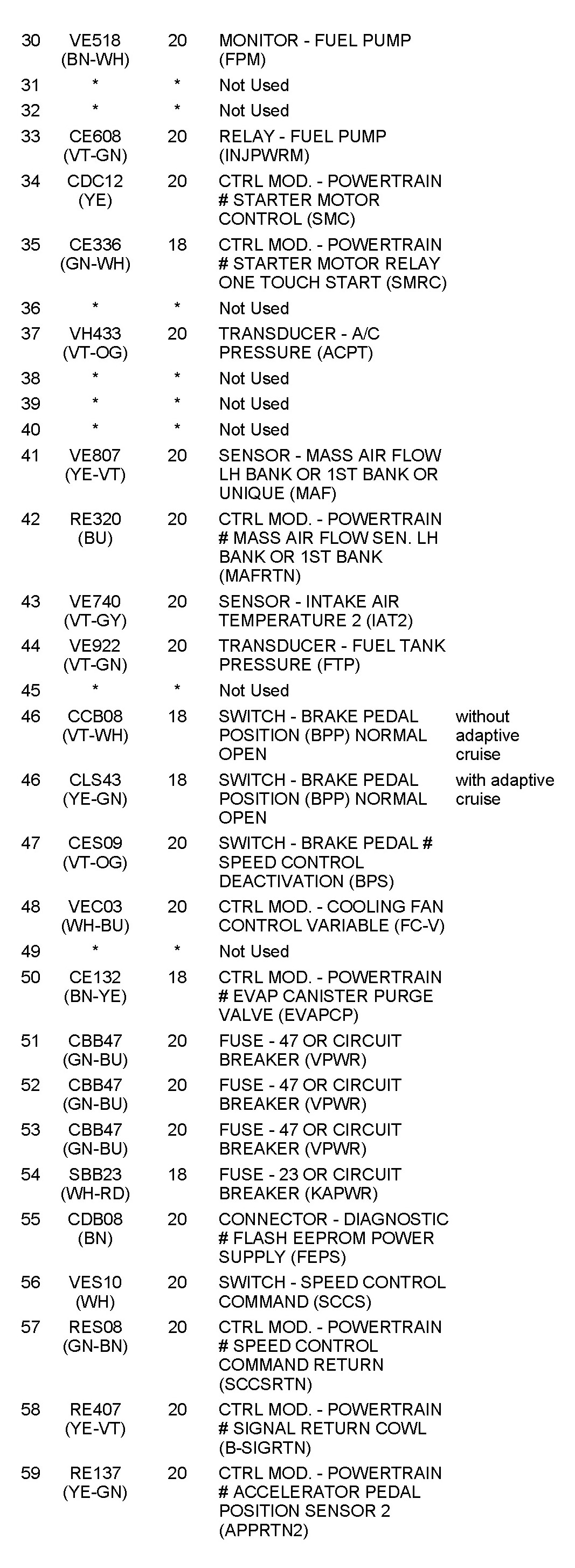

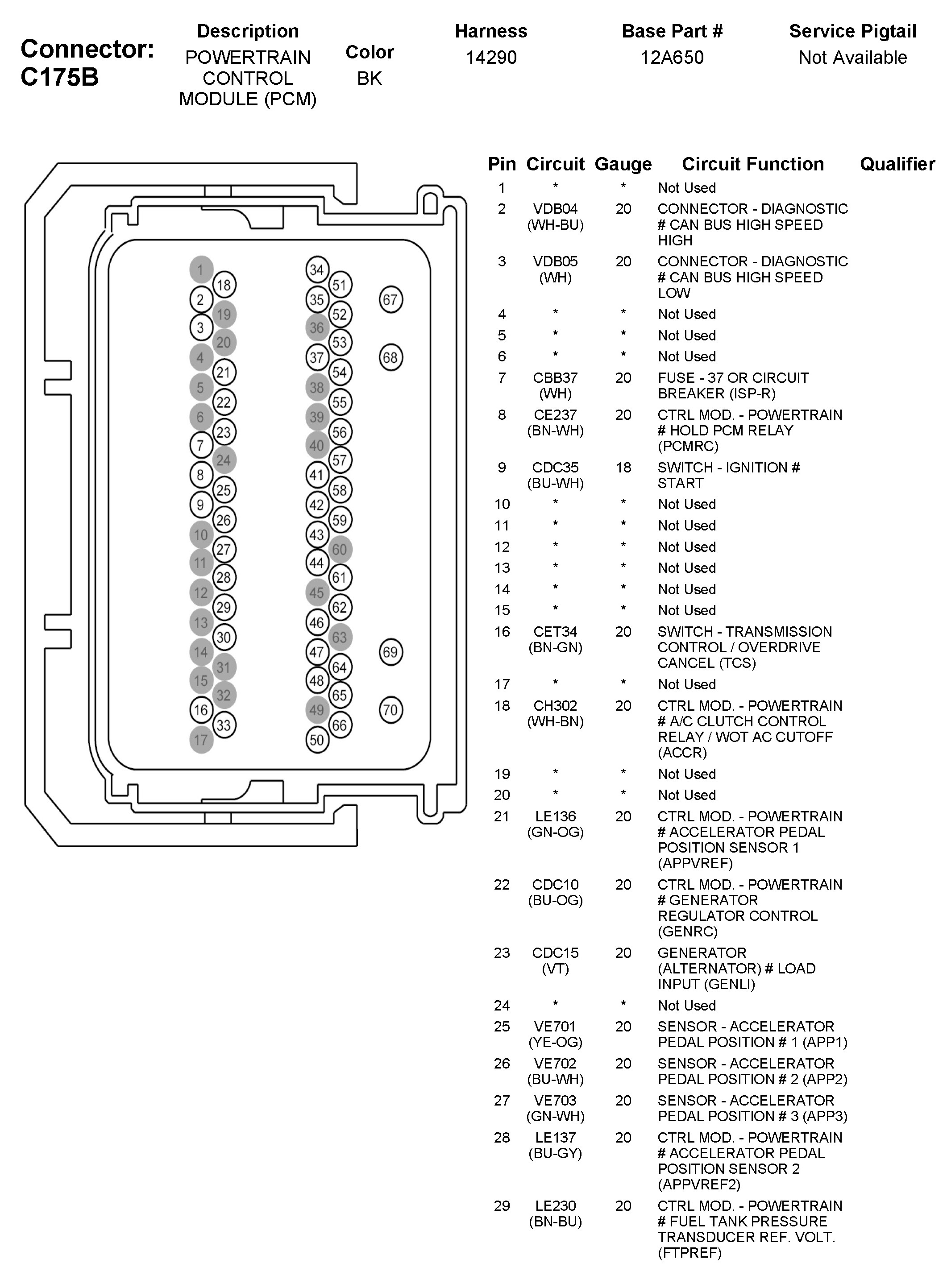

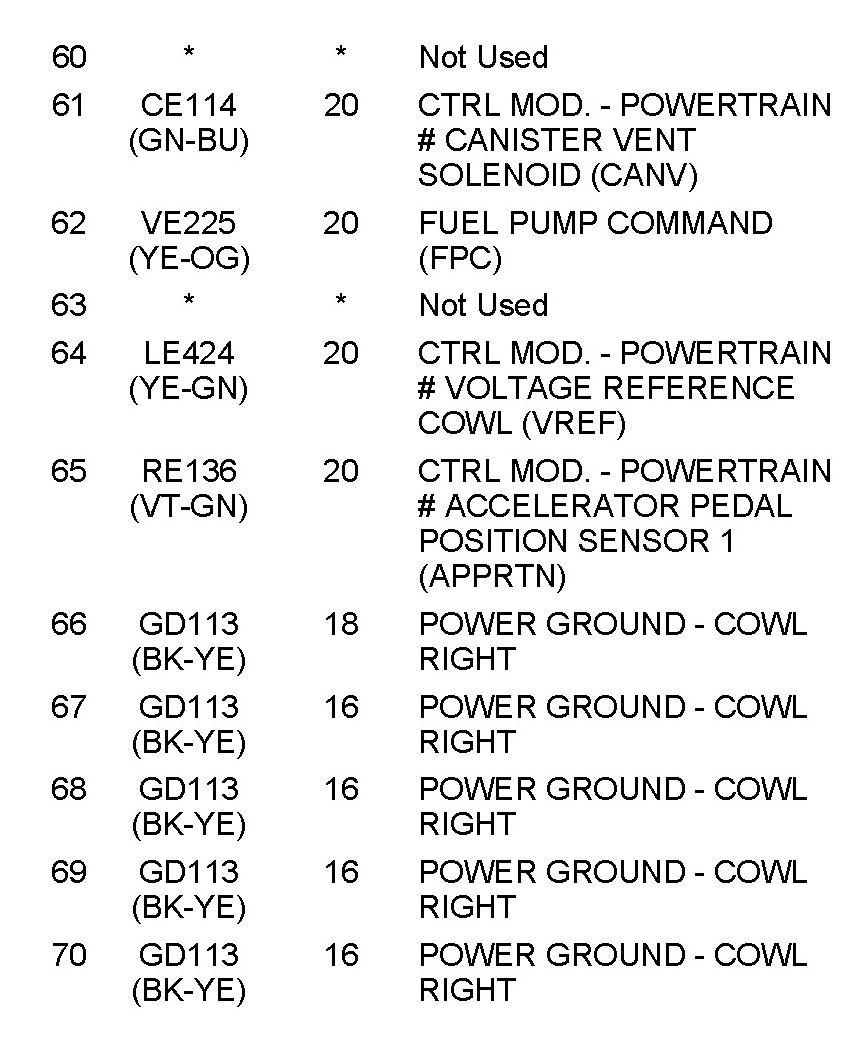

C175B Powertrain Control Module (PCM)
C175B Powertrain Control Module (PCM)
