Exploded Views




Wiper and Washer System - Exploded View

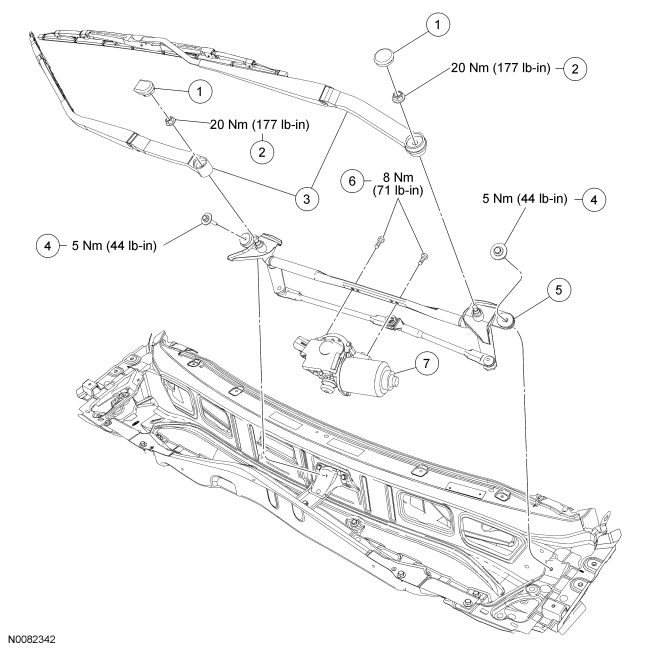

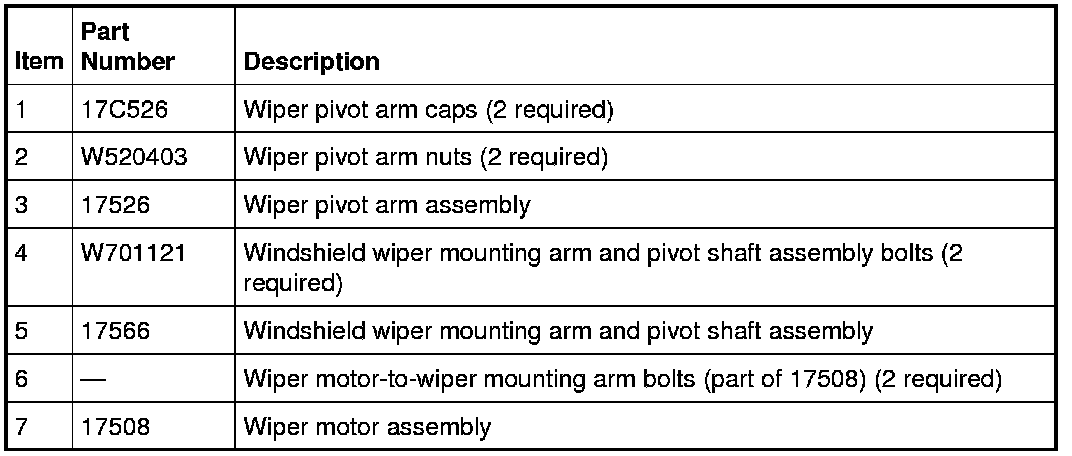

Windshield Wipers

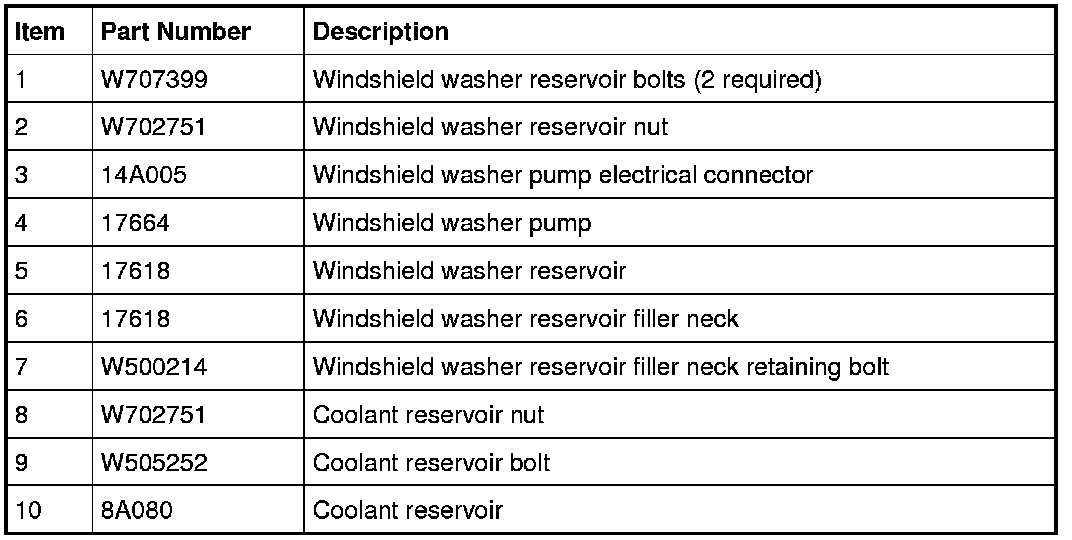

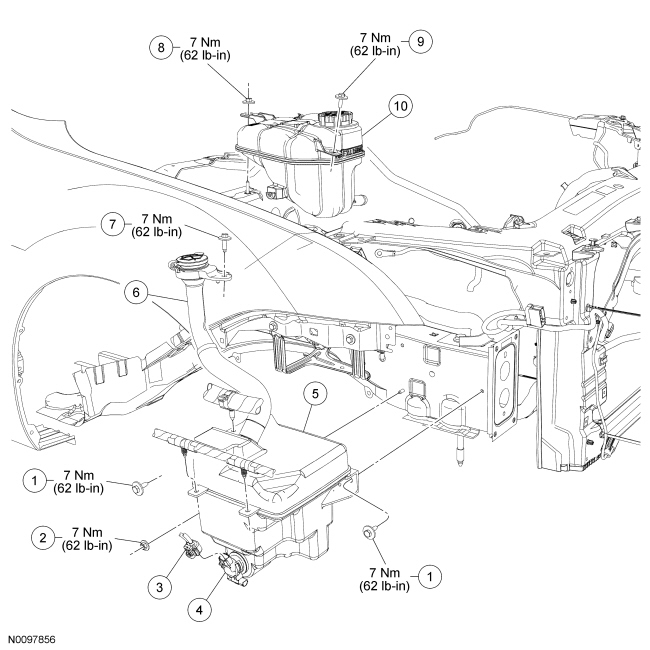

Washer Pump and Reservoir - Hybrid

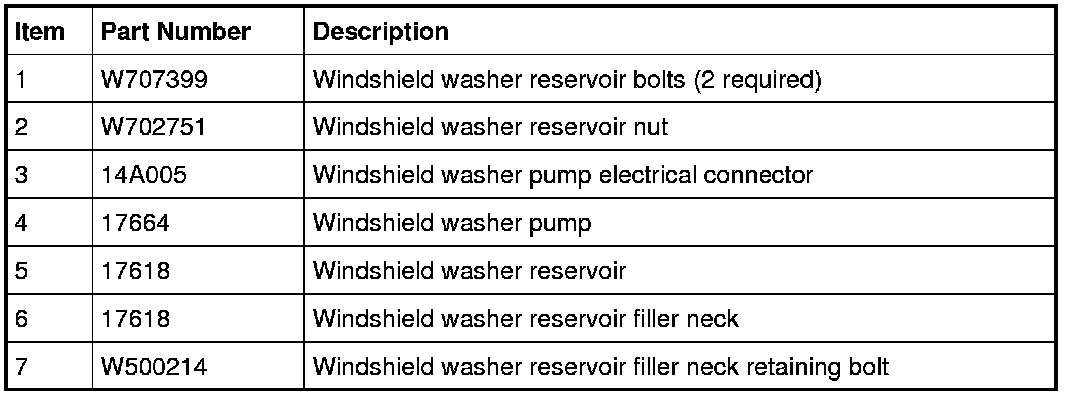

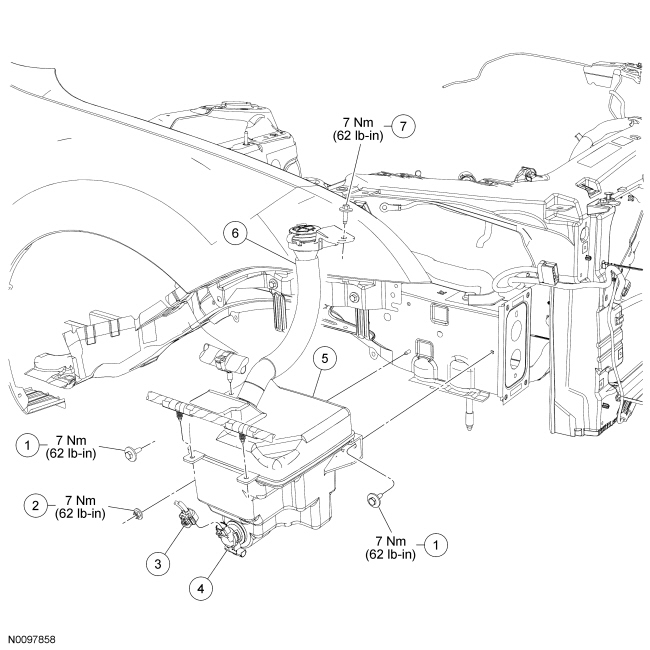

Washer Pump and Reservoir - Non-Hybrid
