Engine Lubrication

Engine Lubrication Components - Exploded View

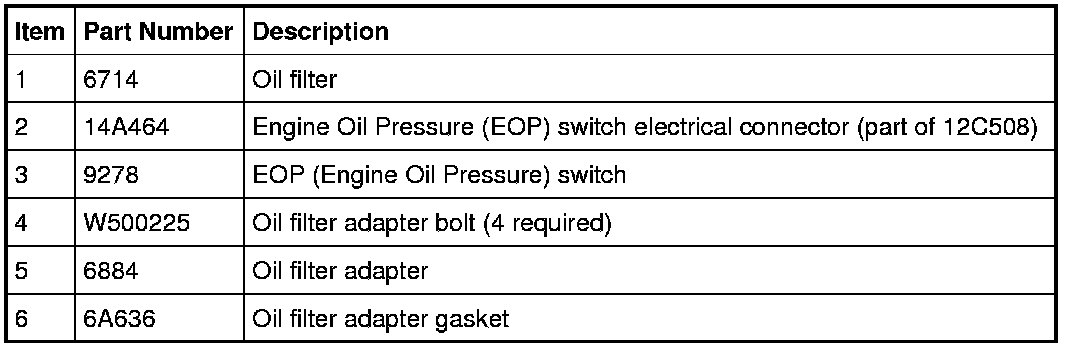

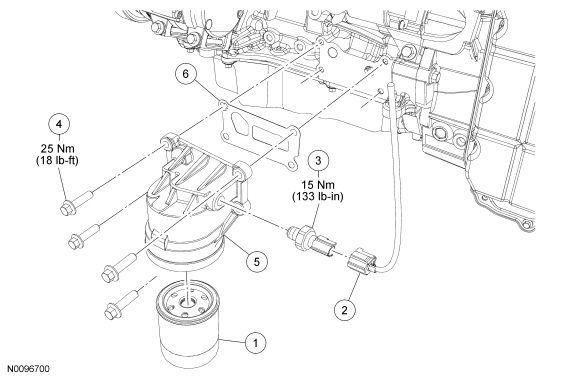

Oil Filter Adapter, Oil Filter and Engine Oil Pressure (EOP) Switch

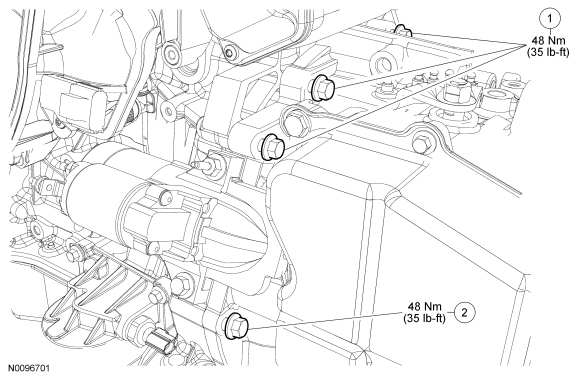

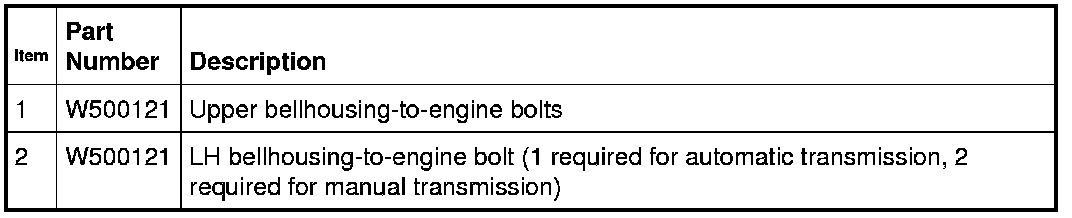

Transmission Bolts for Oil Pan Removal

NOTE: Automatic transmission shown, manual transmission similar.

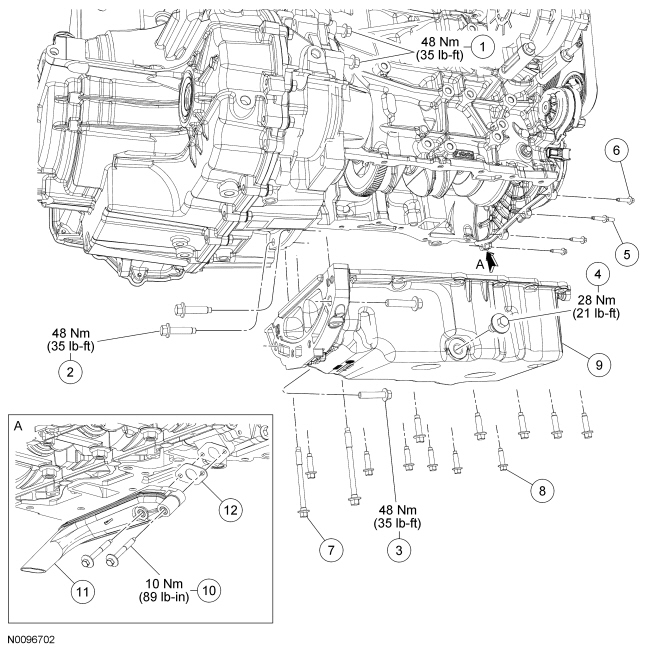

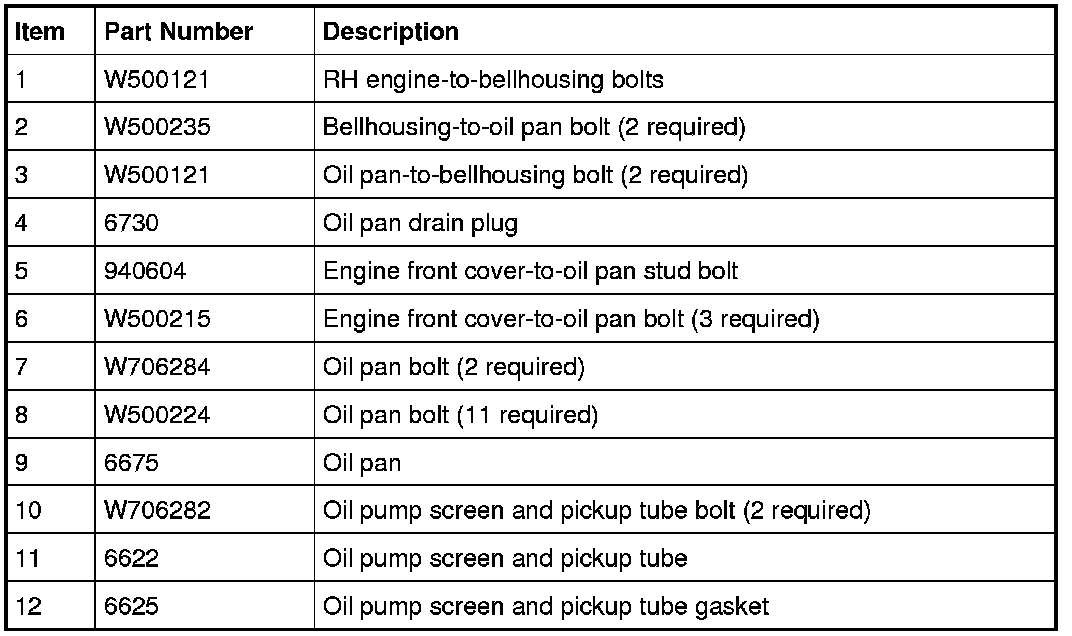

Oil Pan, Oil Pump Screen and Pickup Tube

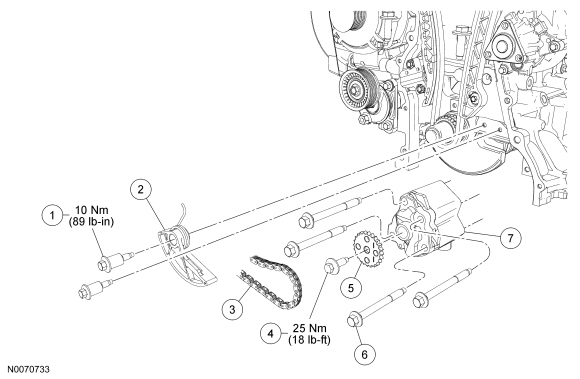

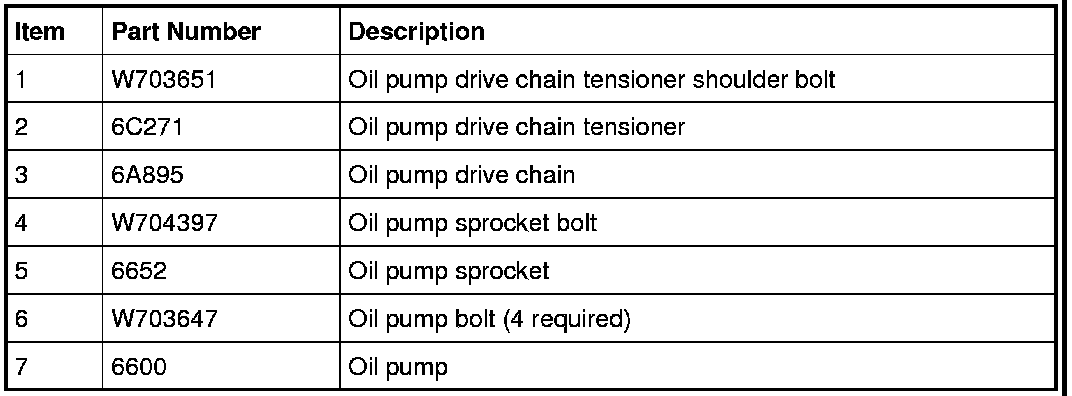

Oil Pump
