Home
>>
Ford
>>
2012
>>
Fusion FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>

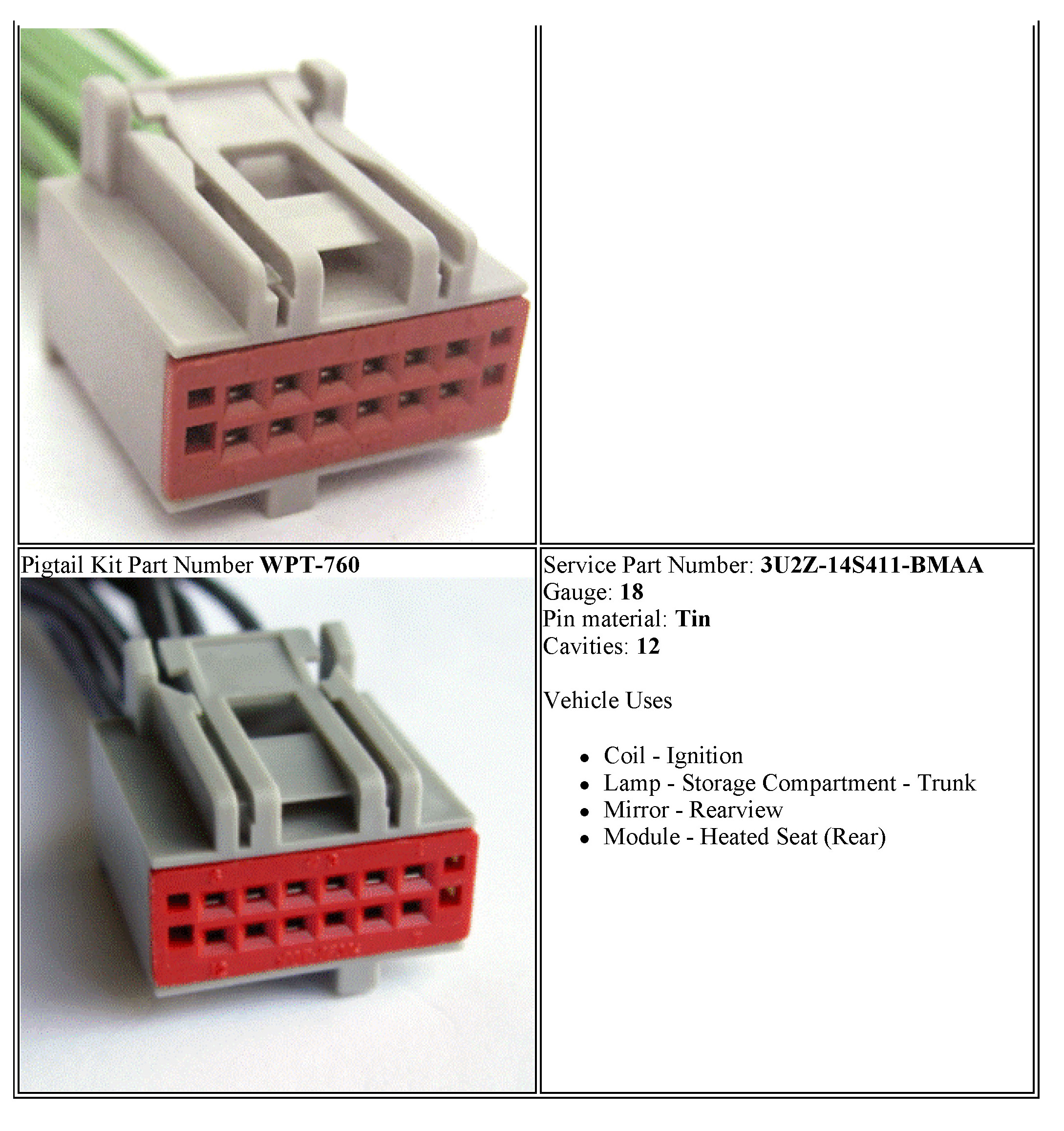

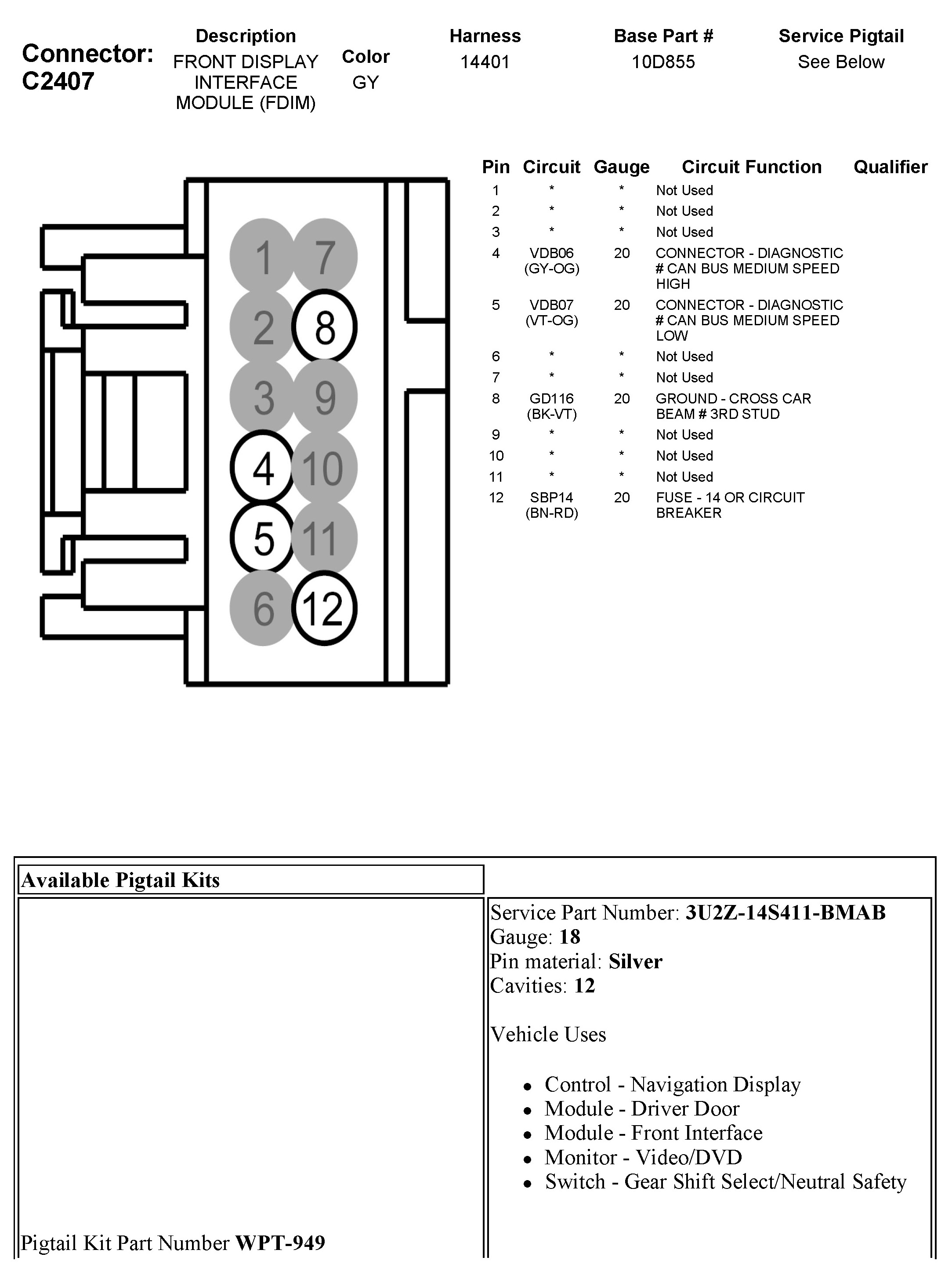

C2407 Front Display Interface Module (FDIM)
C2407 Front Display Interface Module (FDIM)
