Ford
>>
2012
>>
Fusion FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Interior Lighting Module
>>

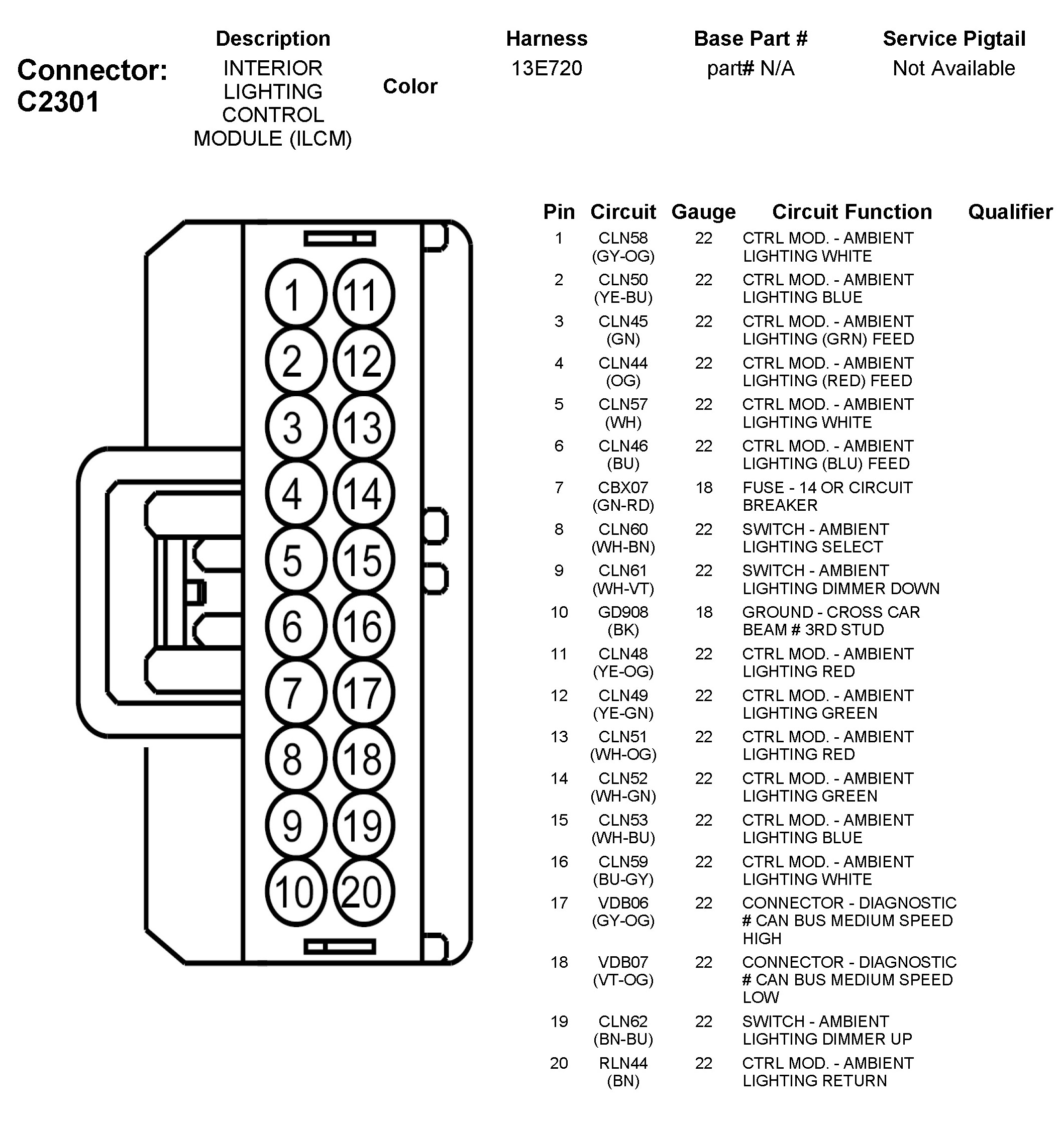

C2301 Interior Lighting Control Module (ILCM)
C2301 Interior Lighting Control Module (ILCM)
