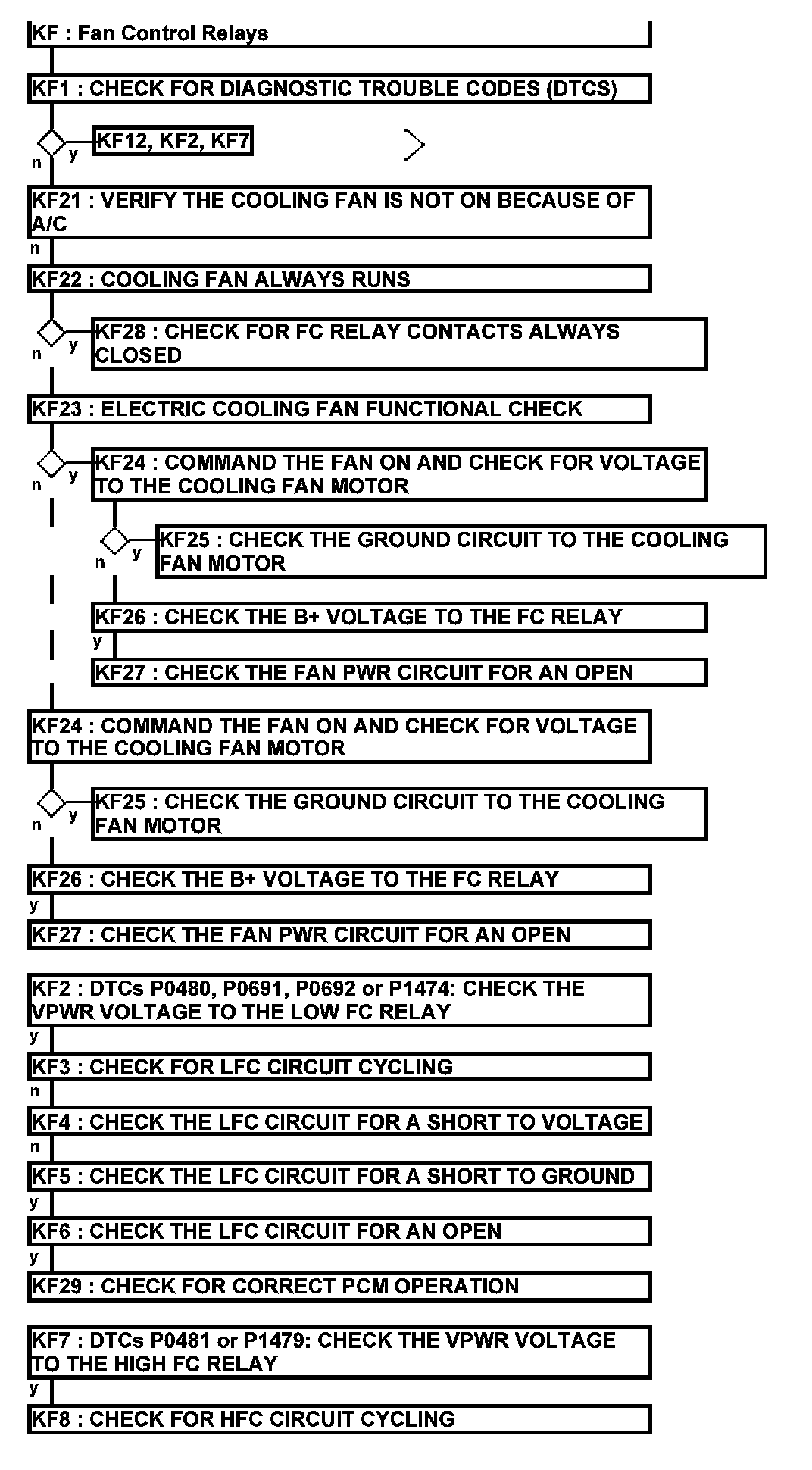

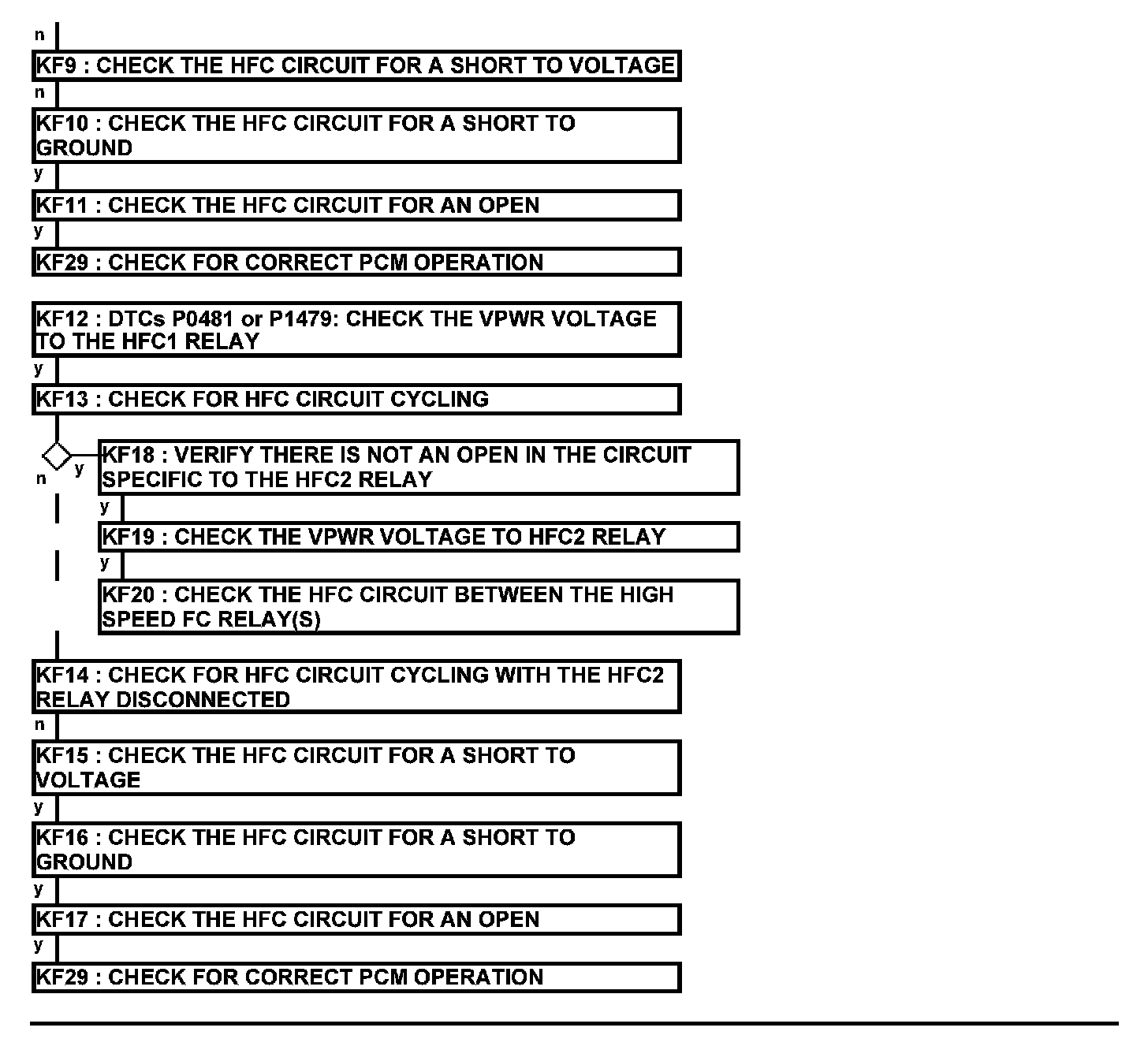

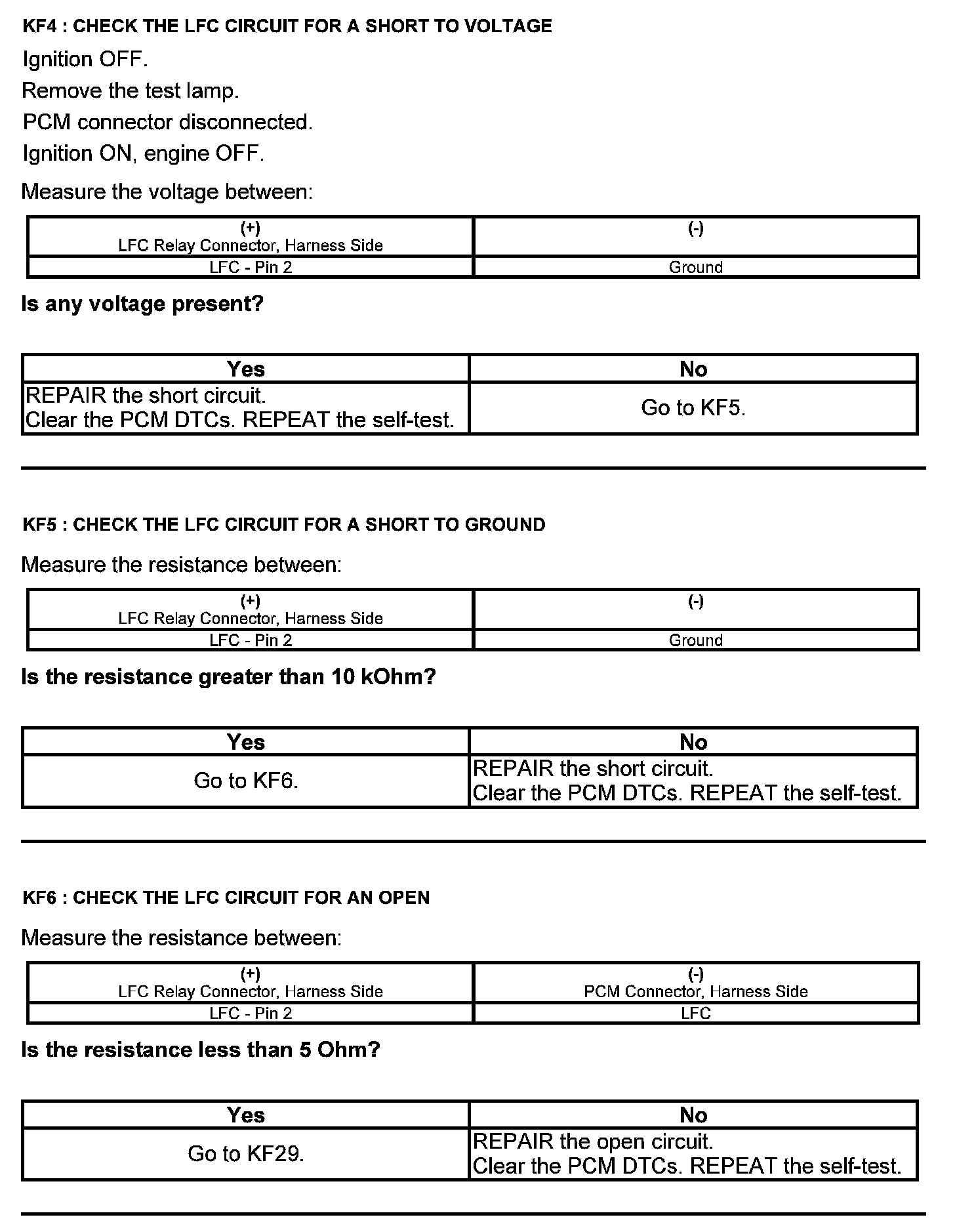

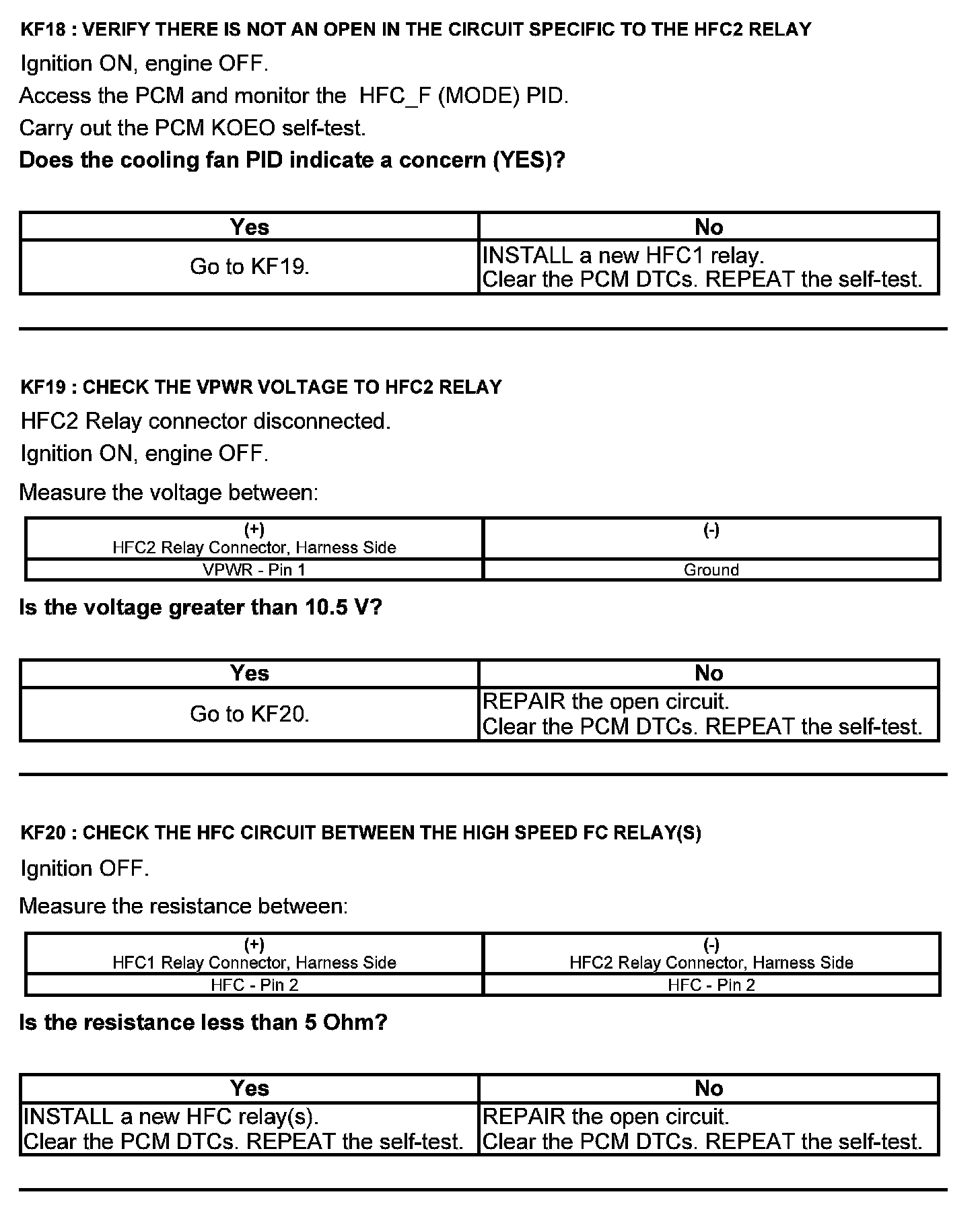

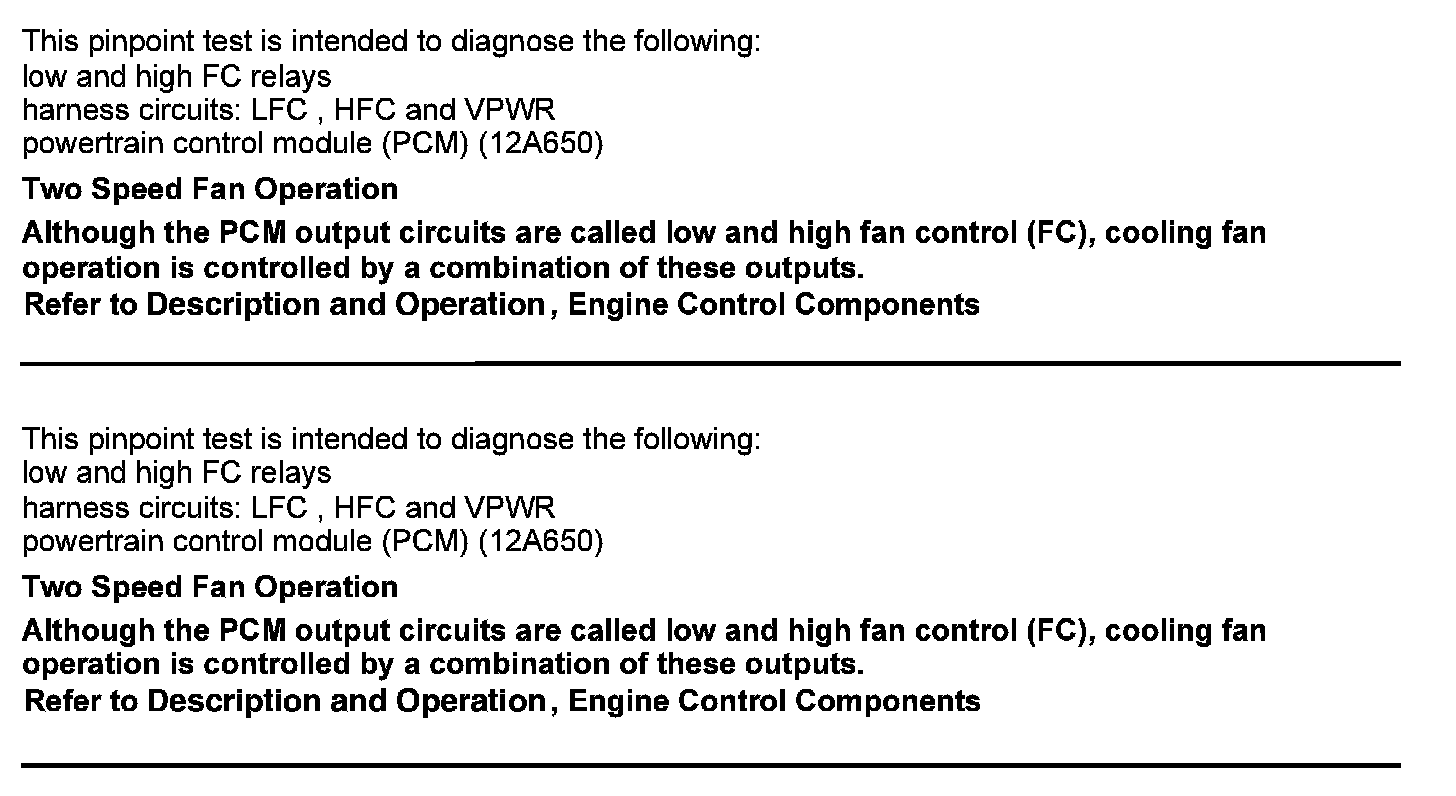

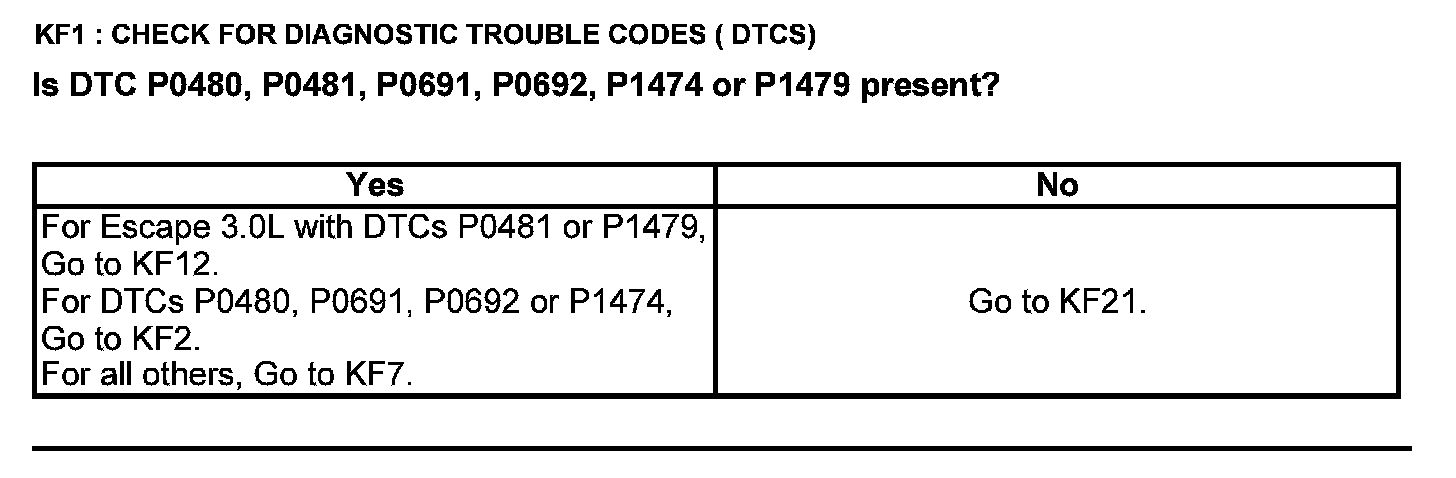

Test KF: Fan Control Relays

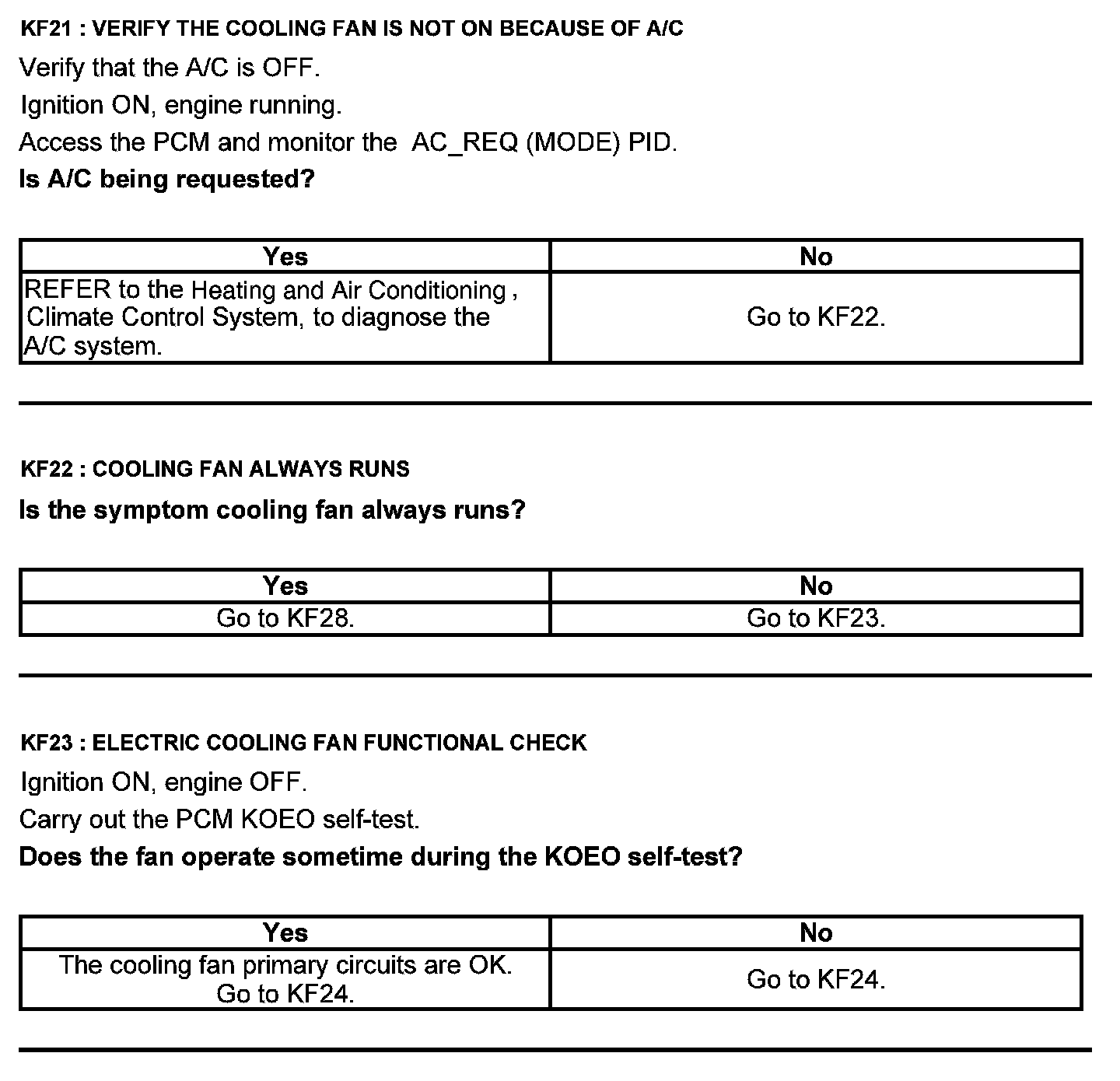

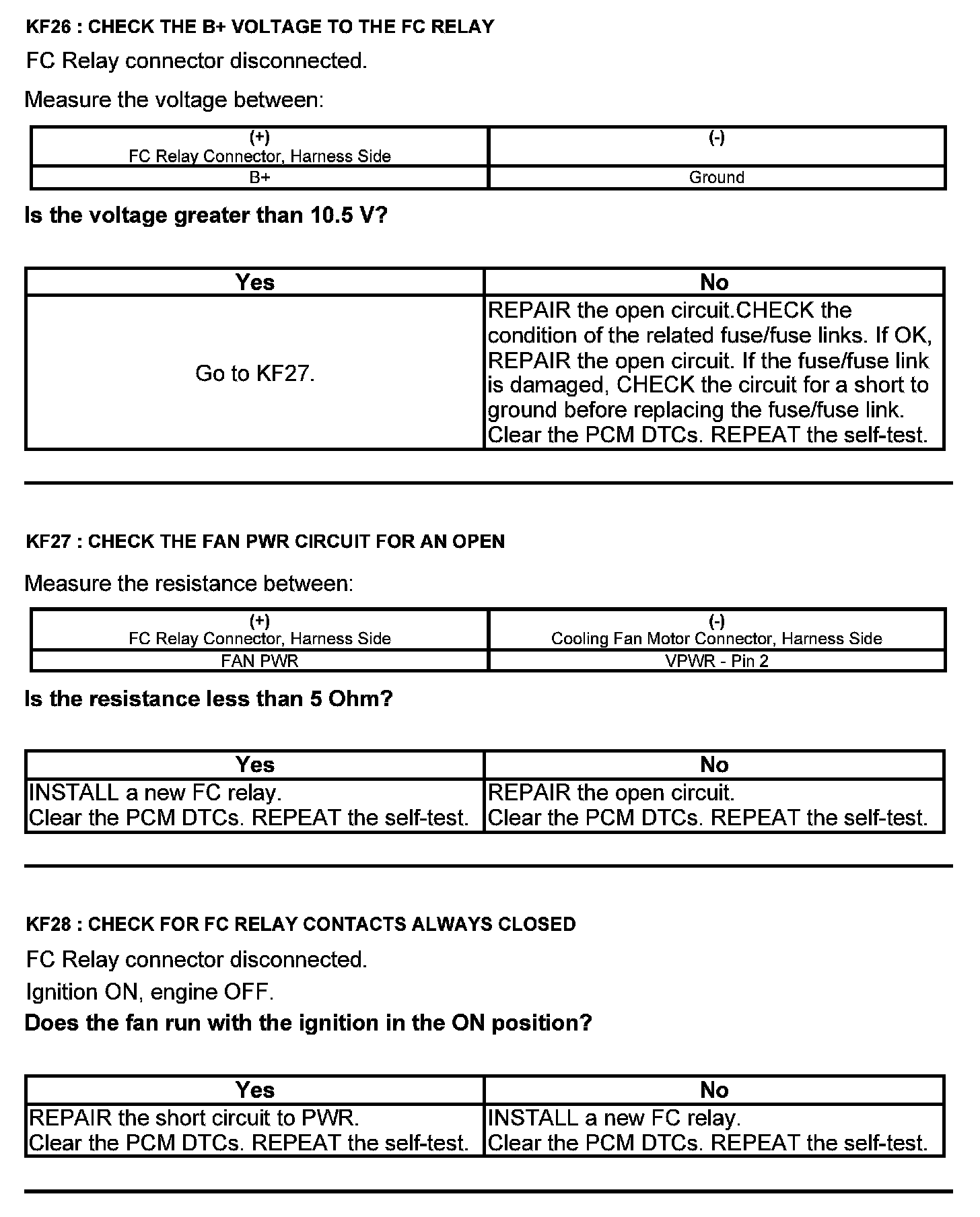

Fan Control Relays

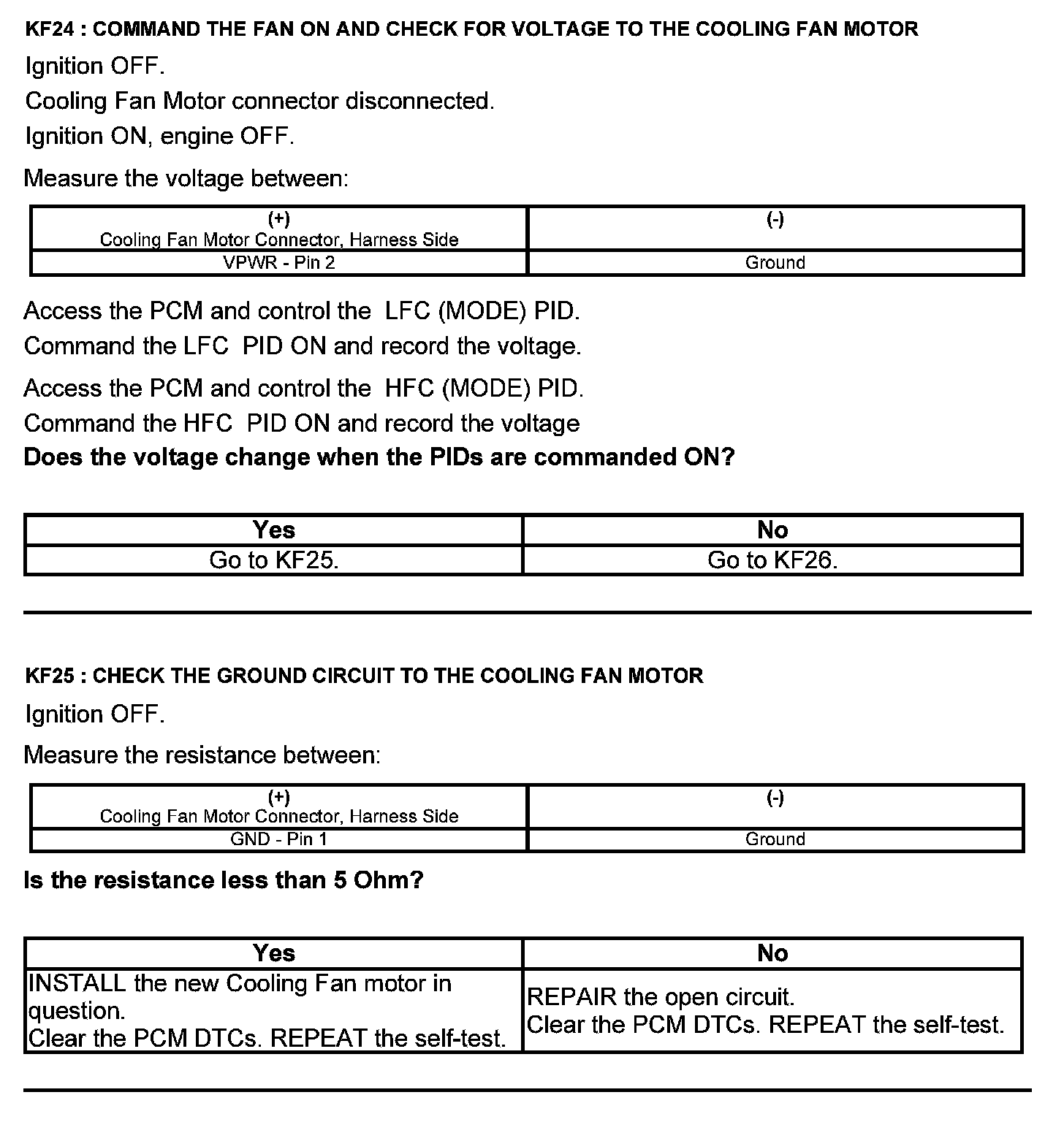

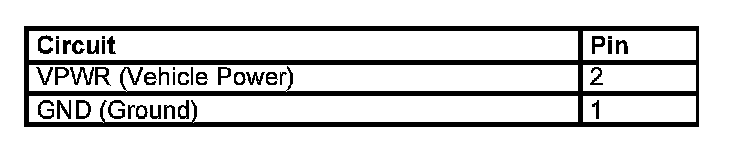

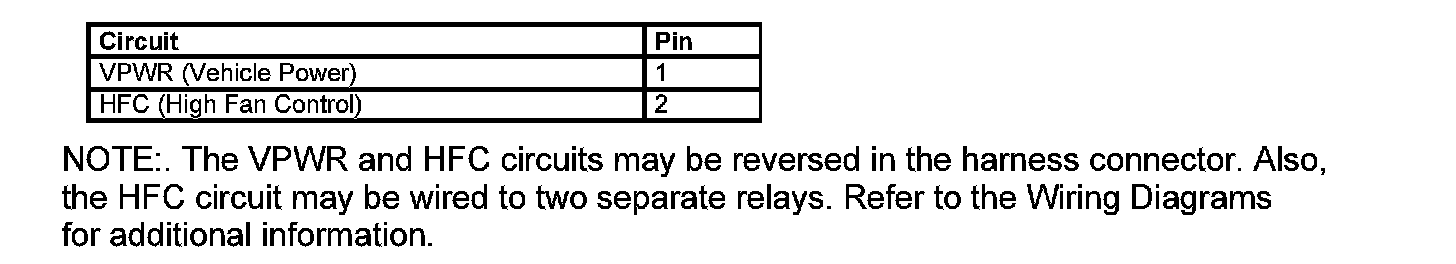

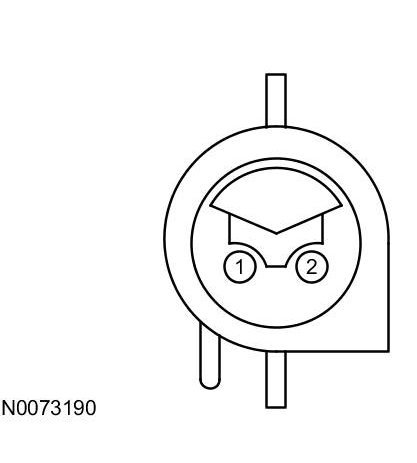

Cooling Fan Motor Connector





Harness Side

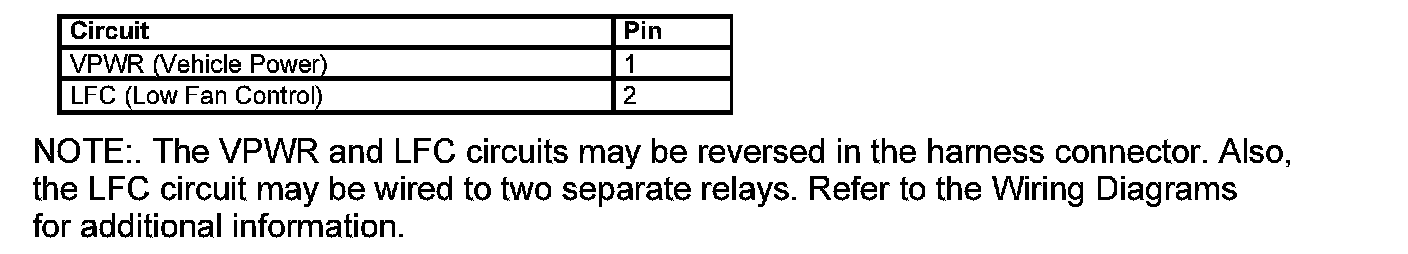

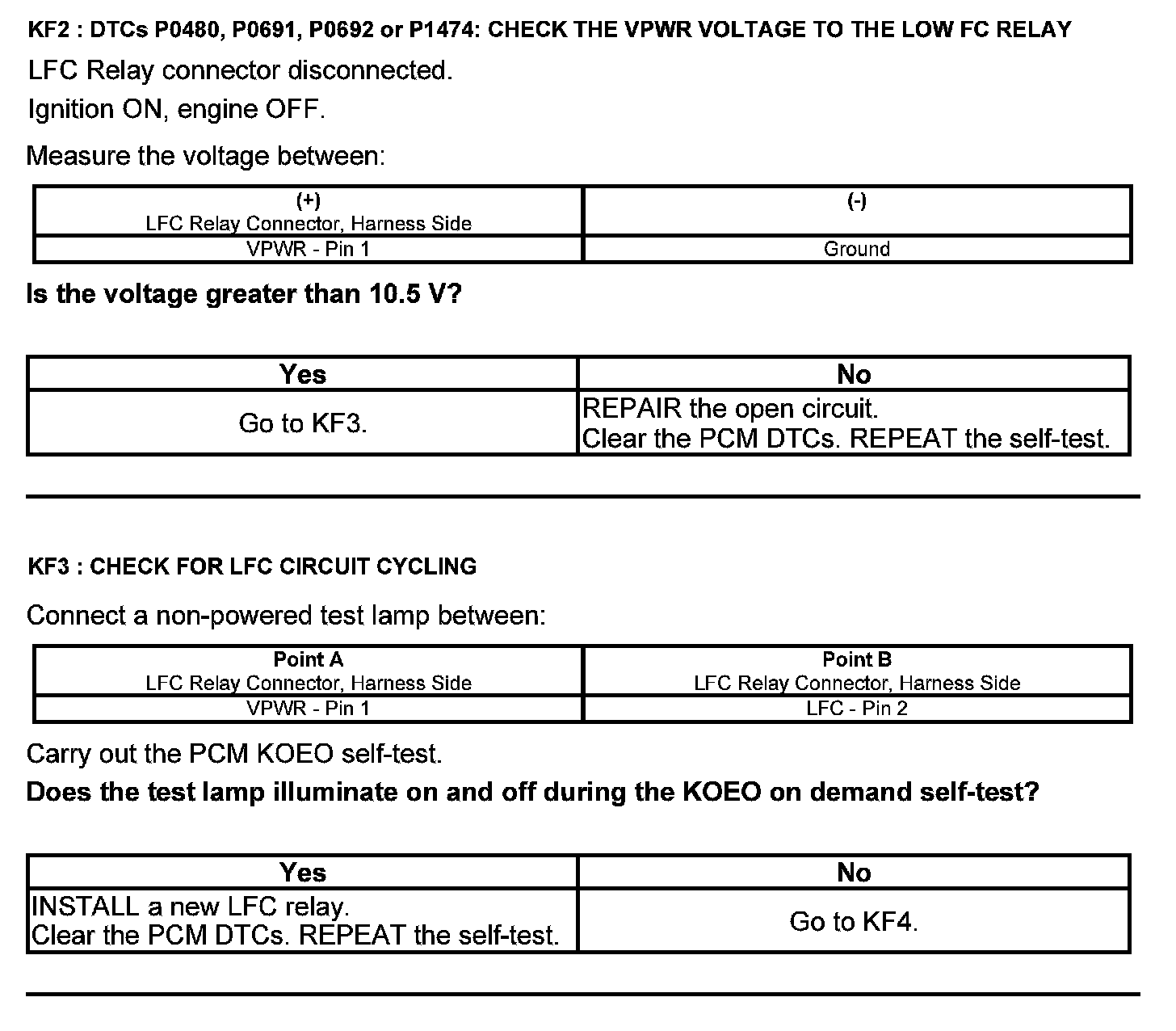

Low Fan Control (LFC) Relay Connector





Harness Side

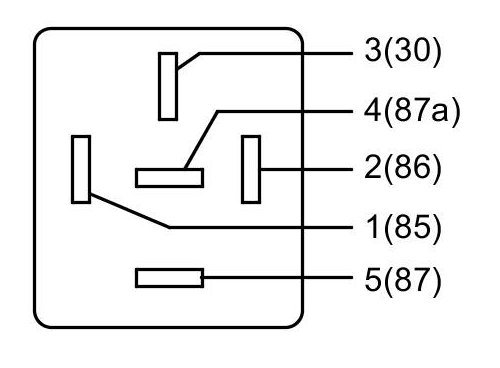

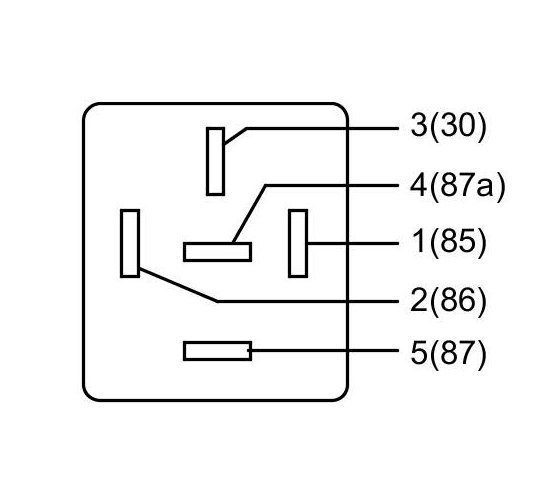

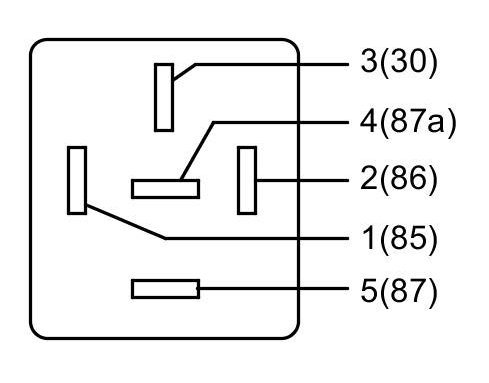

Component side

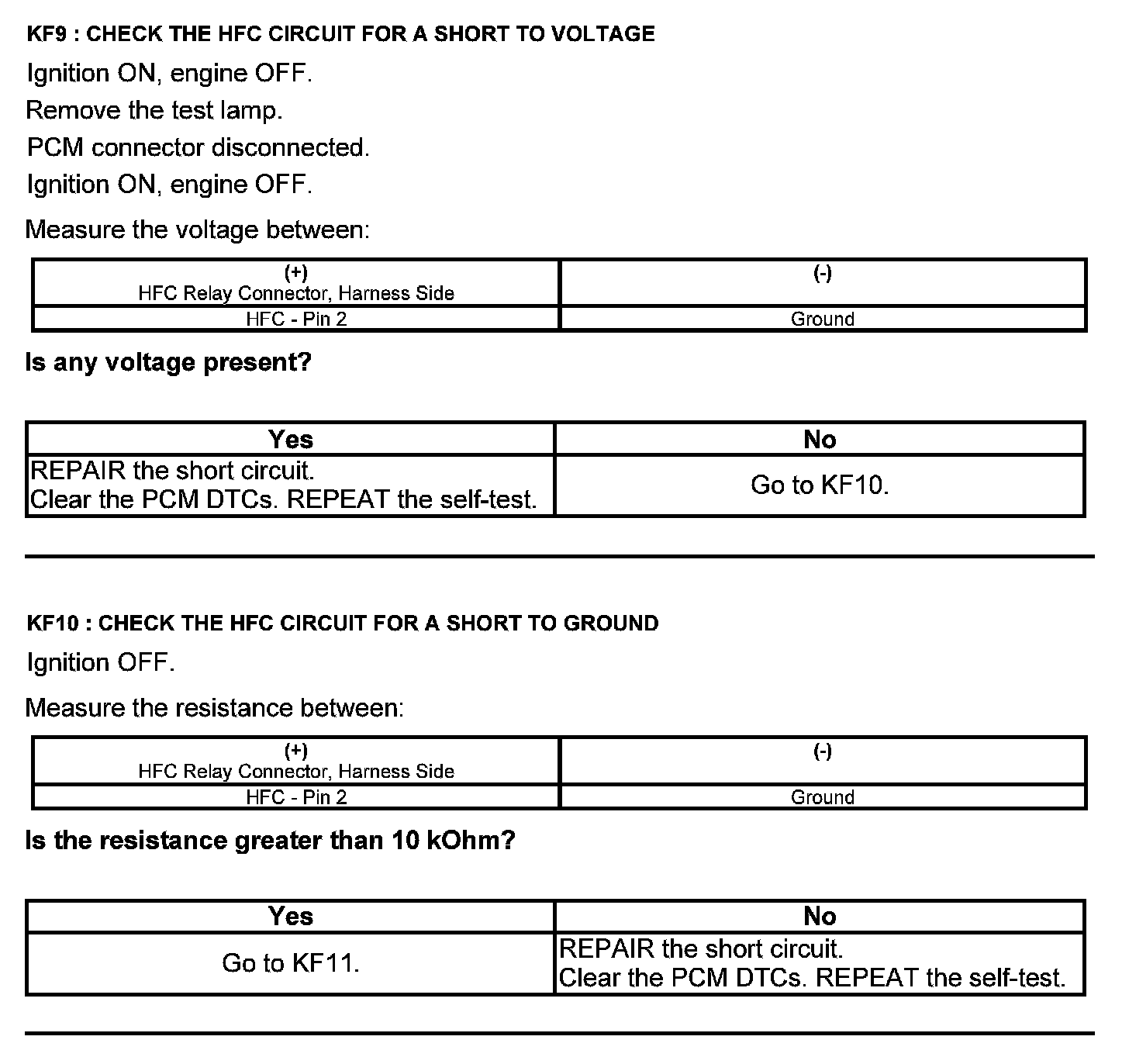

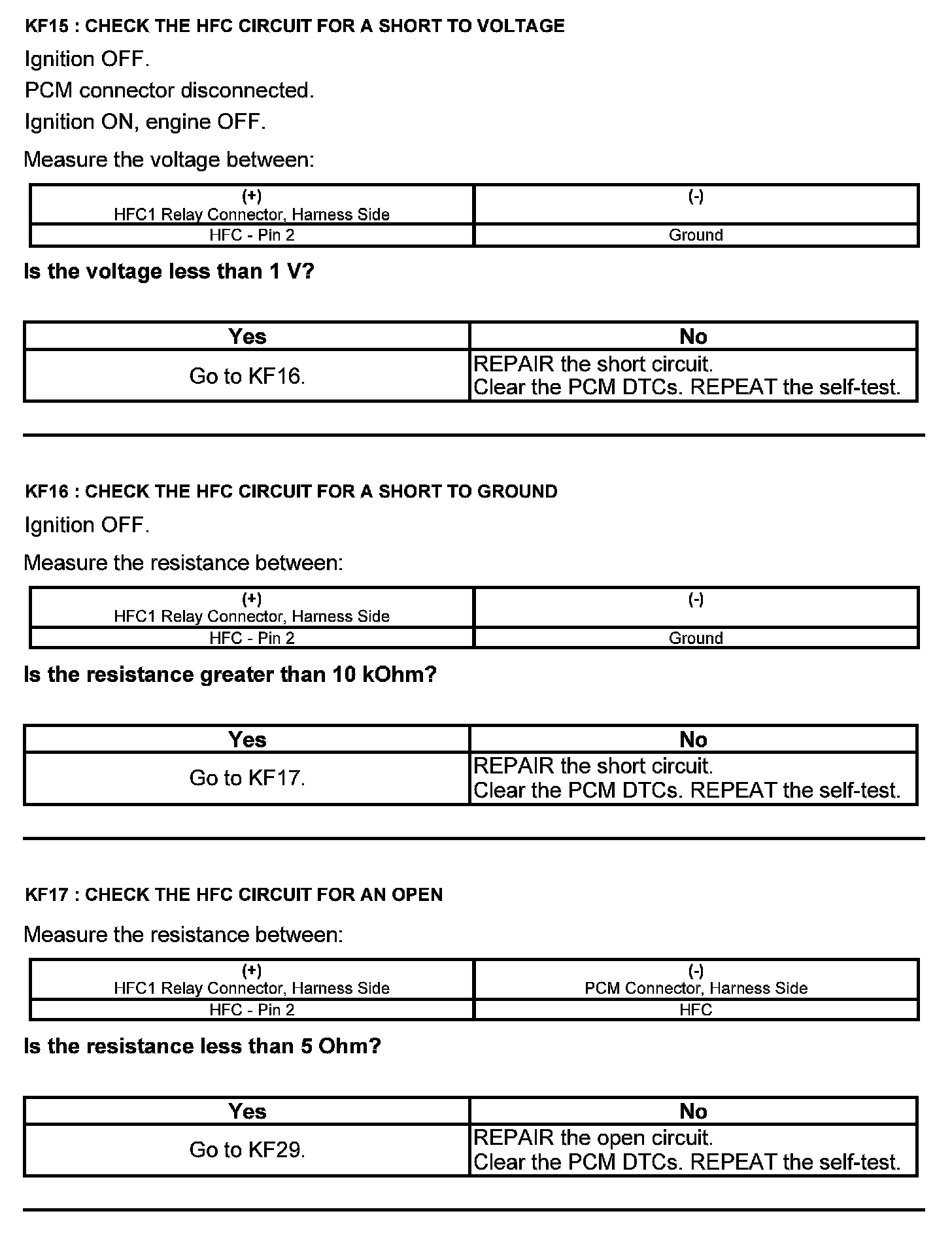

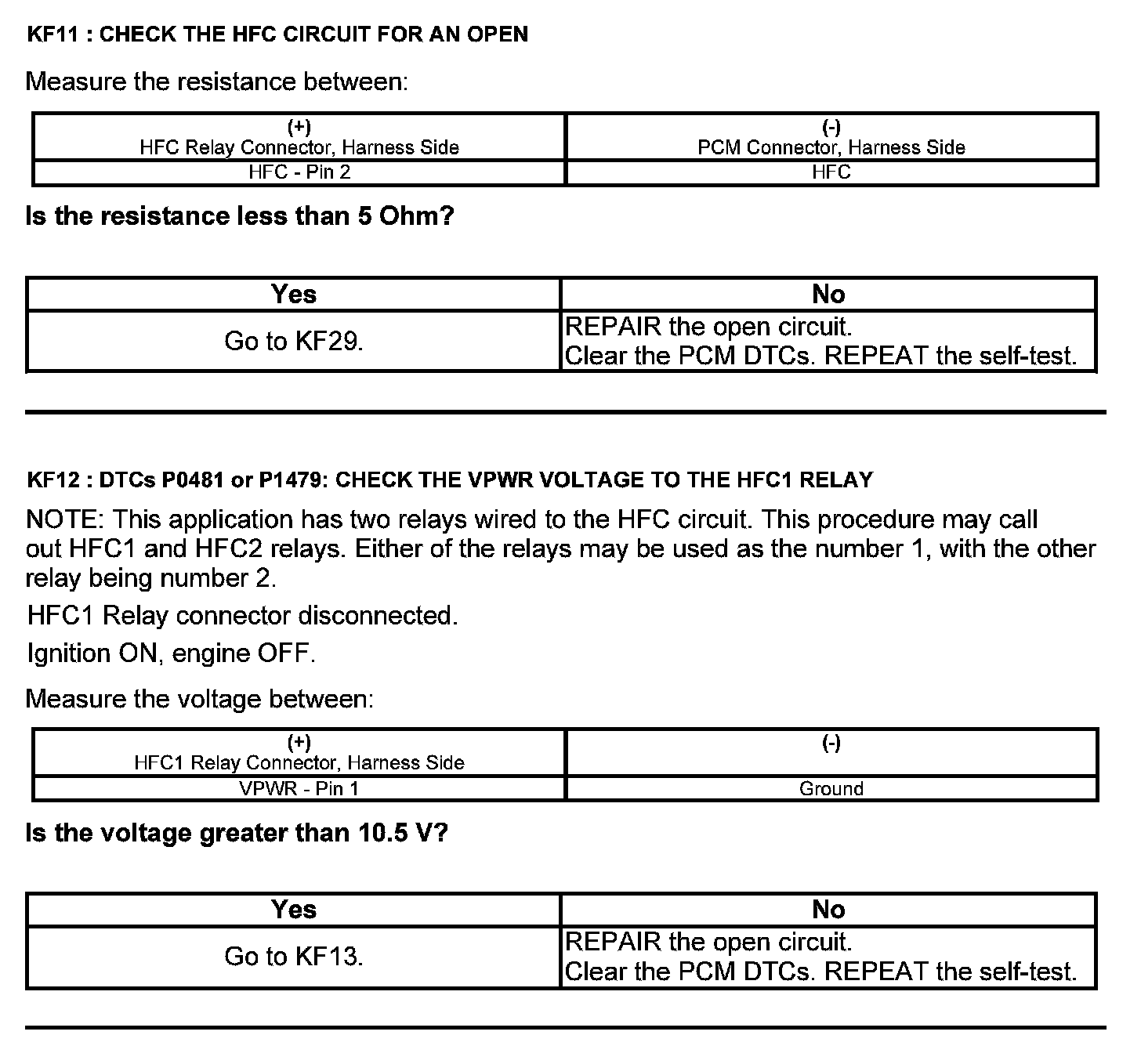

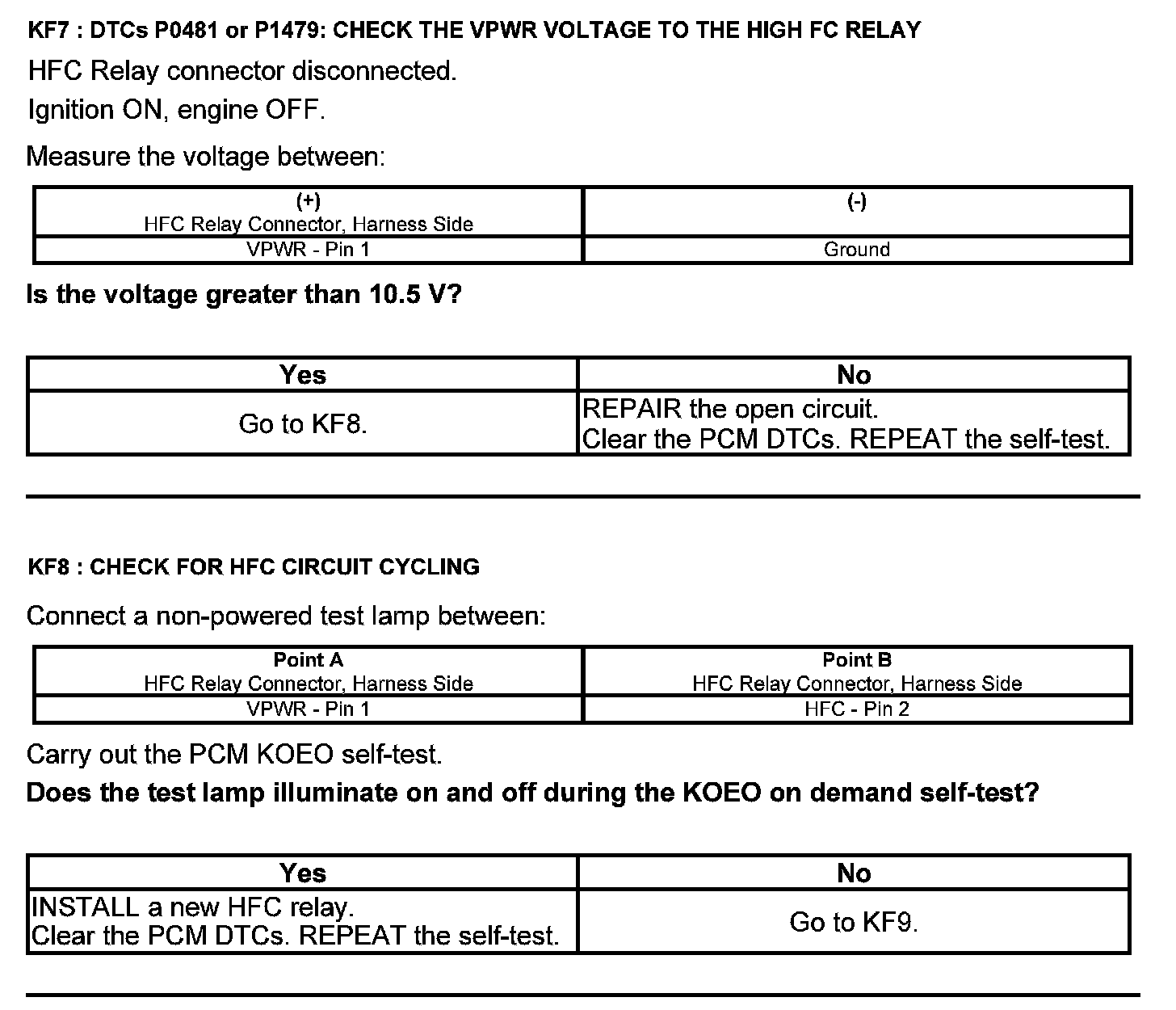

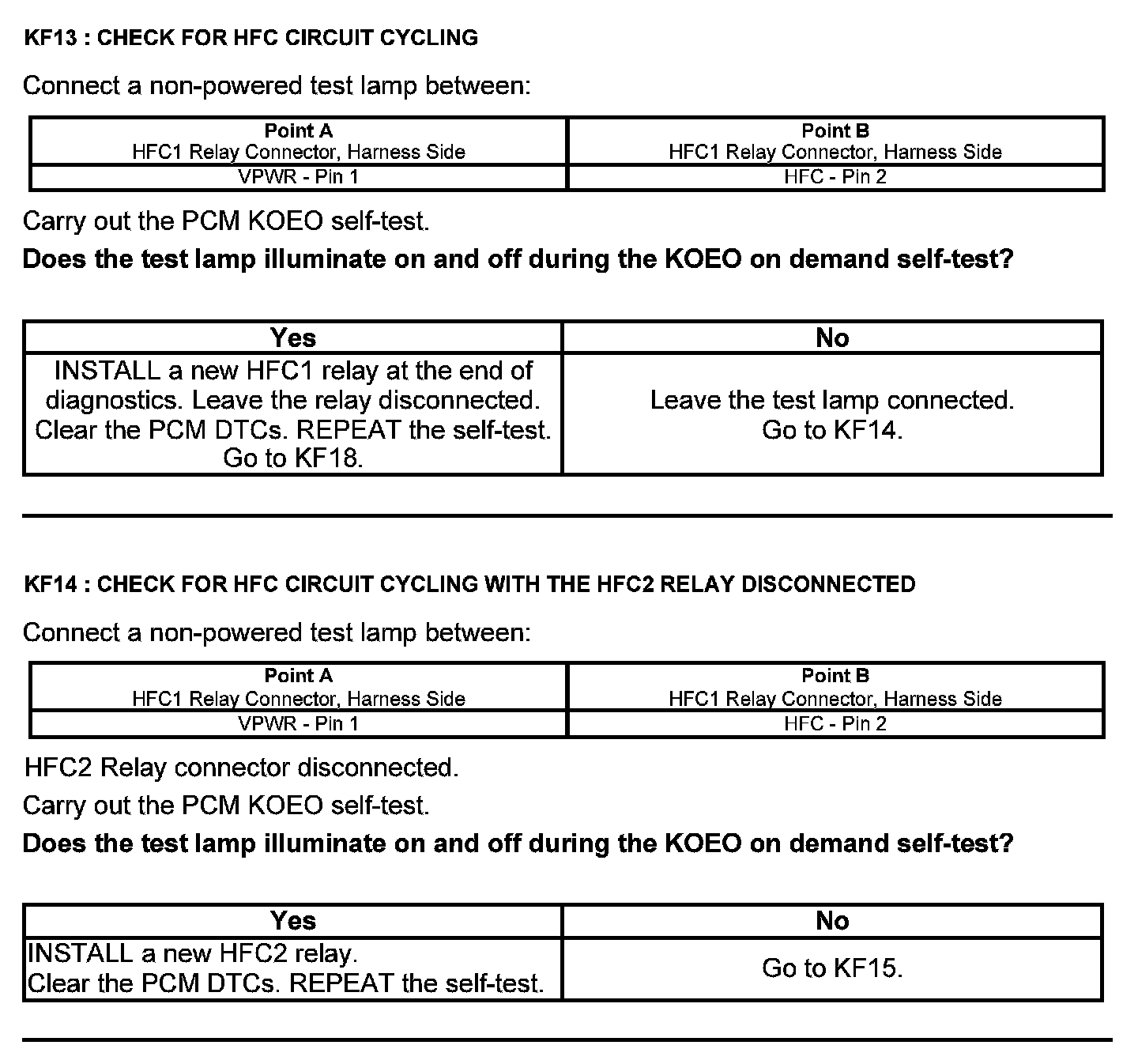

High Fan Control (HFC) Relay Connector




Harness Side

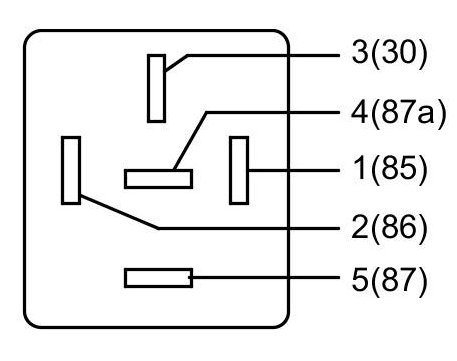

Component side

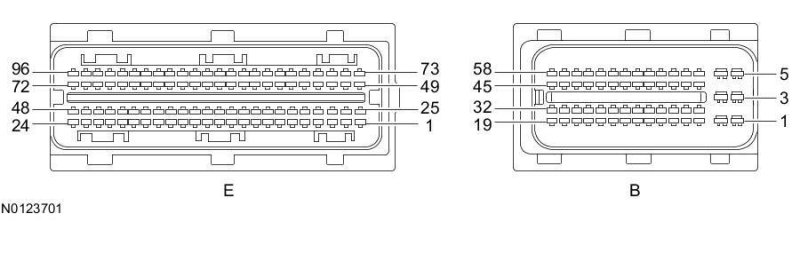

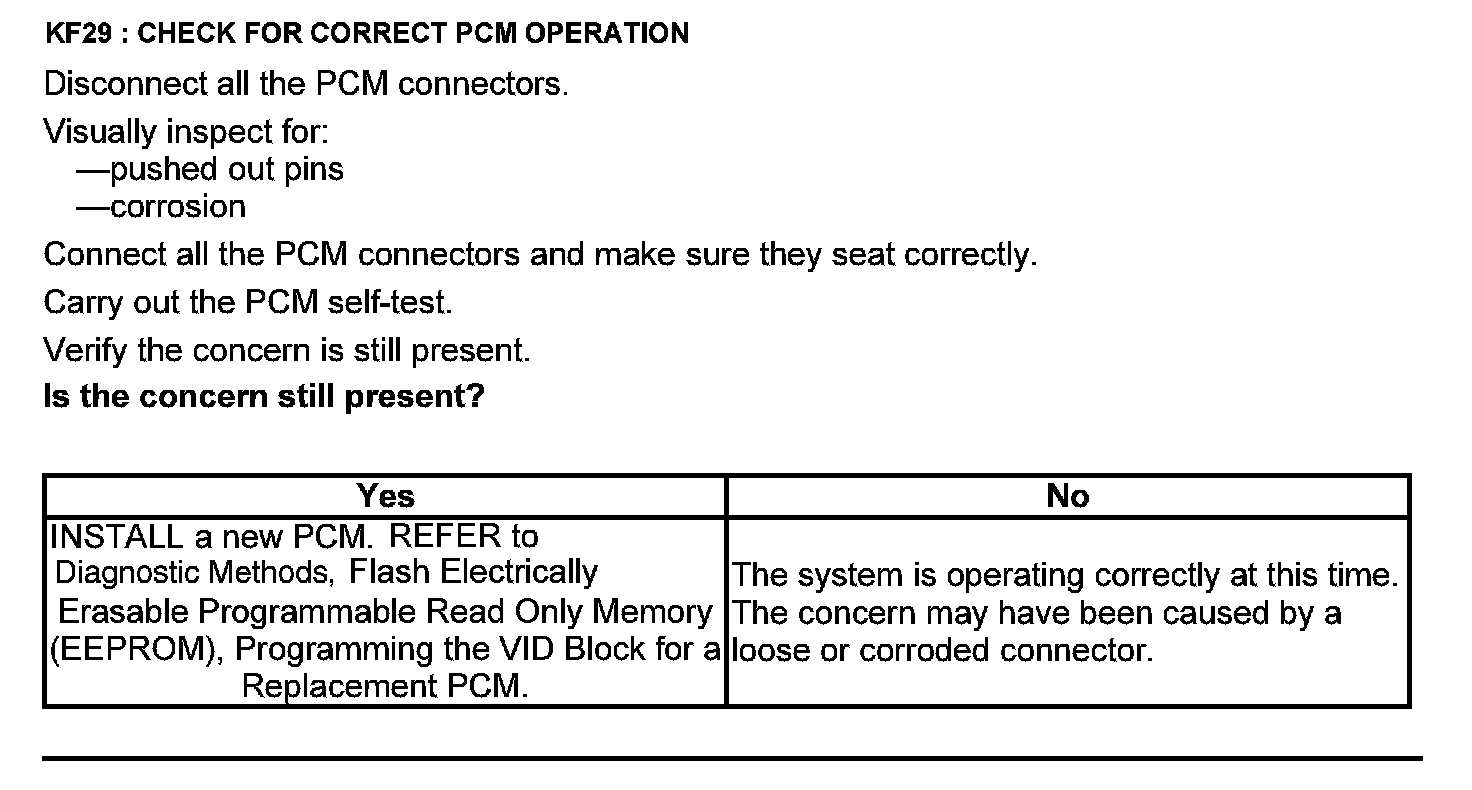

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
