Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test DI: Direct Fuel Injection Fuel Injector

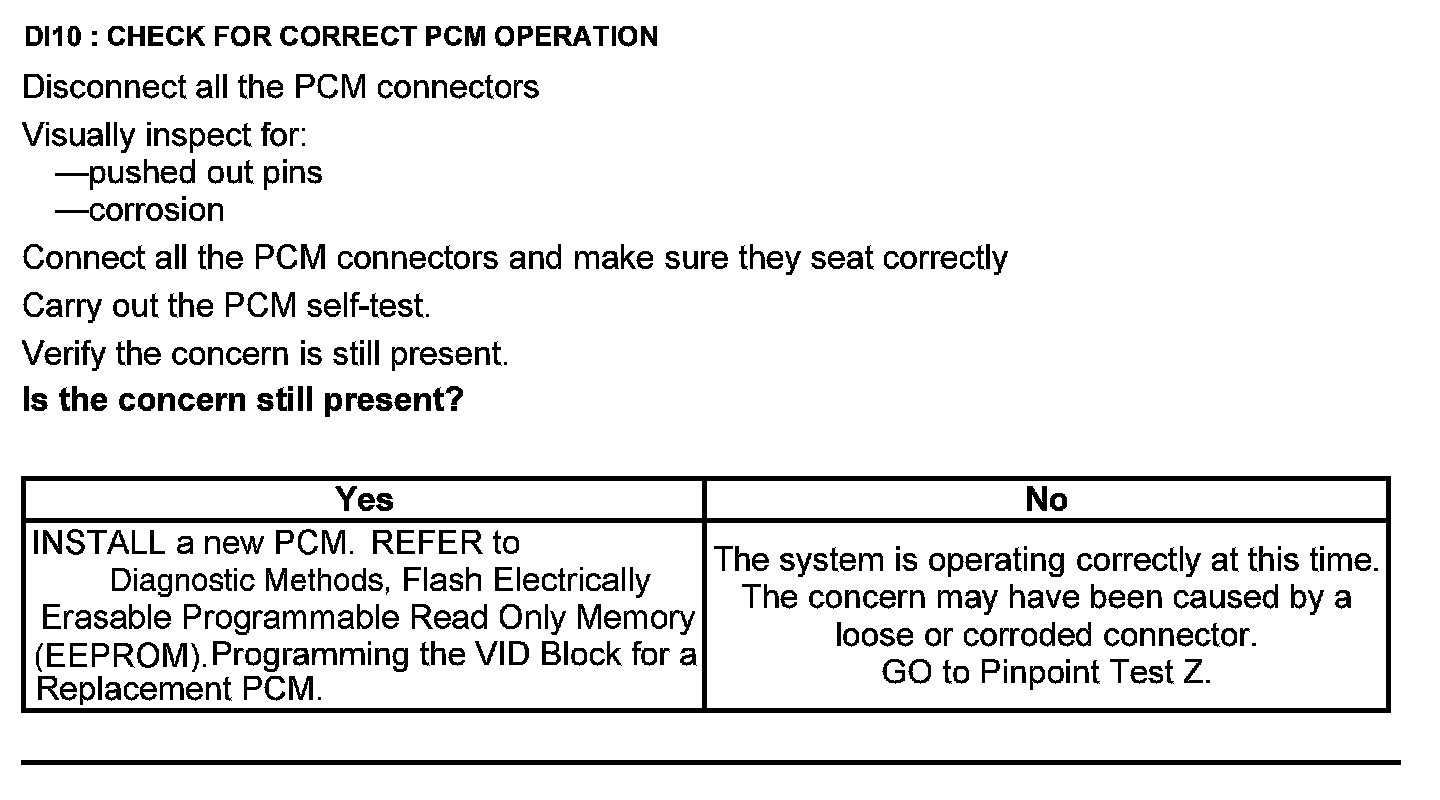

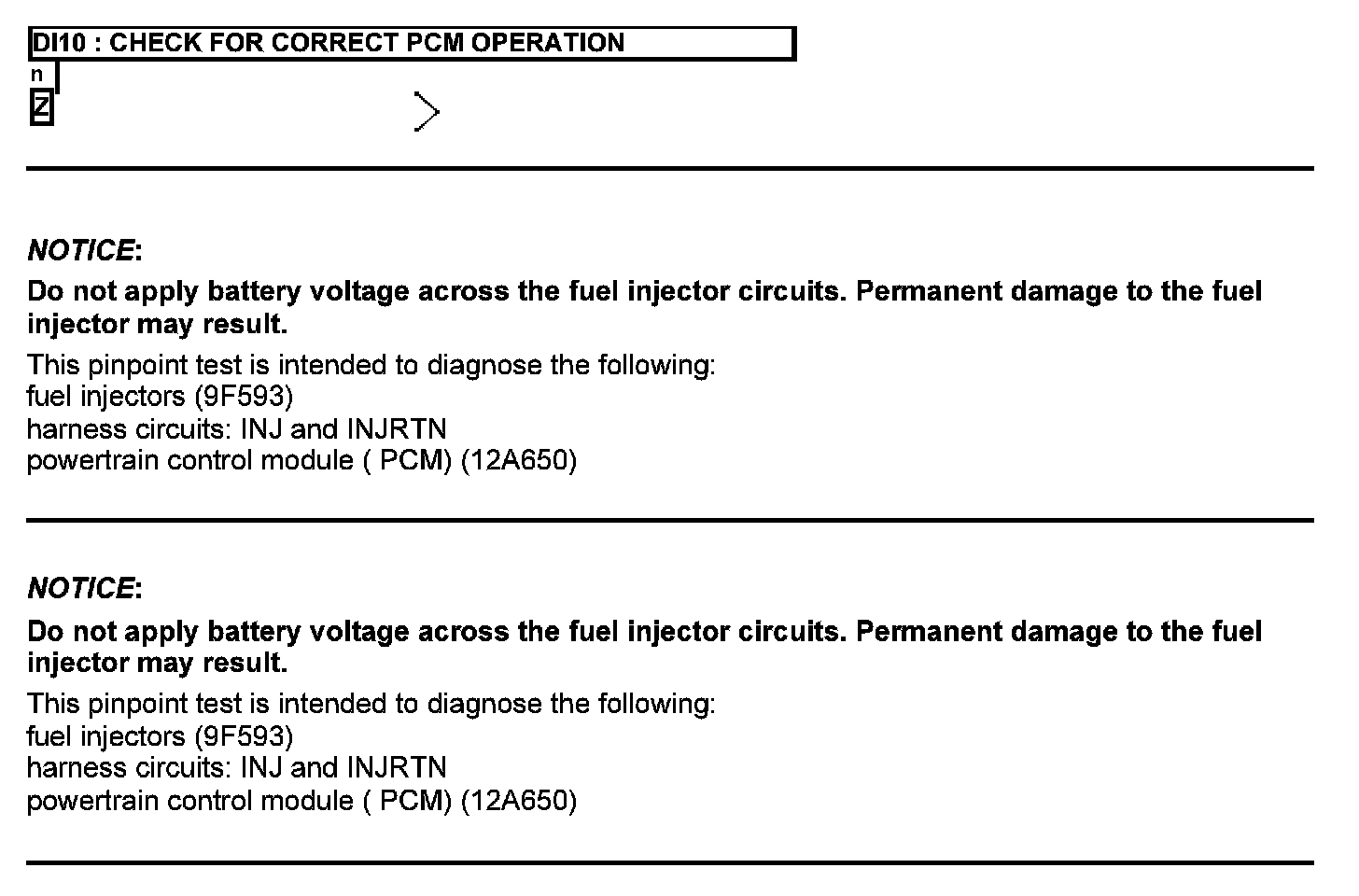

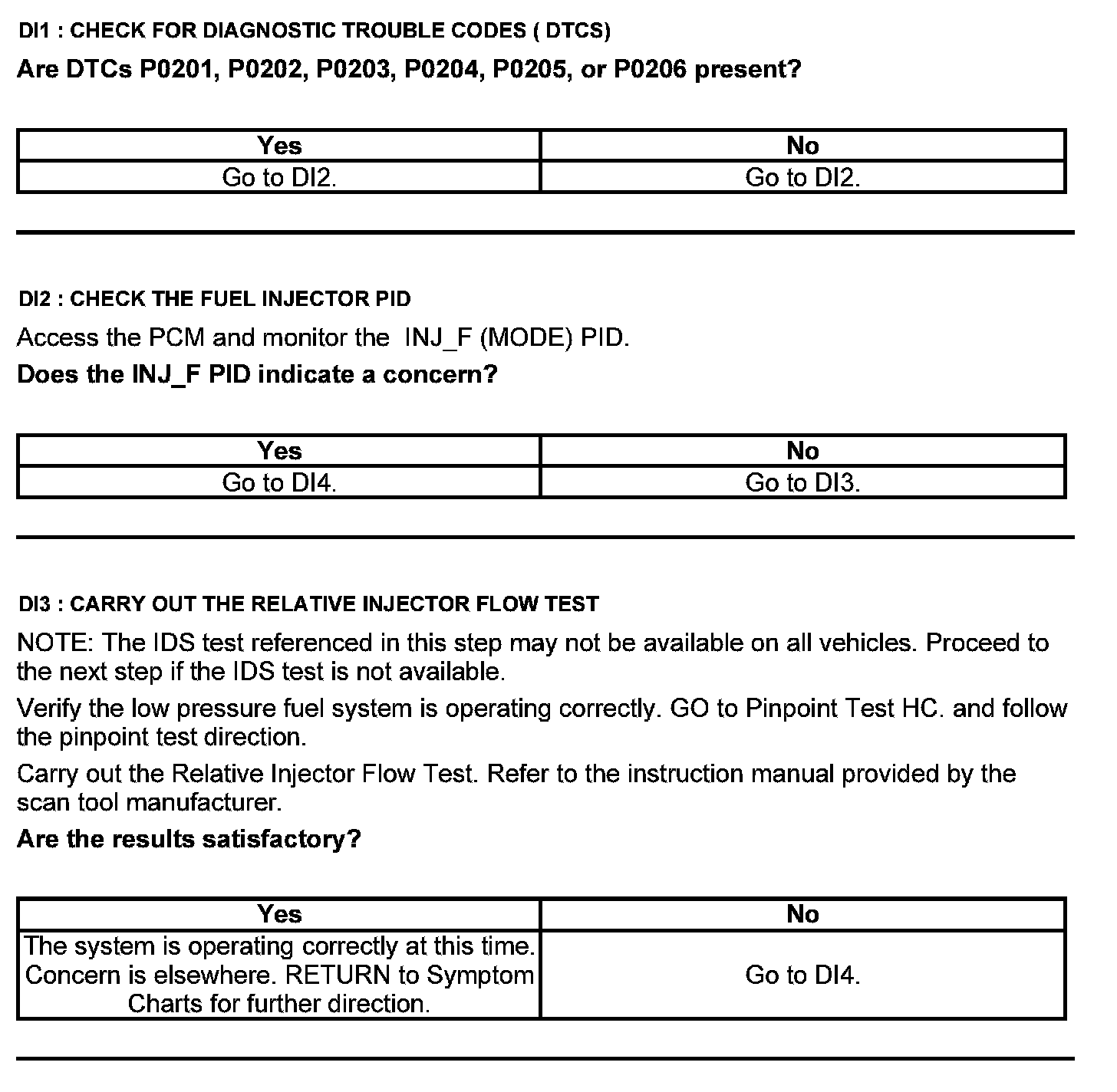

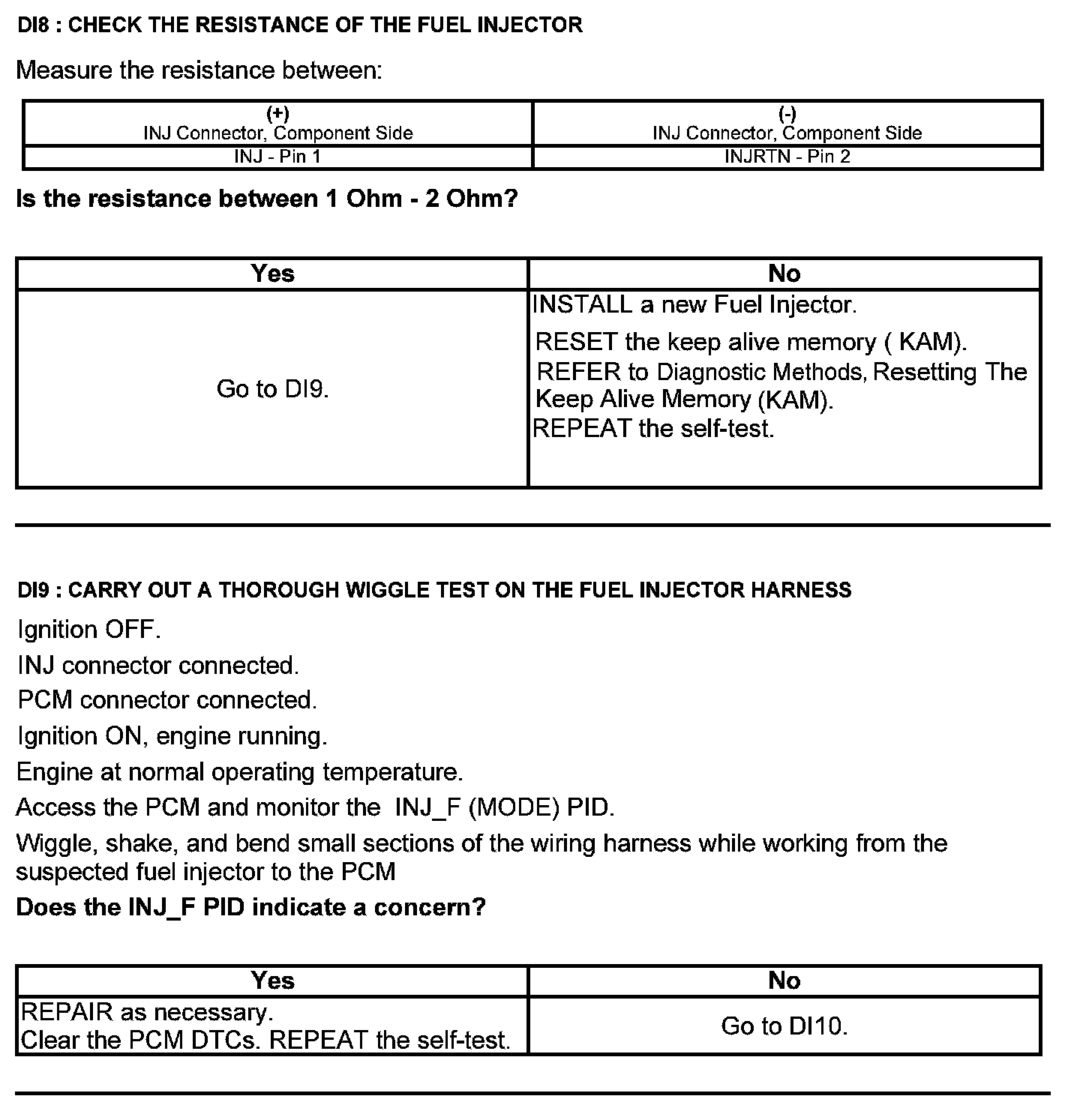

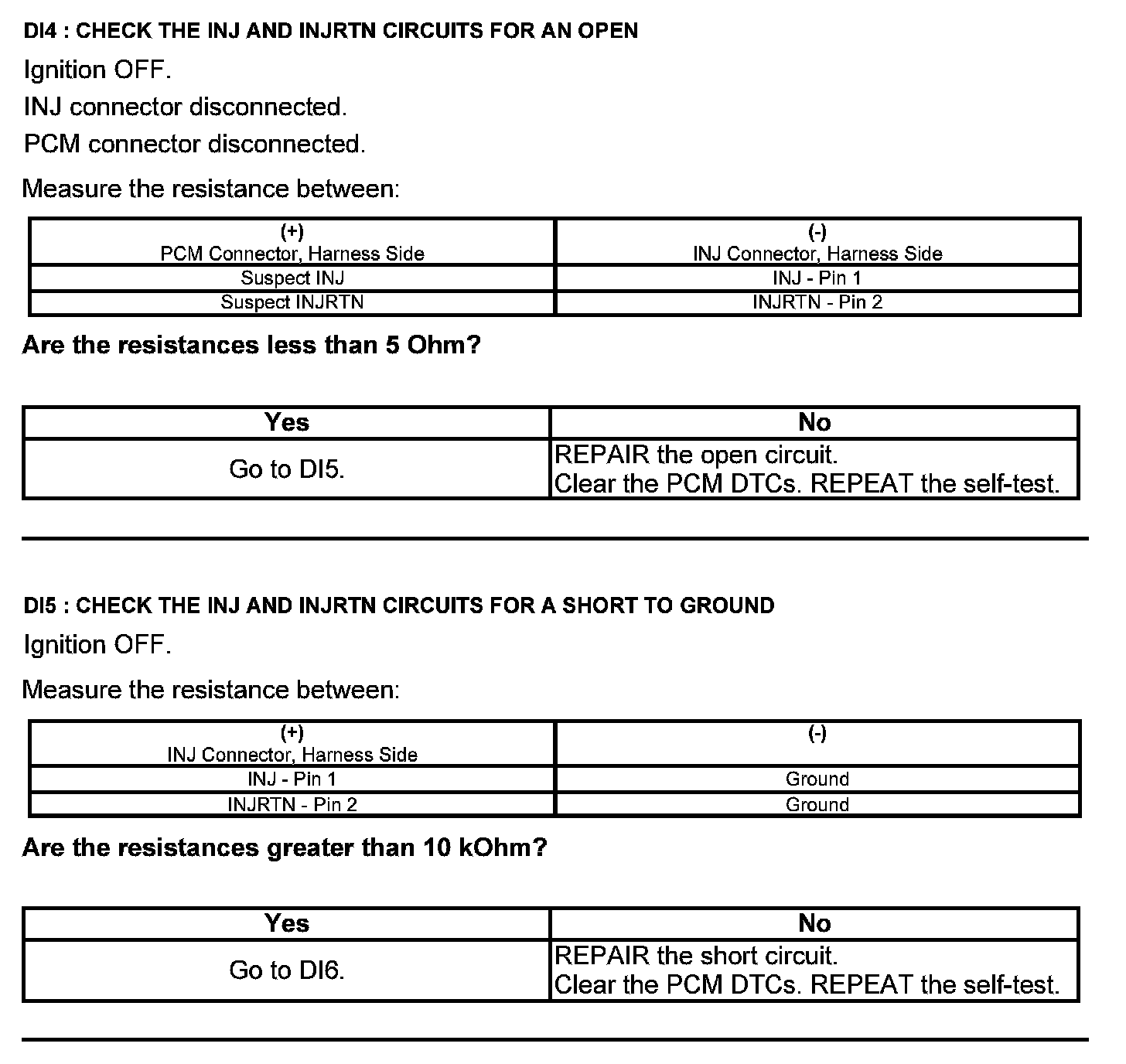

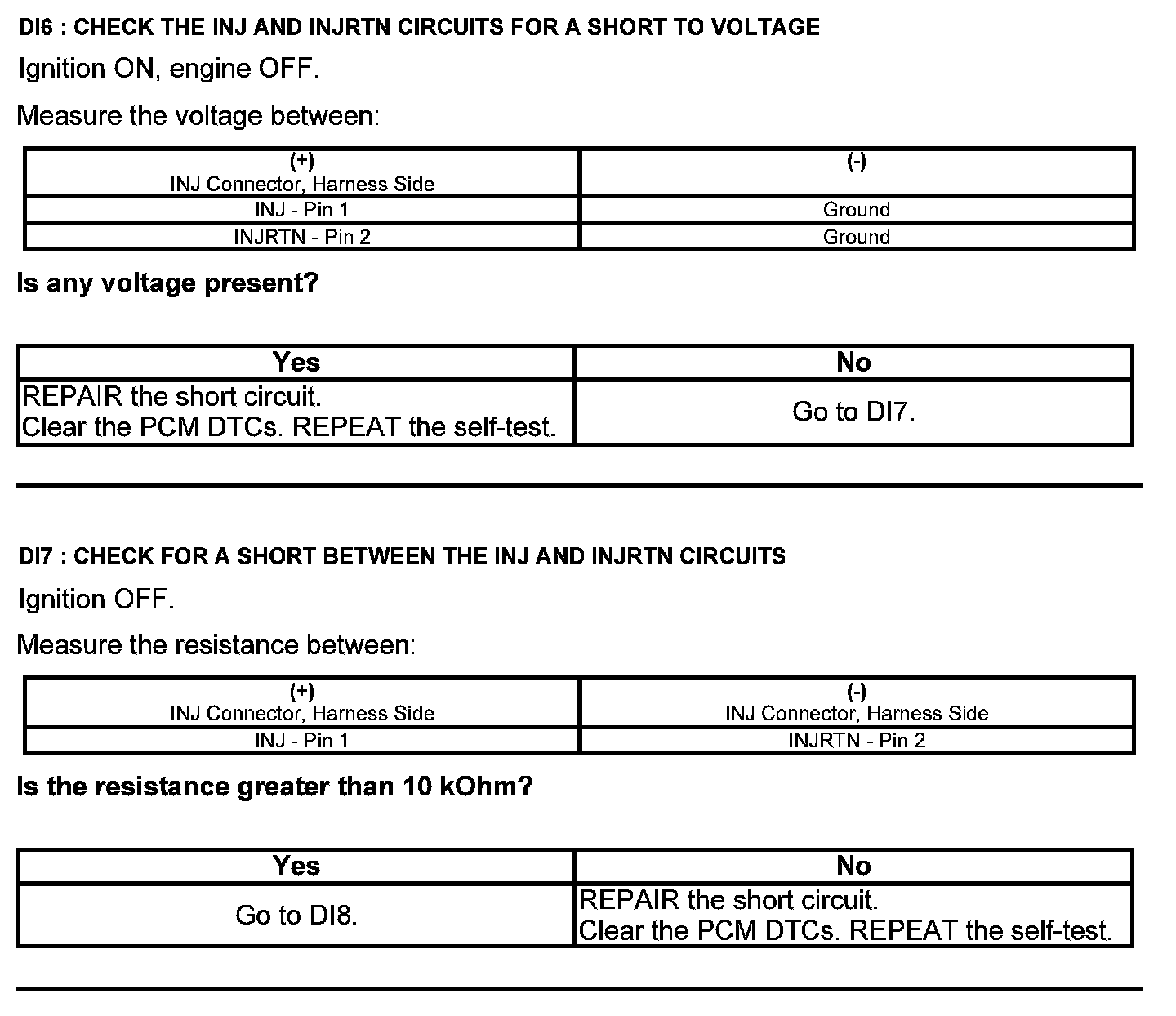

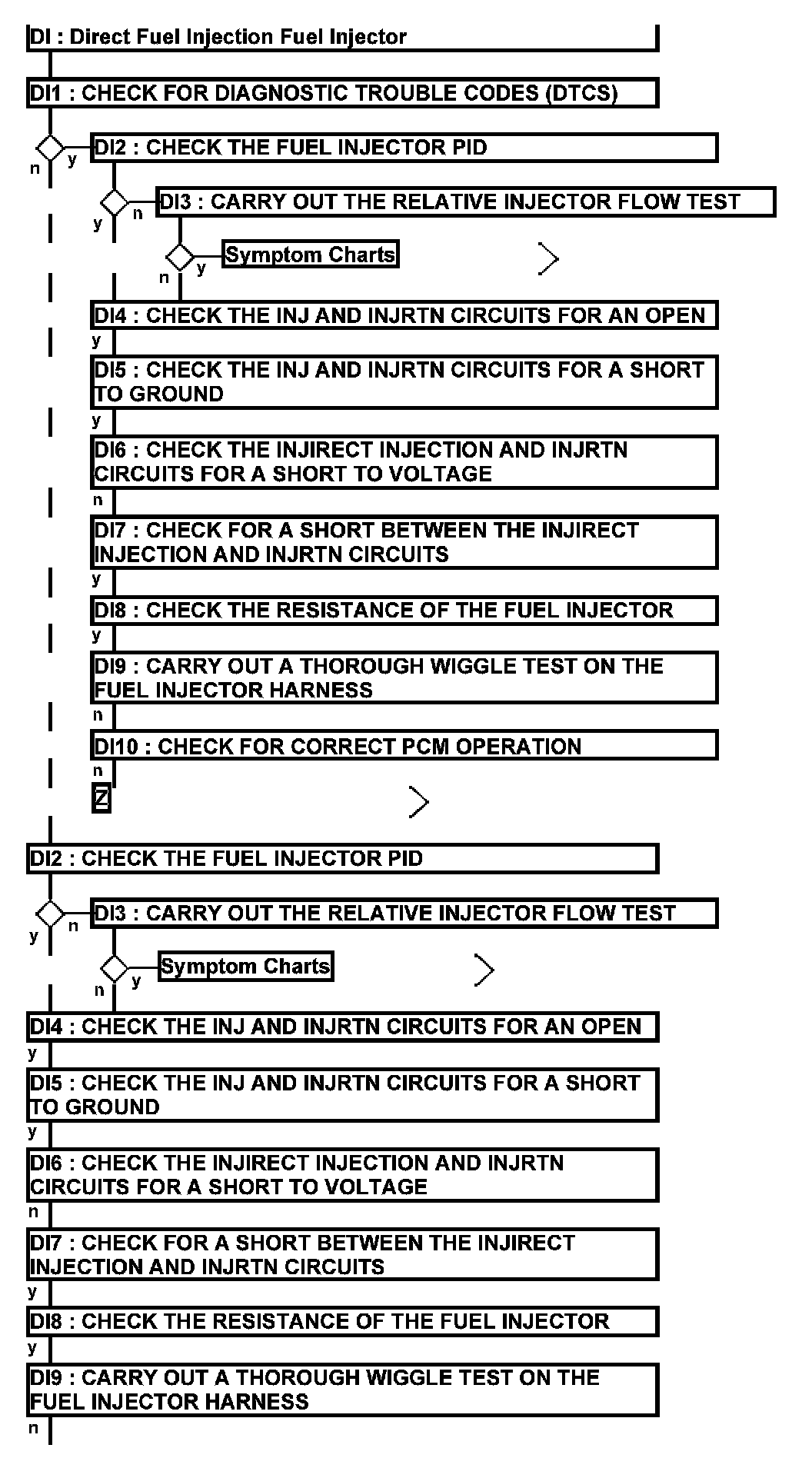

Test DI: Direct Fuel Injection Fuel Injector



Direct Fuel Injection Fuel Injector

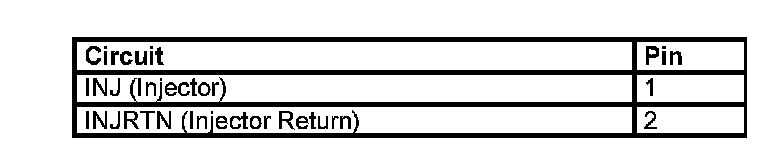

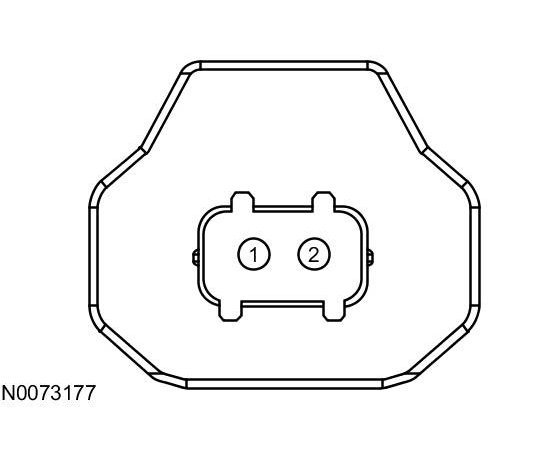

Injector (INJ) Connector




Harness Side

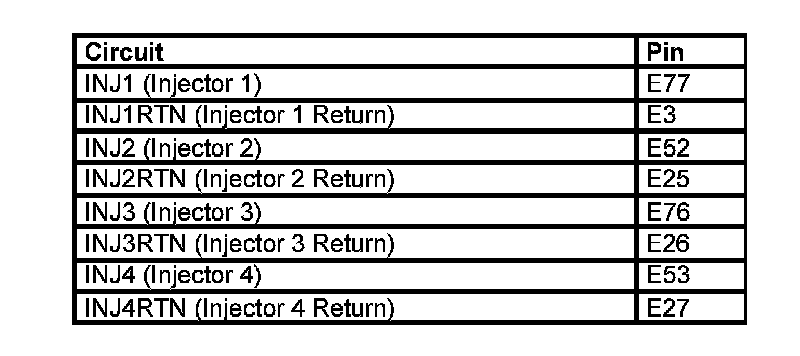

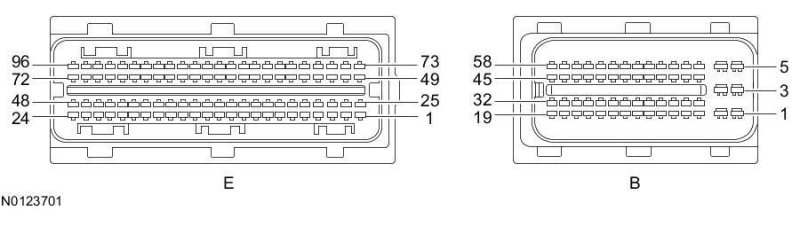

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
