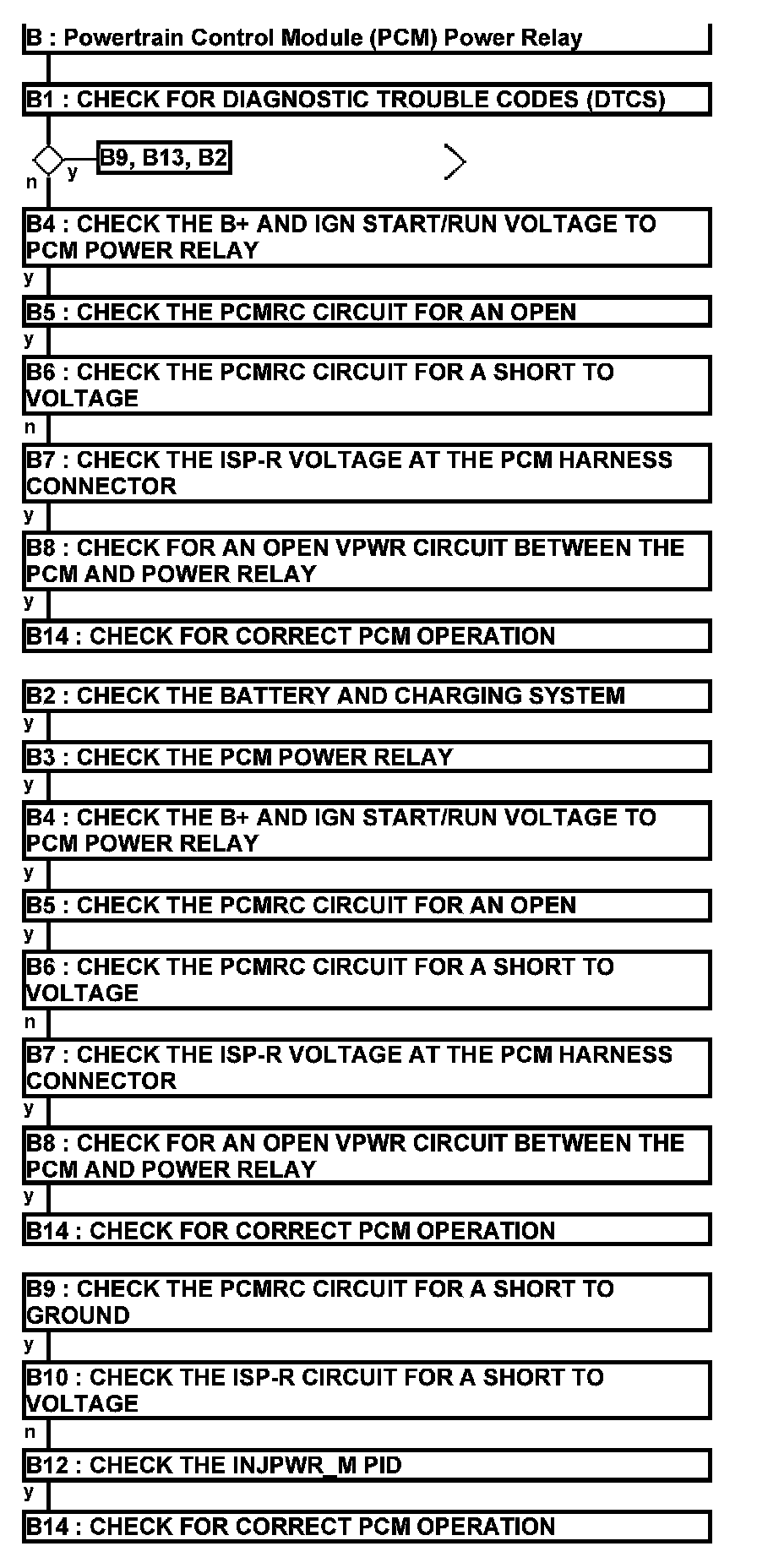

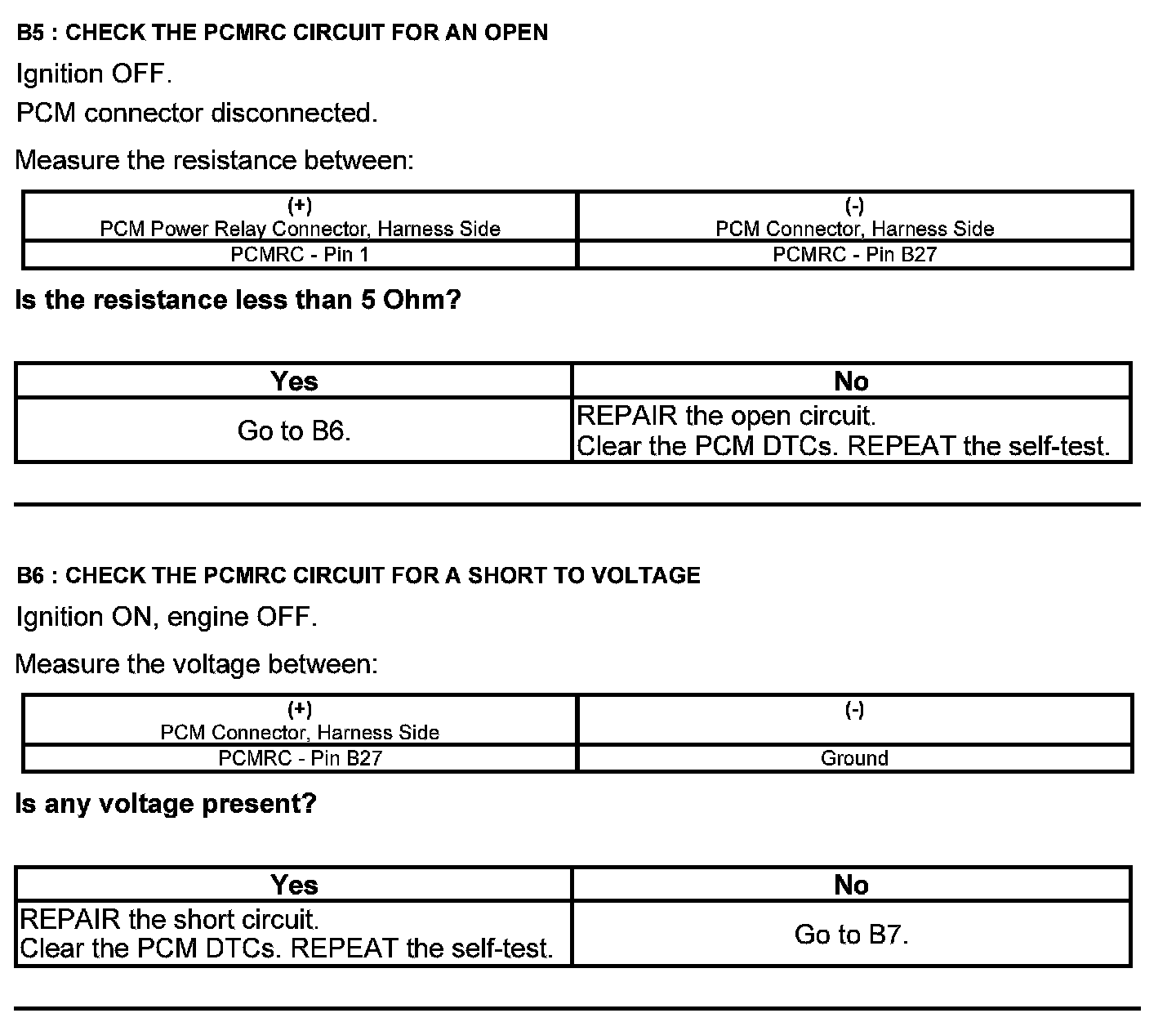

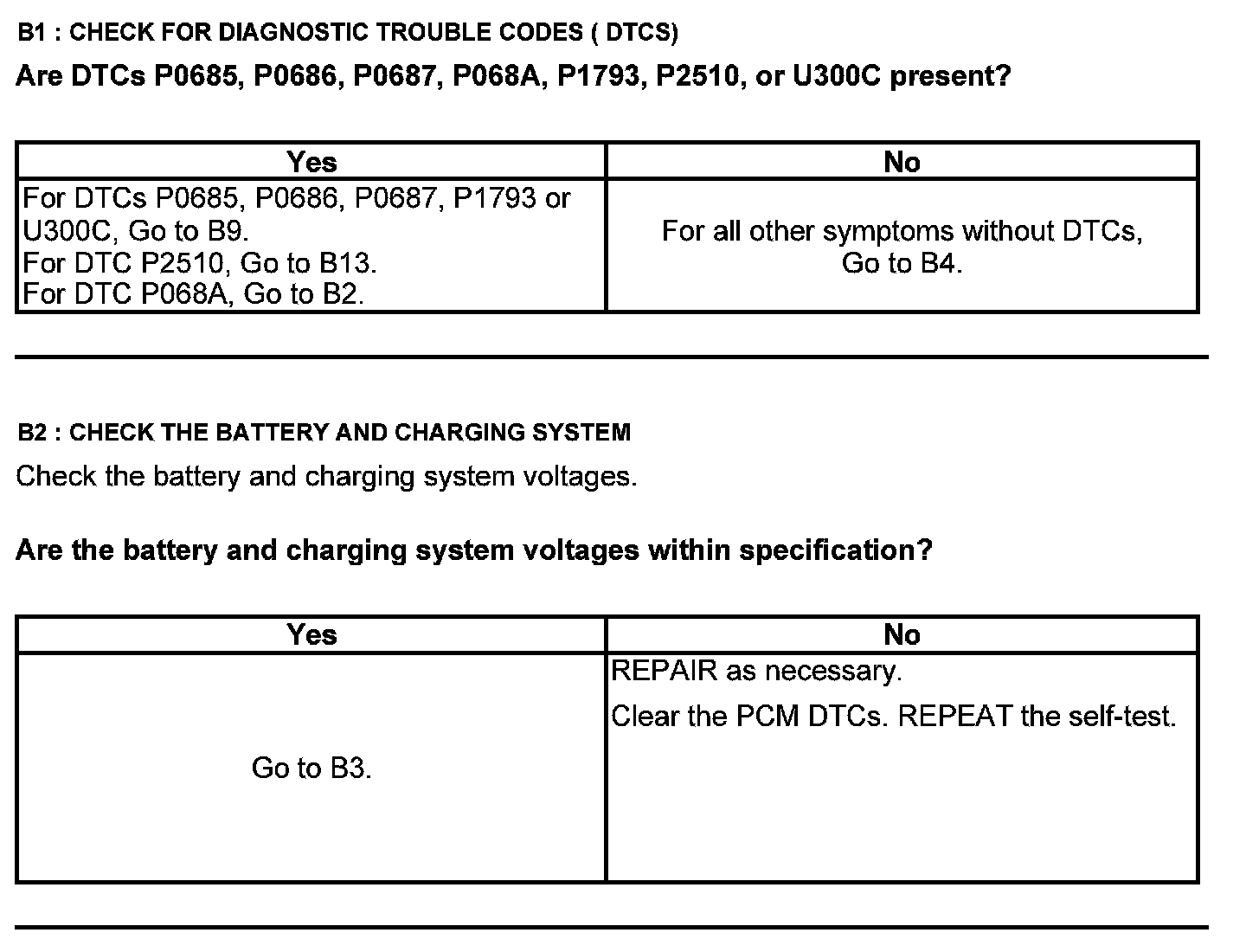

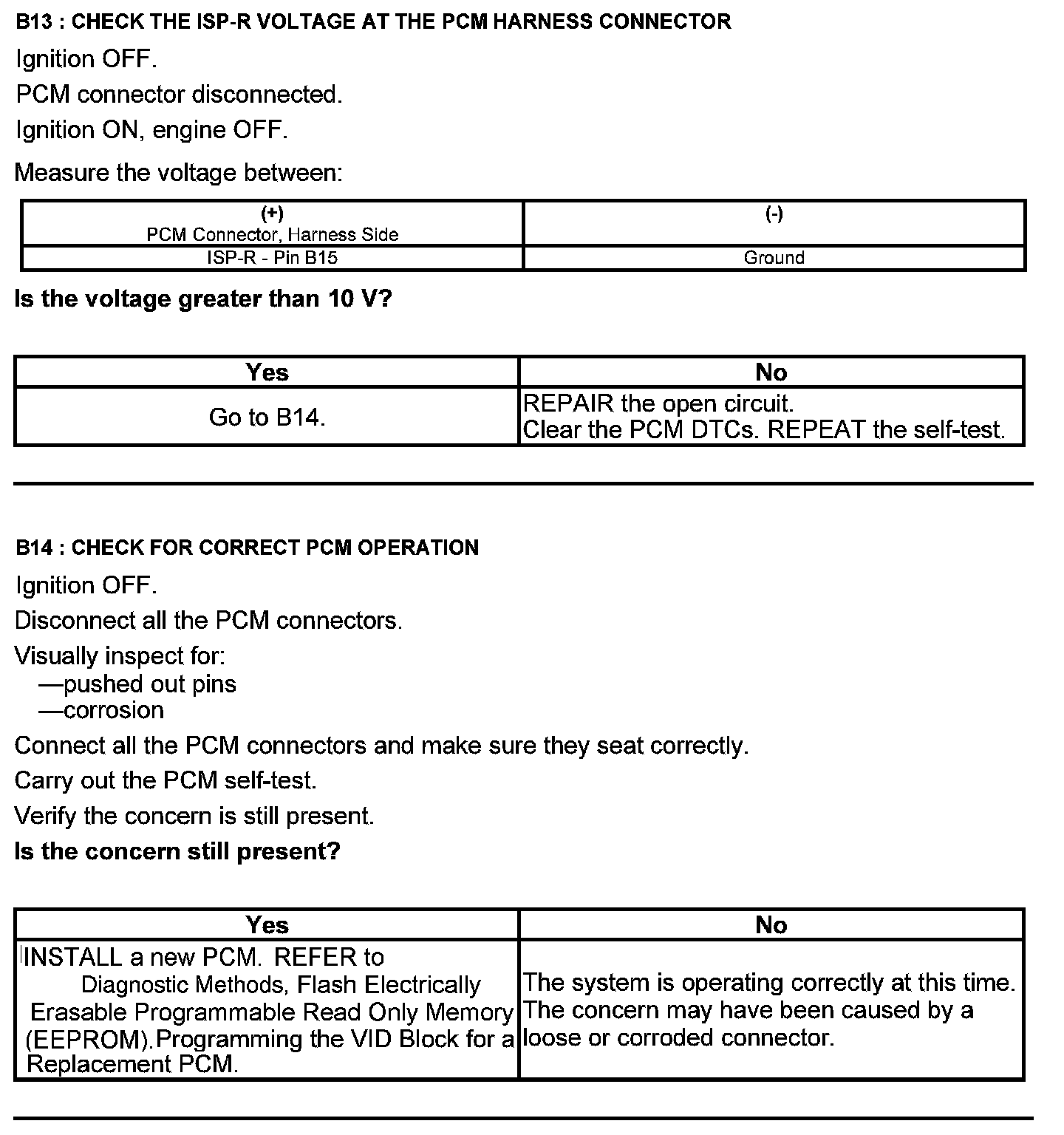

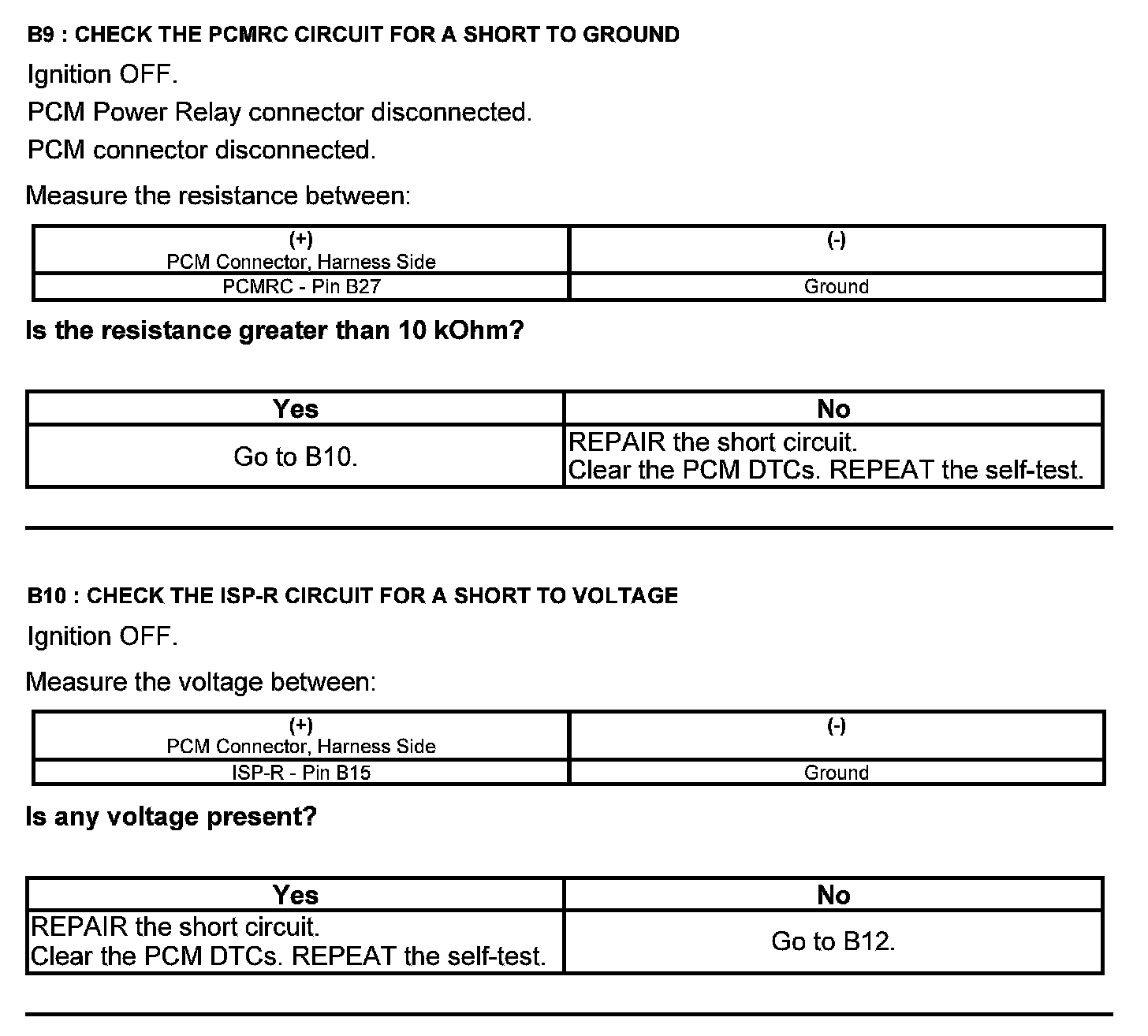

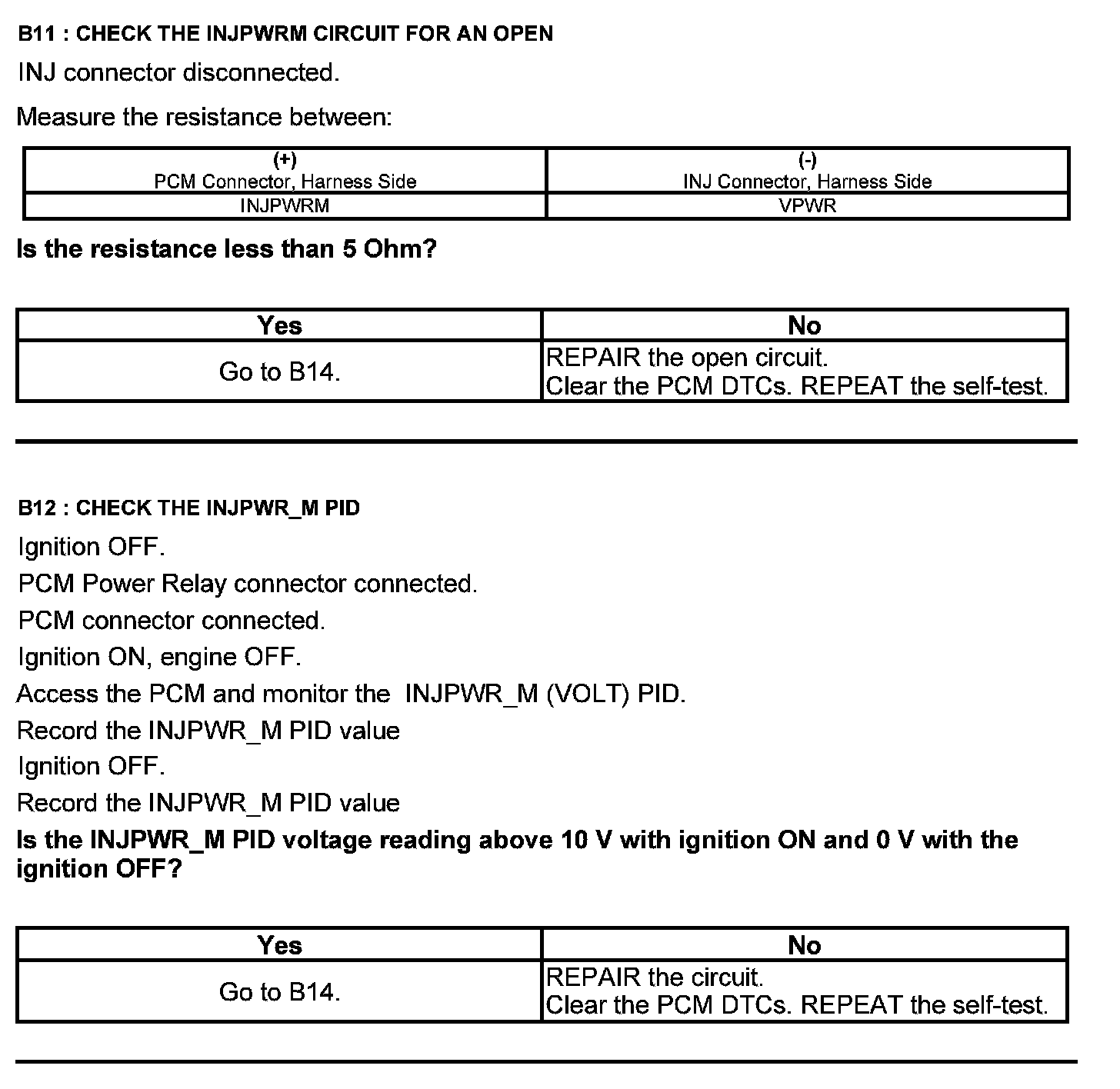

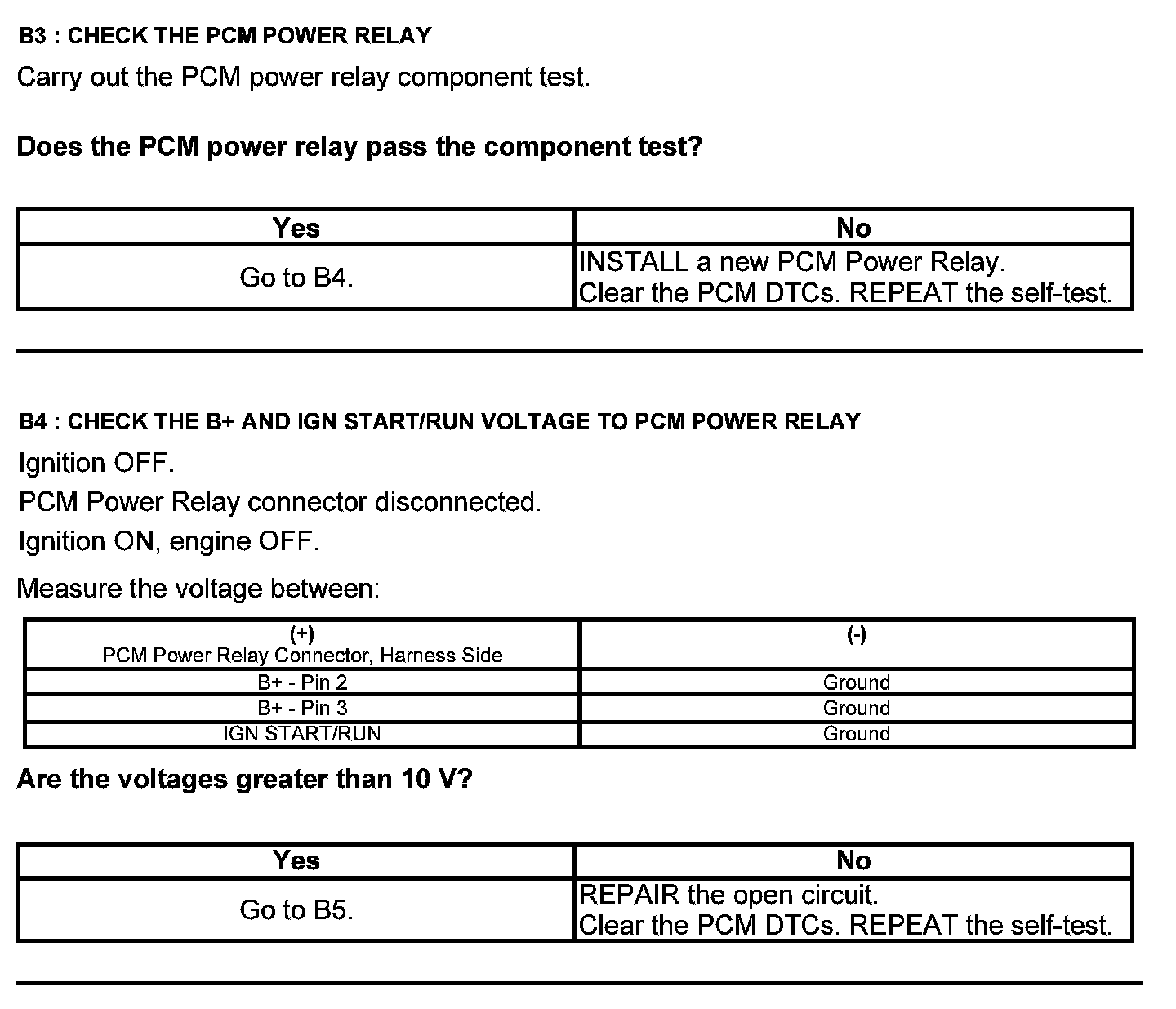

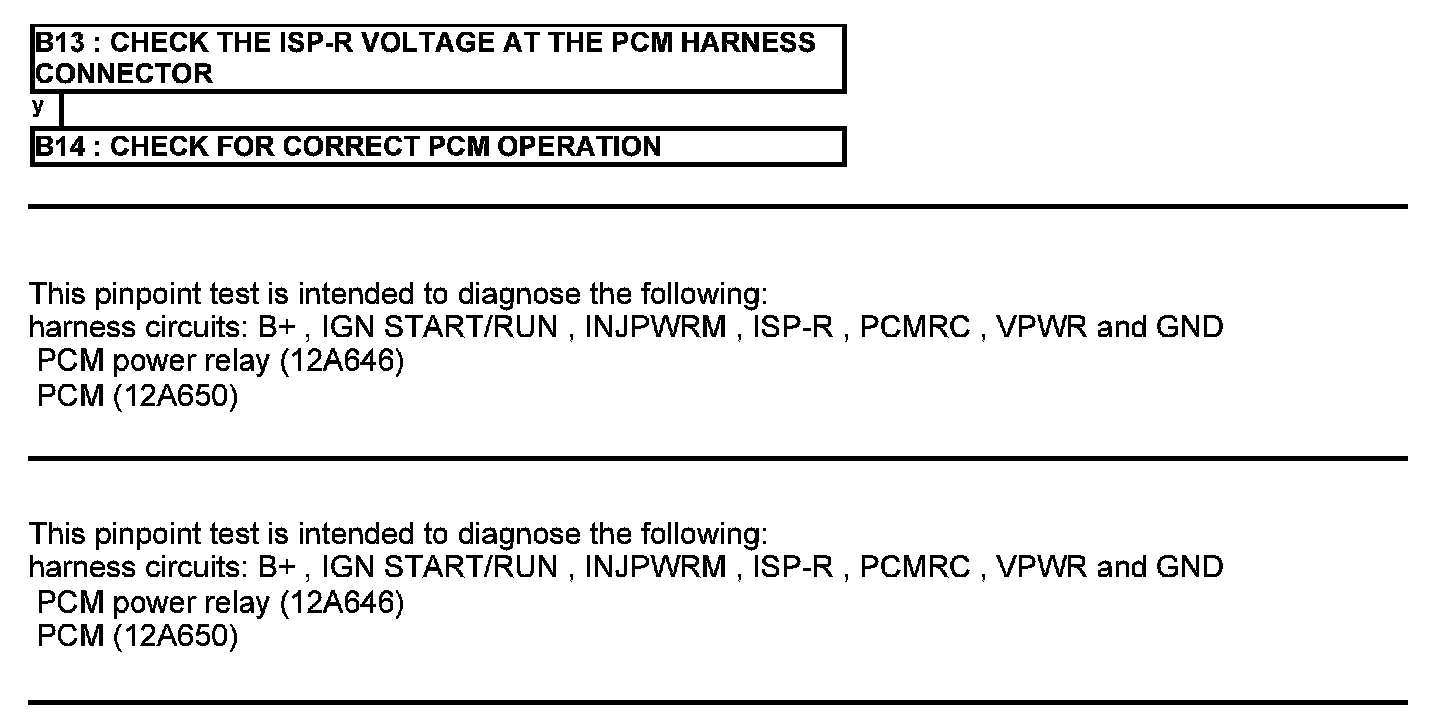

Test B: Powertrain Control Module (PCM) Power Relay



Powertrain Control Module (PCM) Power Relay











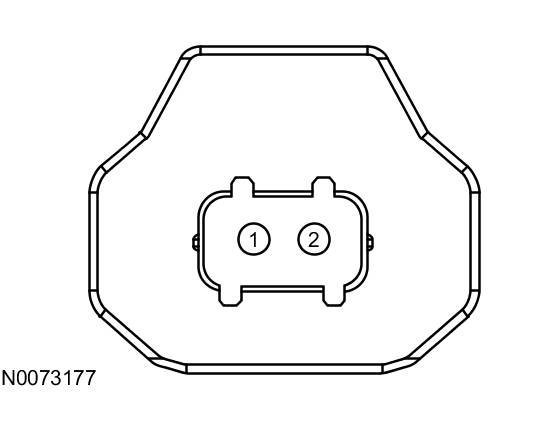

Injector (INJ) Connector





Harness Side

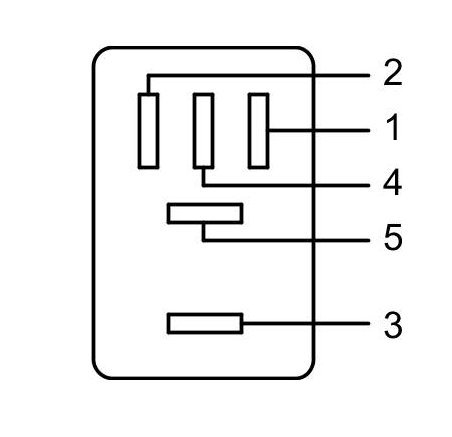

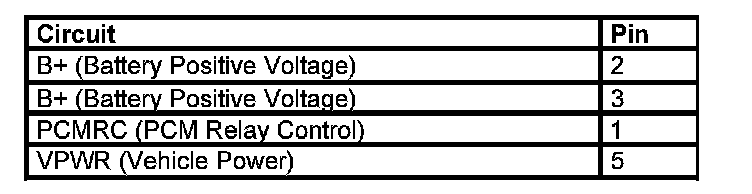

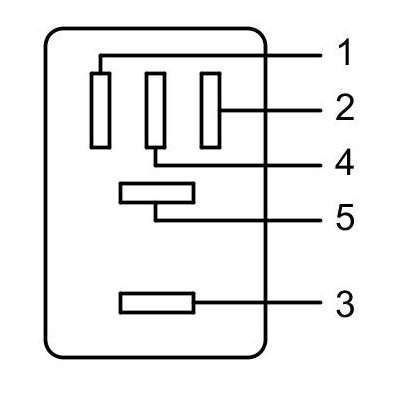

Powertrain Control Module Power (PCM Power) Relay Connector





Harness Side





Component side

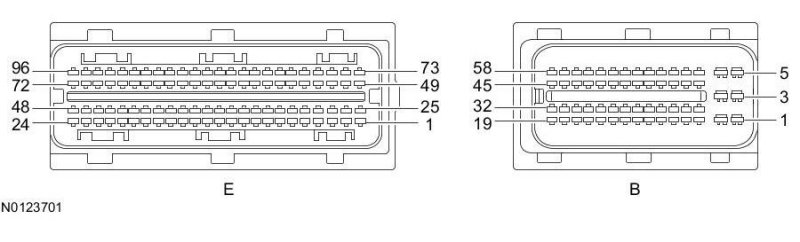

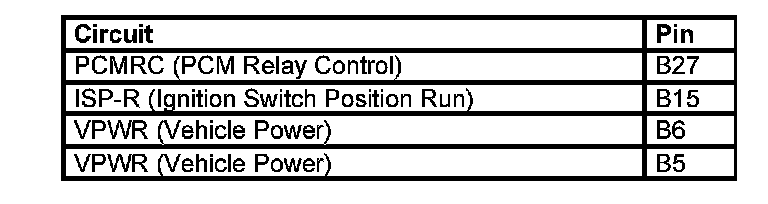

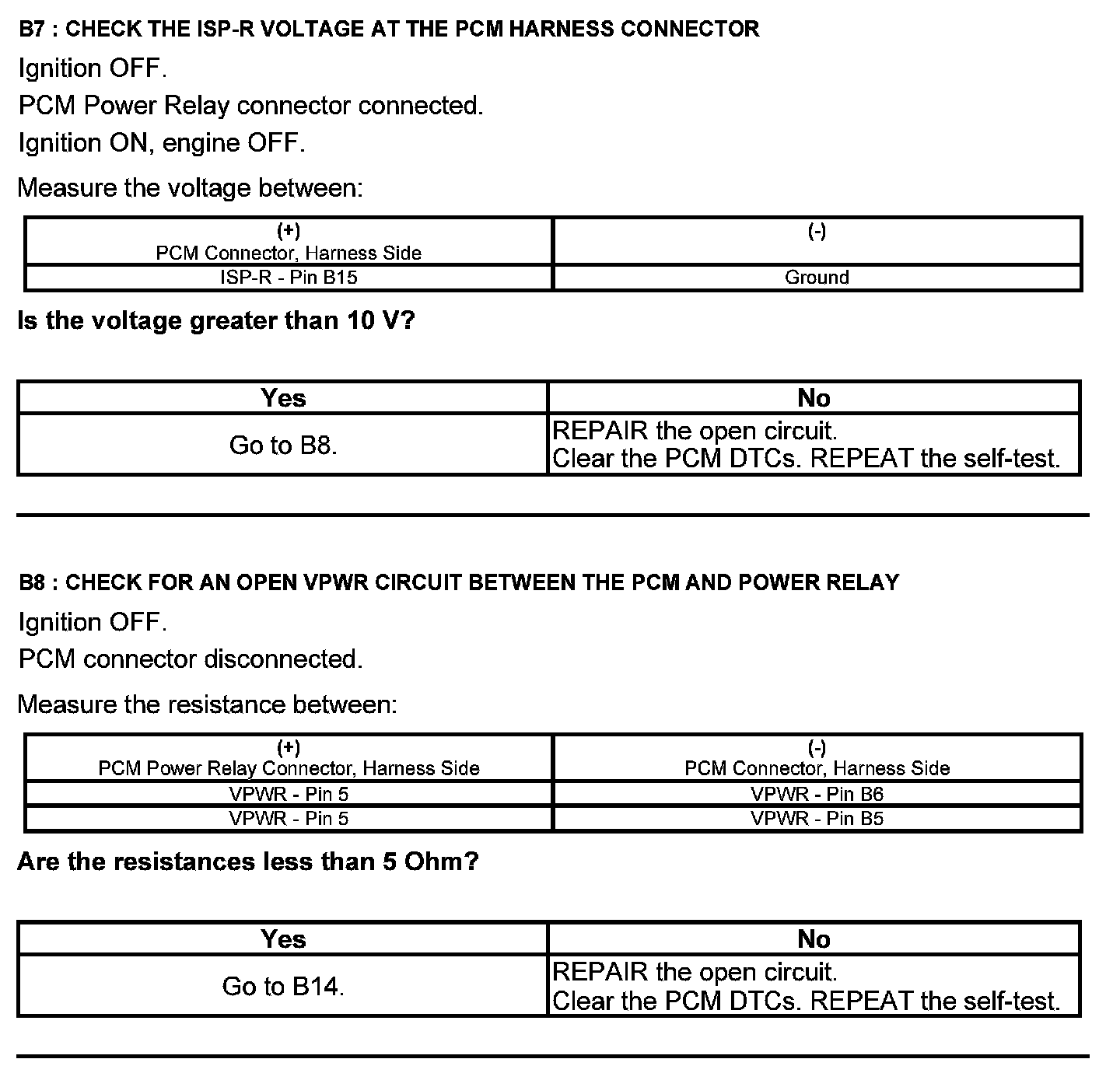

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
