Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Locations >> Splices

Splices

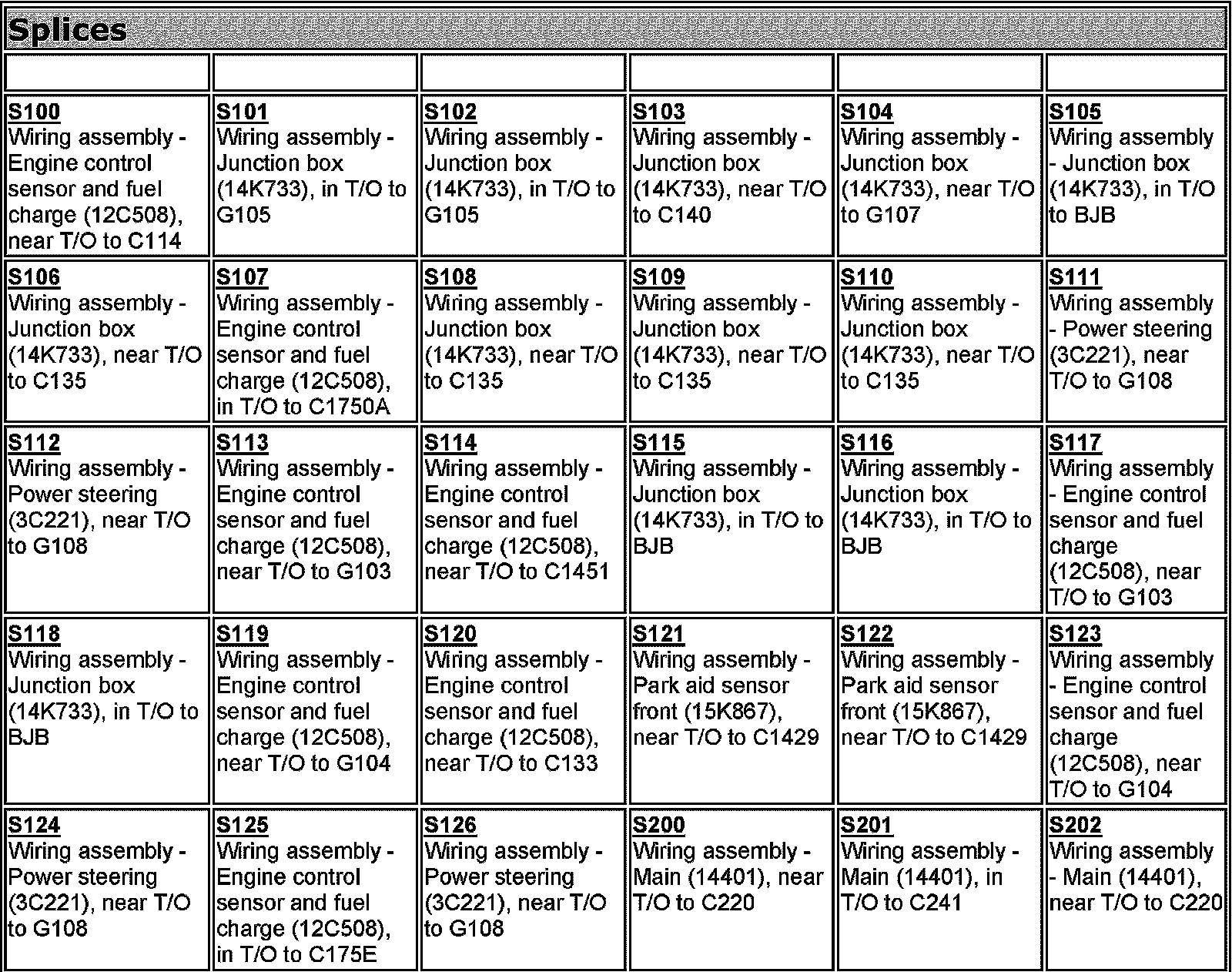

S100-S202:

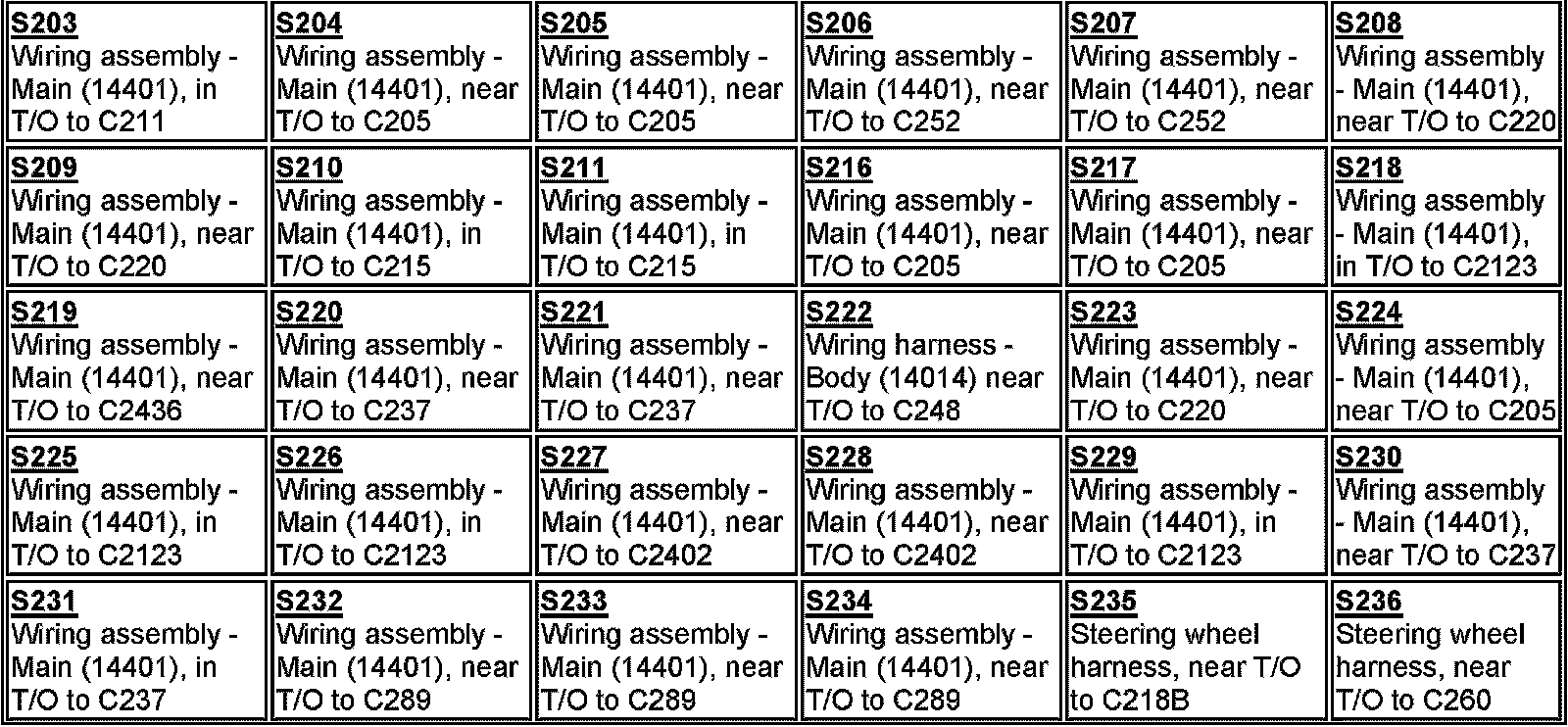

S203-S236:

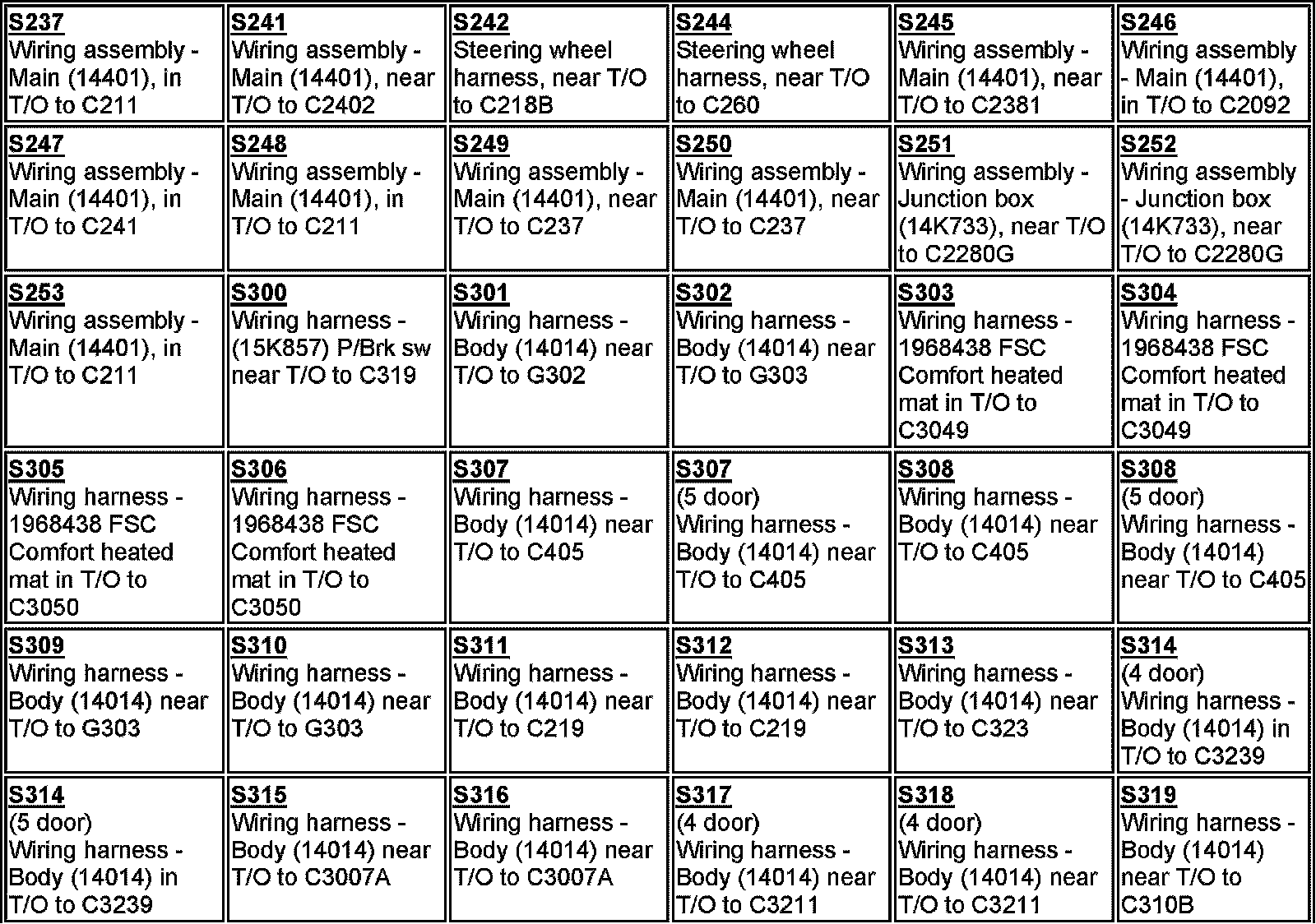

S237-S319:

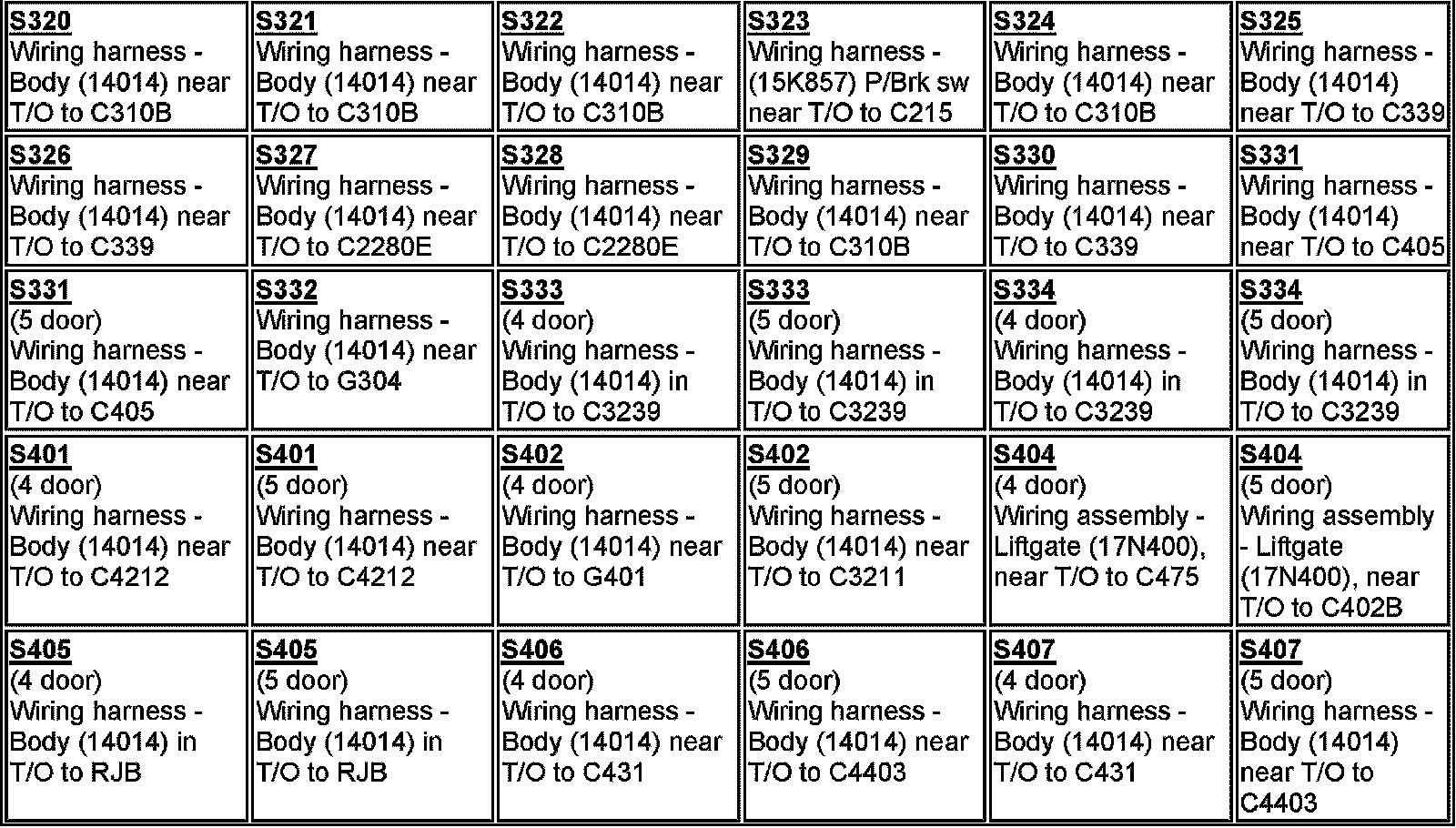

S320-S407:

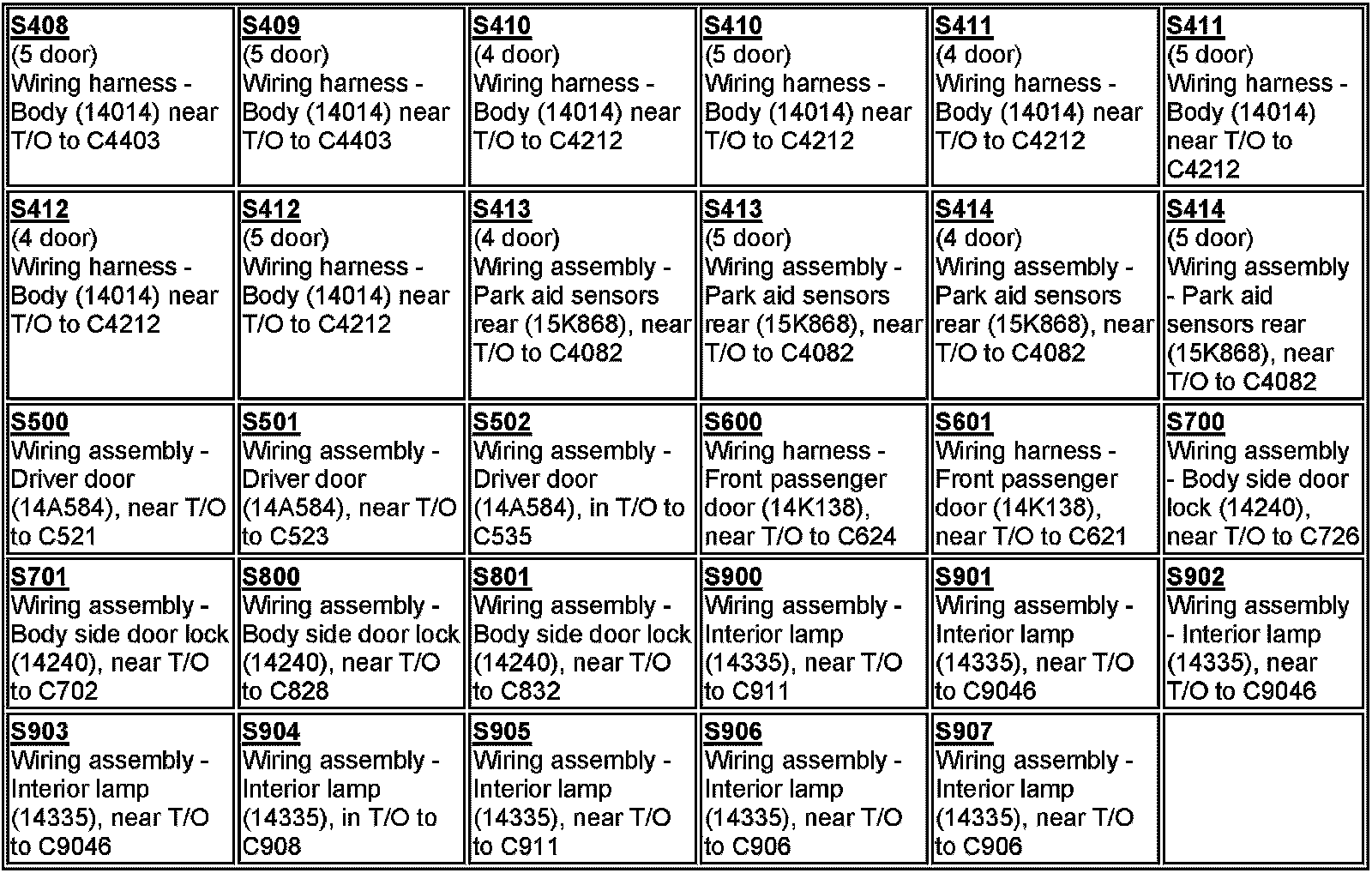

S408-S907:
