System Diagram

Exhaust System - Exploded View

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

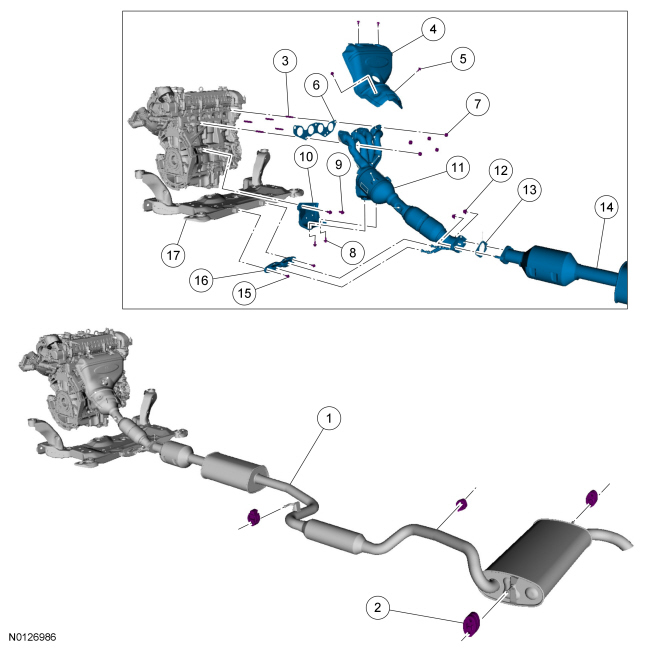

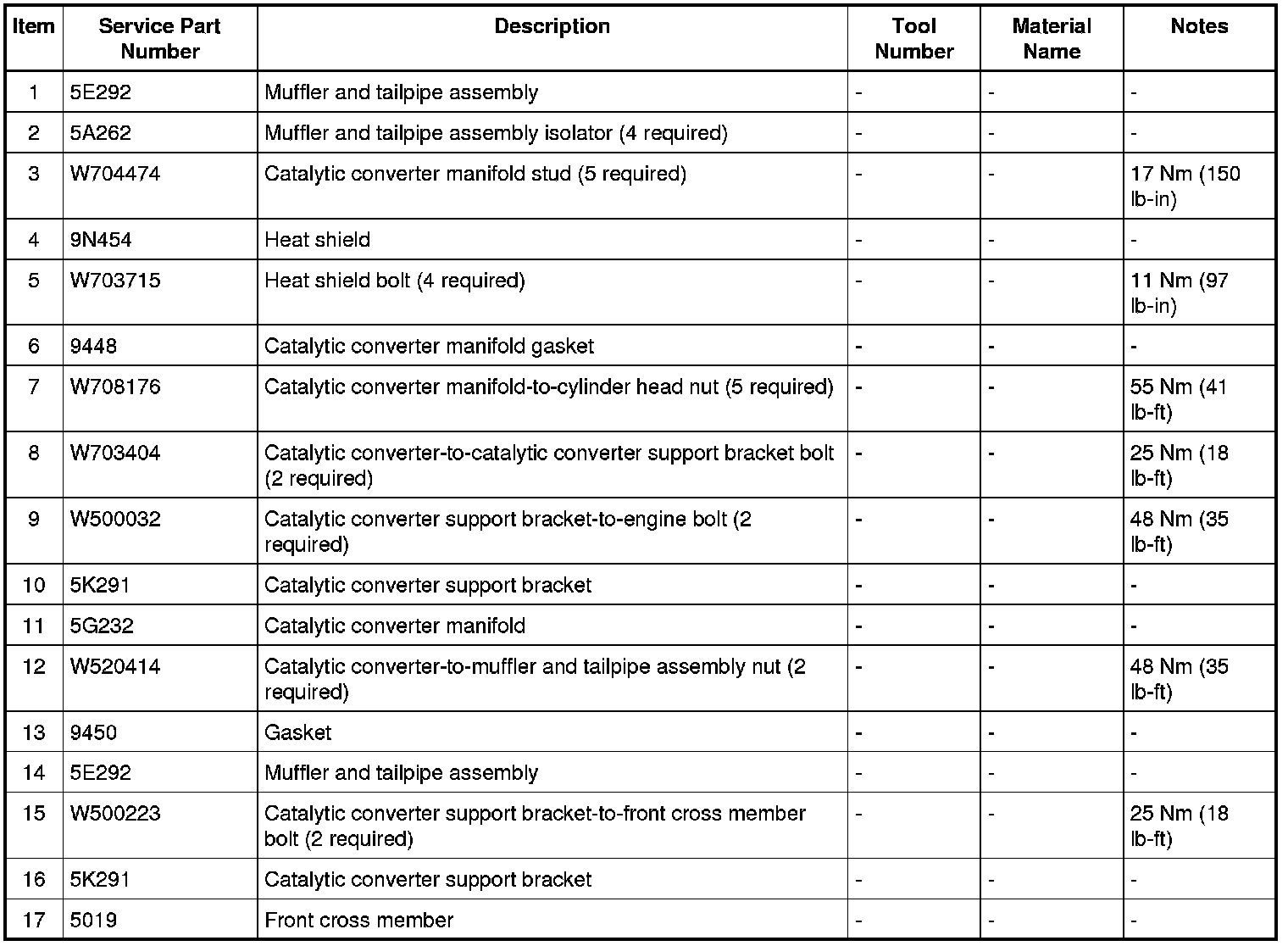

Exploded View

NOTE: PZEV (Partial Zero Emissions Vehicle) exhaust components shown, non PZEV (Partial Zero Emissions Vehicle) exhaust components similar.
