Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> C1463B Power Steering Control Module (PSCM)

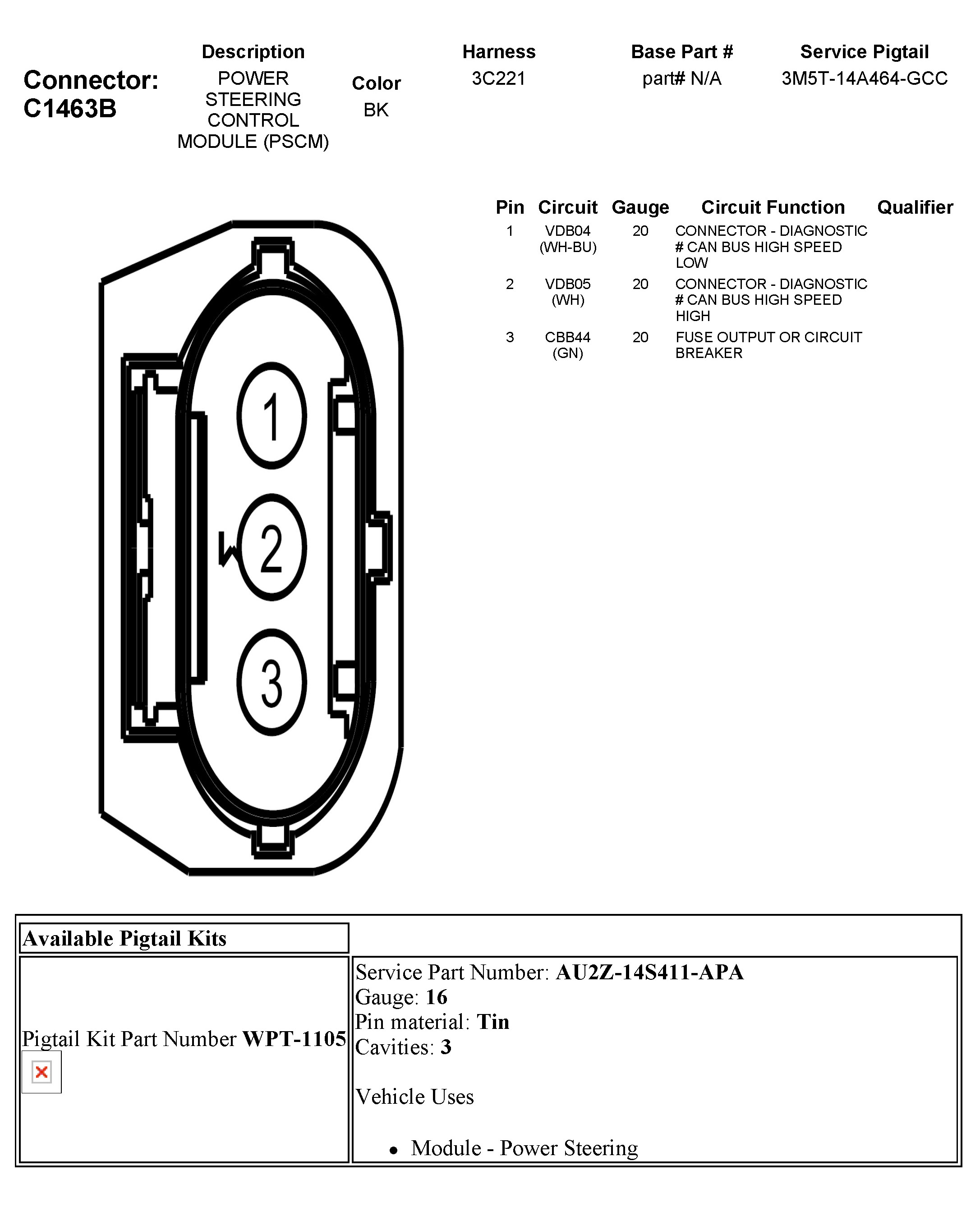

C1463B Power Steering Control Module (PSCM)
