lemon-mirror
:
Home
>>
Ford
>>
2012
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
System Diagram
>>

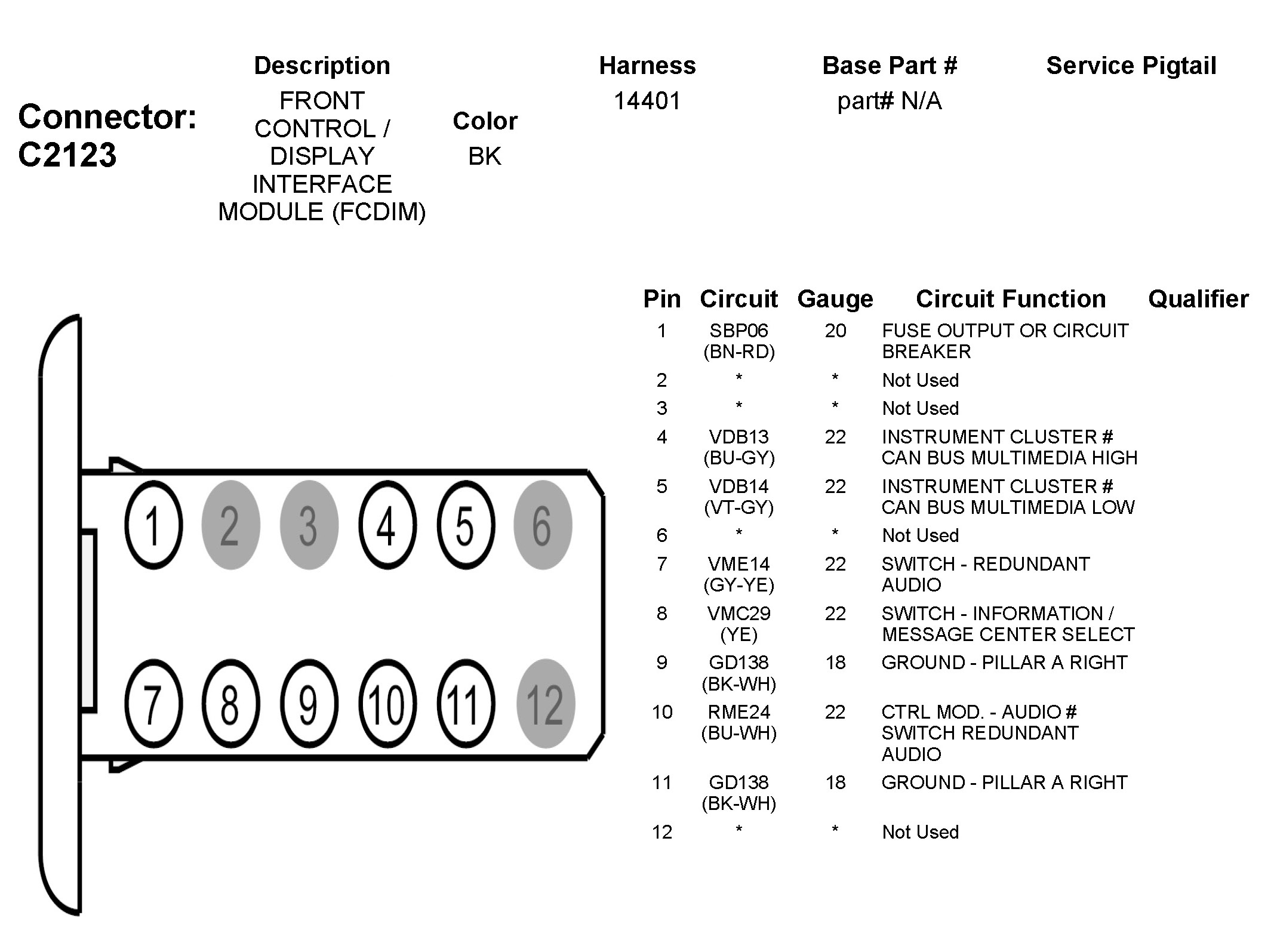

C2123 Front Control / Display Interface Module (FCDIM)
C2123 Front Control / Display Interface Module (FCDIM)
