Ford
>>
2012
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>

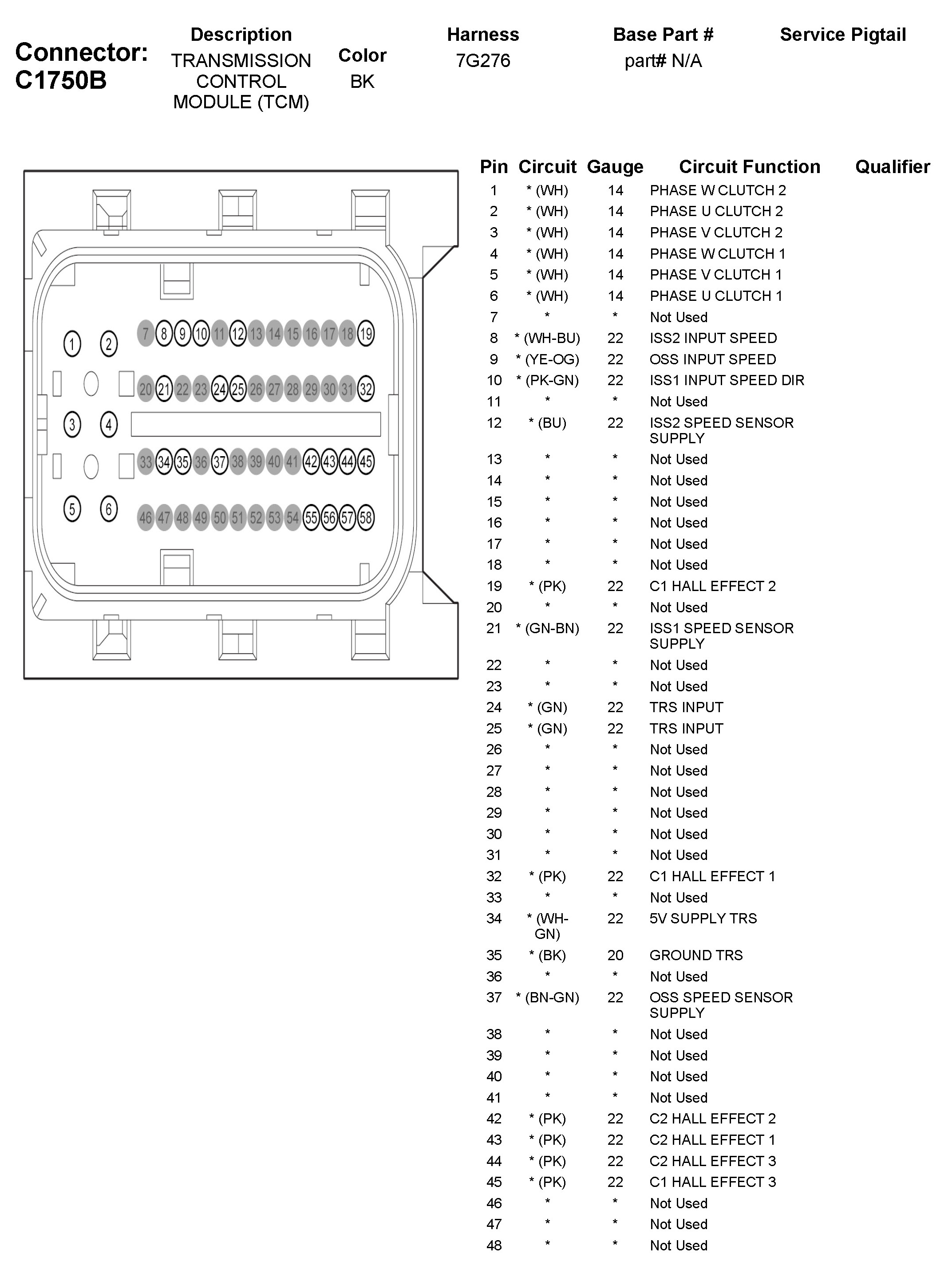

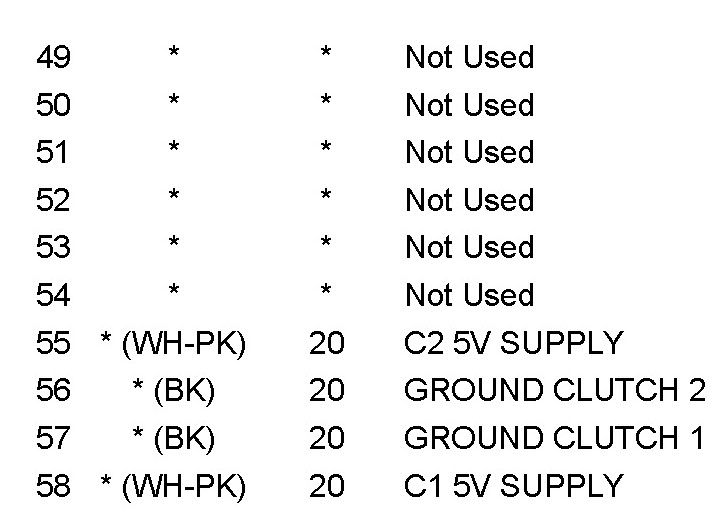

C1750B Transmission Control Module (TCM)
C1750B Transmission Control Module (TCM)
