Home
>>
Ford
>>
2012
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

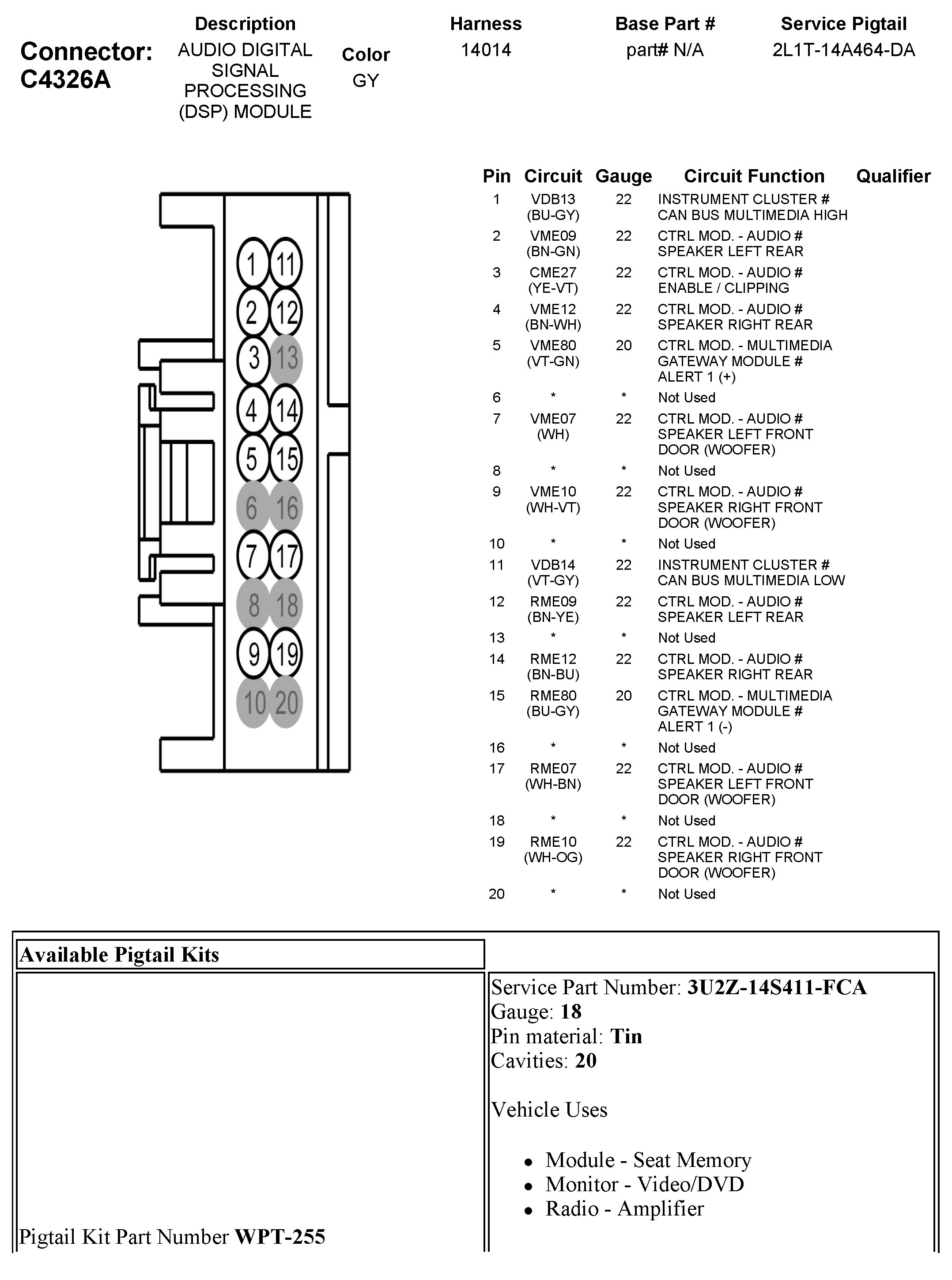

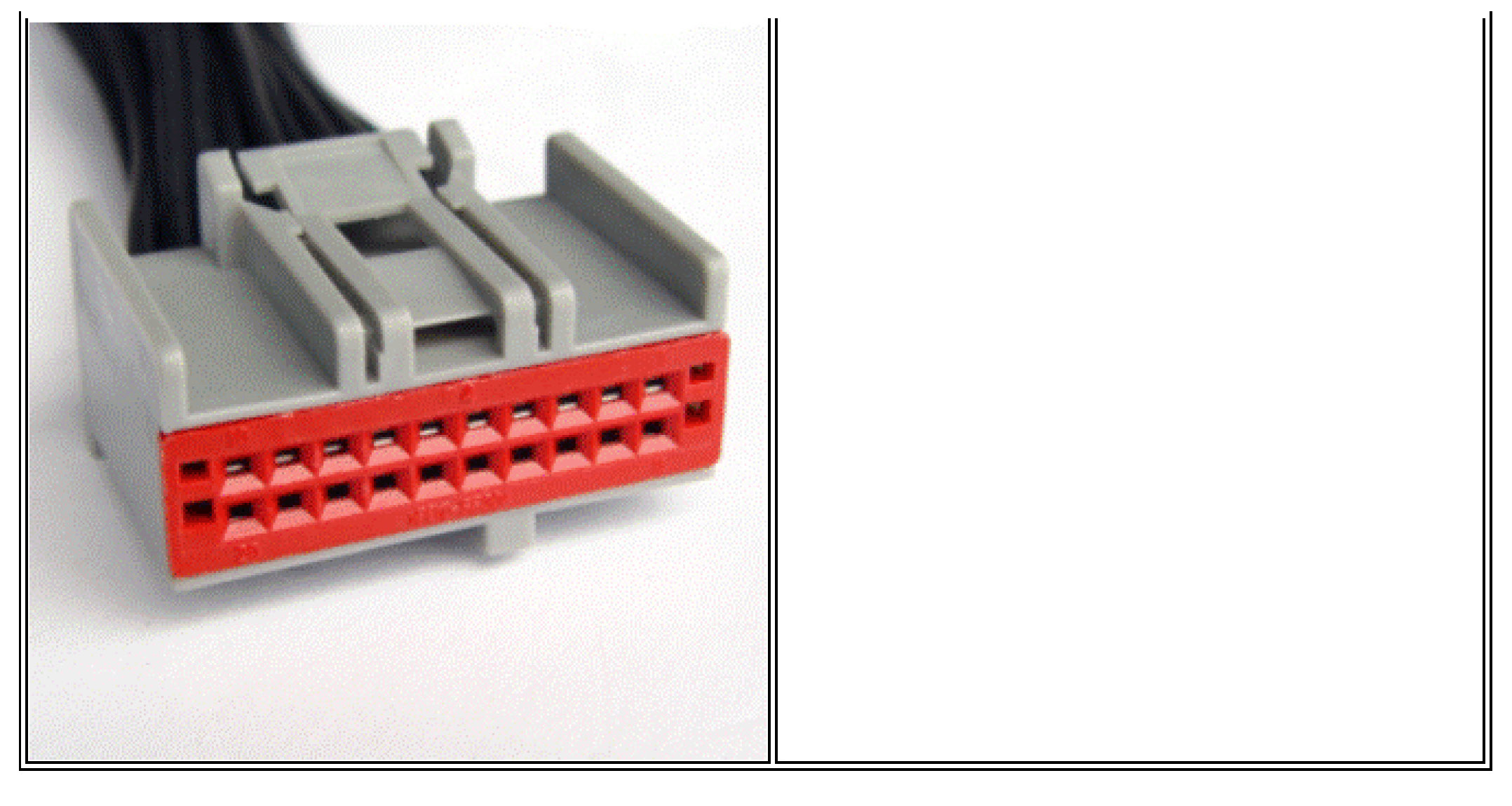

C4326A Audio Digital Signal Processing (DSP) Module
C4326A Audio Digital Signal Processing (DSP) Module
