Ford
>>
2012
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

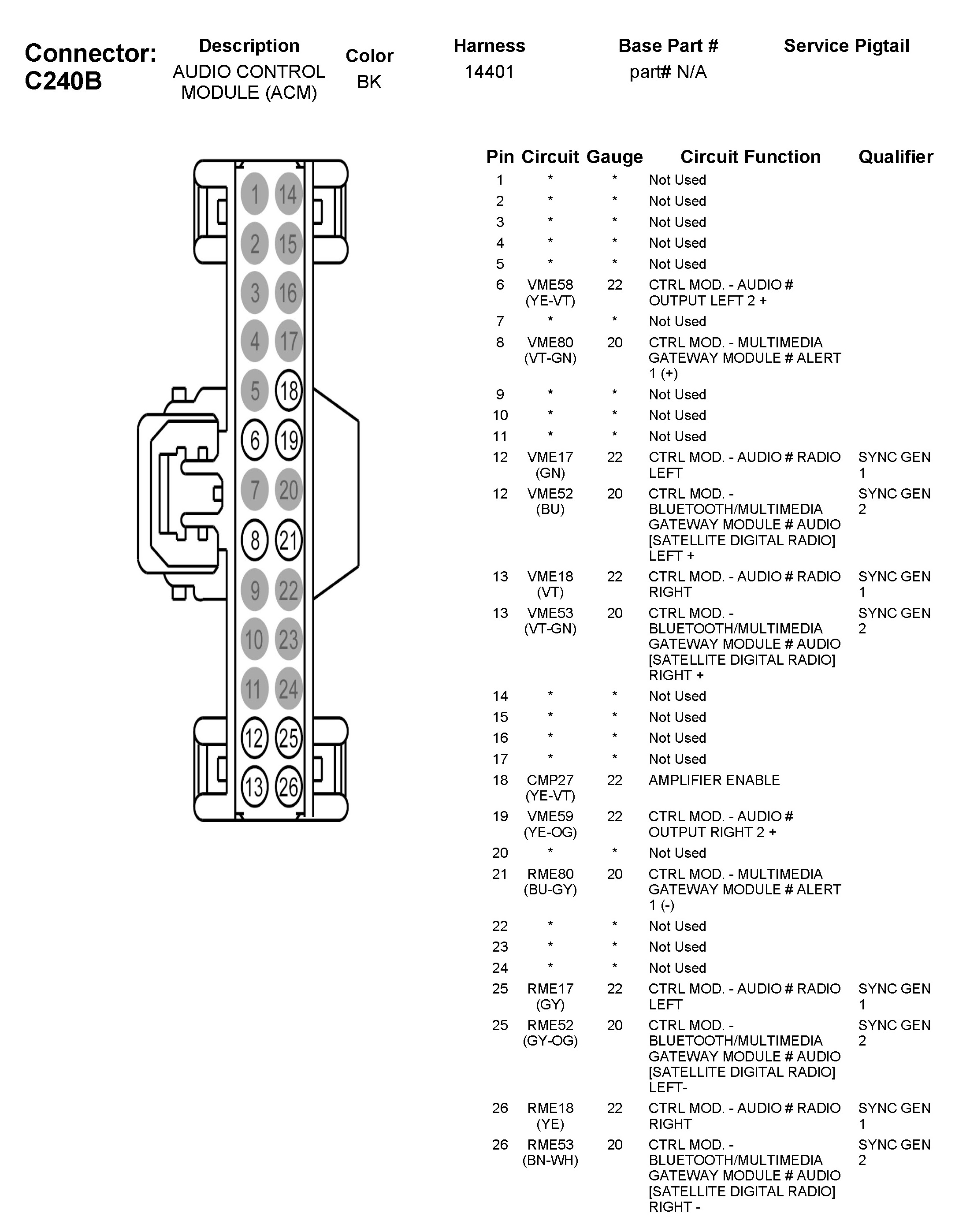

C240B Audio Control Module (ACM)
C240B Audio Control Module (ACM)
