lemon-mirror
:
Home
>>
Ford
>>
2012
>>
Focus ELE-Electric Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

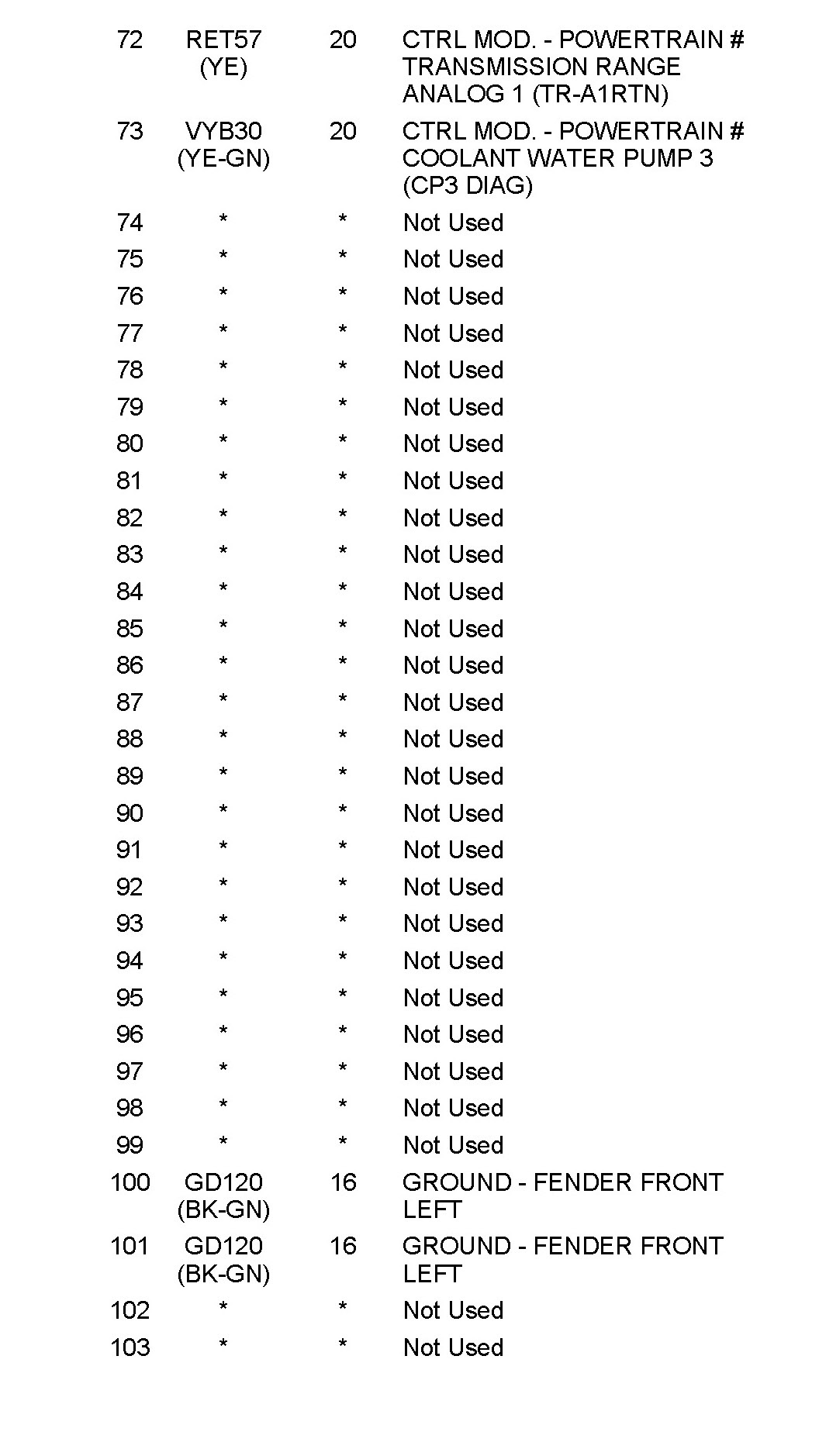

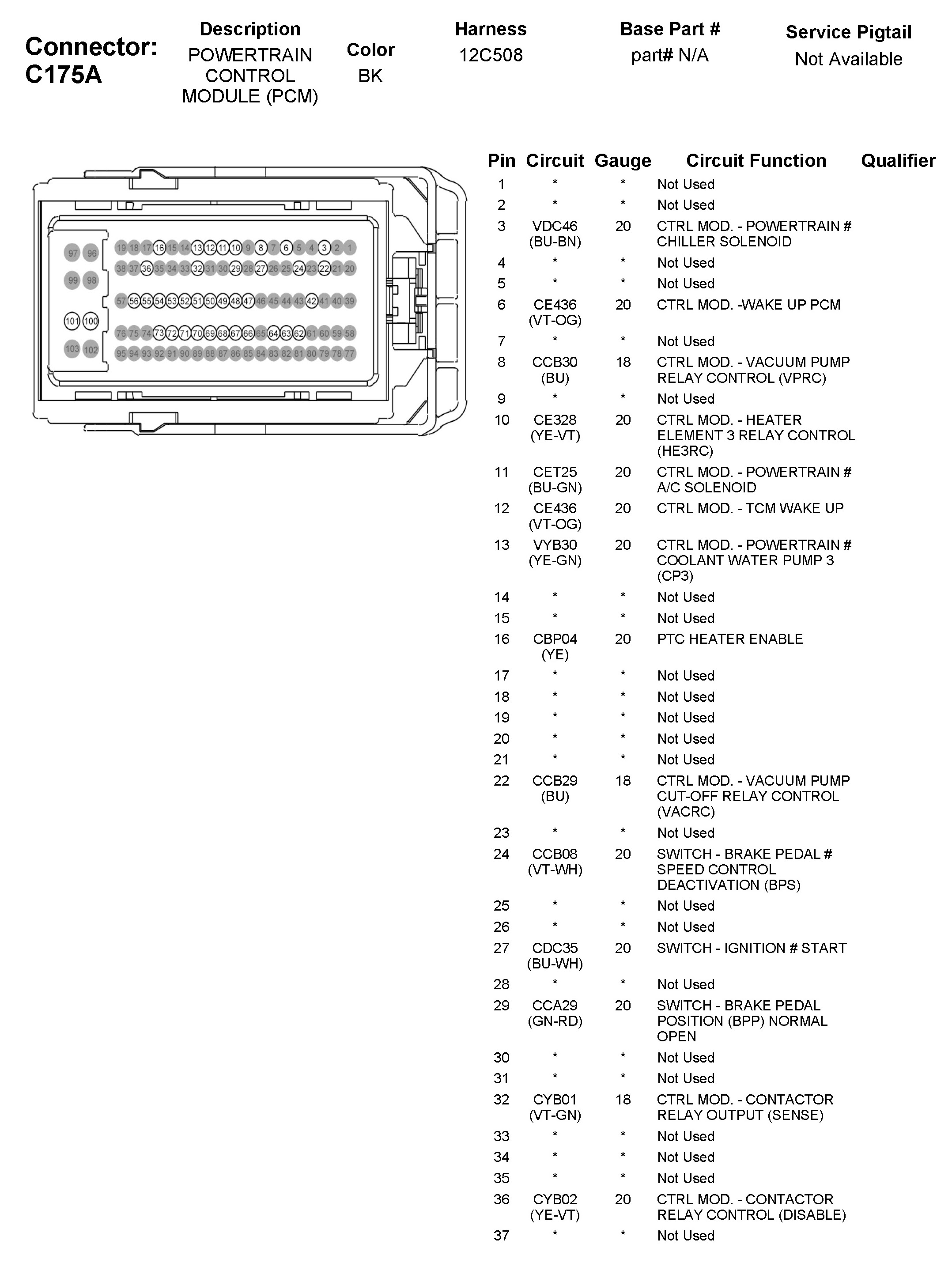

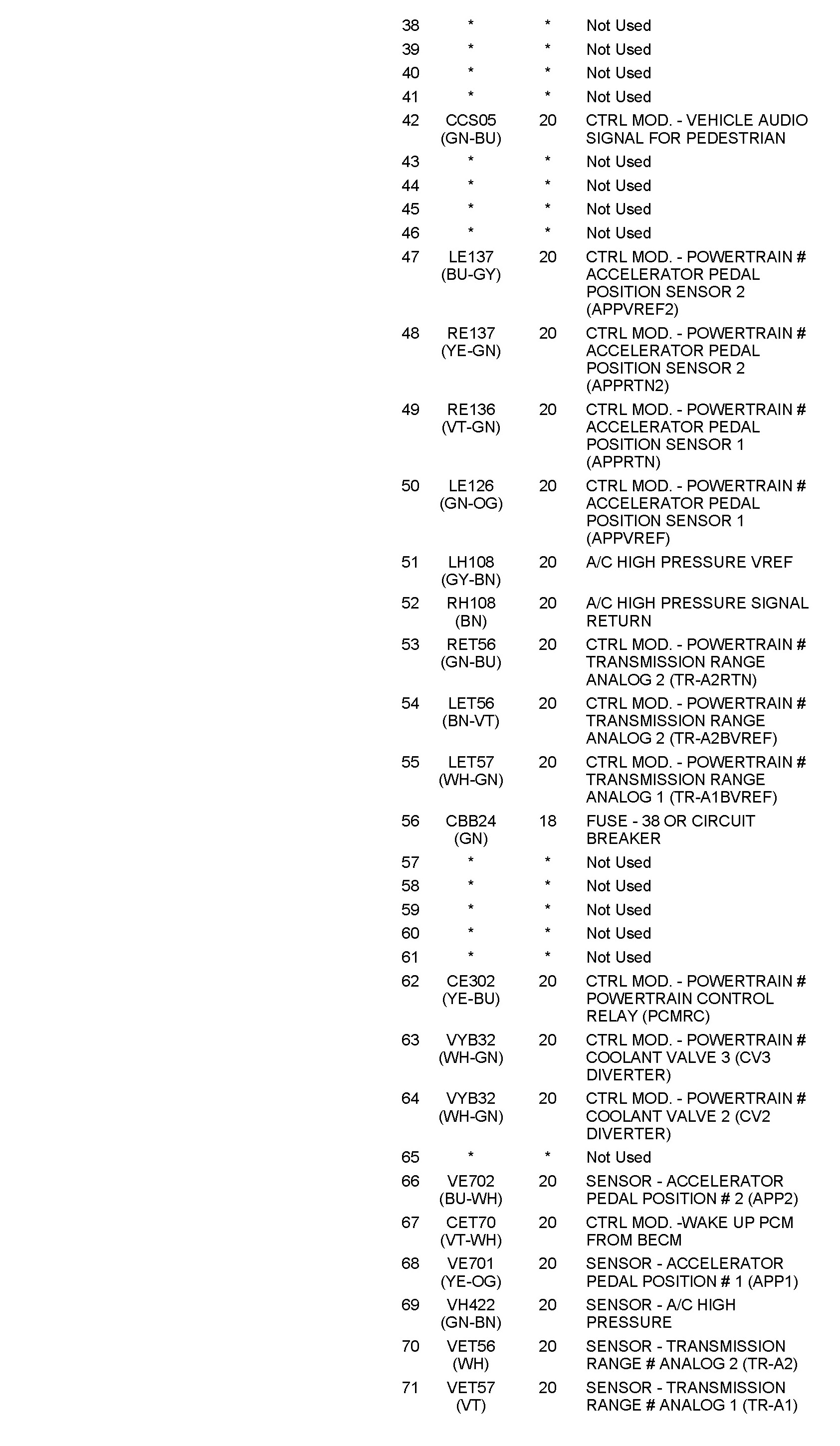

C175A Powertrain Control Module (PCM)
C175A Powertrain Control Module (PCM)
