Ford
>>
2012
>>
Focus ELE-Electric Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

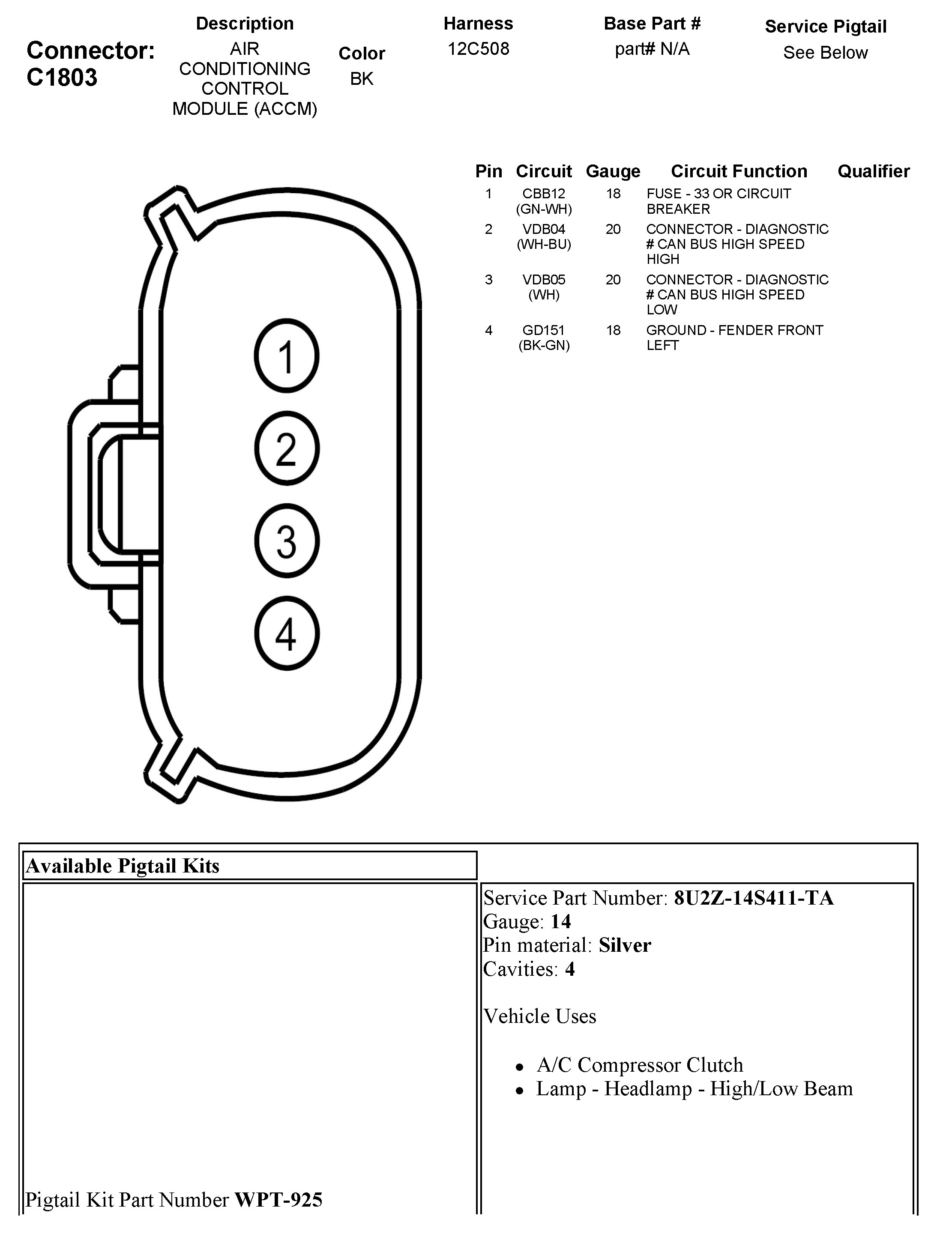

C1803 Air Conditioning Control Module (ACCM)
C1803 Air Conditioning Control Module (ACCM)
