lemon-mirror
:
Home
>>
Ford
>>
2012
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wiper and Washer Systems
Wiper and Washer Systems
Wiper and Washer System - Exploded View
Exploded View

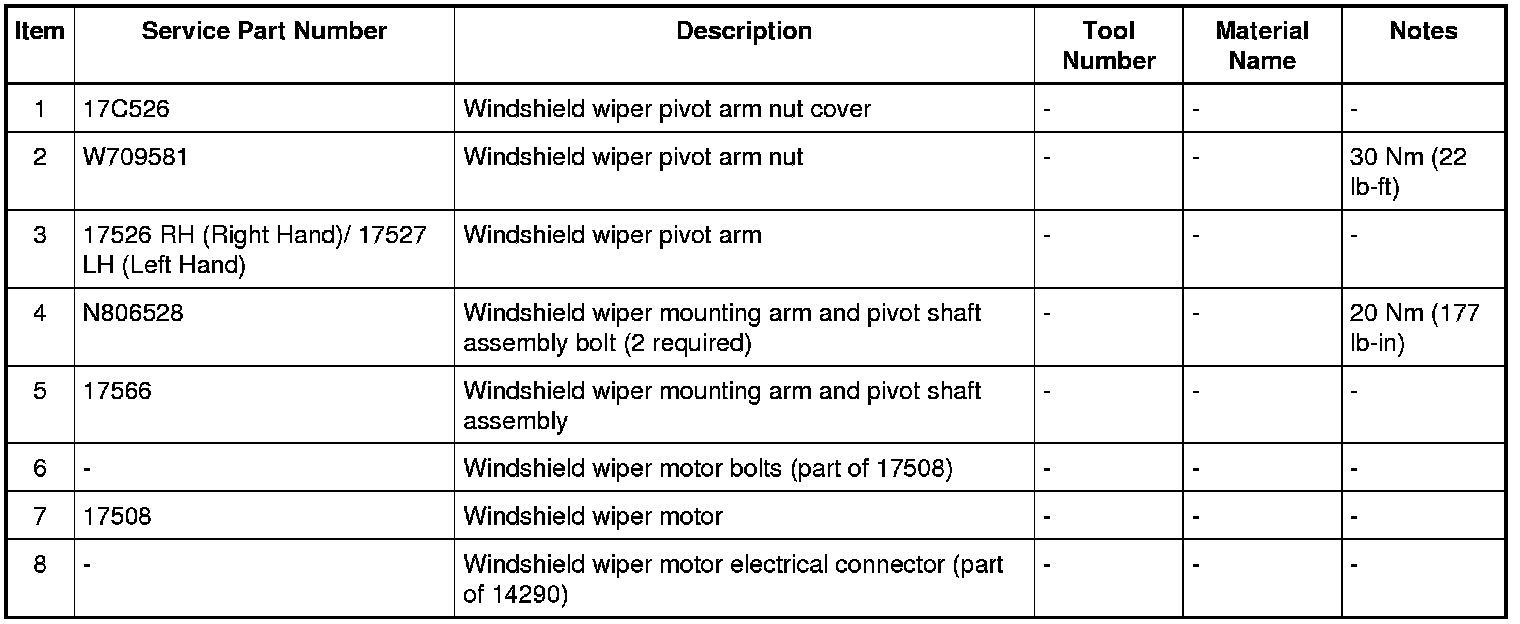

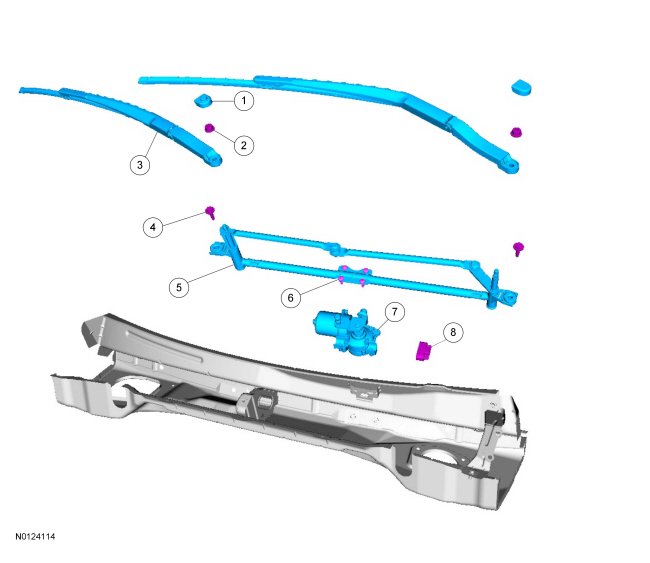

Front Wipers

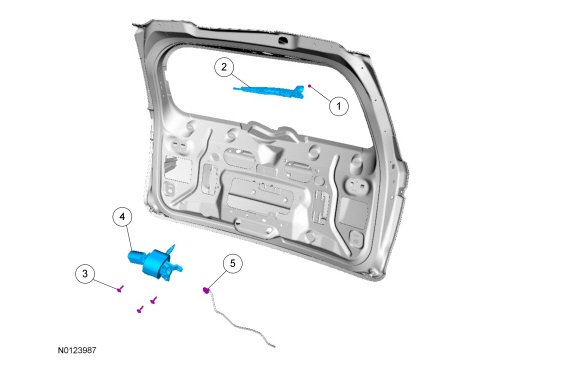

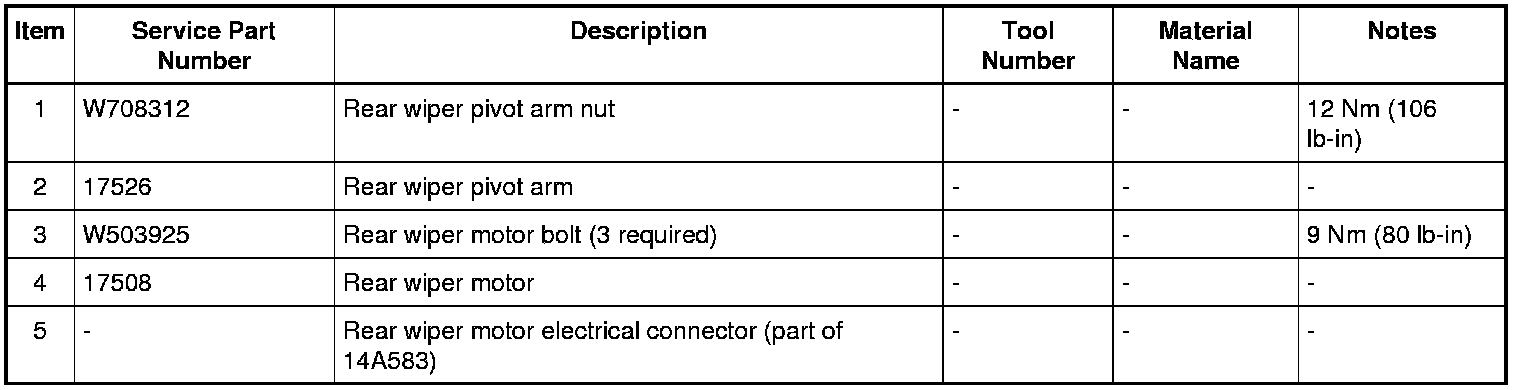

Rear Wiper

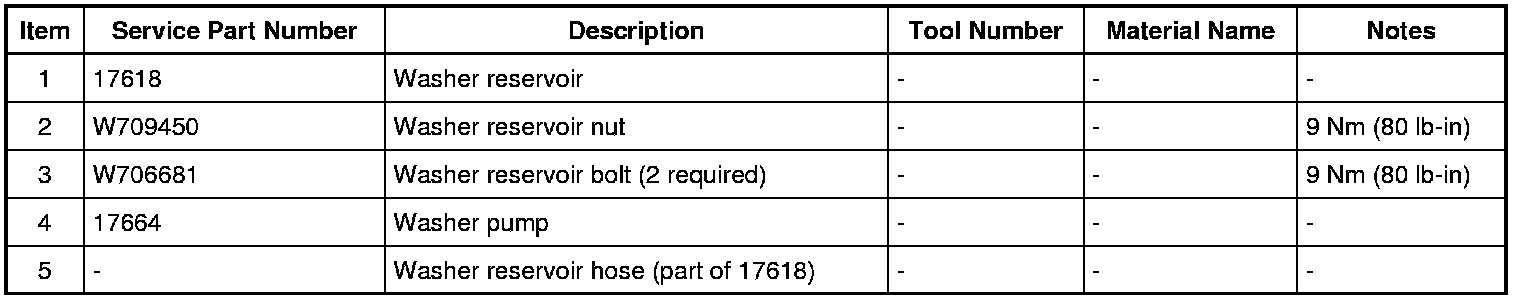

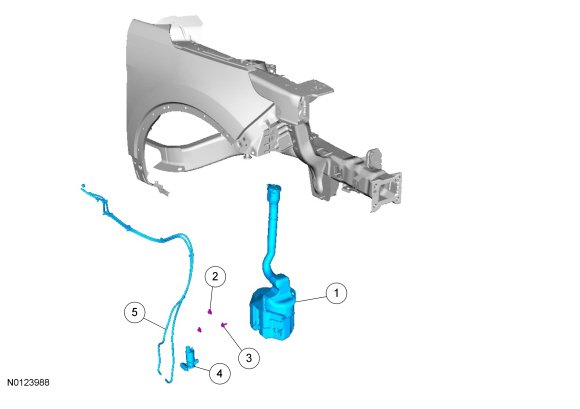

Washer Pump and Reservoir
