Home >> Ford >> 2012 >> Explorer FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> C4250B Power-fold Seat Module (PFSM)

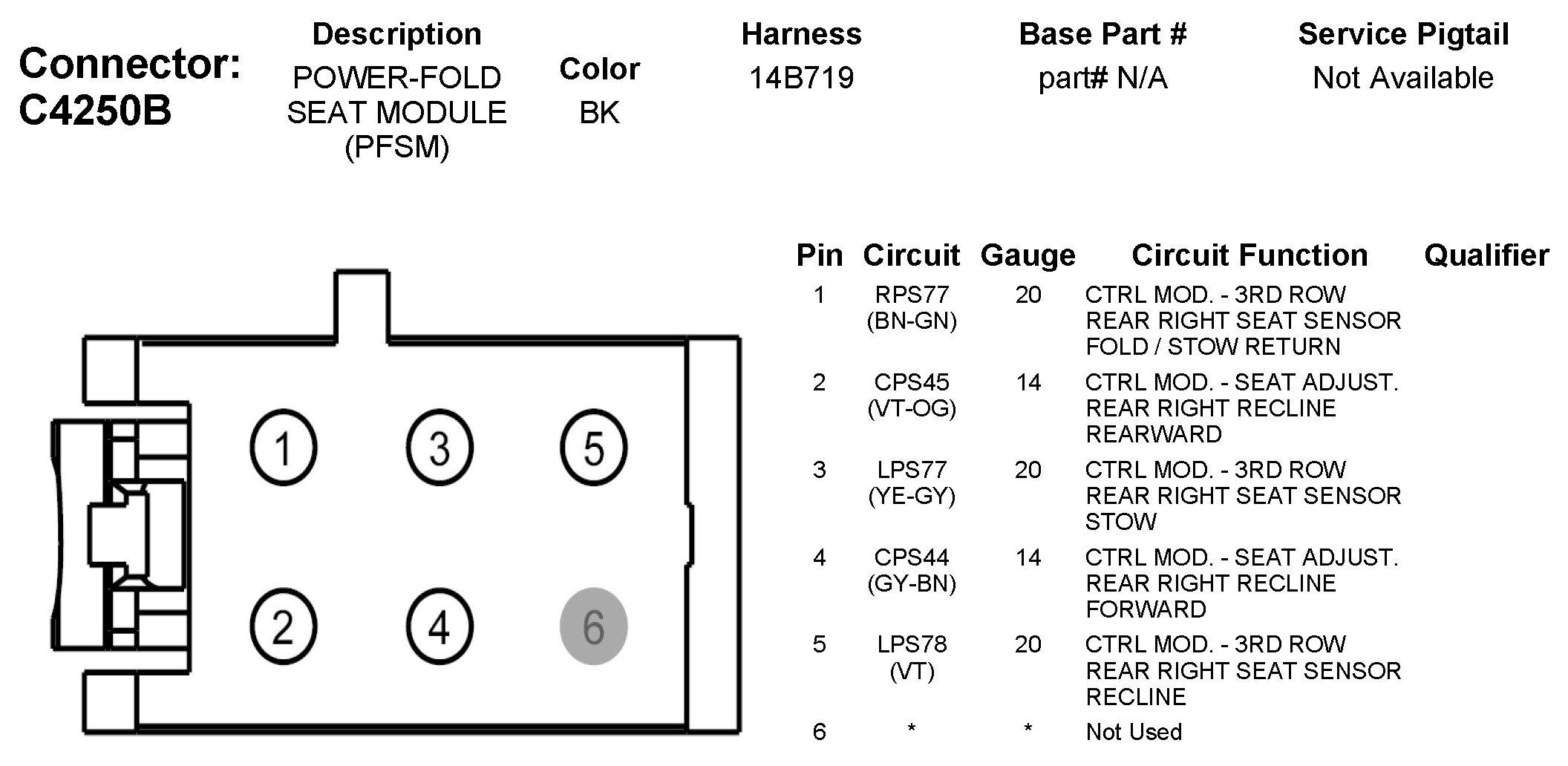

C4250B Power-fold Seat Module (PFSM)
