Ford
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

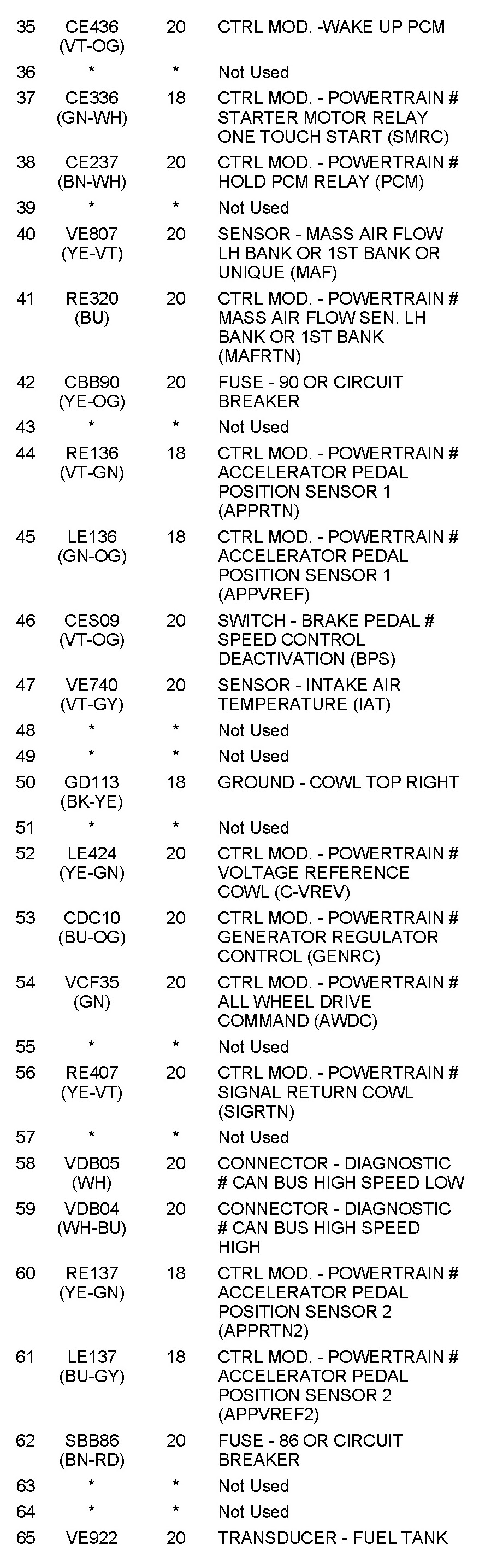

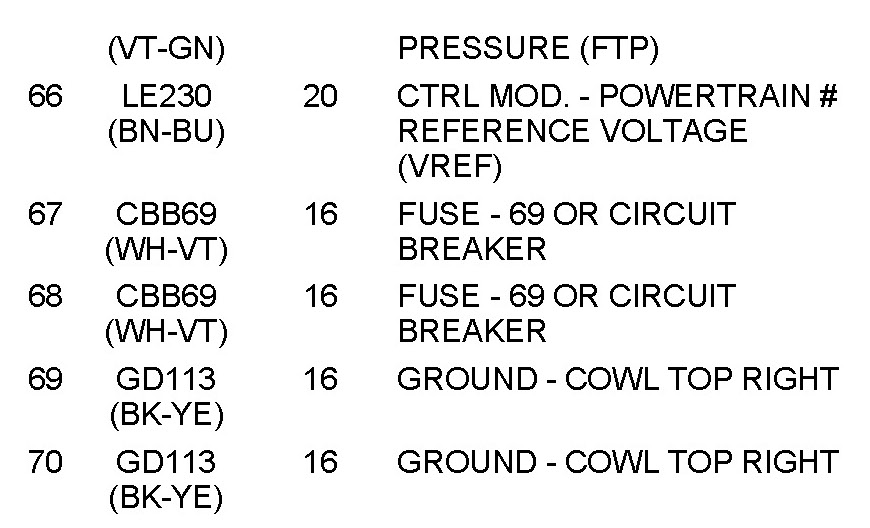

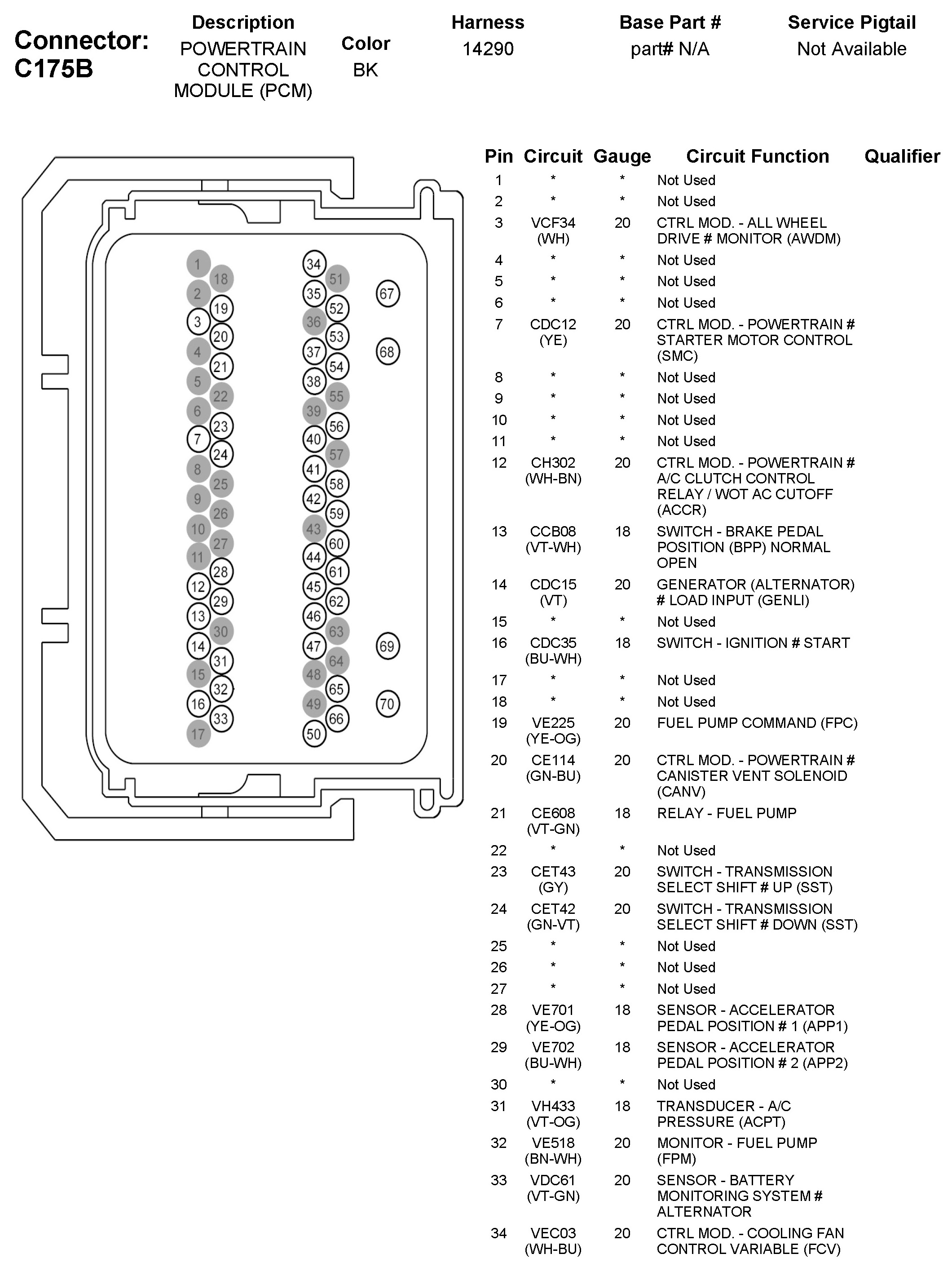

C175B Powertrain Control Module (PCM)
C175B Powertrain Control Module (PCM)
