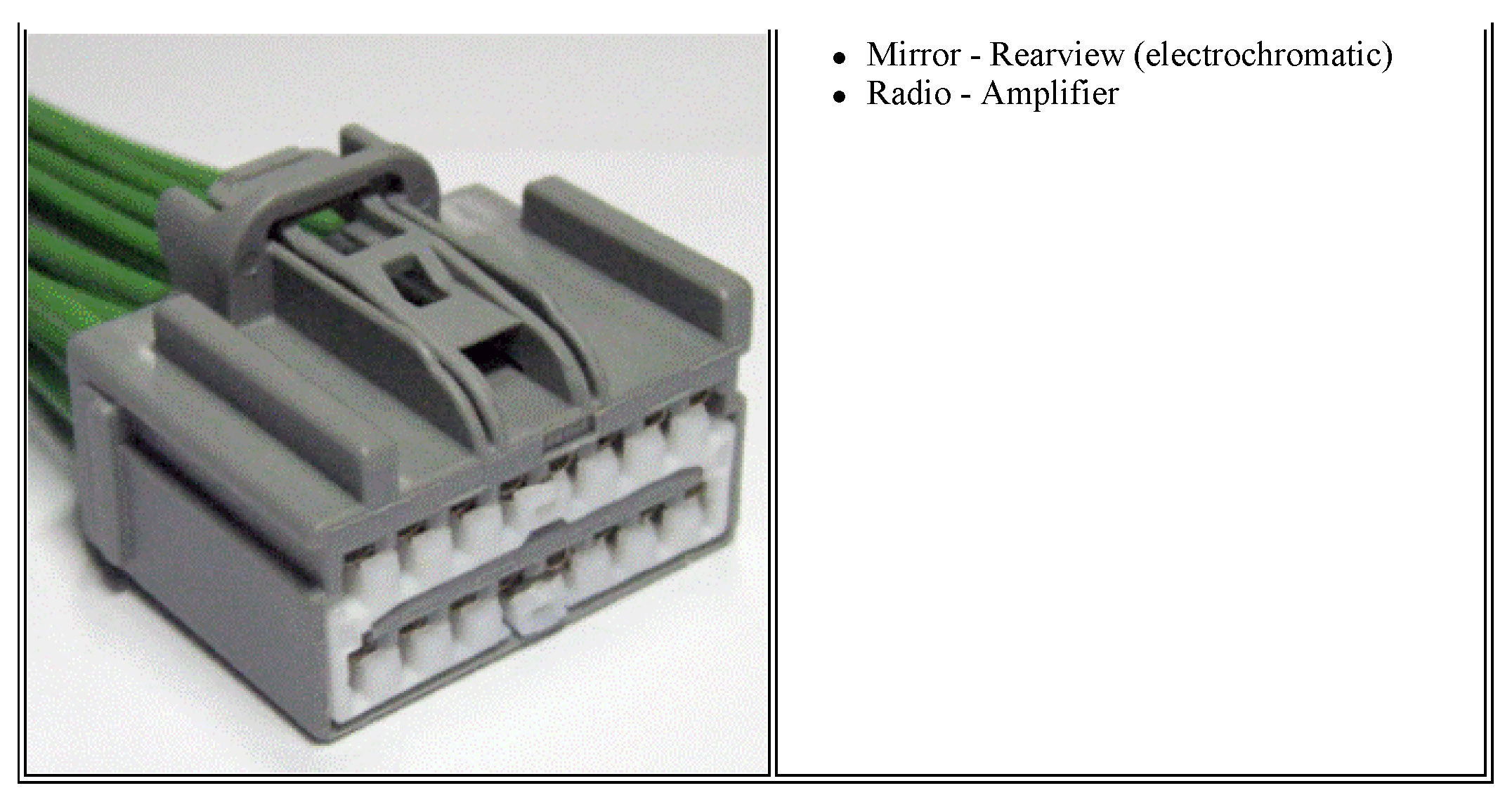

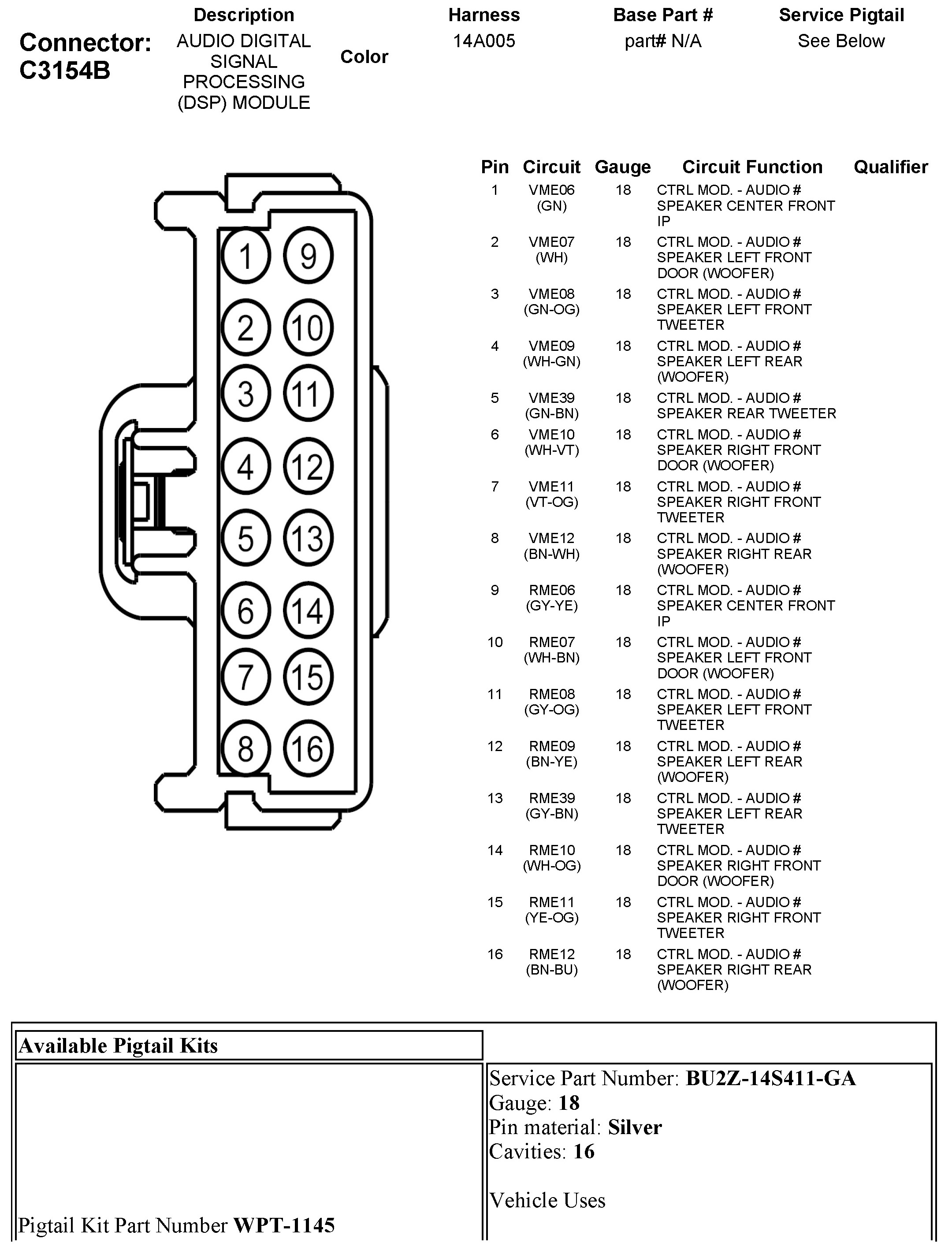

C3154B Audio Digital Signal Processing (DSP) Module
C3154B Audio Digital Signal Processing (DSP) Module
