Test HD: Misfire Detection Monitor

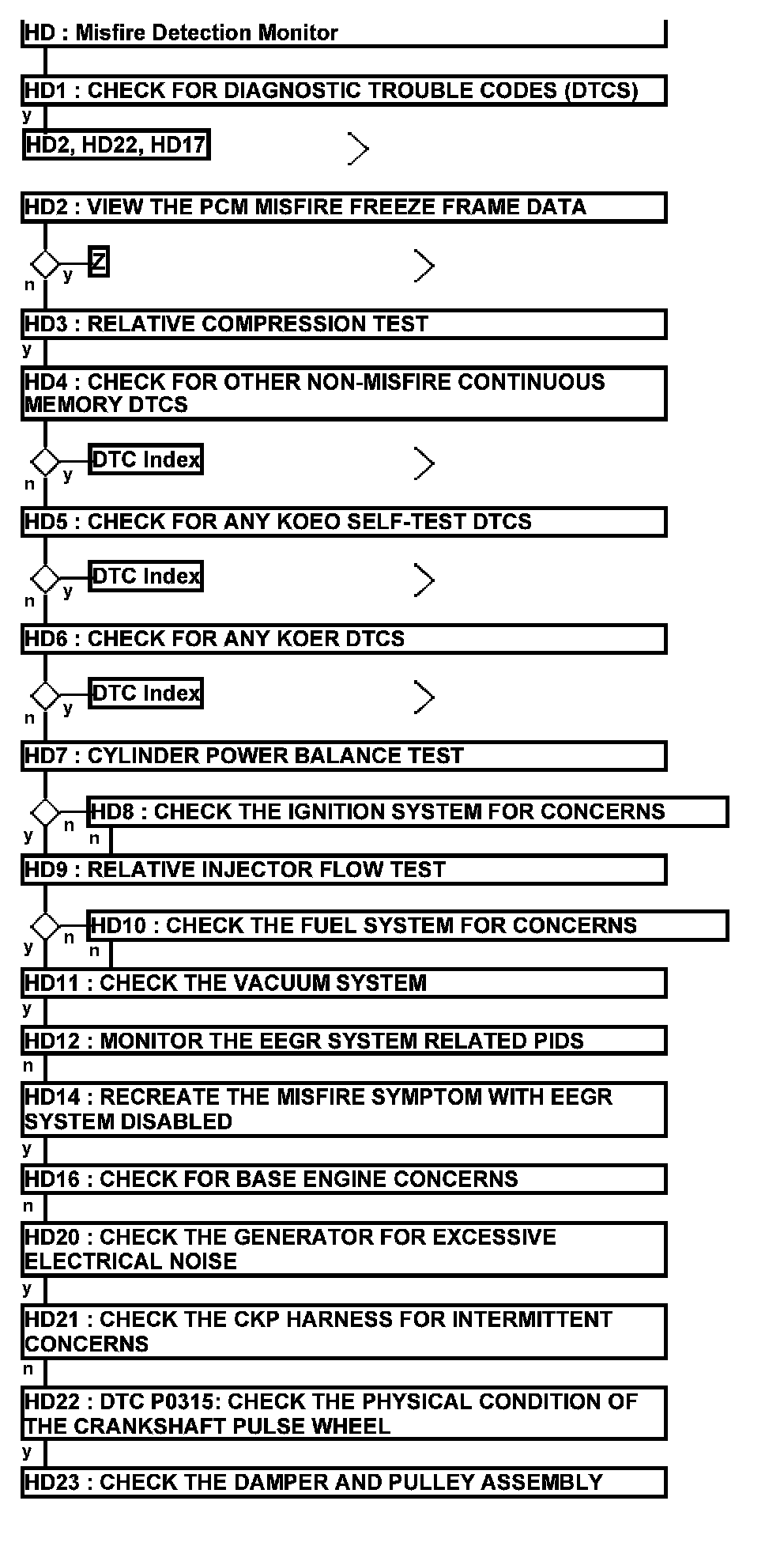

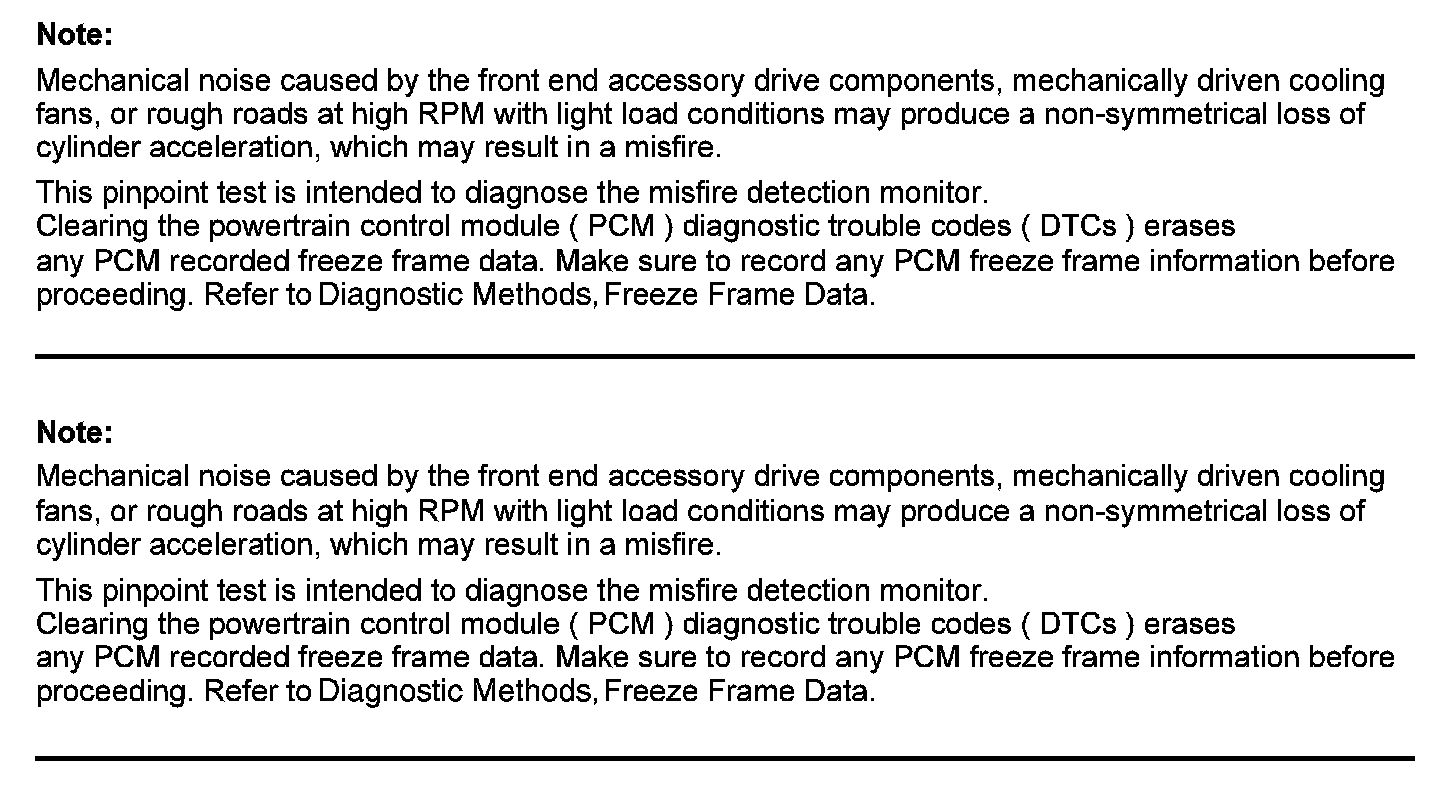

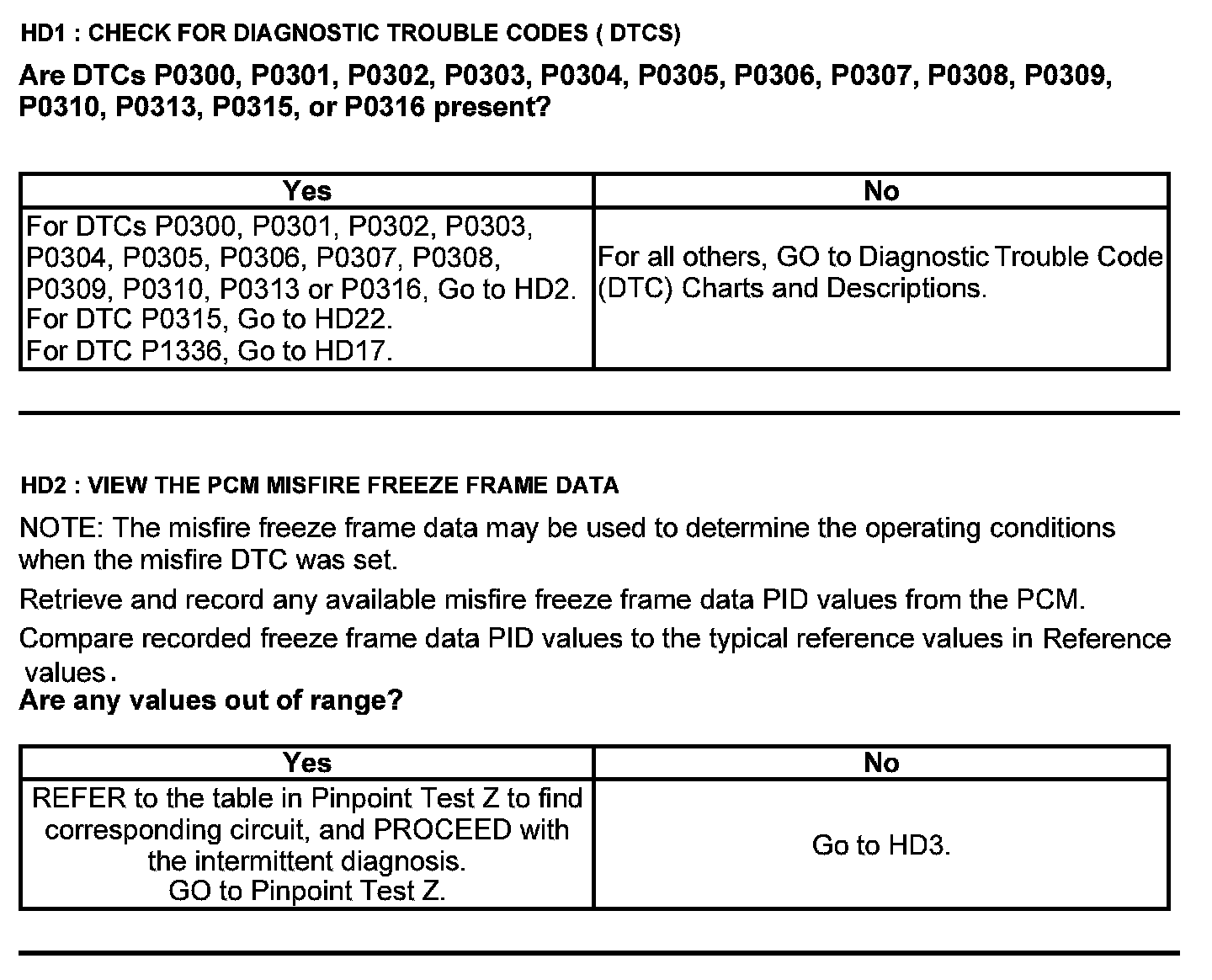

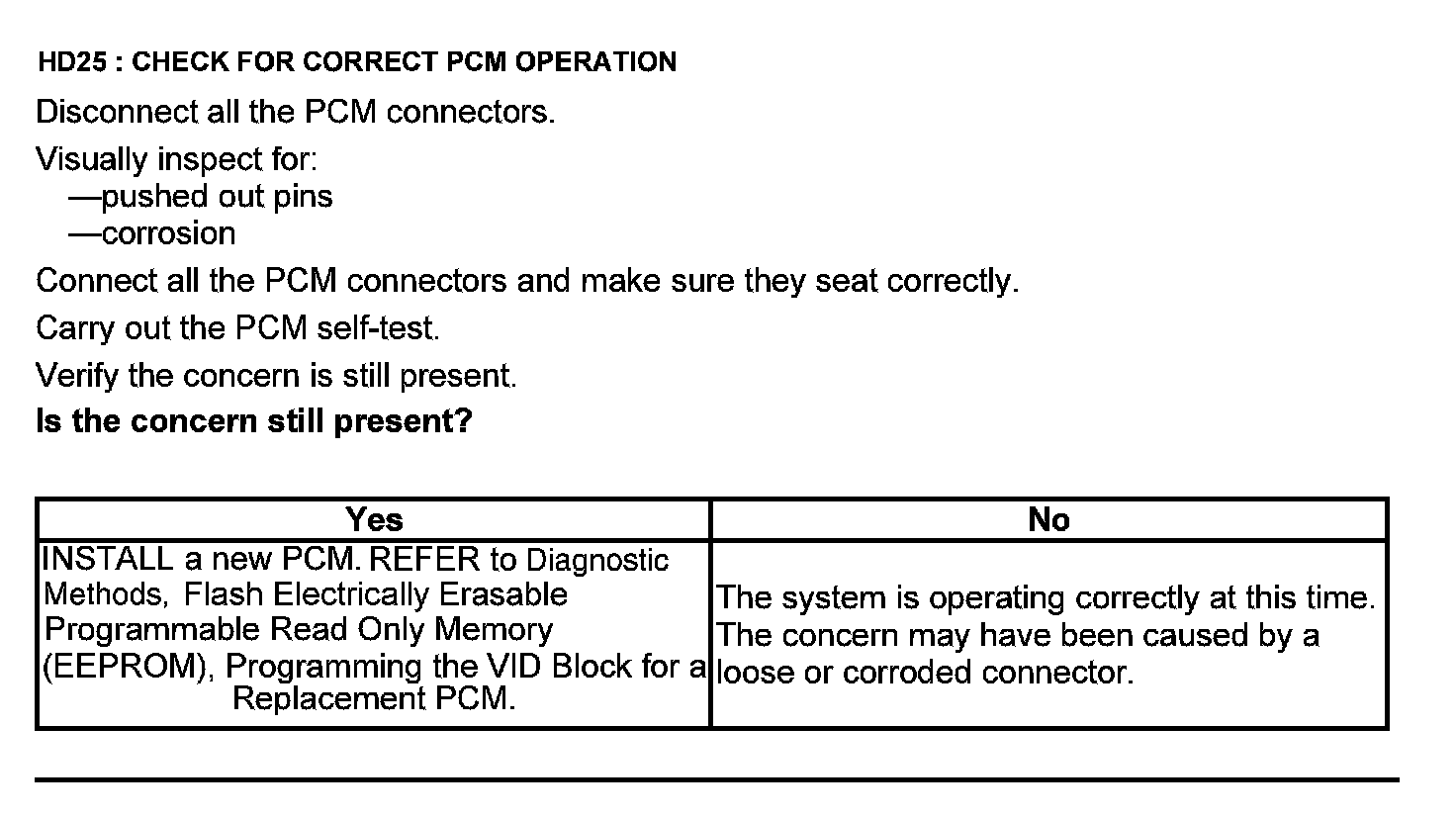

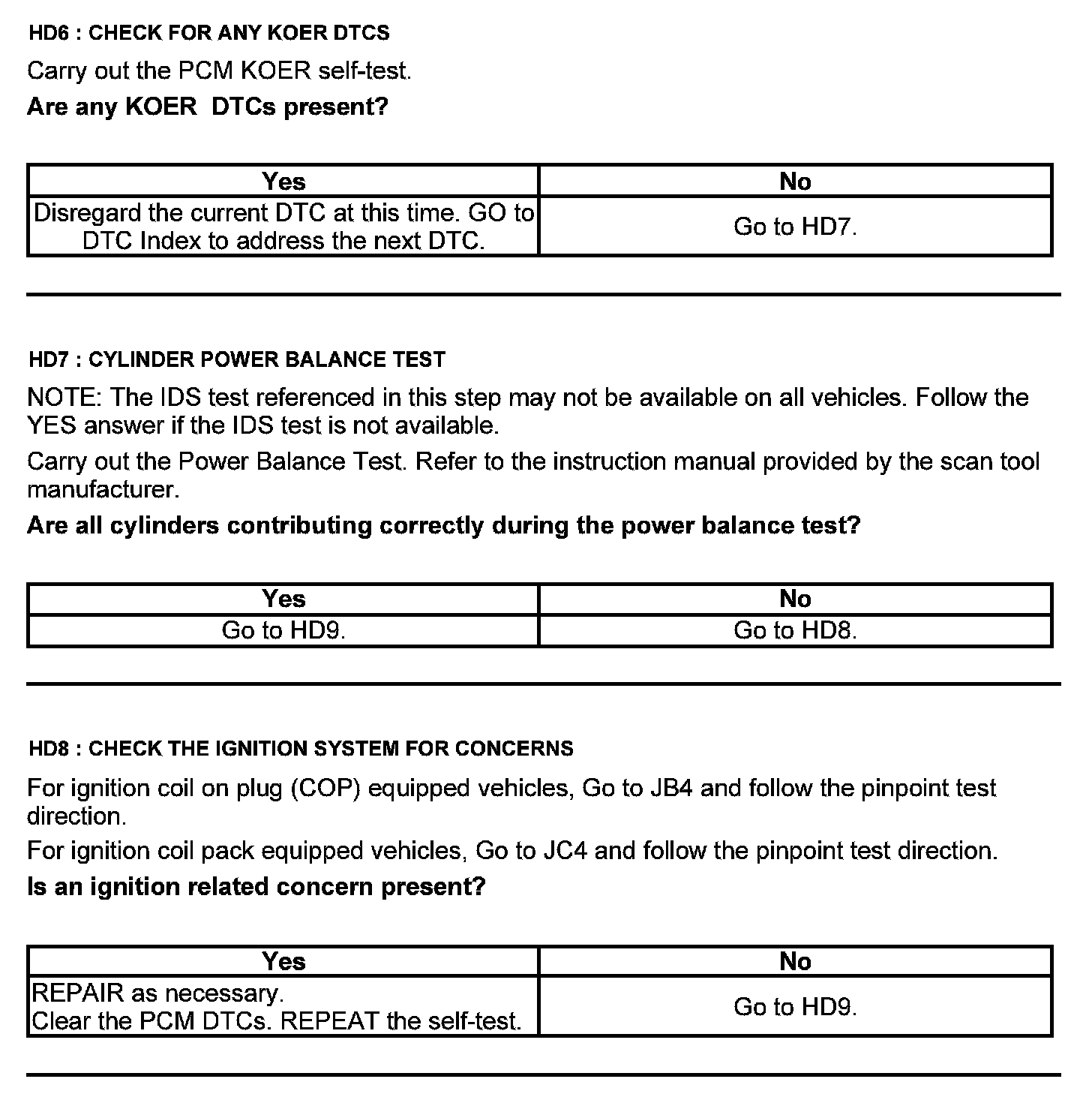

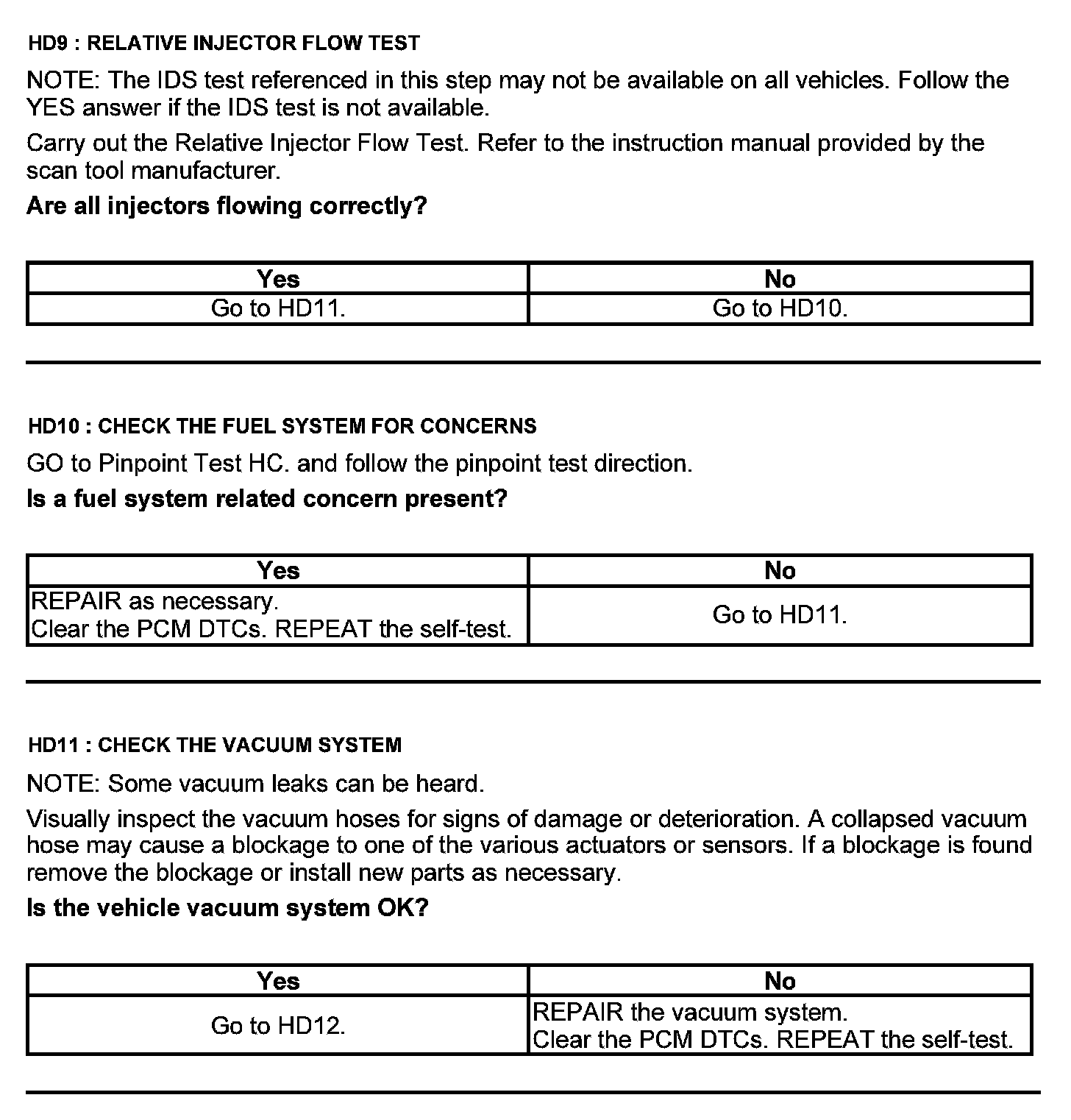

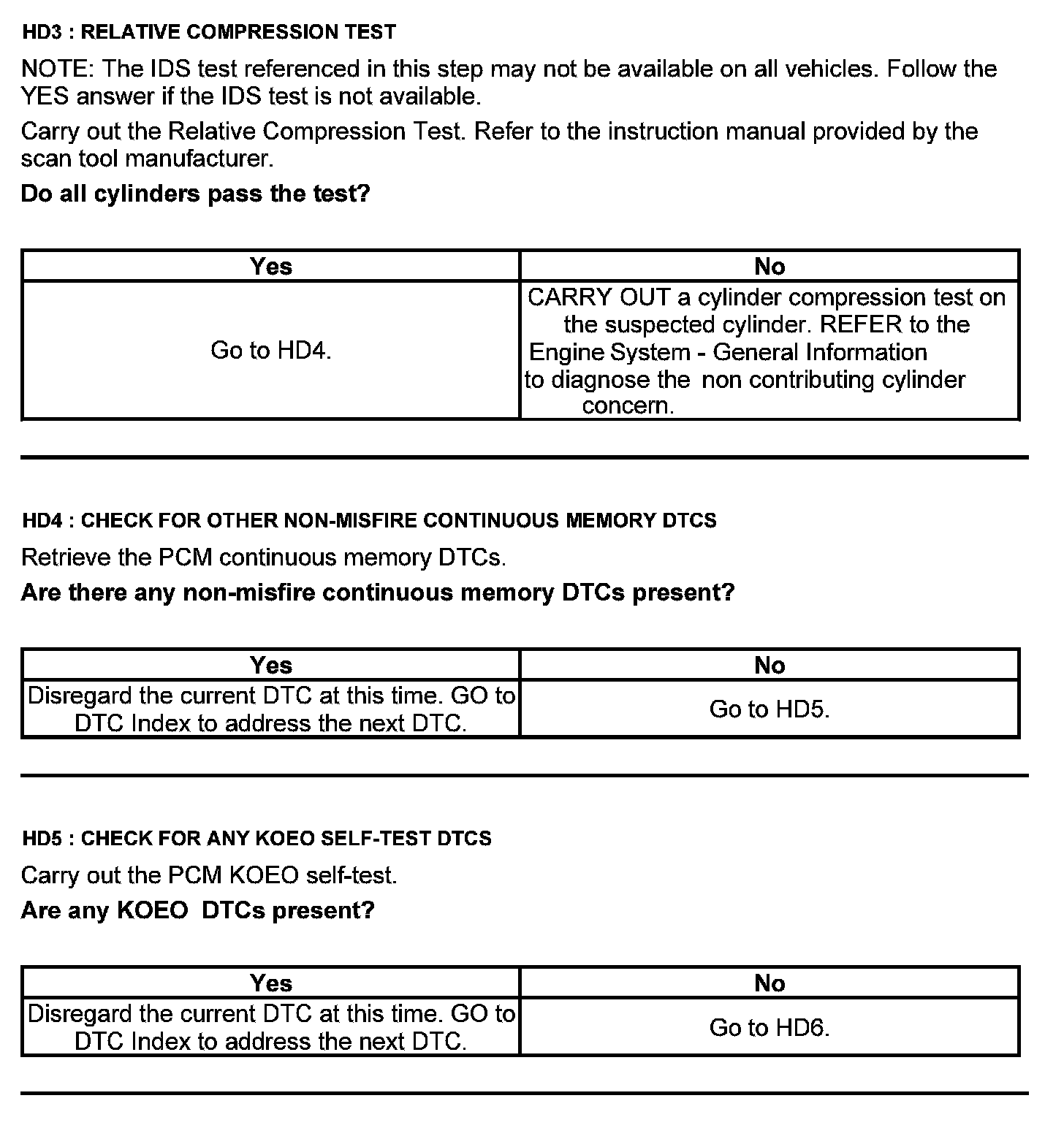

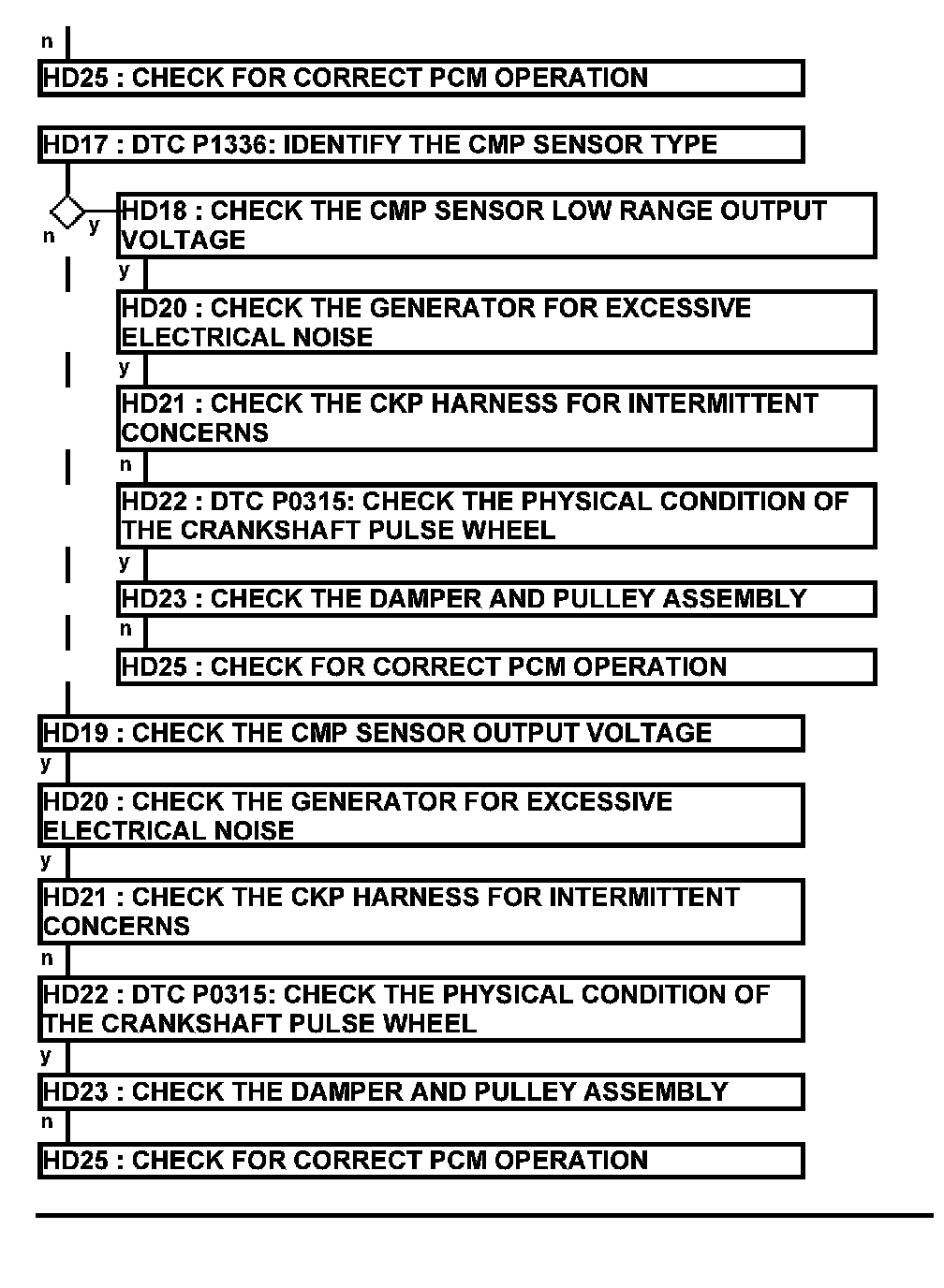

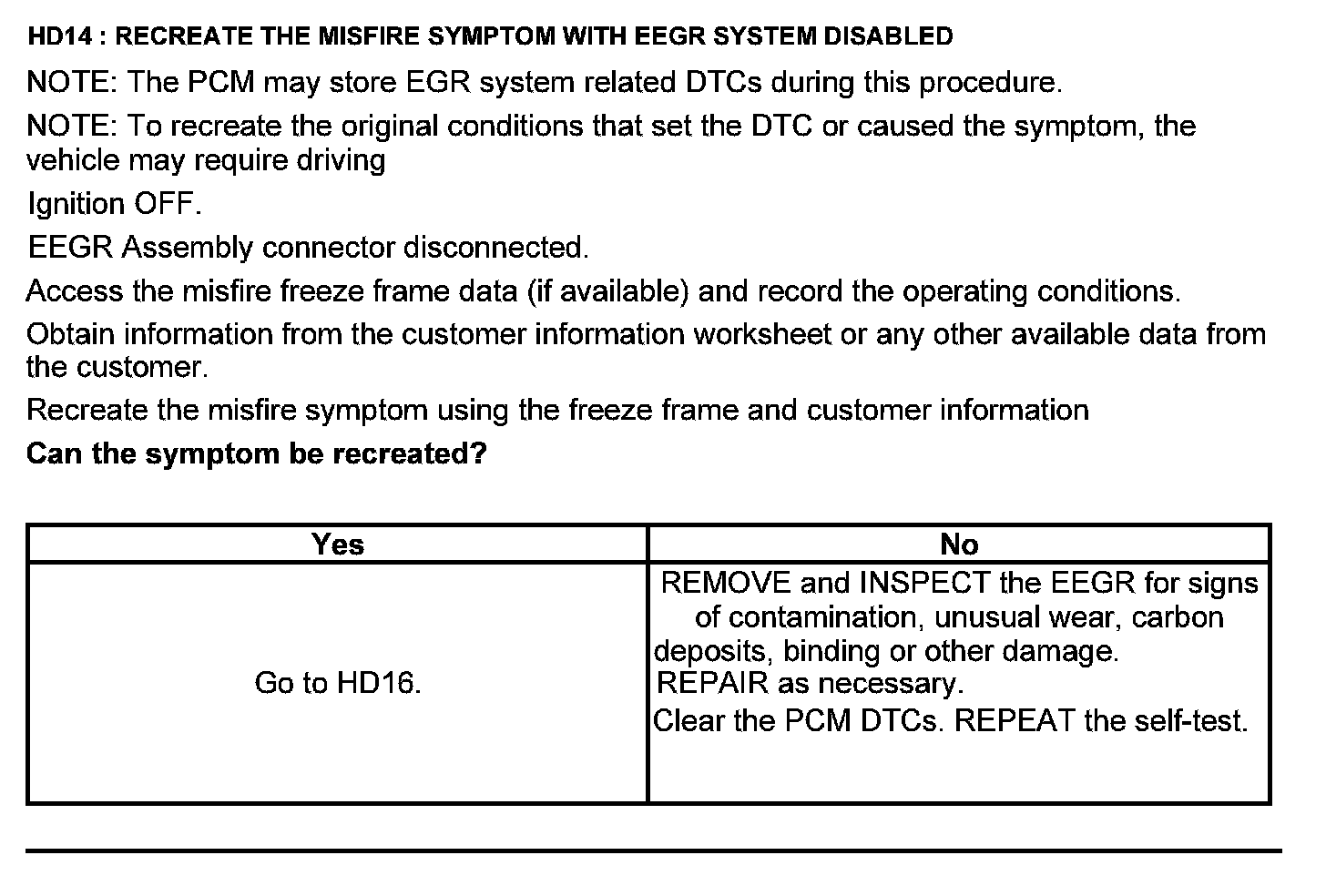

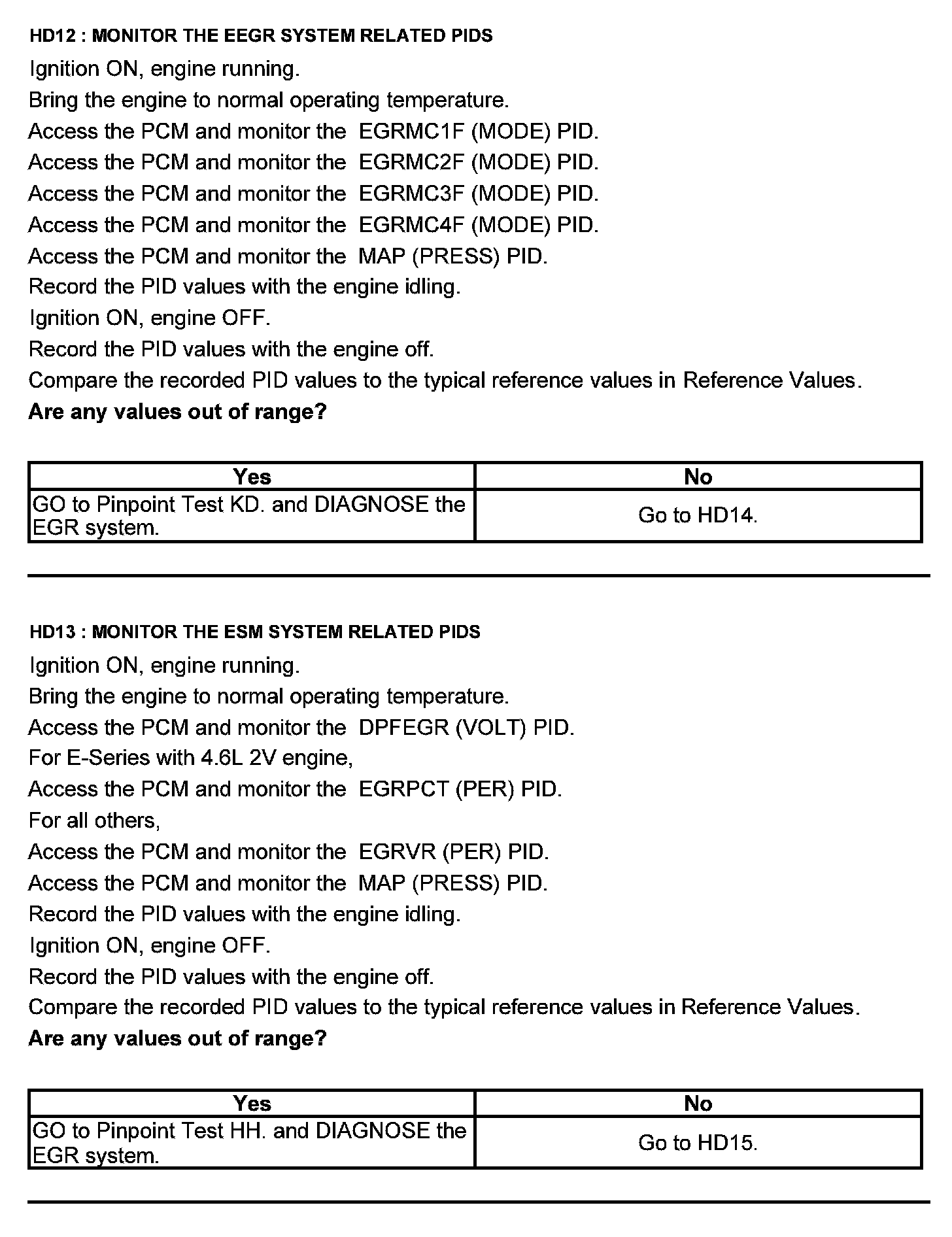

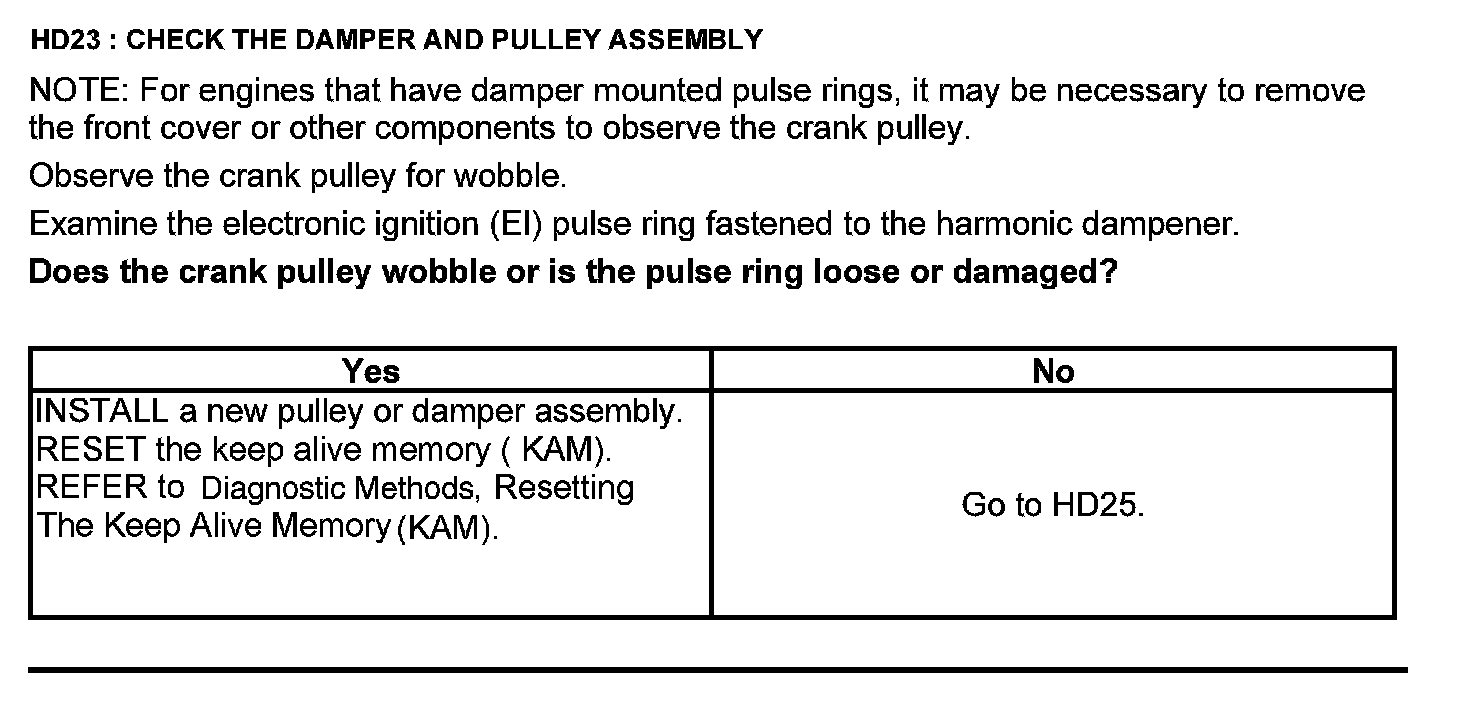

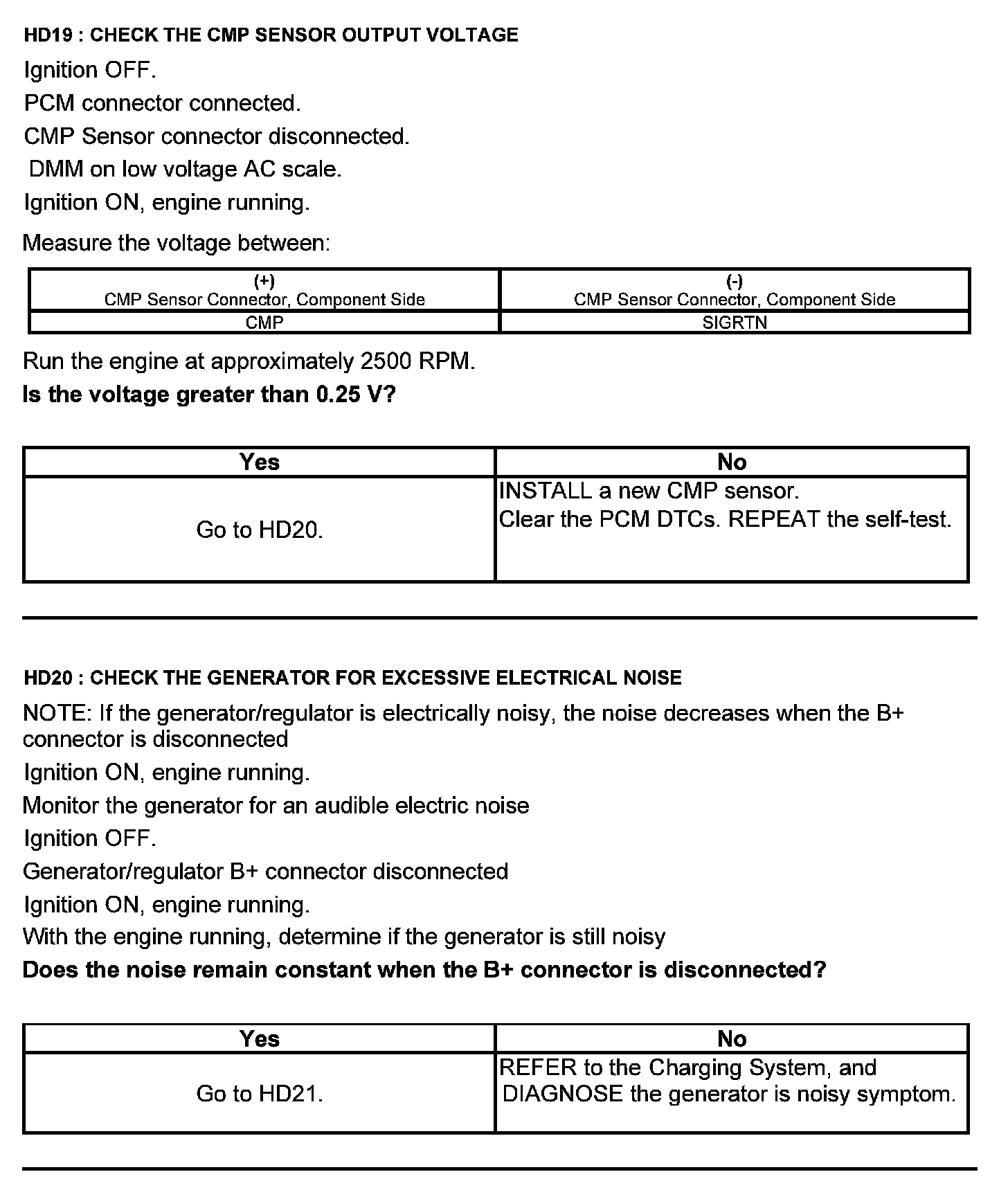

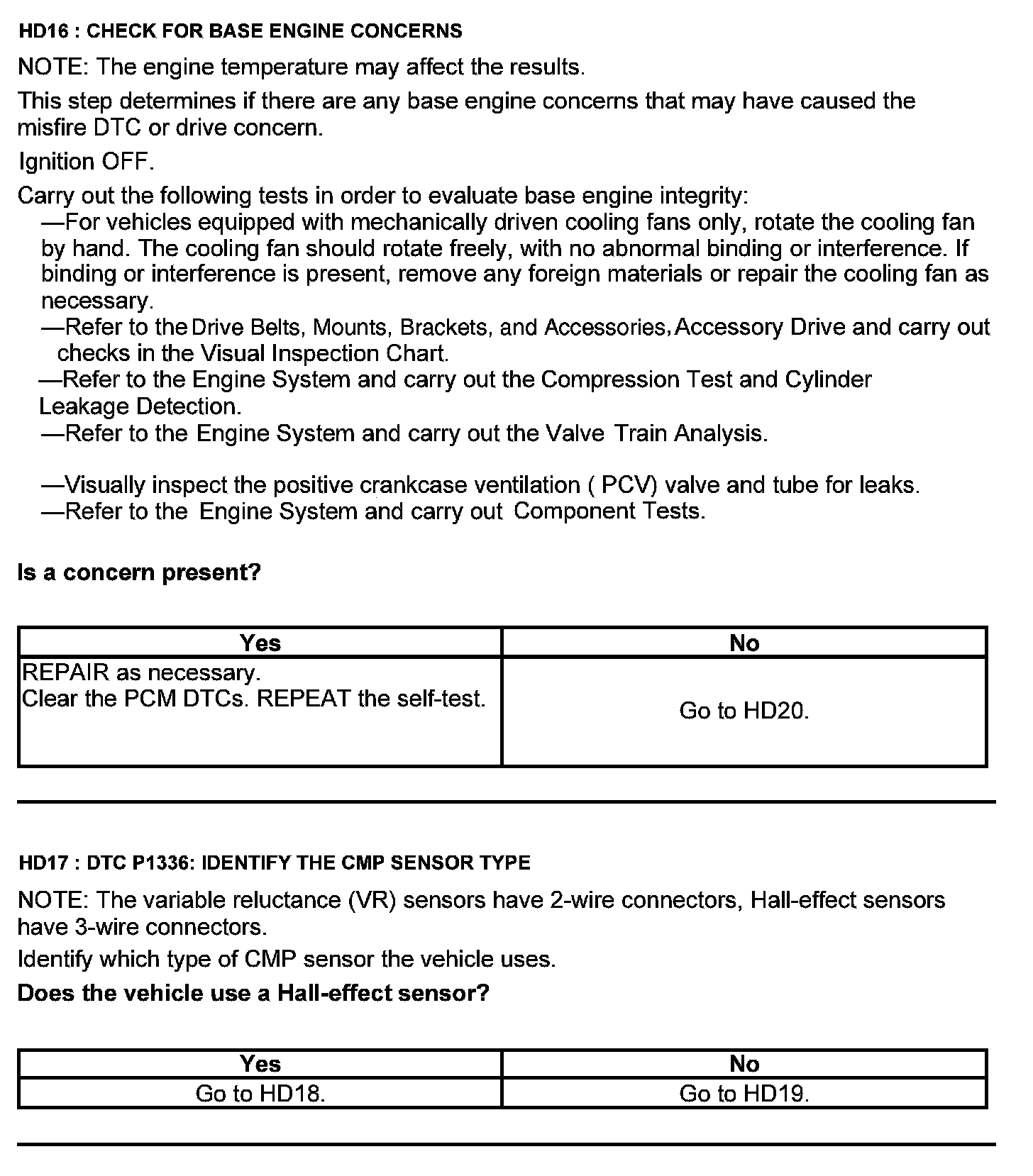

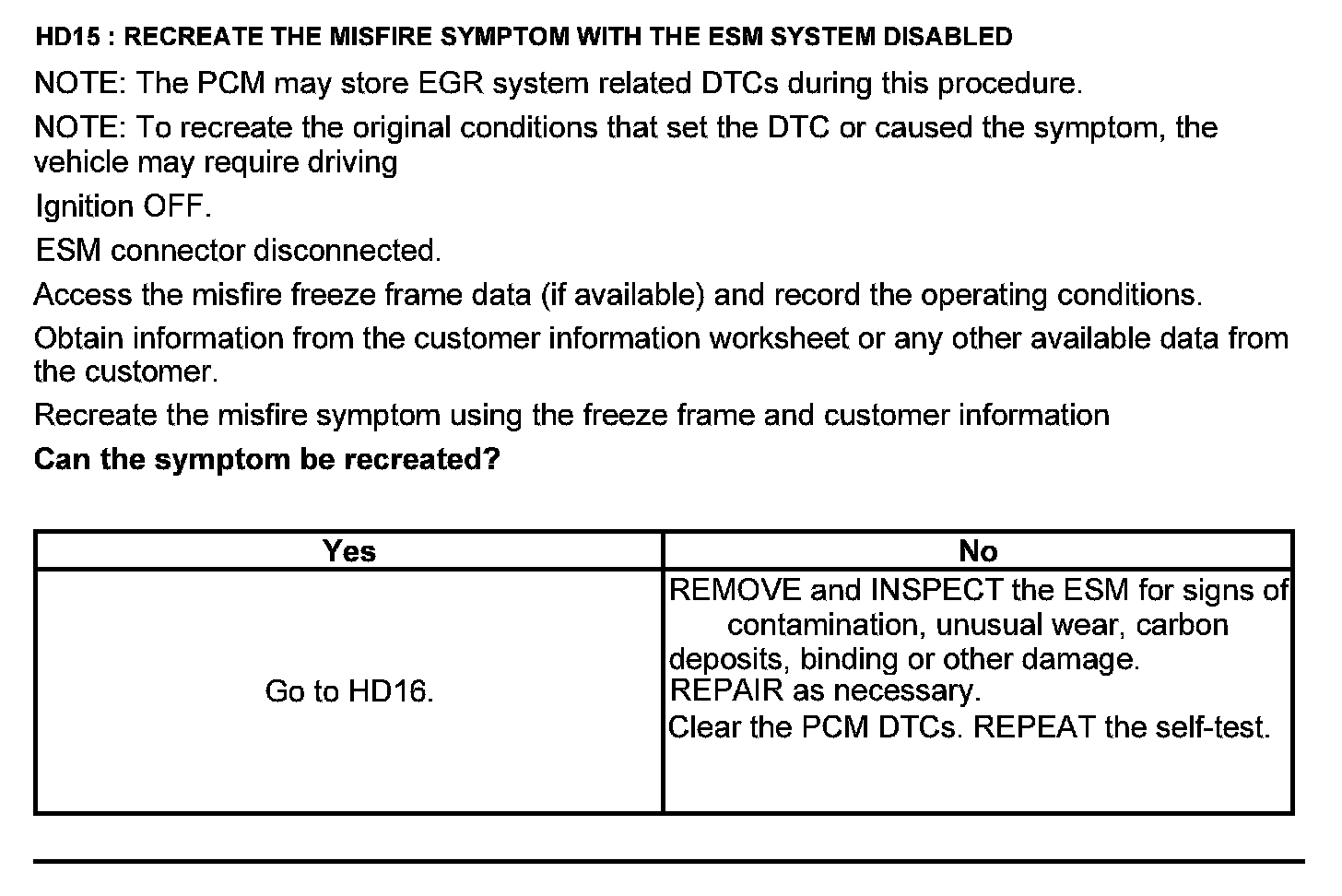

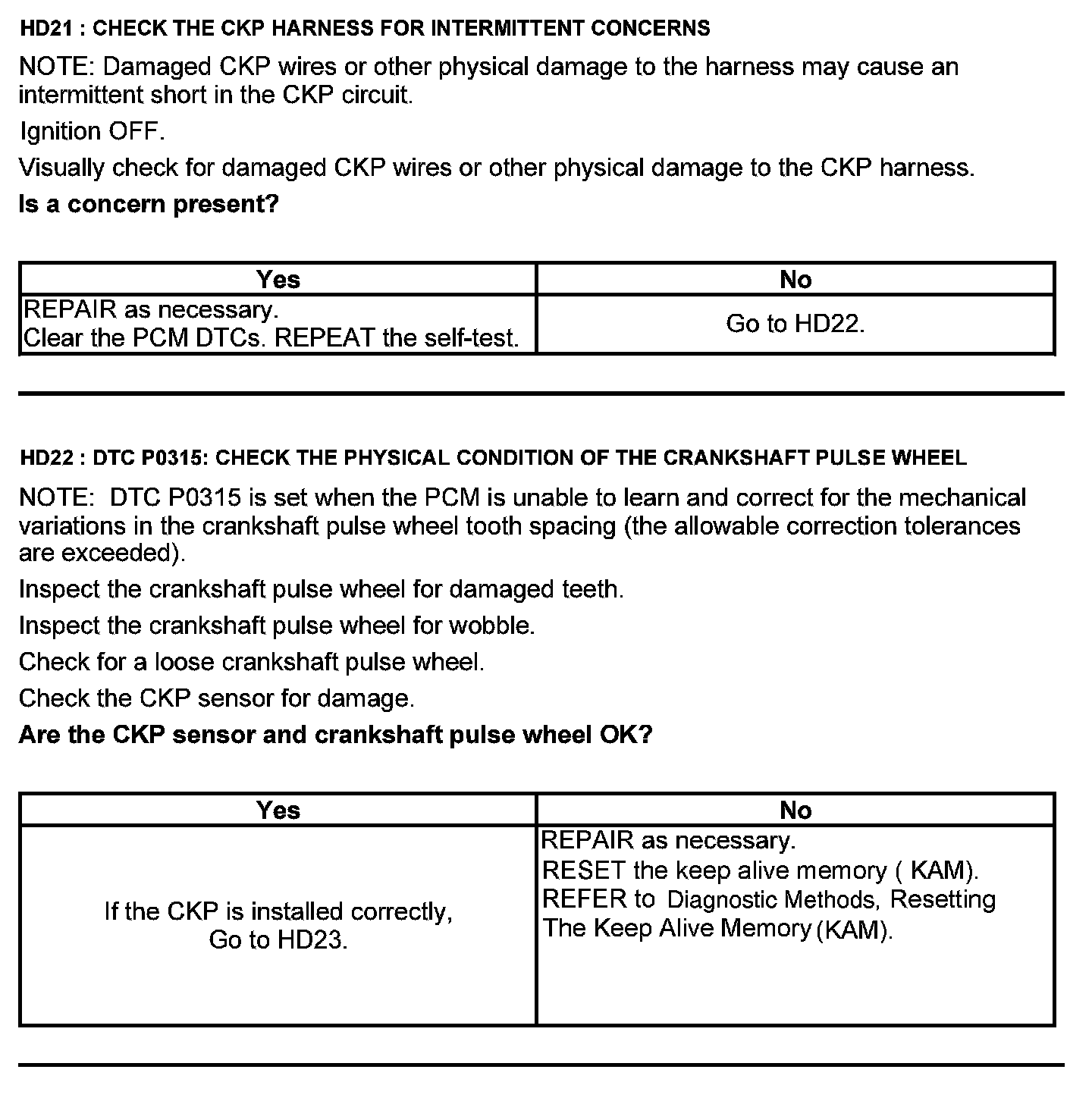

Misfire Detection Monitor

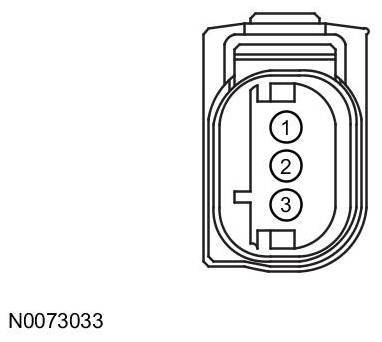

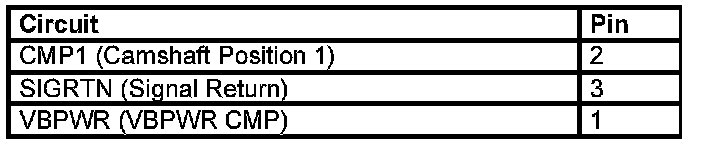

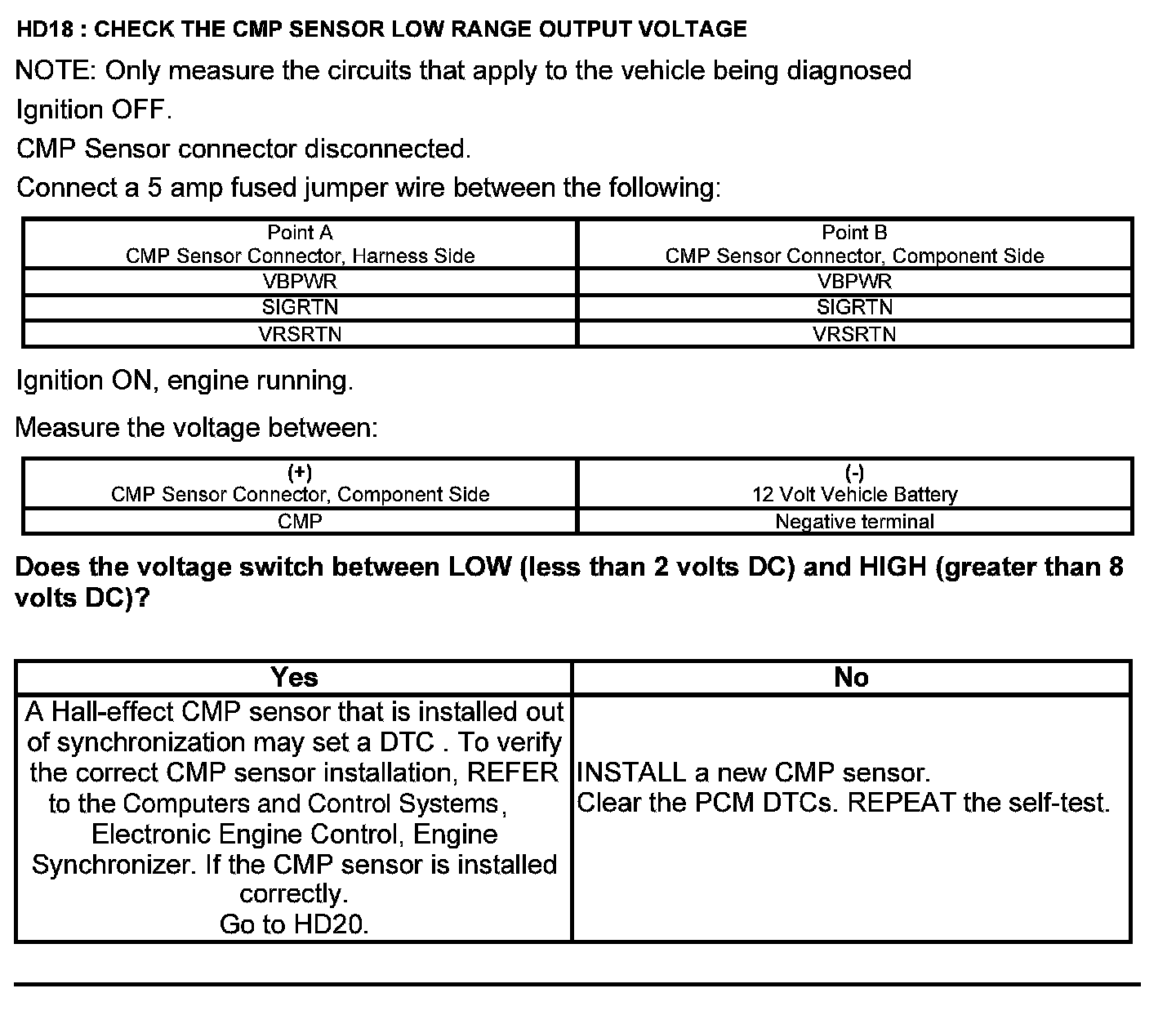

Camshaft Position 1 (CMP1) Sensor Connector






Harness Side

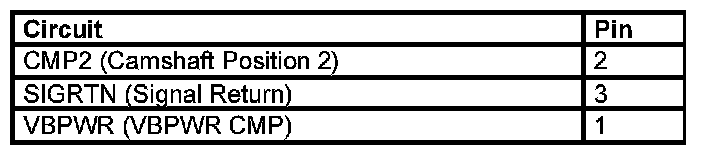

Camshaft Position 2 (CMP2) Sensor Connector






Harness Side

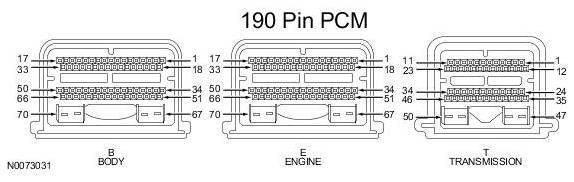

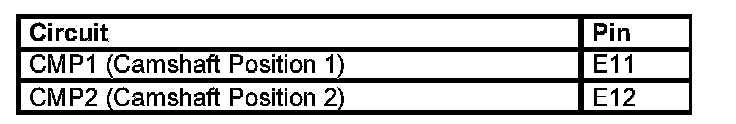

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
