Automatic Transmission

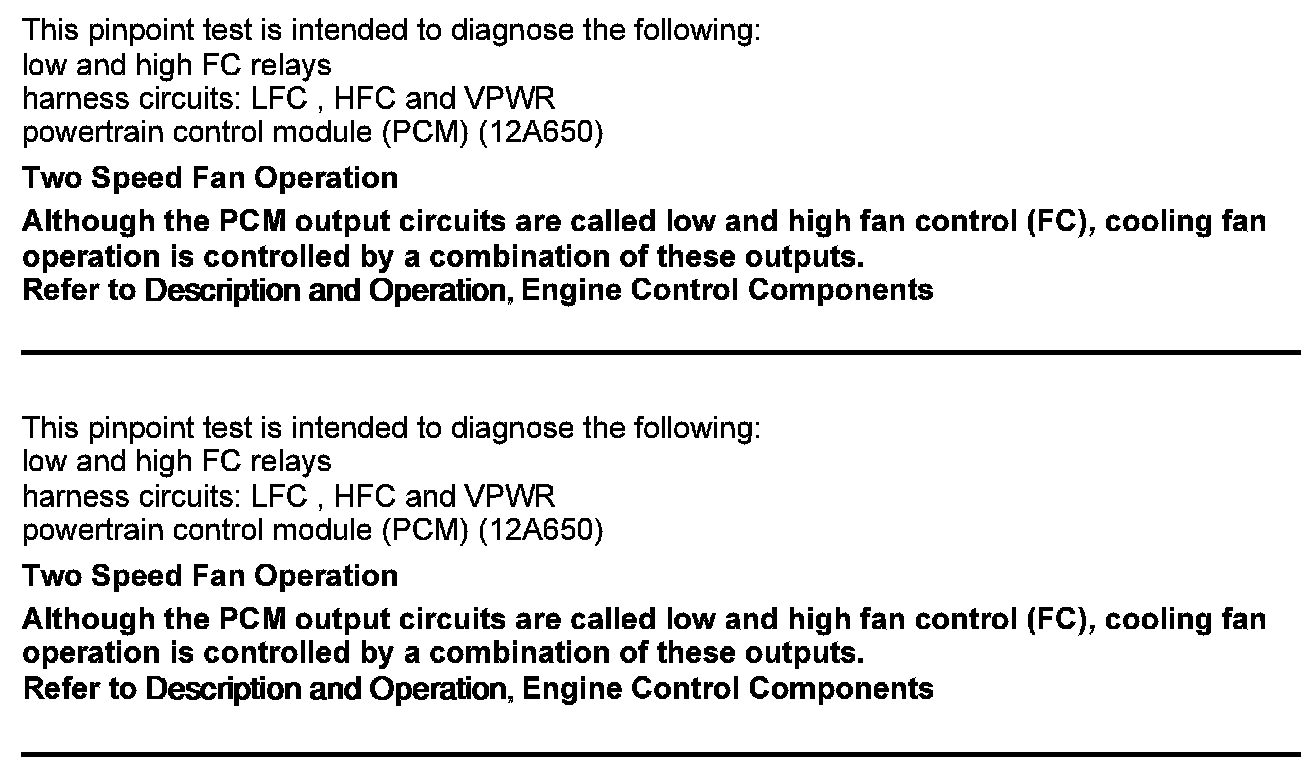

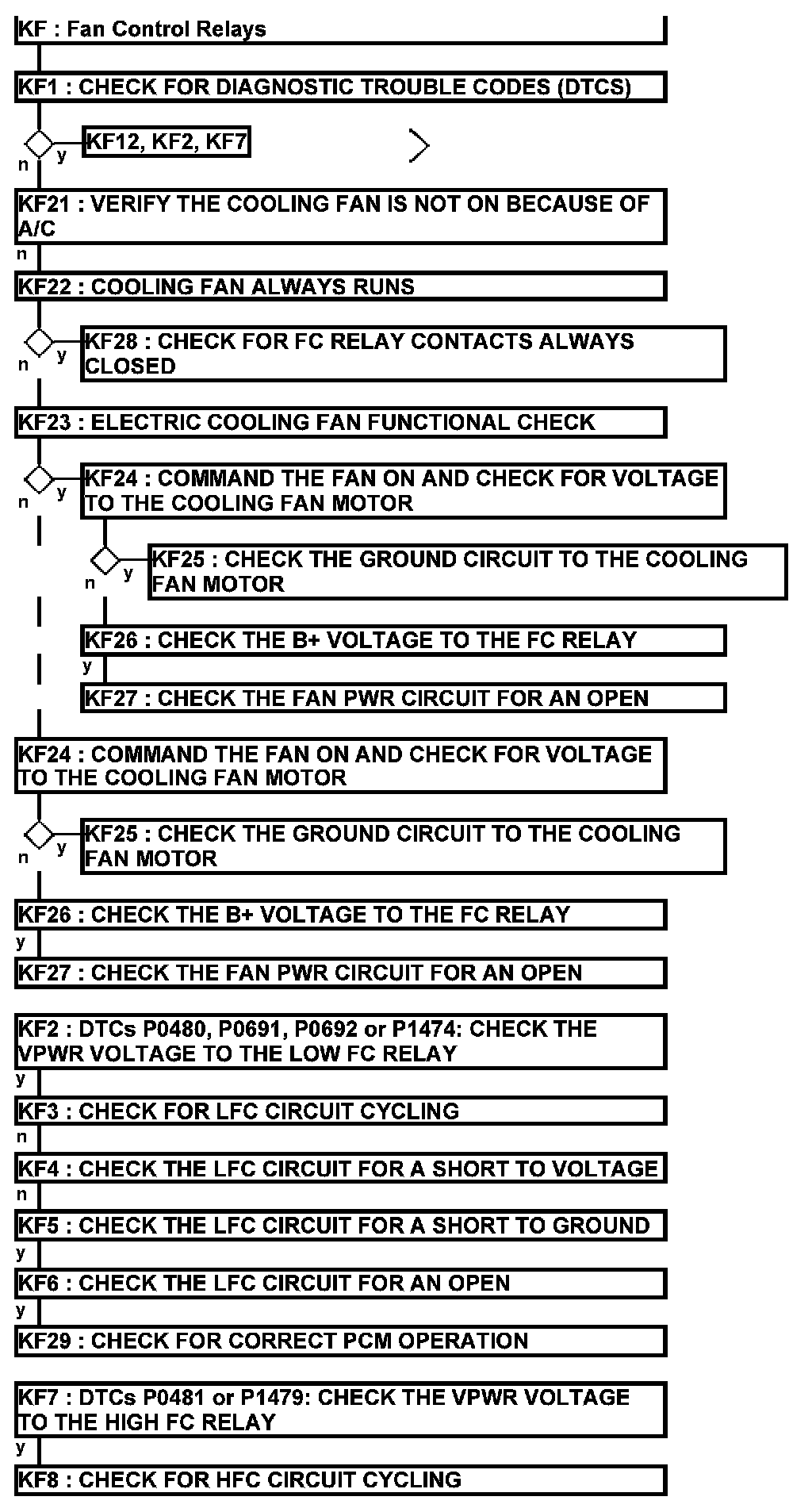

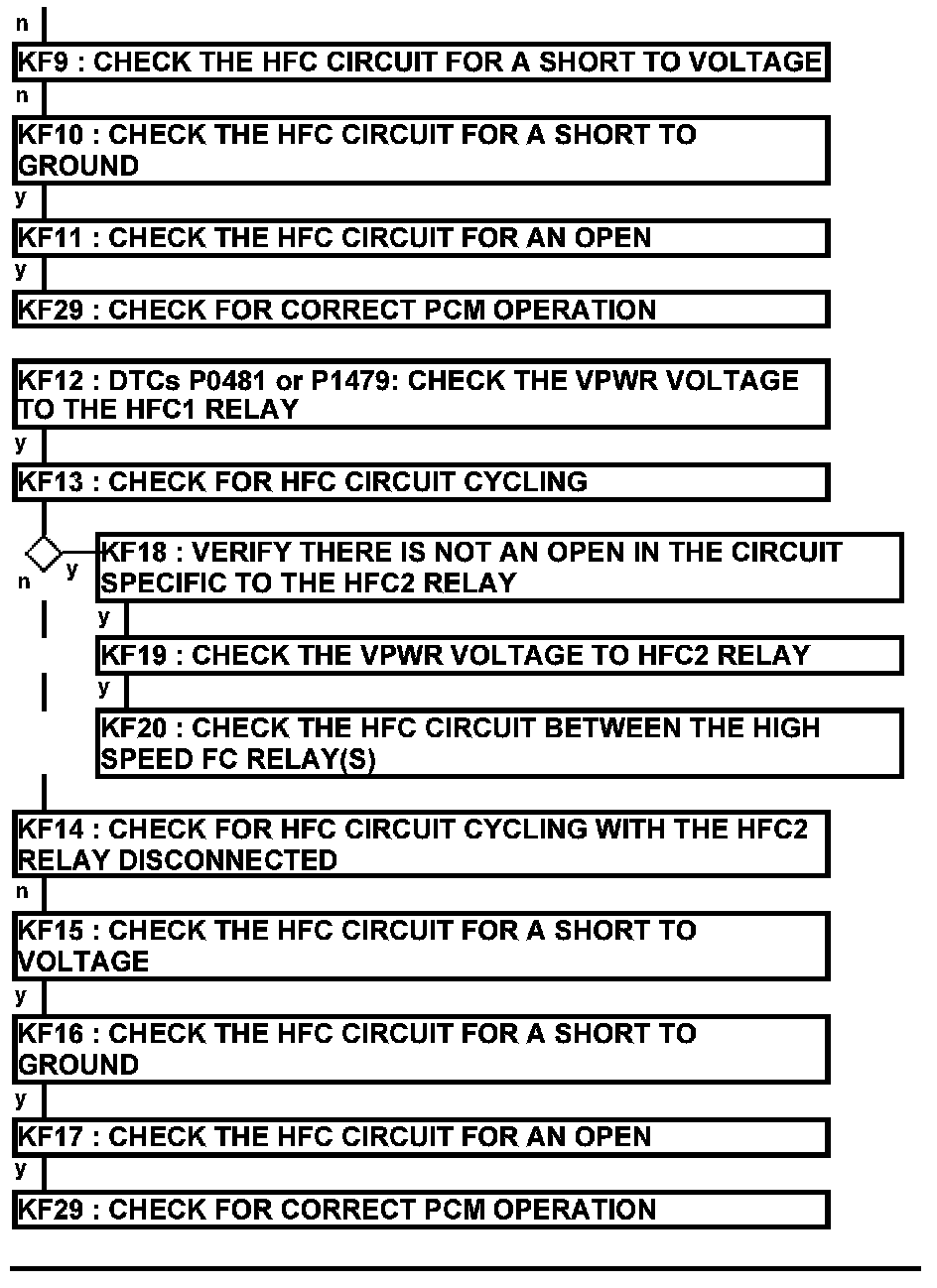

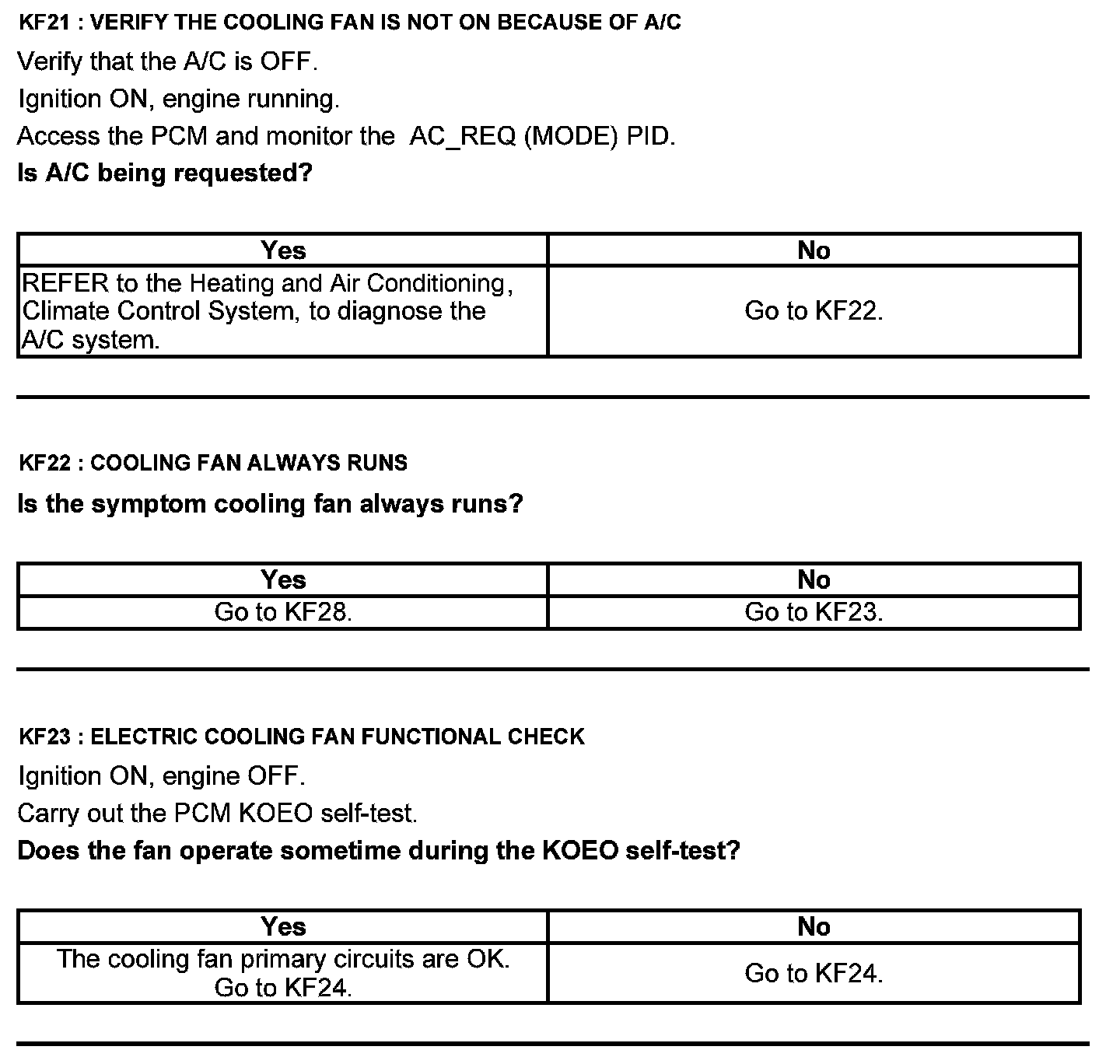

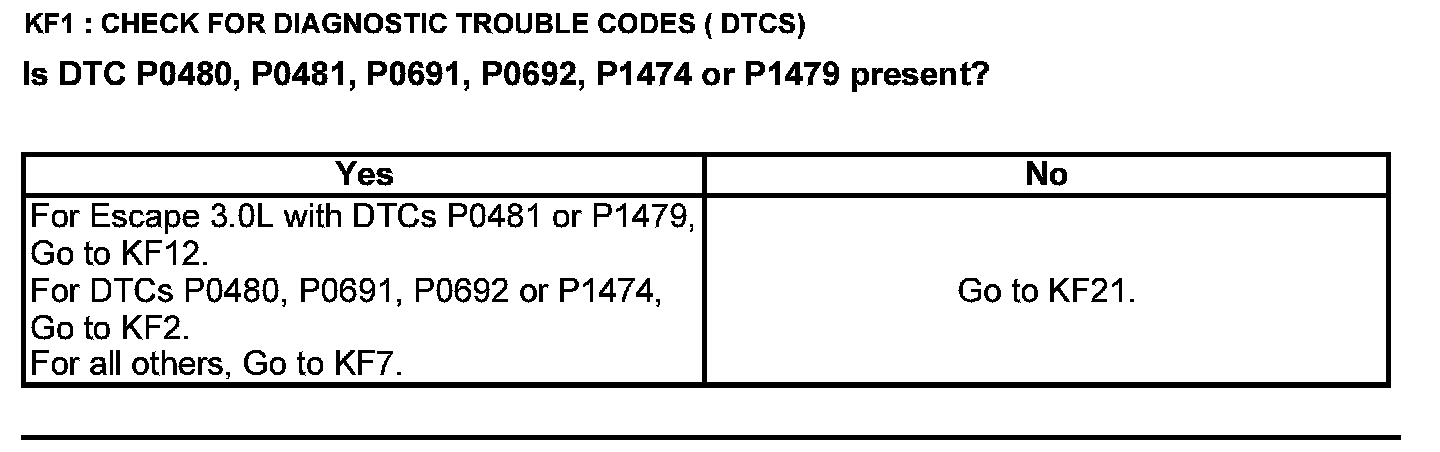

Fan Control Relays - Automatic Transmission

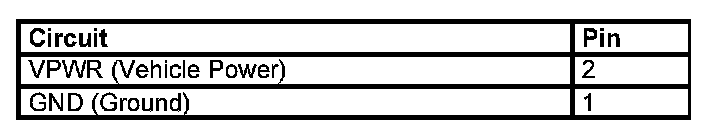

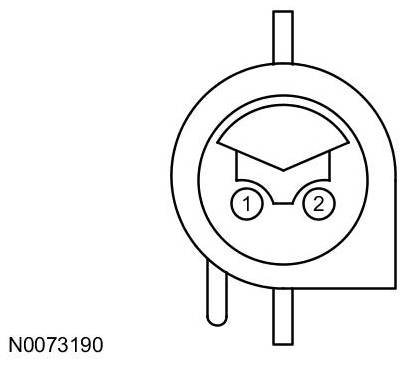

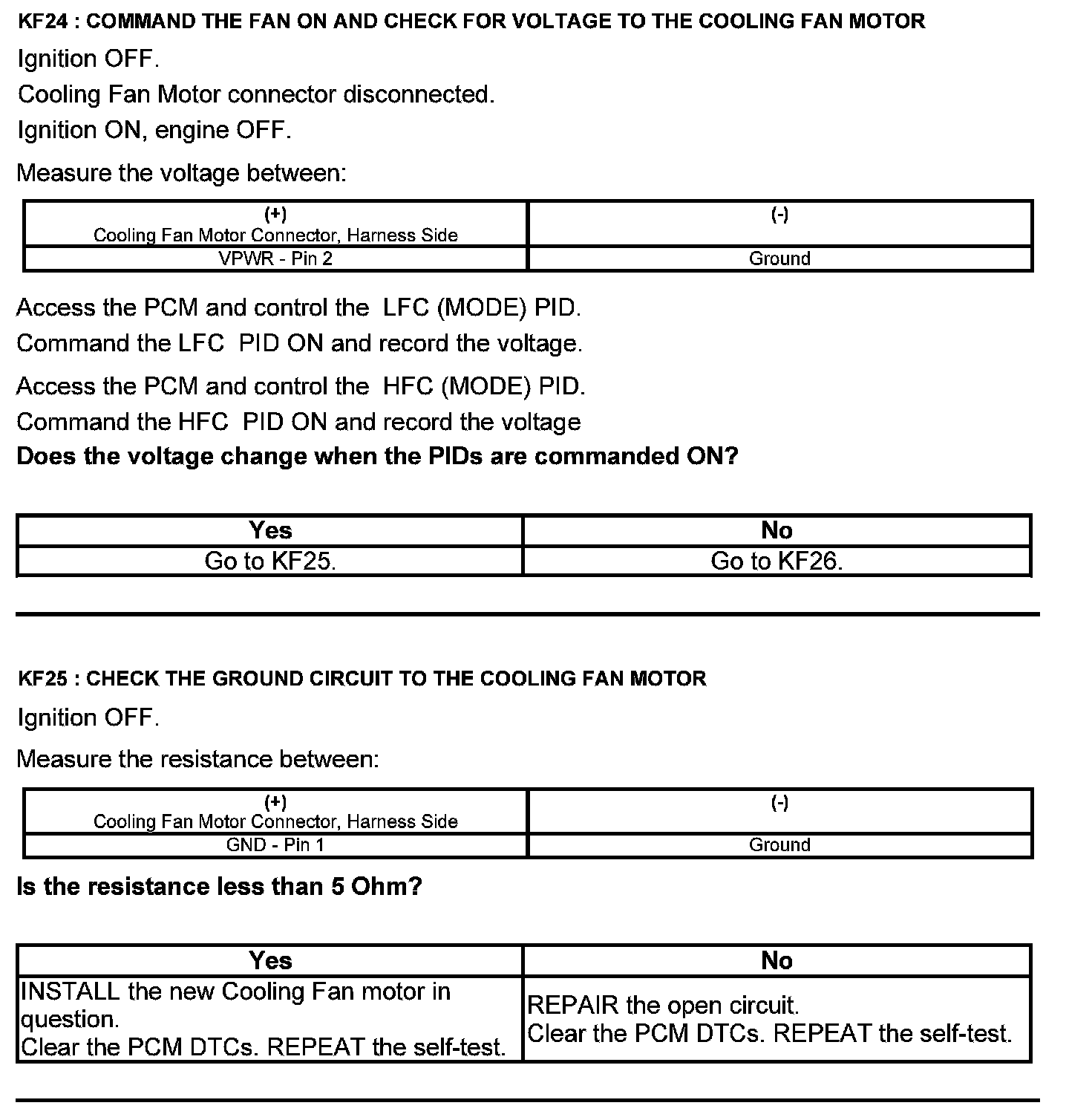

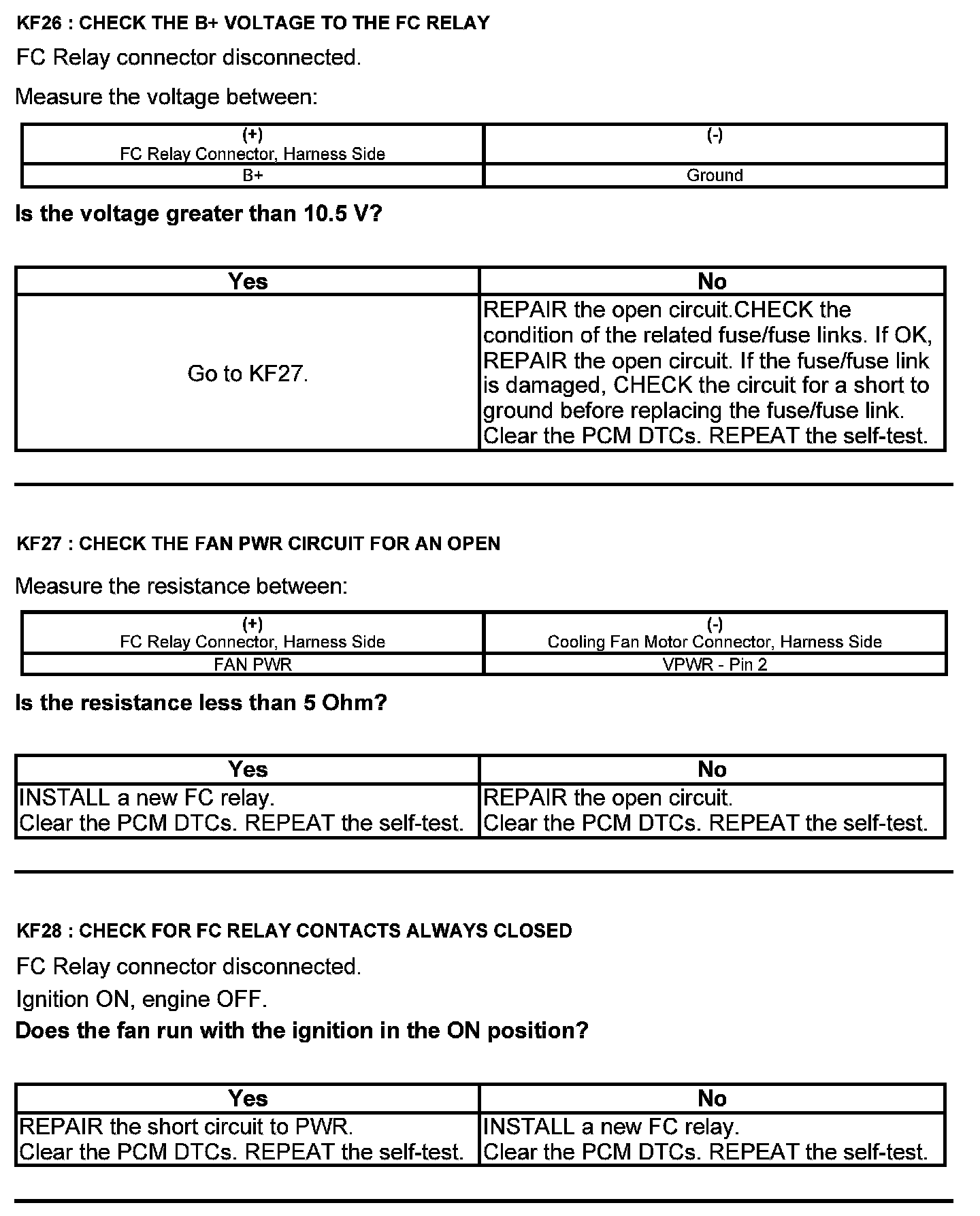

Cooling Fan Motor Connector





Harness Side

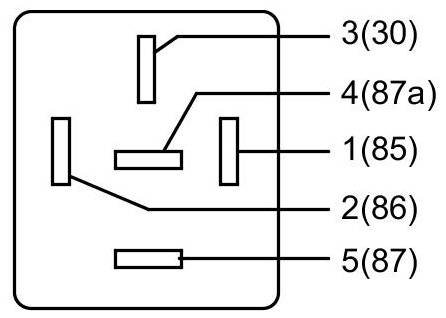

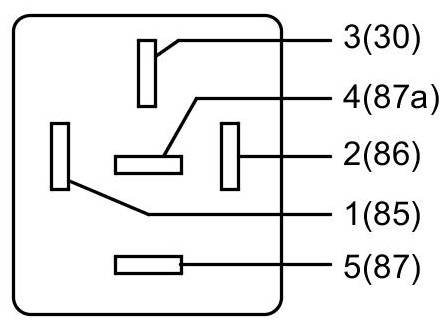

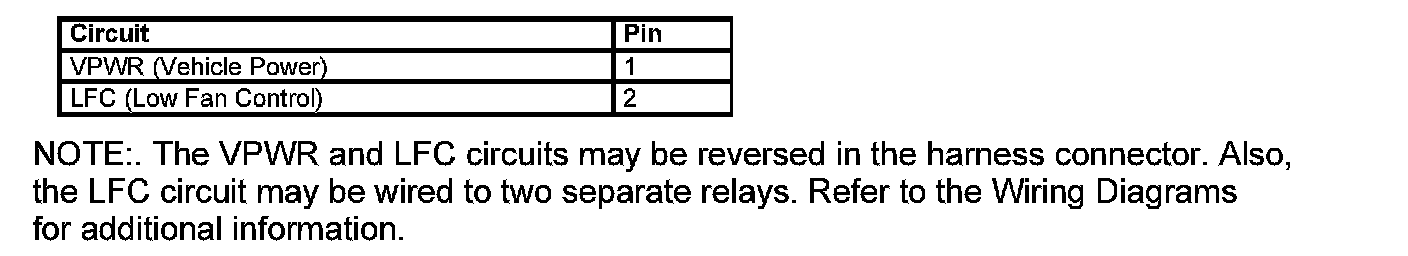

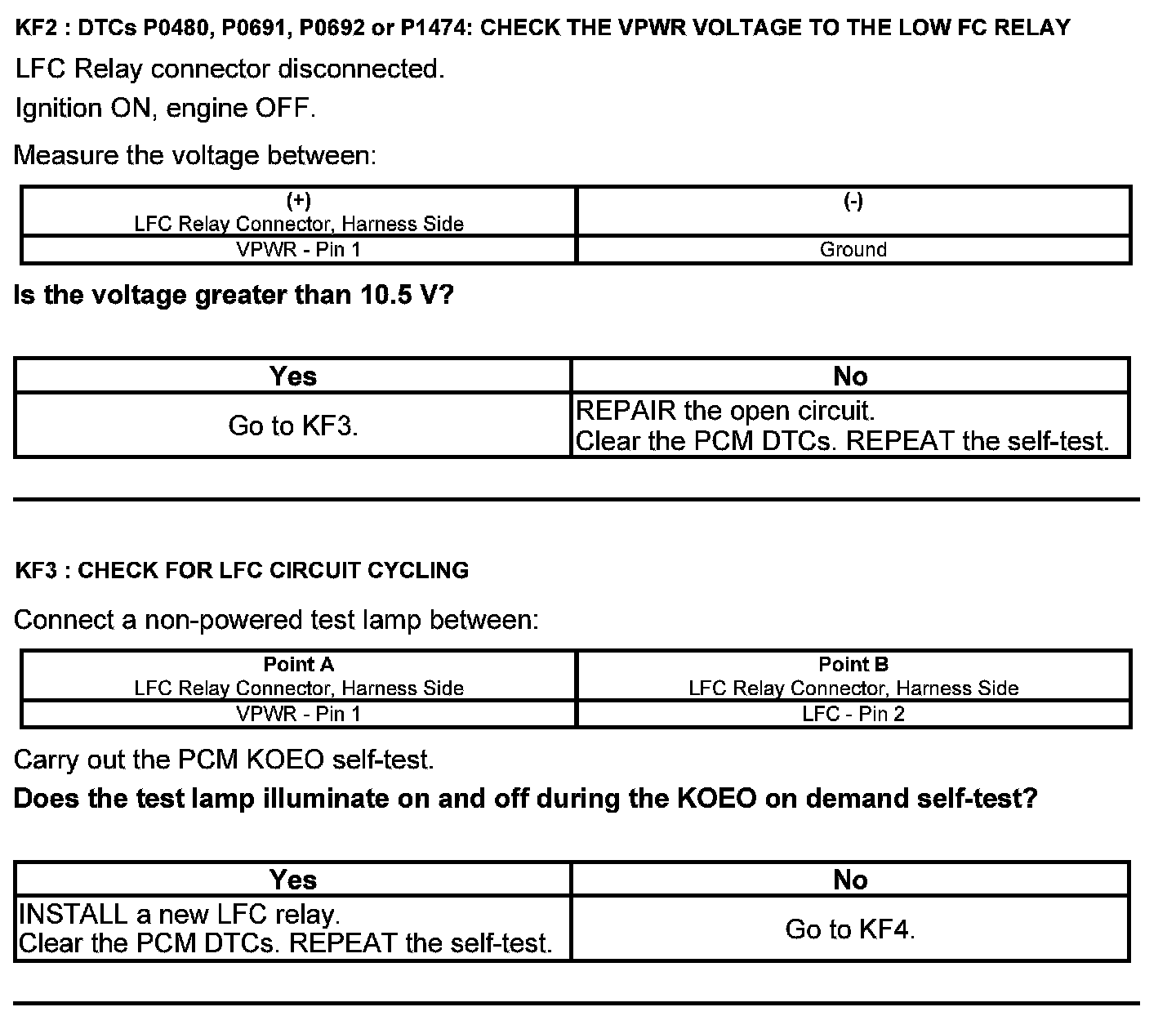

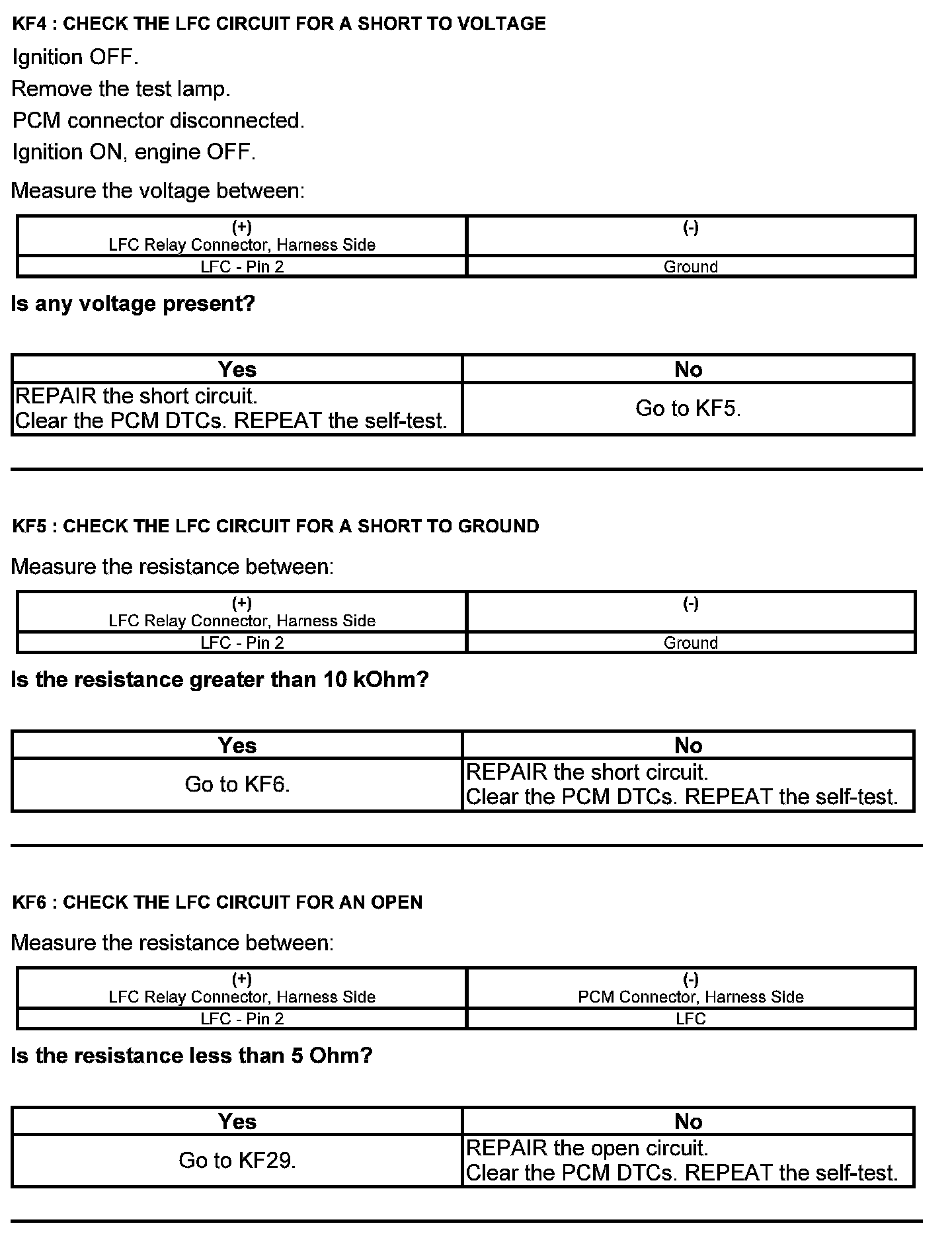

Low Fan Control (LFC) Relay Connector





Harness Side





Component side

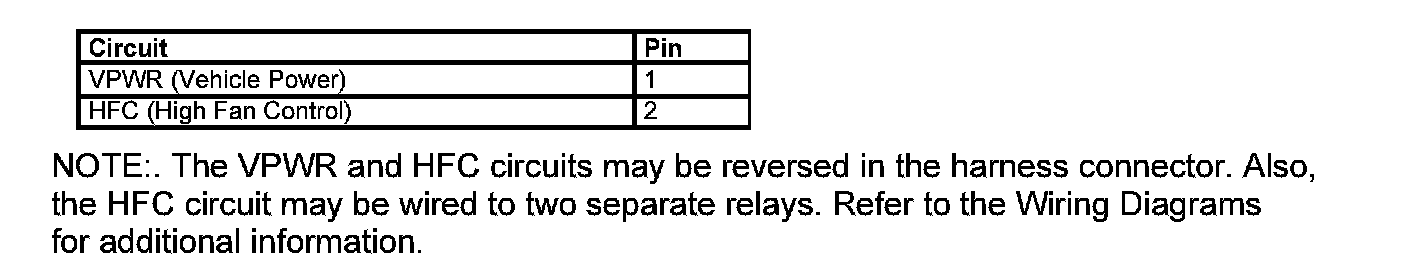

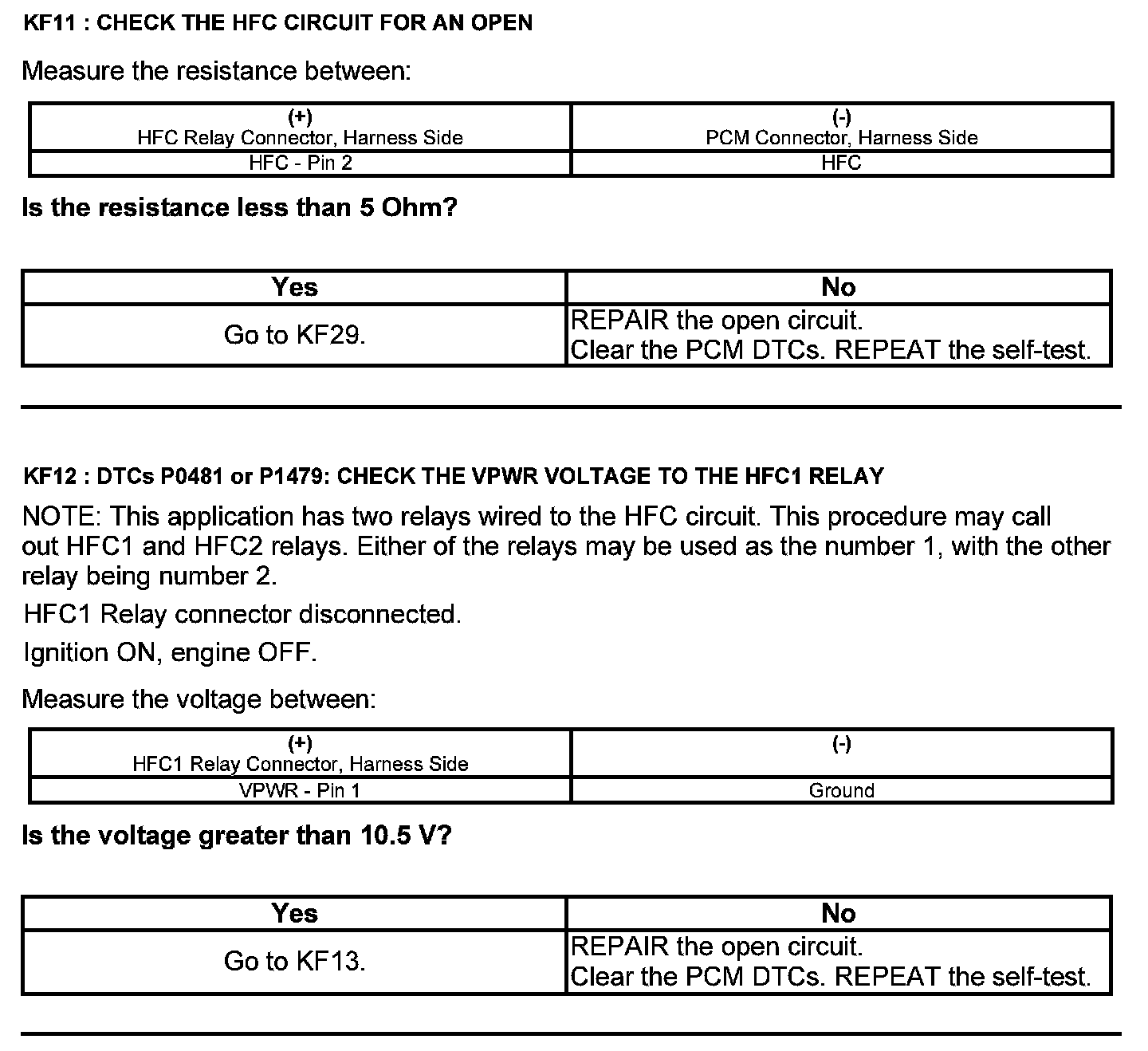

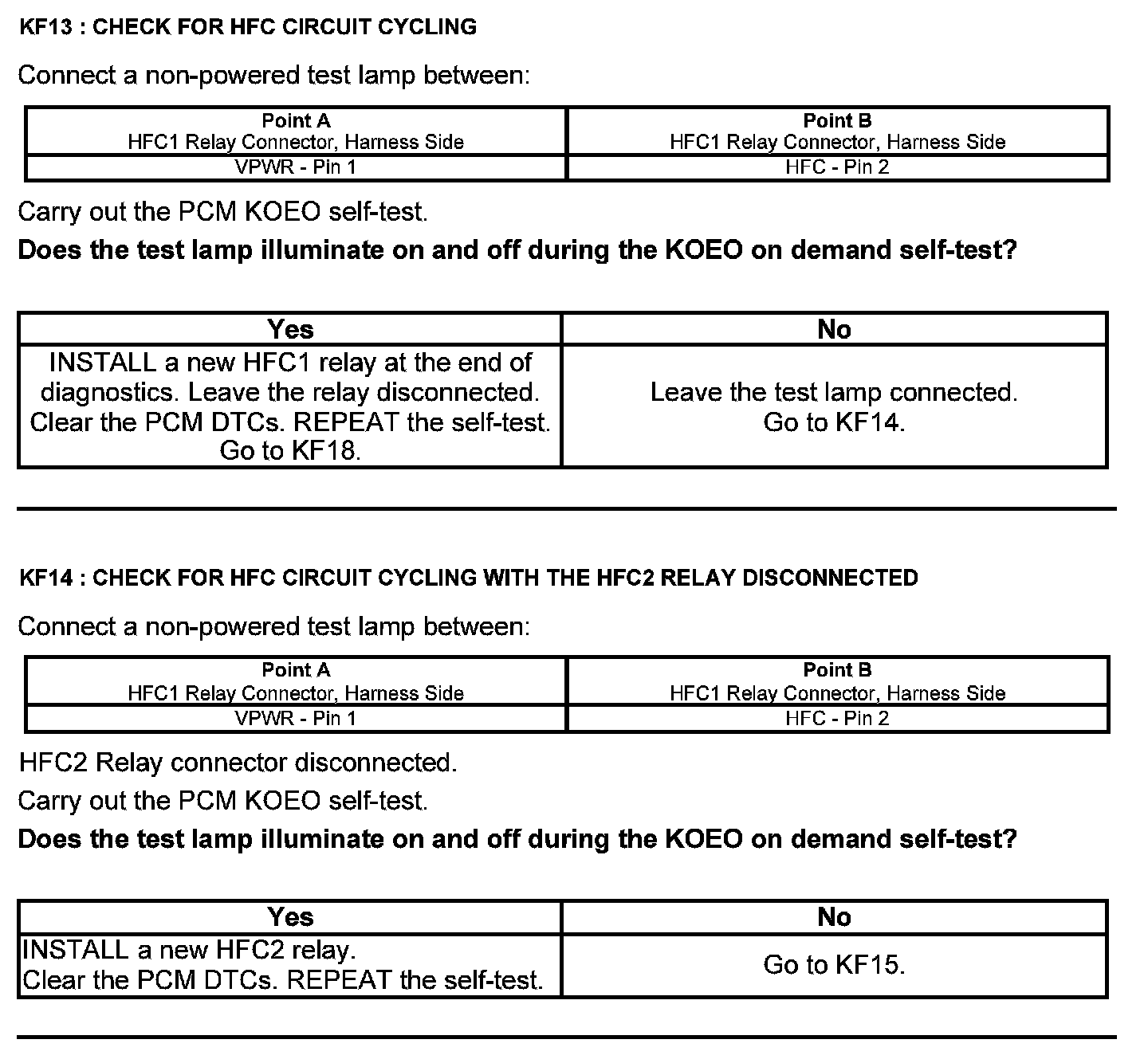

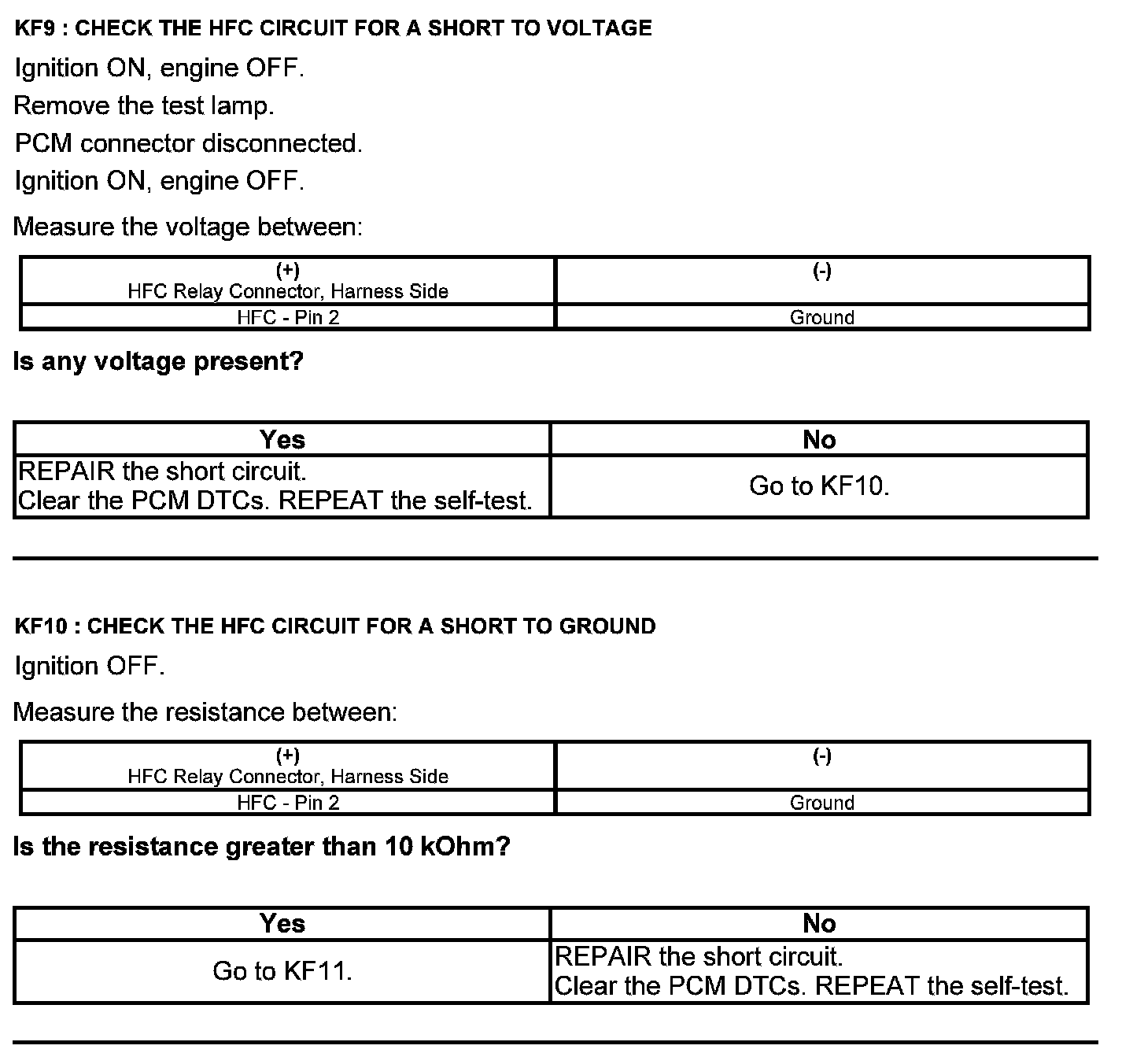

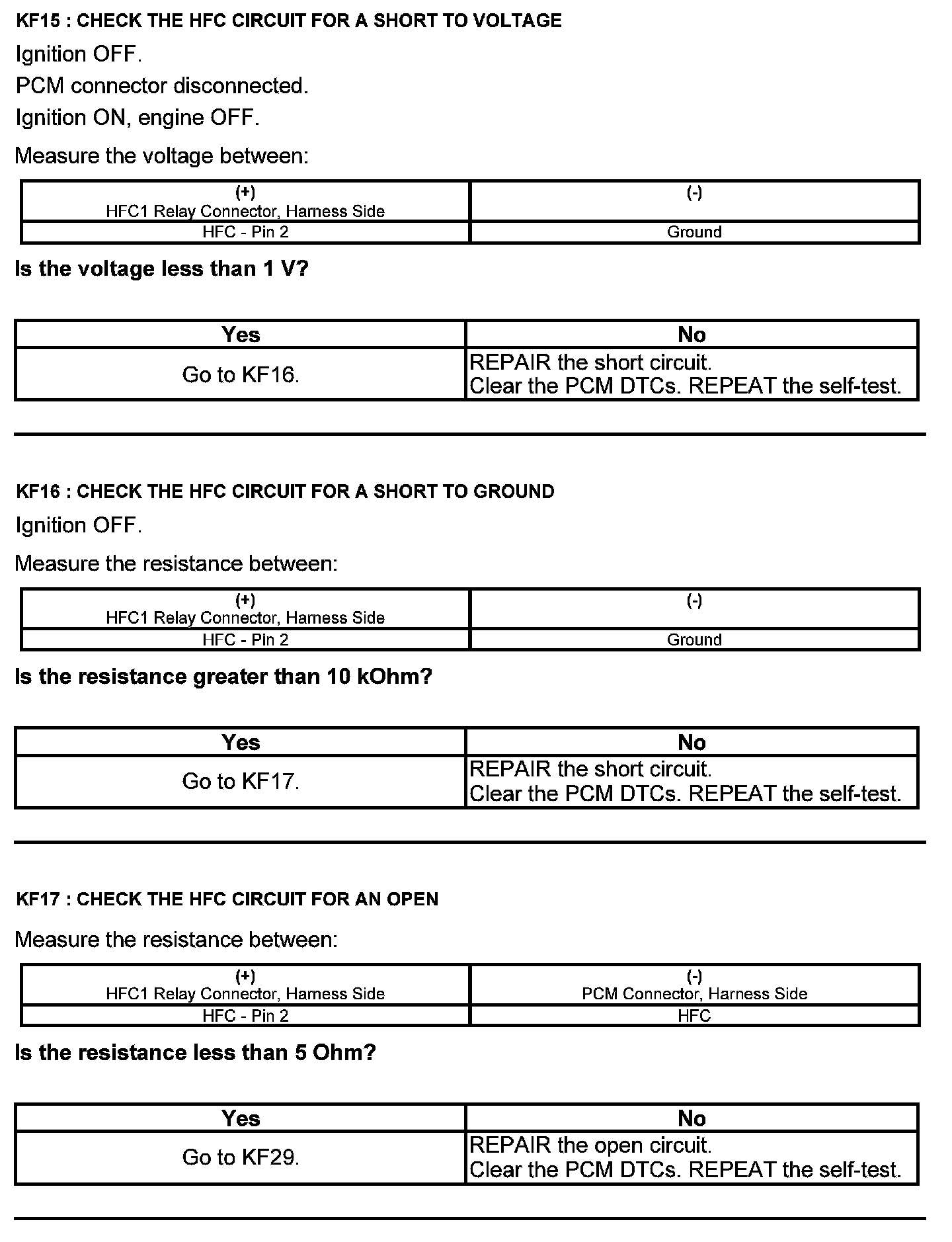

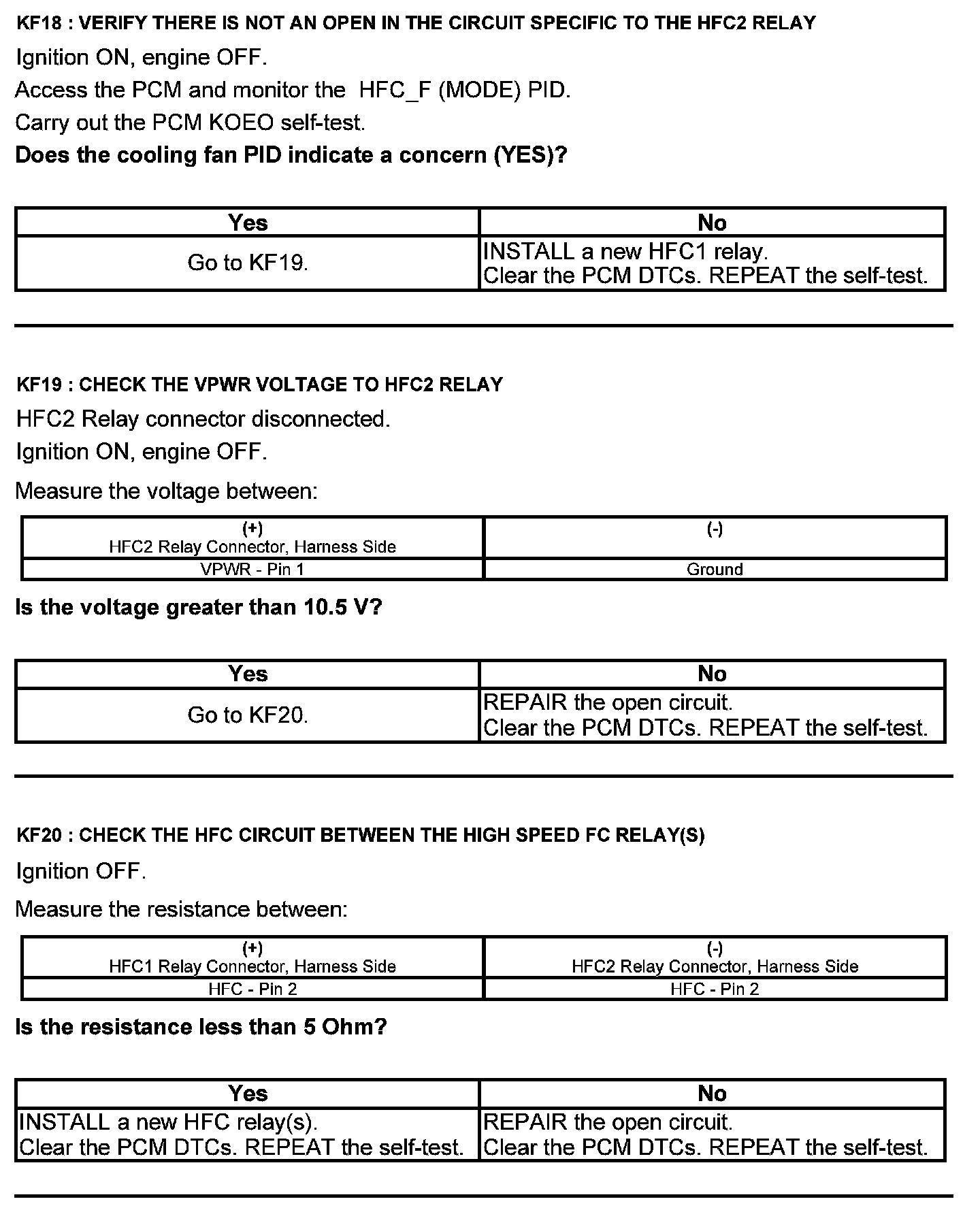

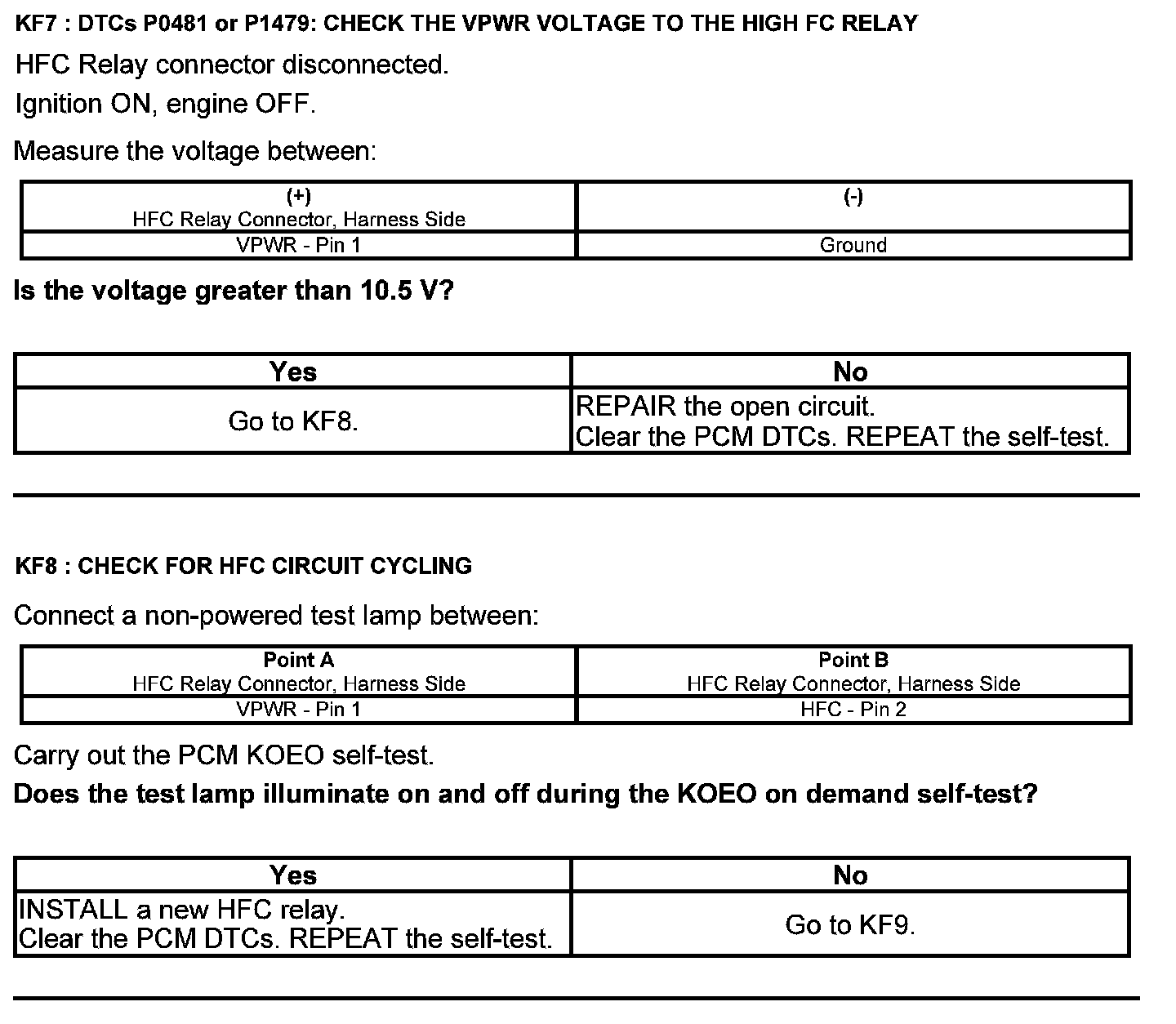

High Fan Control (HFC) Relay Connector





Harness Side





Component side

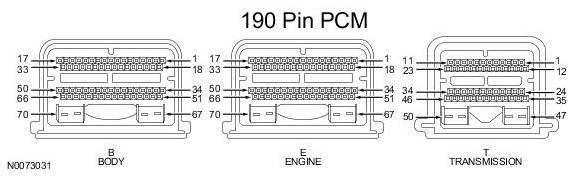

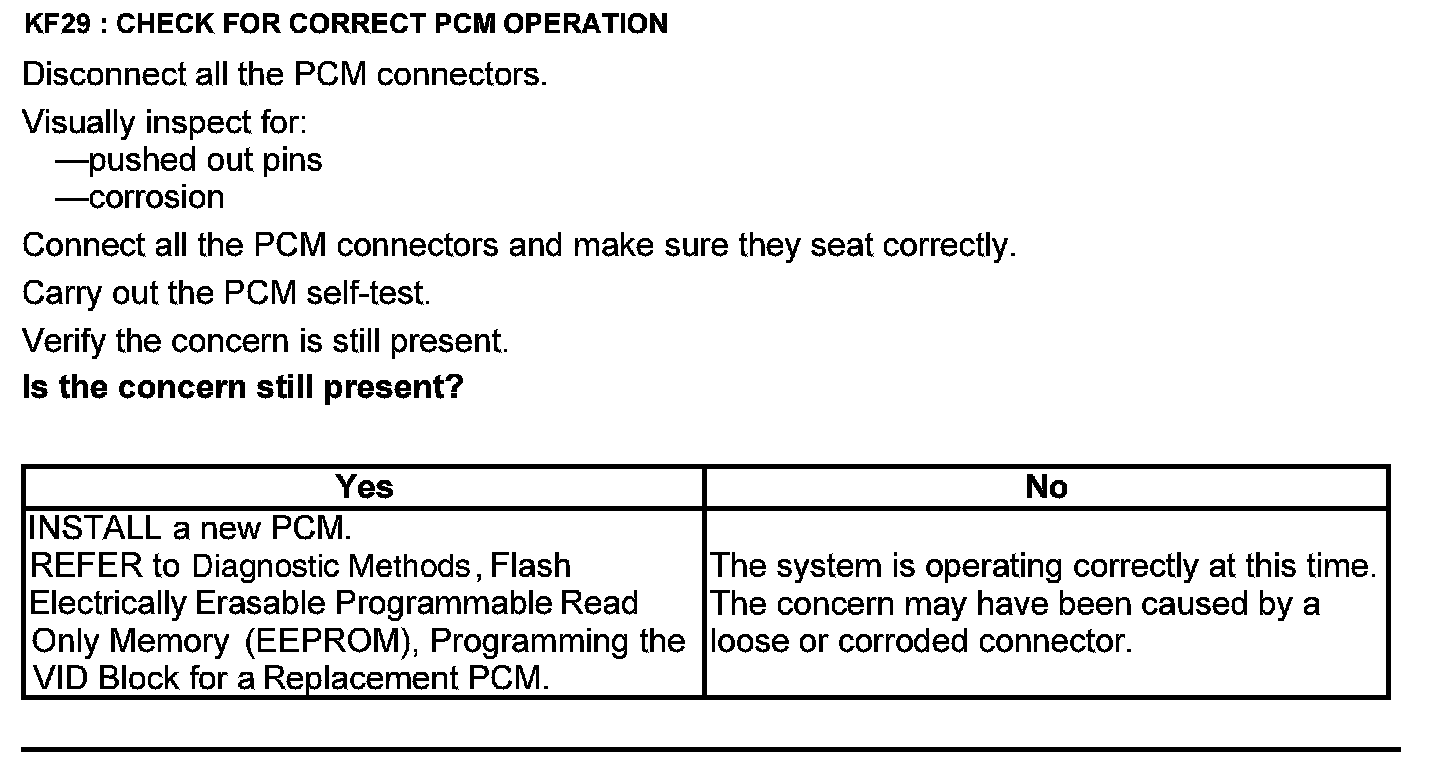

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
