Home >> Ford >> 2012 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HD: Misfire Detection Monitor >> Manual Transmission

Manual Transmission

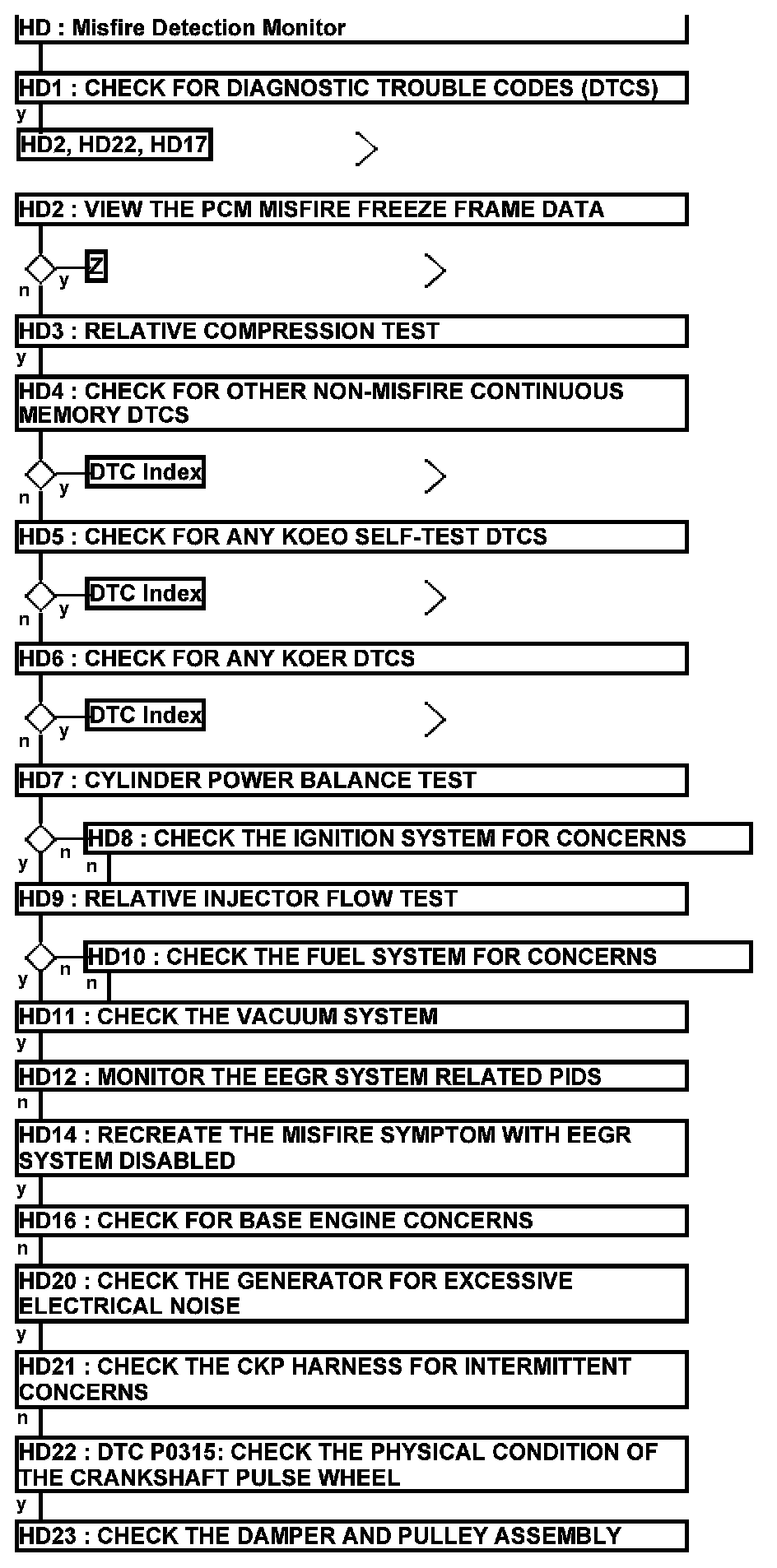

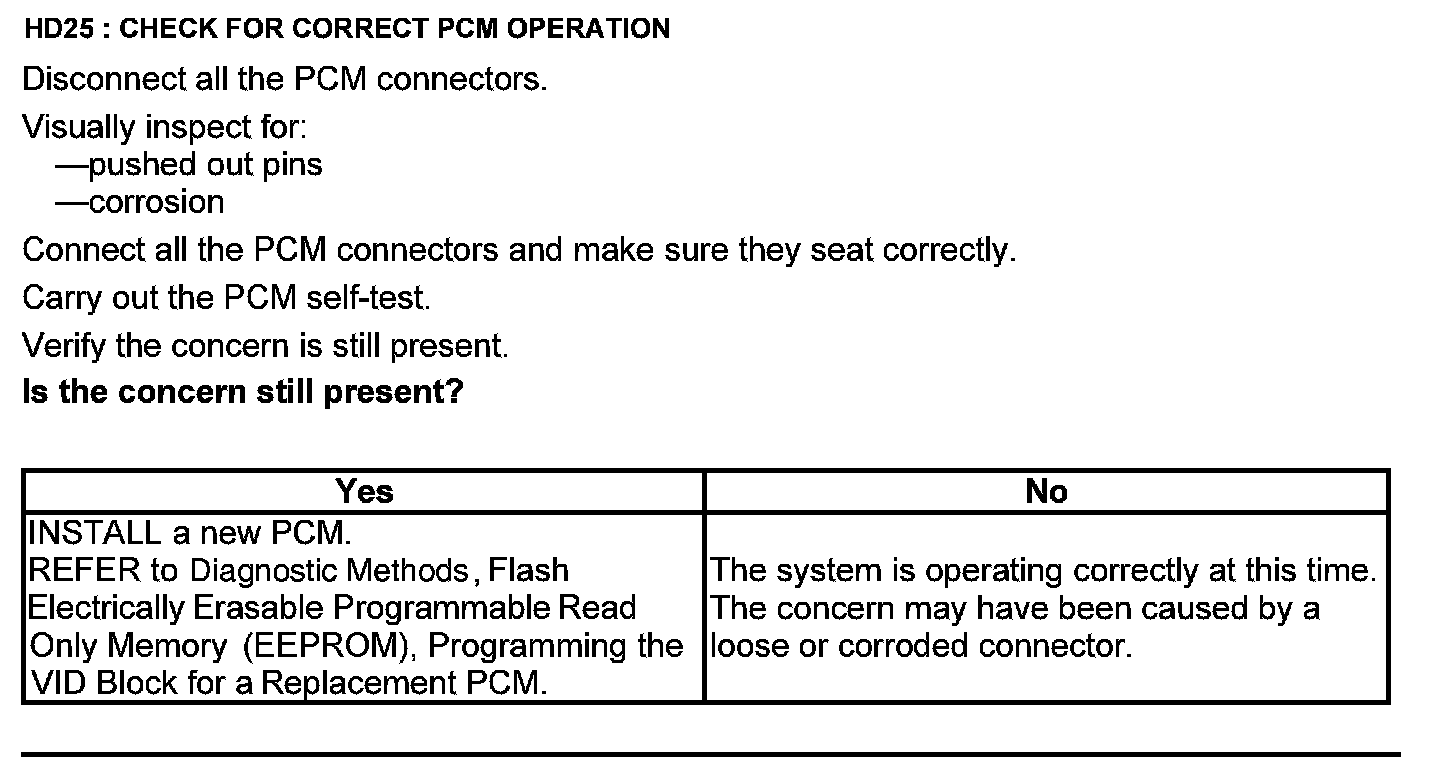

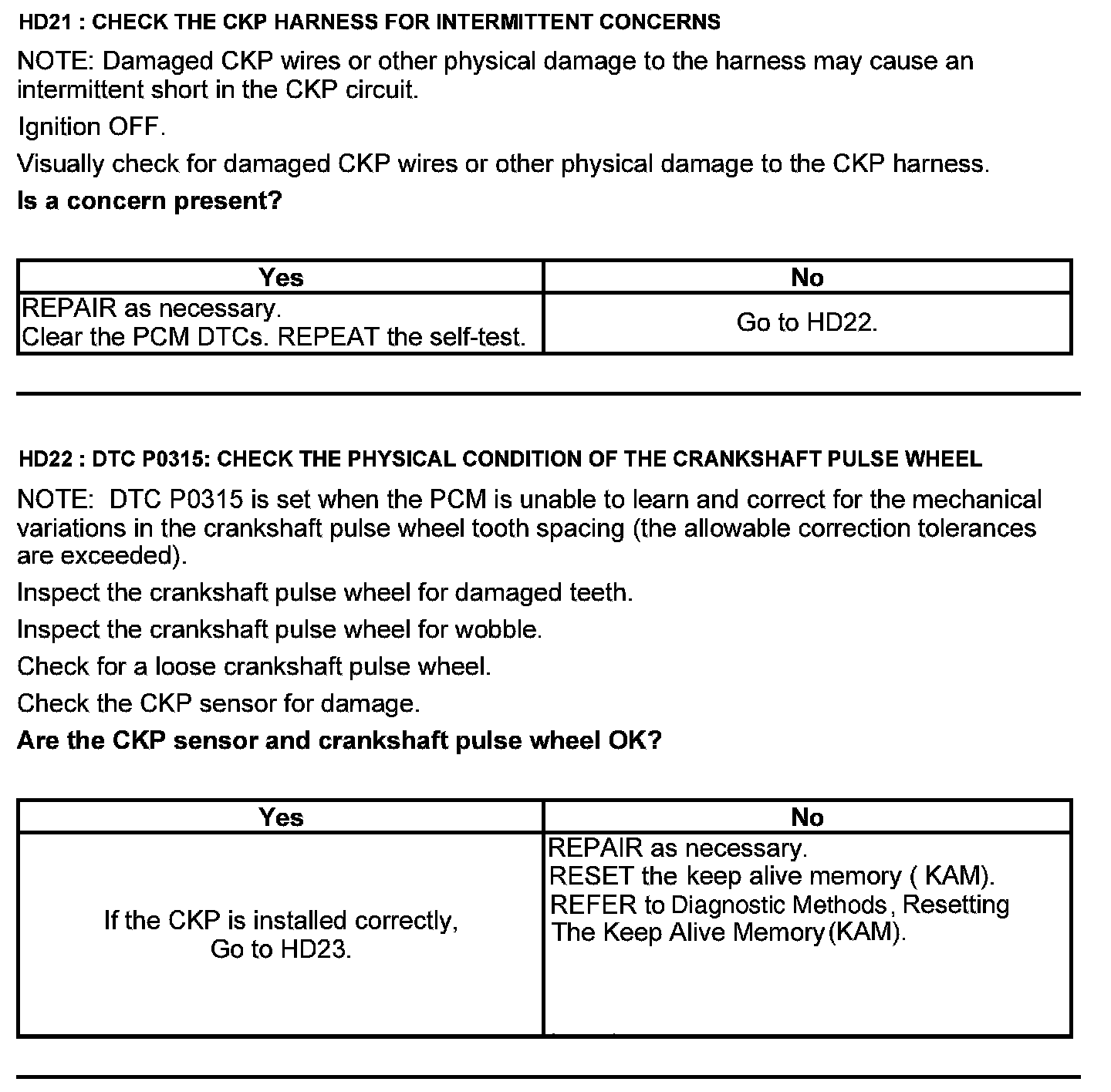

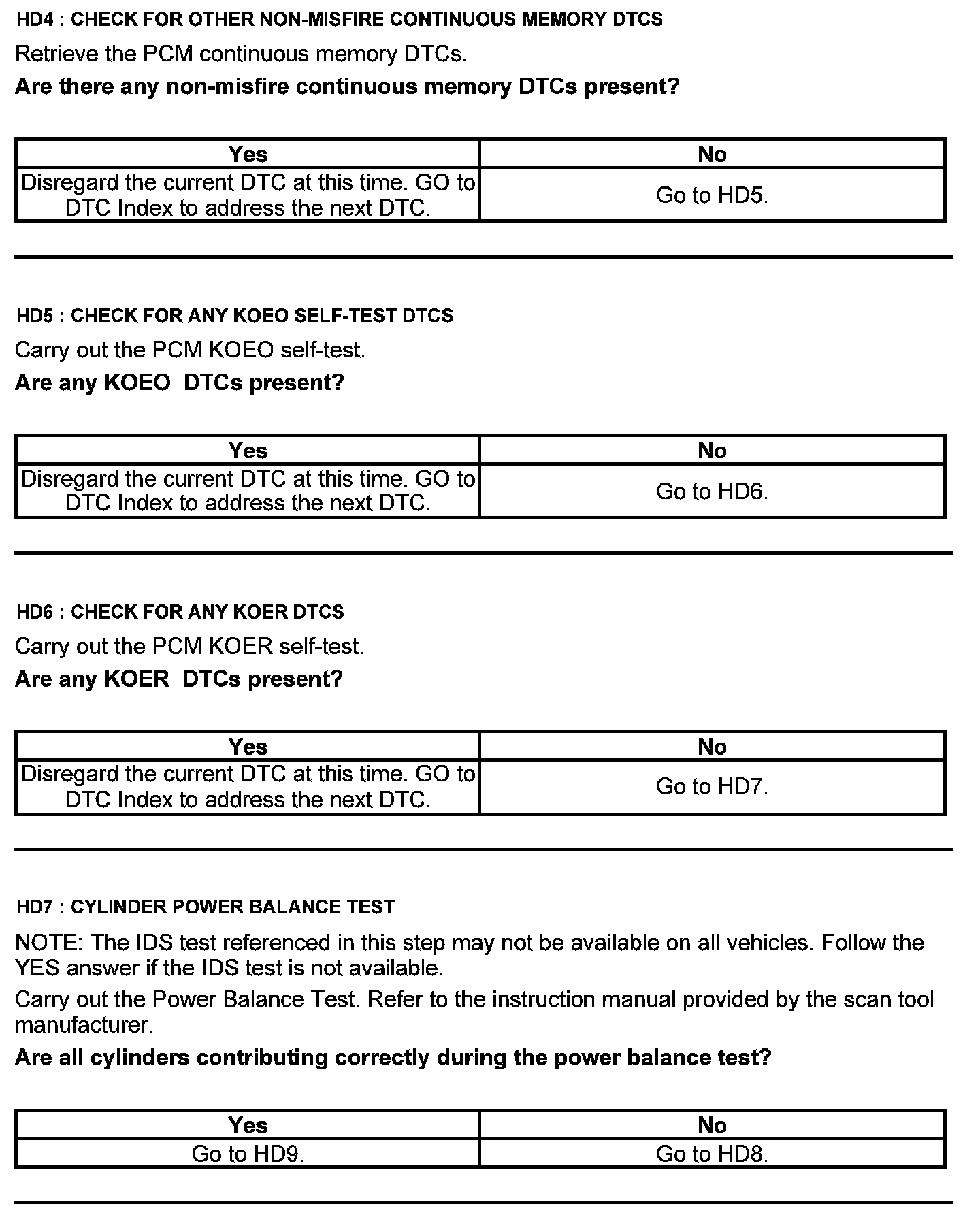

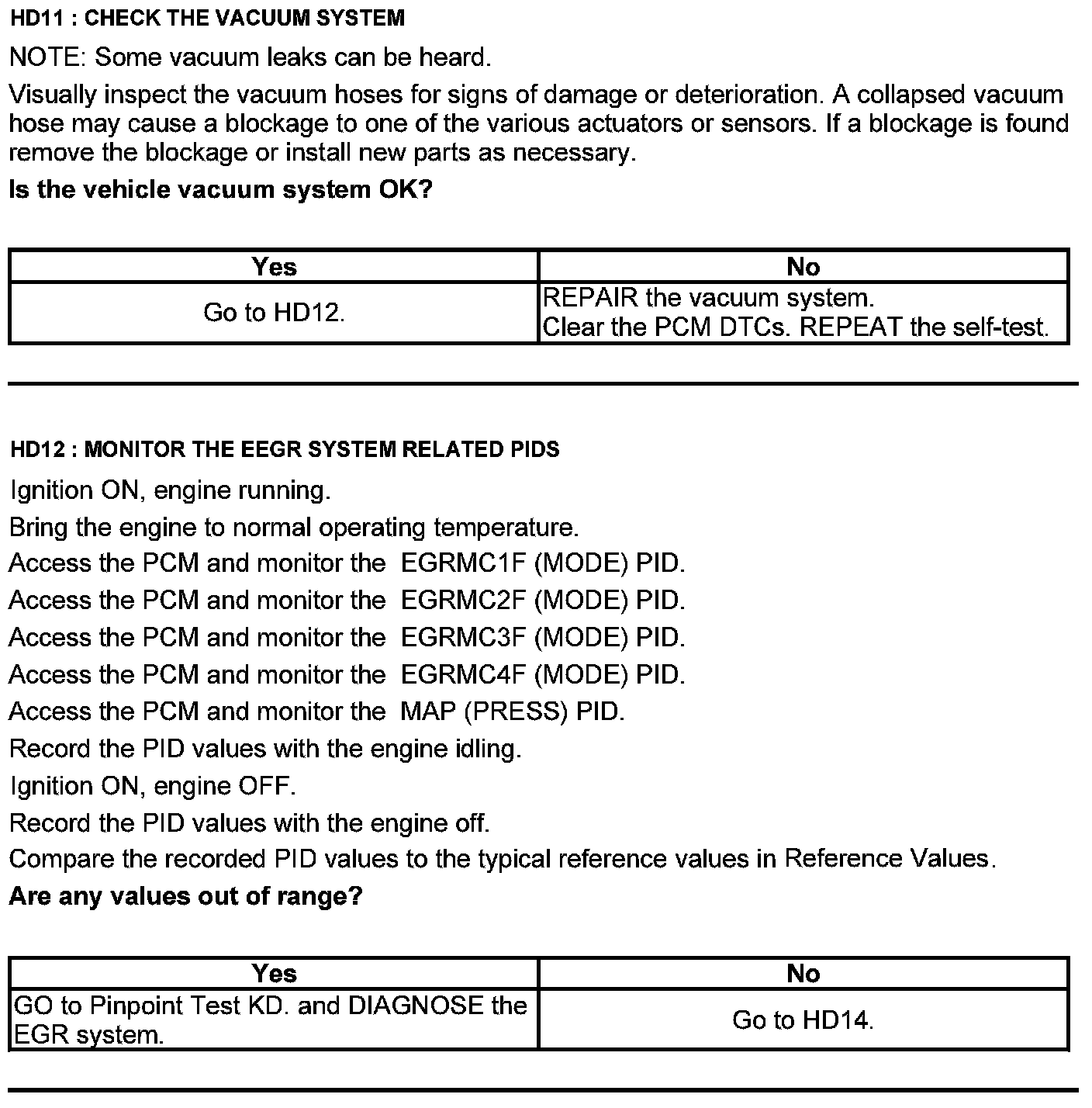

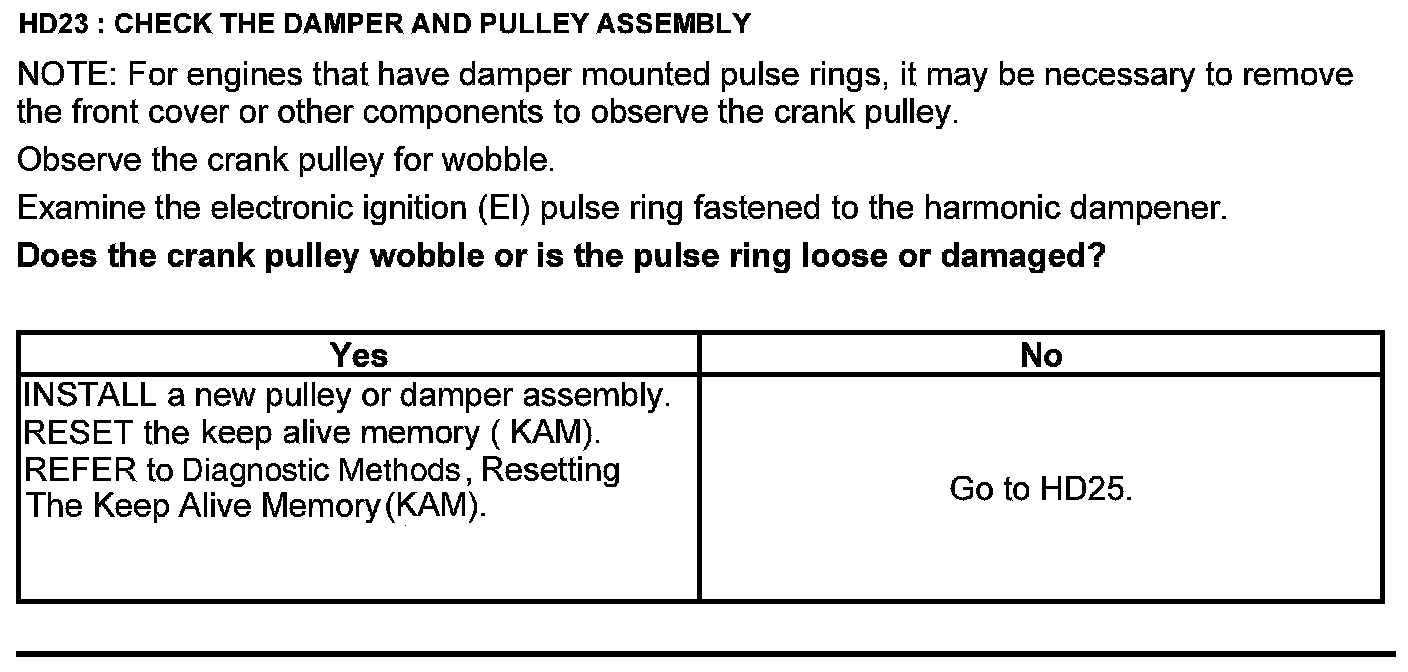

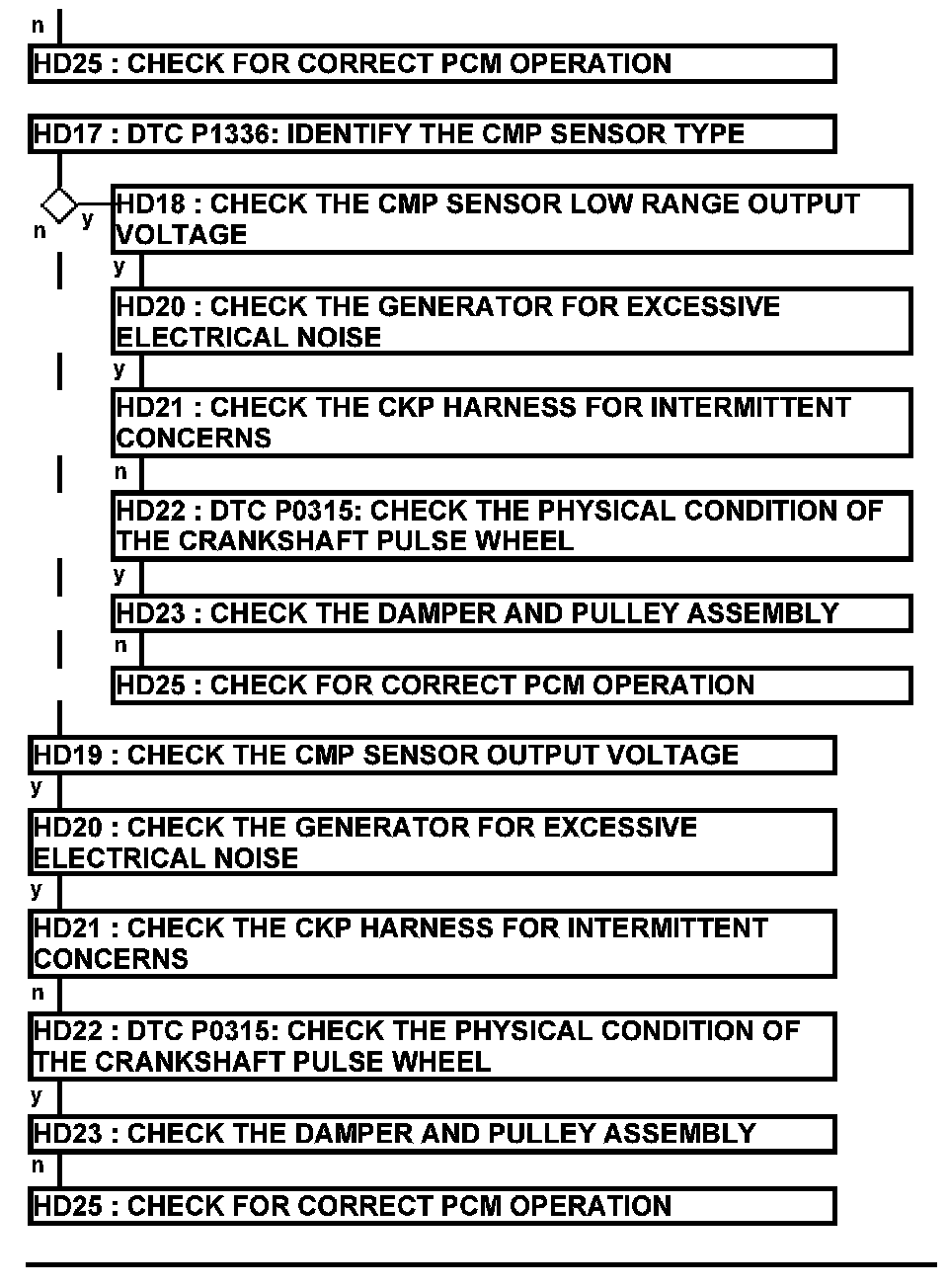

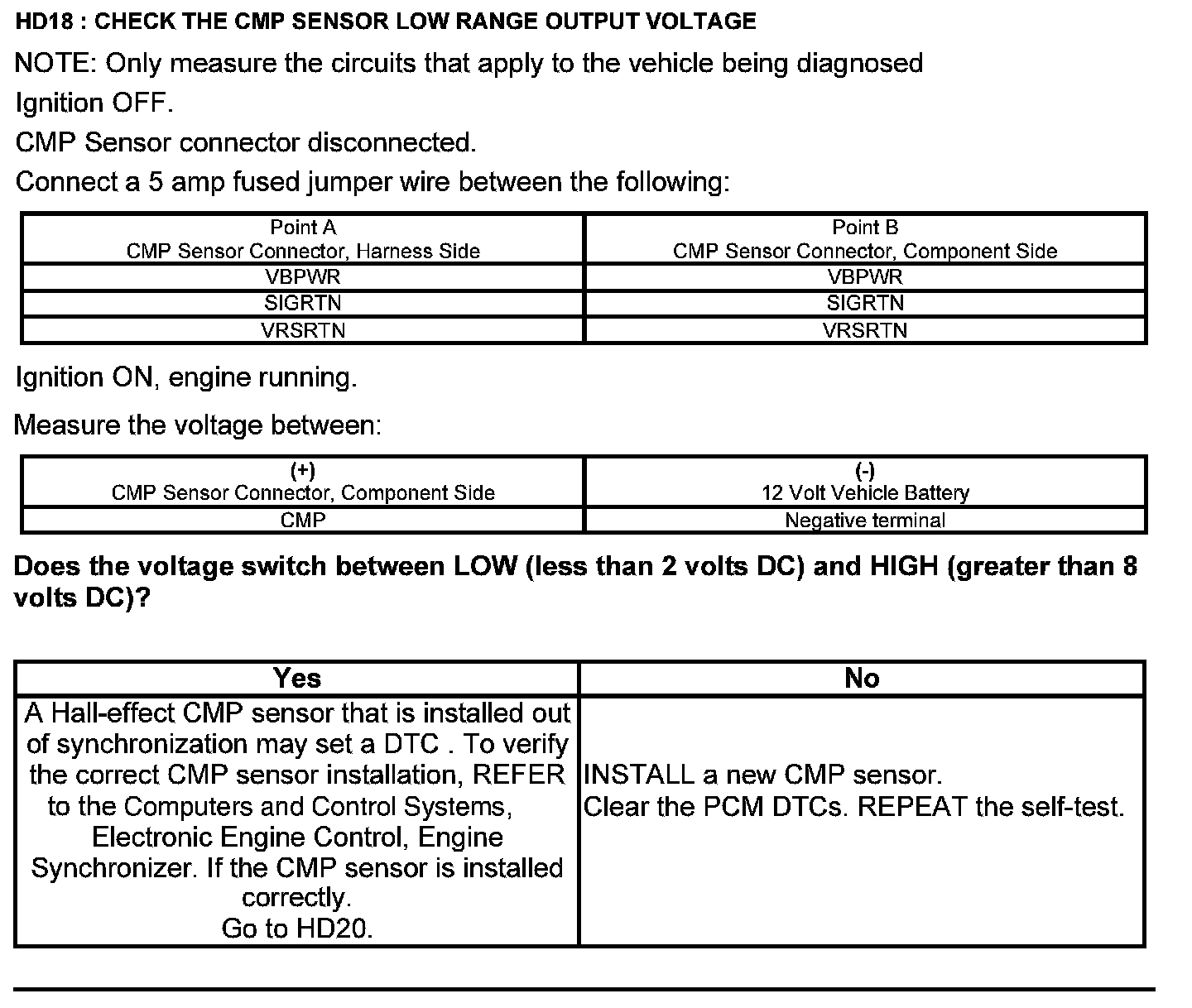

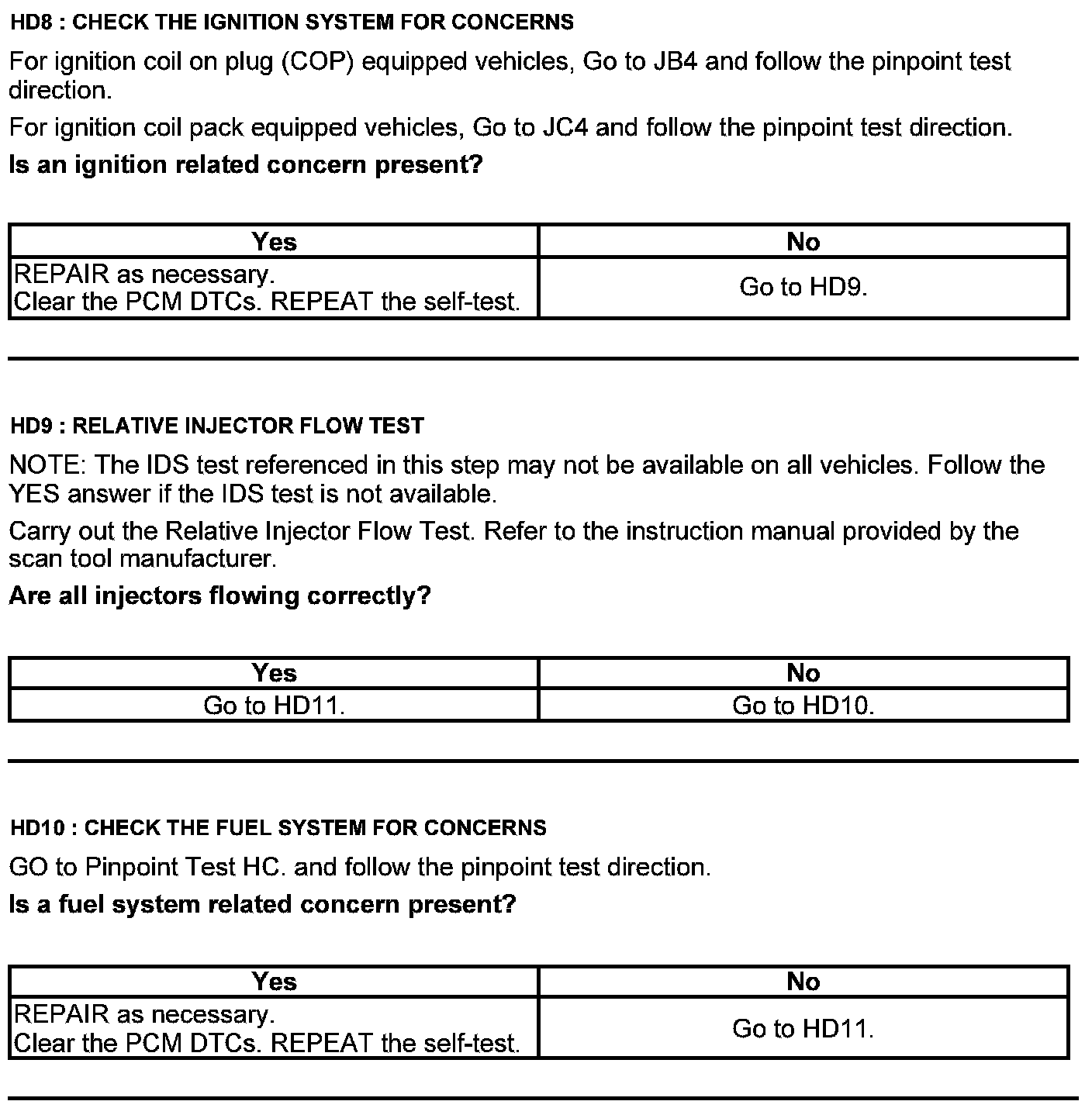

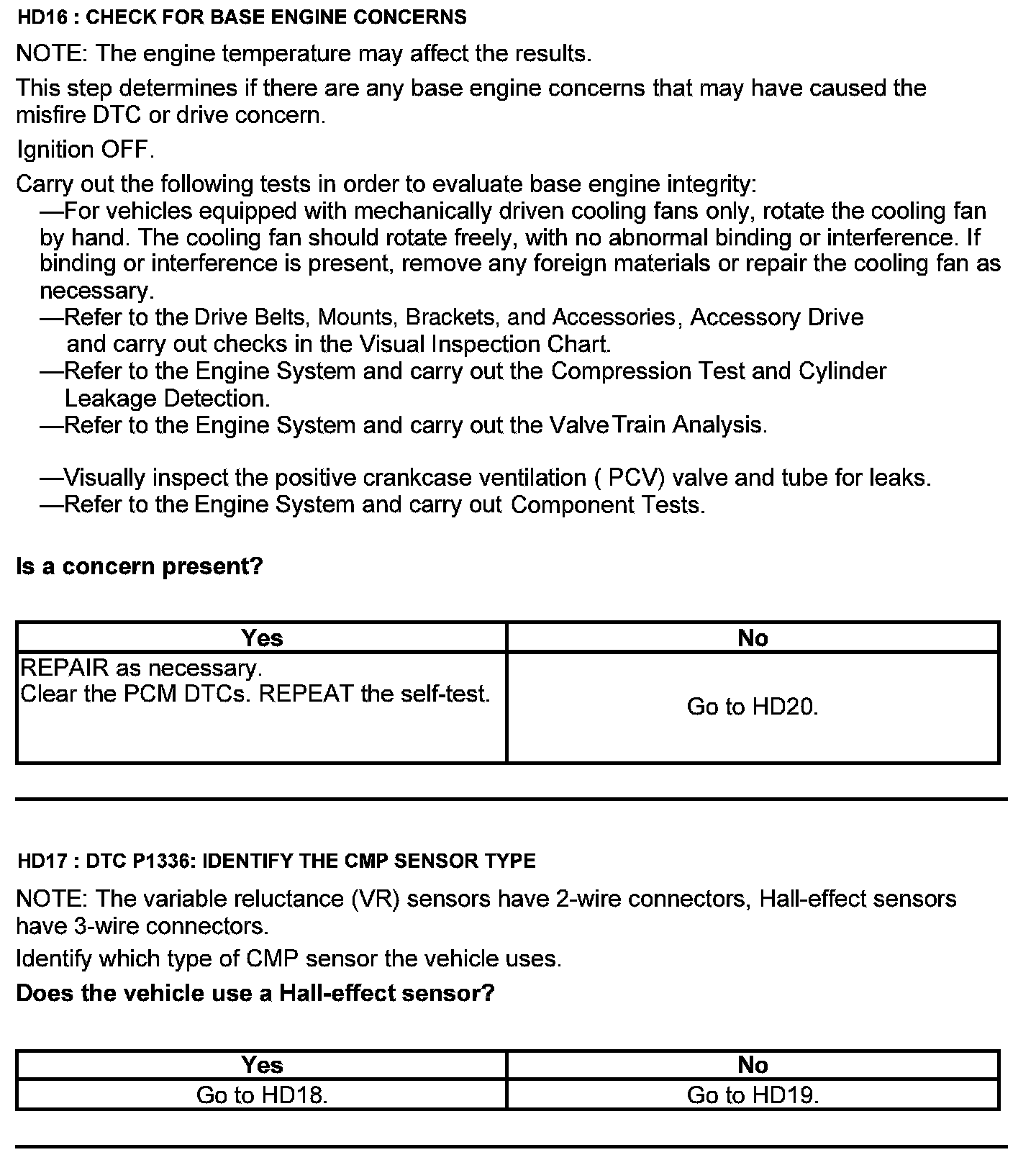

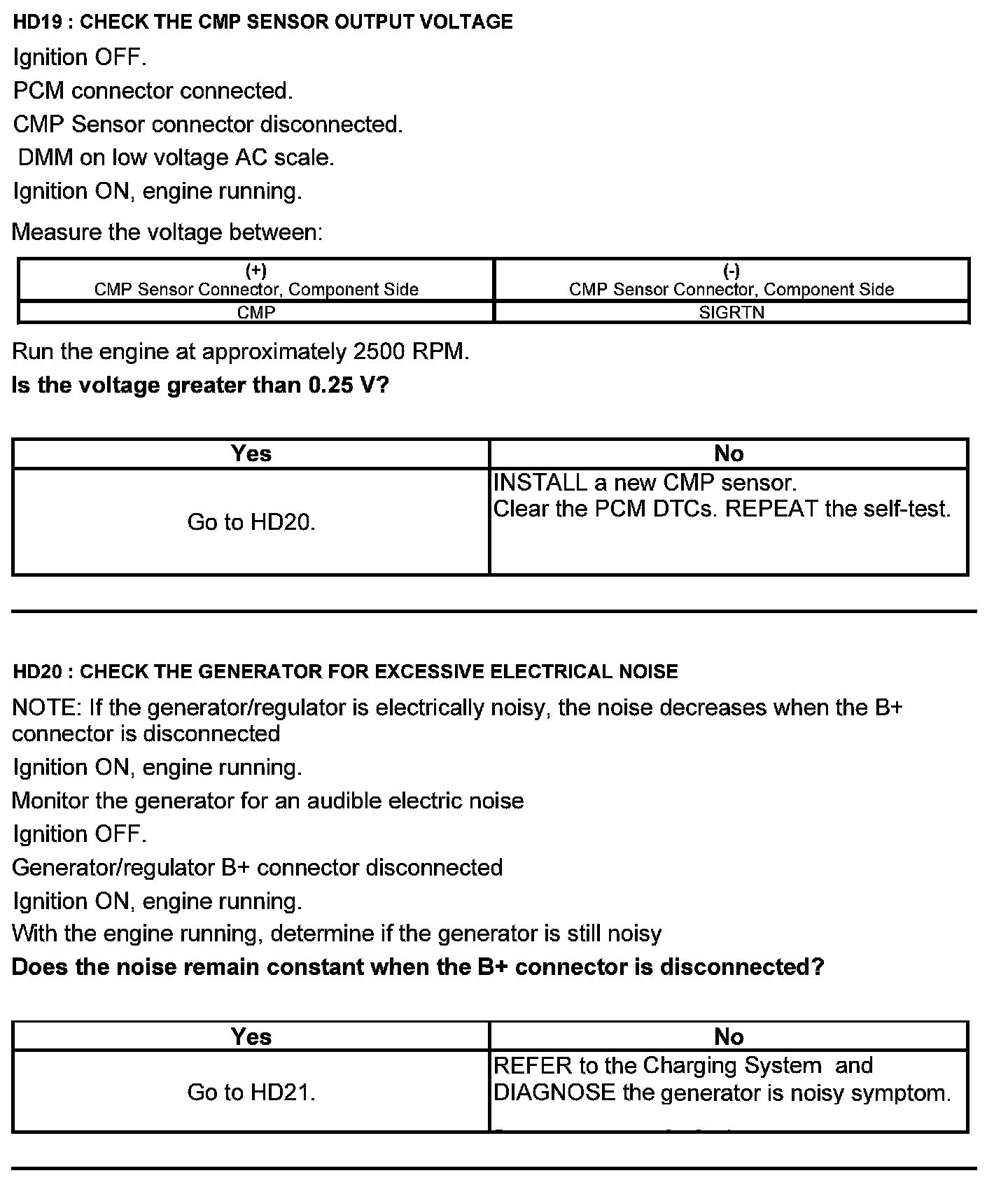

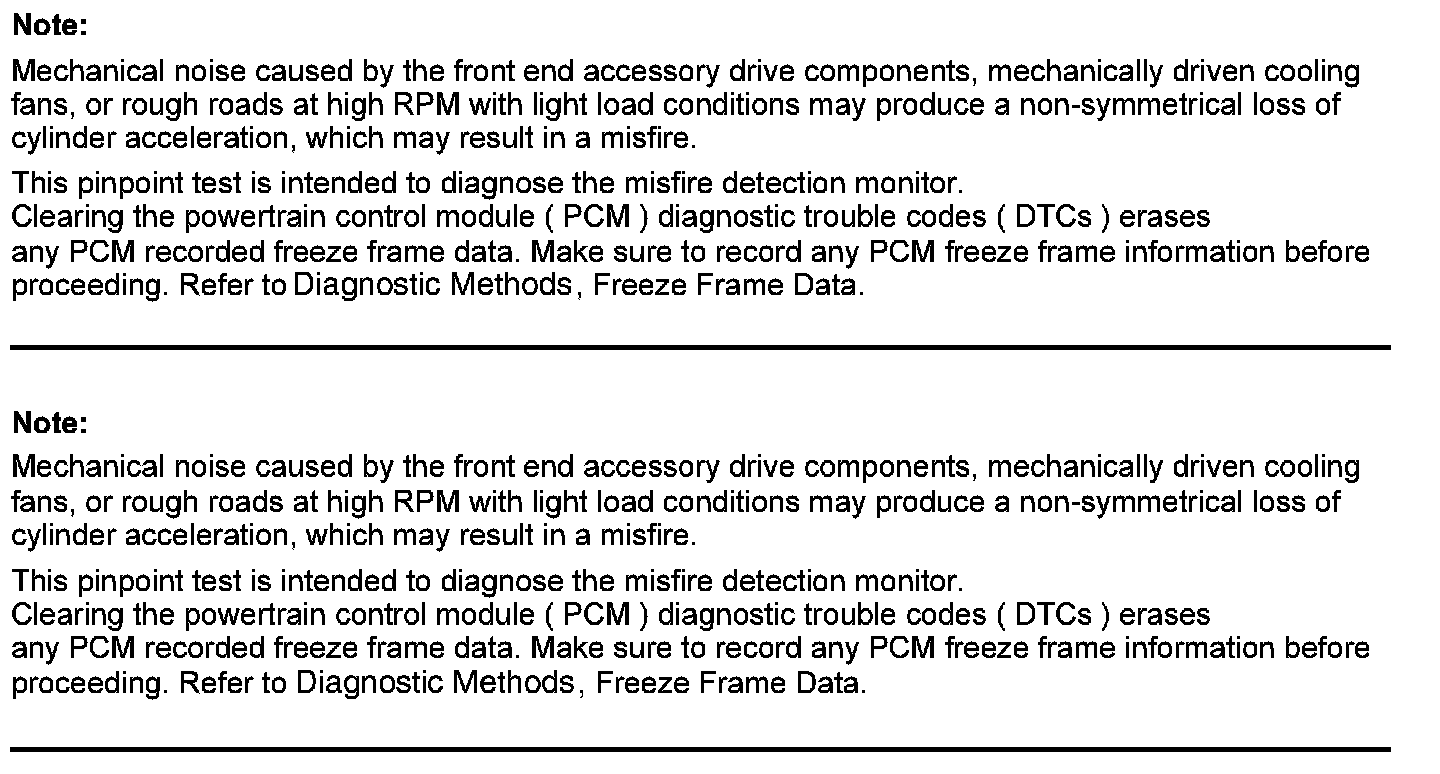

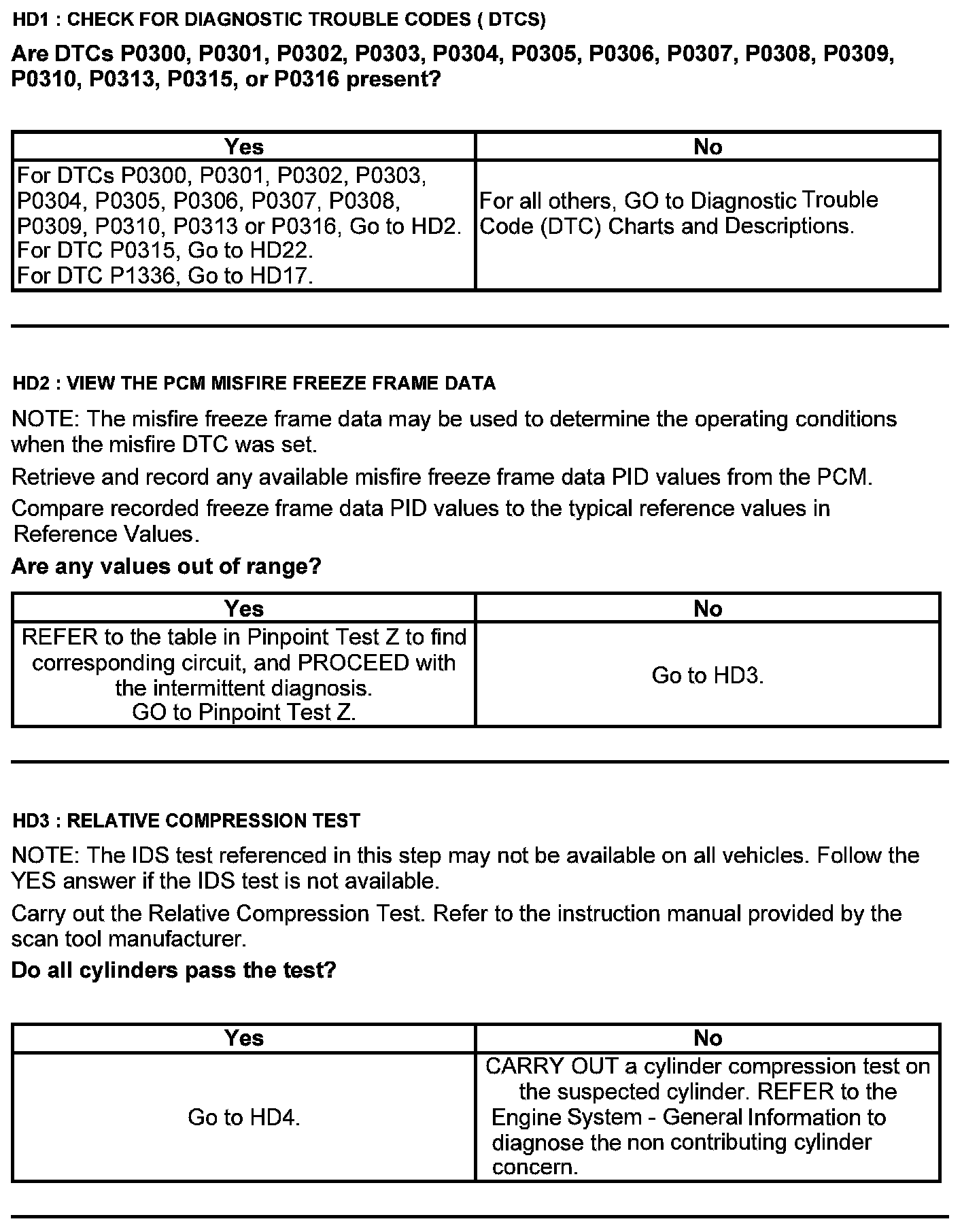

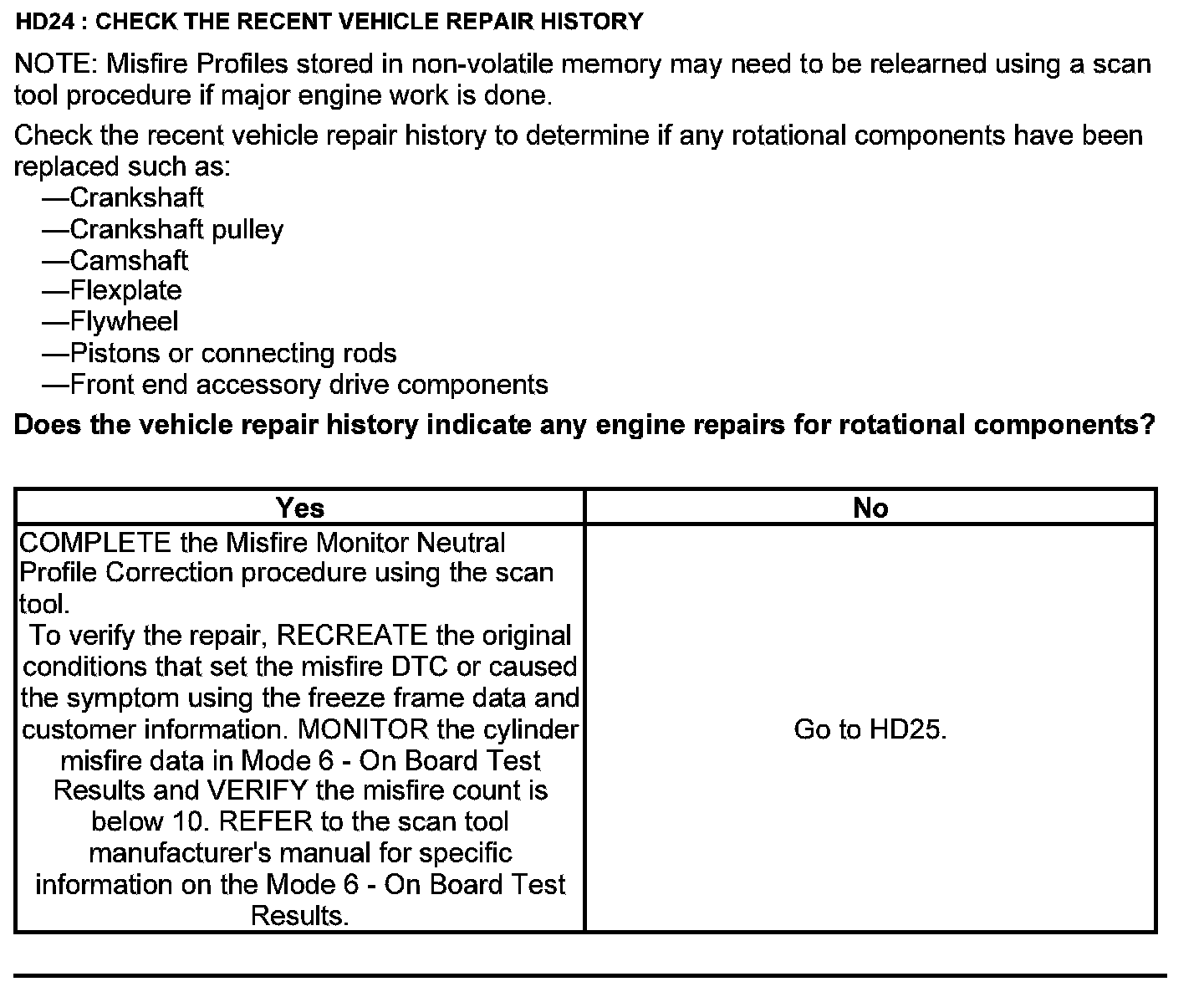

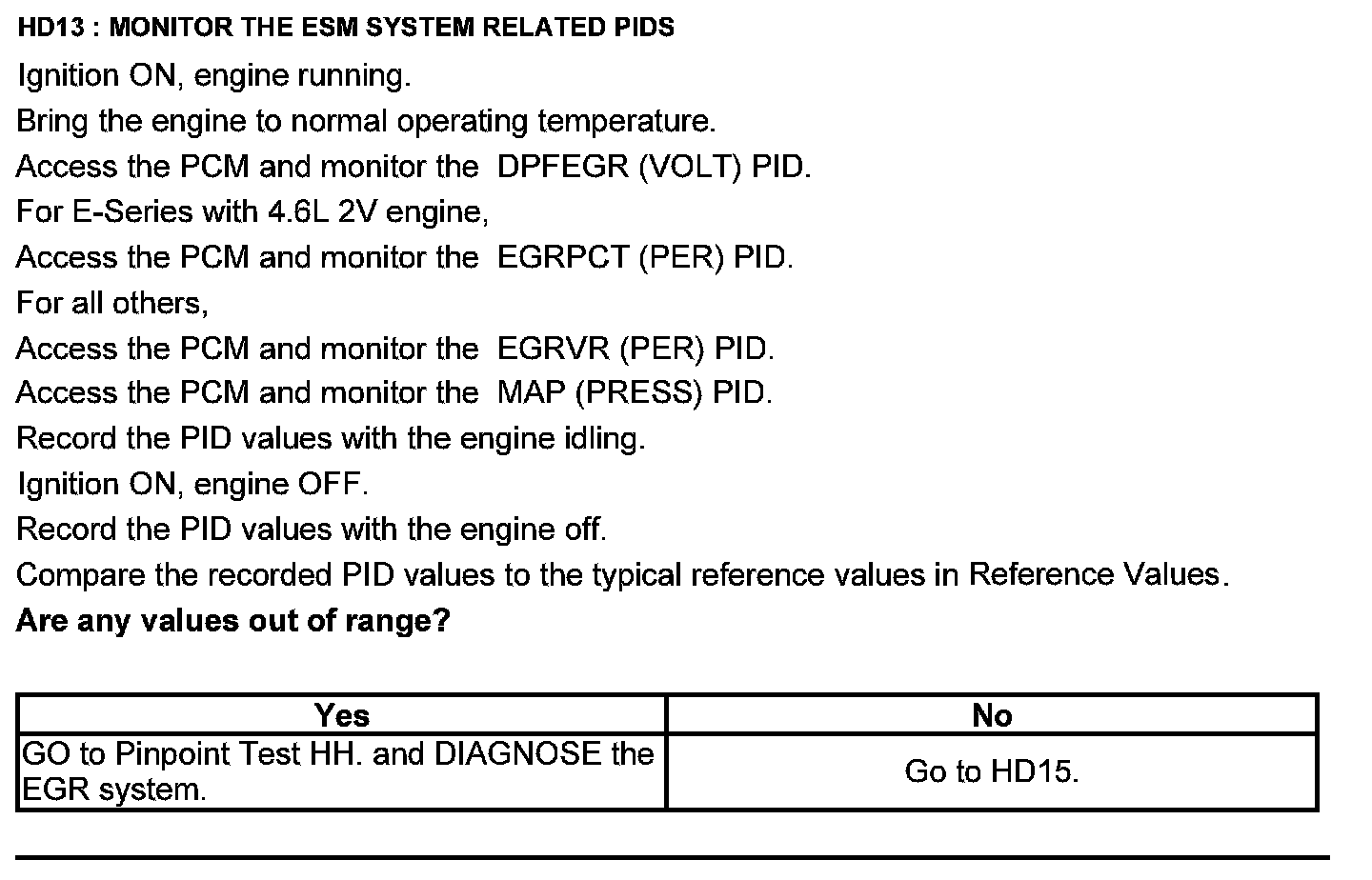

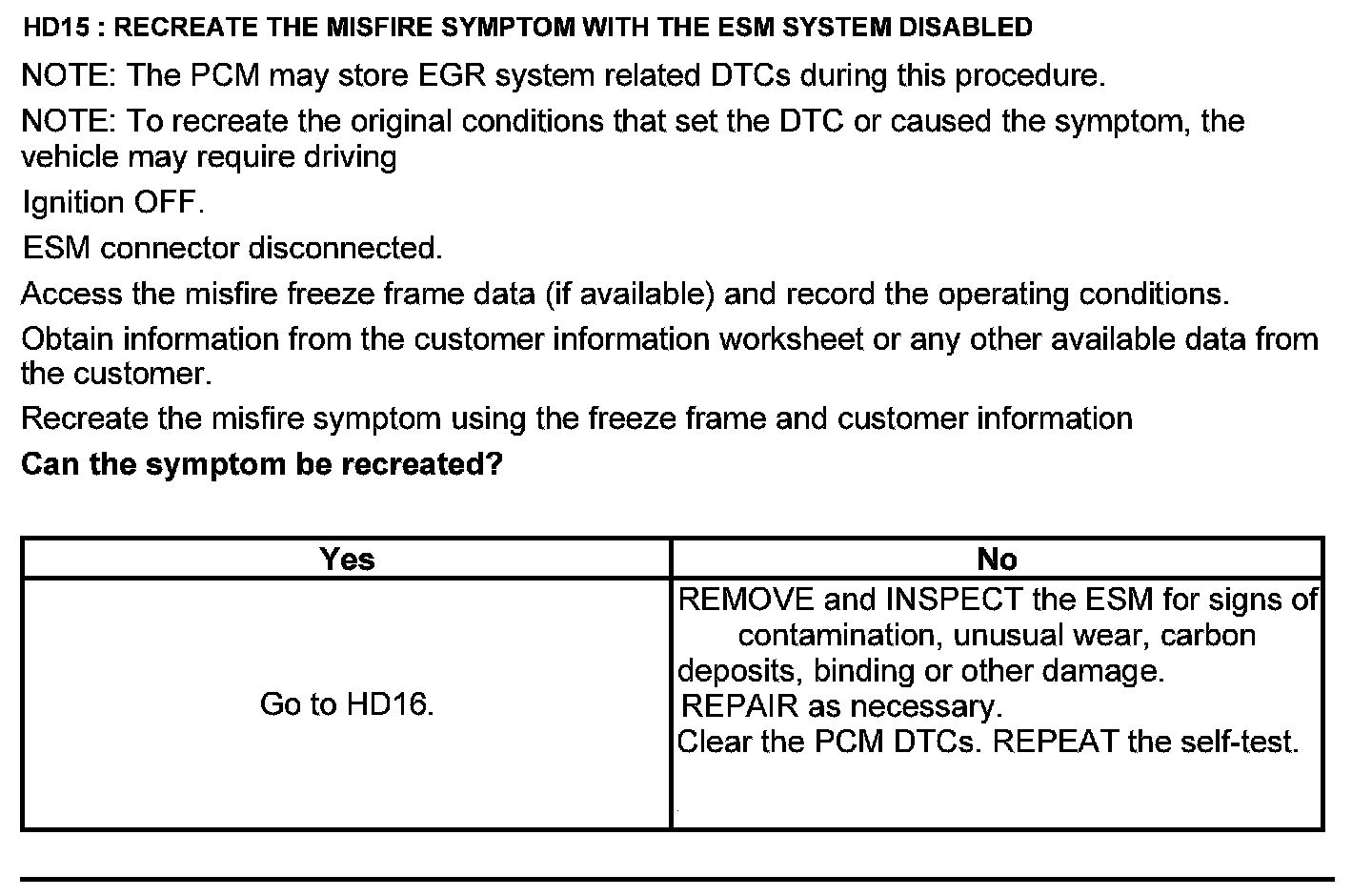

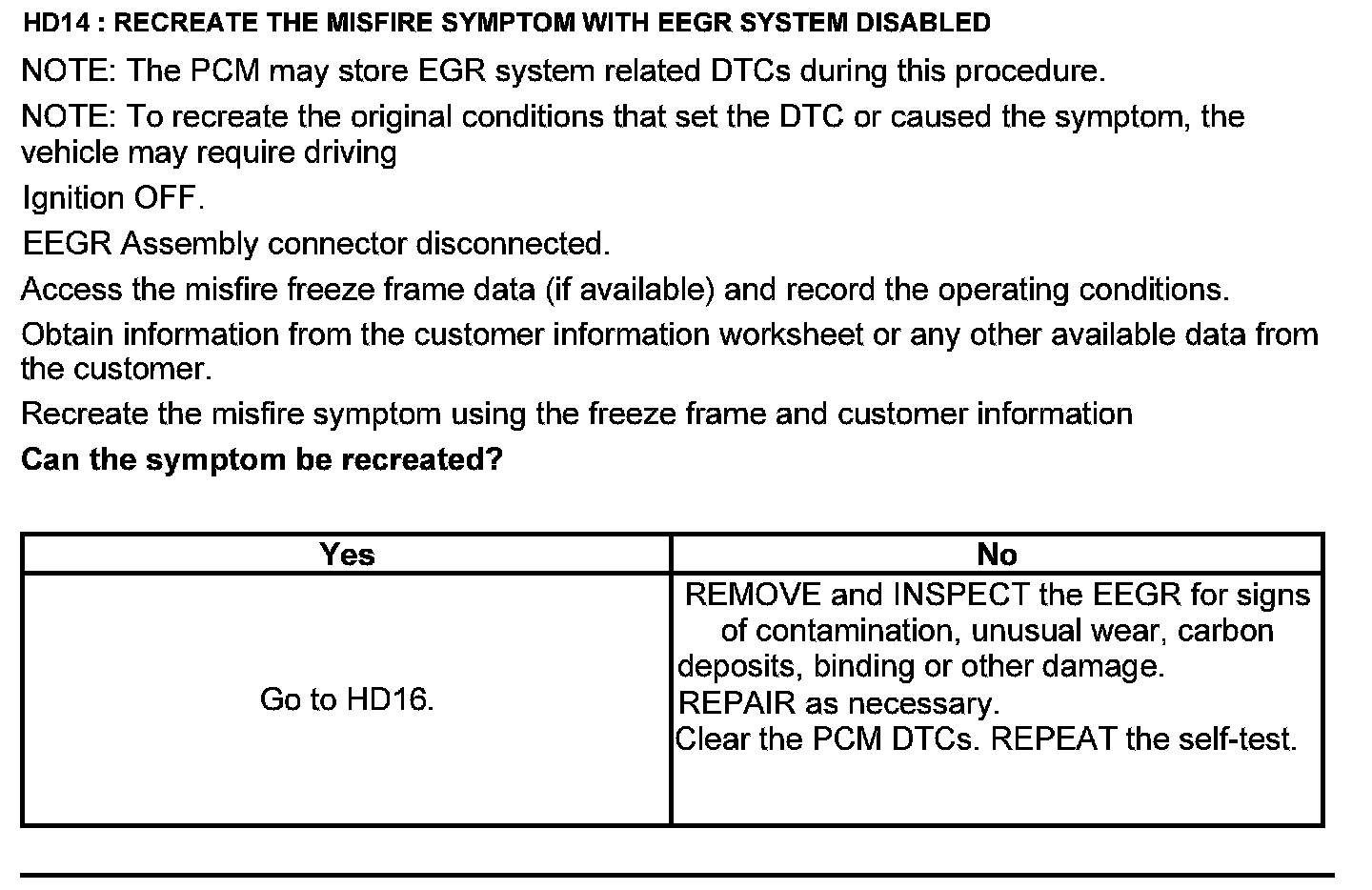

Misfire Detection Monitor - Manual Transmission

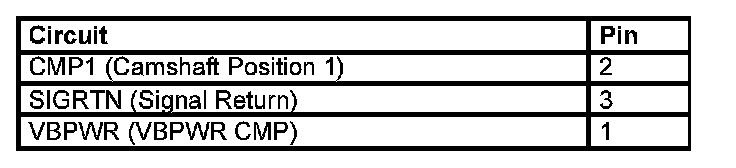

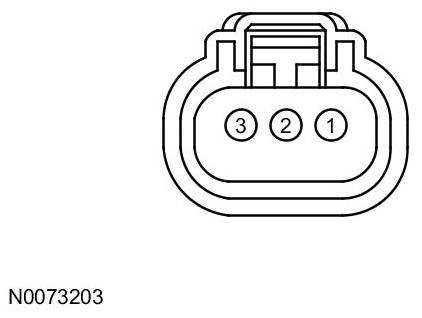

Camshaft Position 1 (CMP1) Sensor Connector





Harness Side

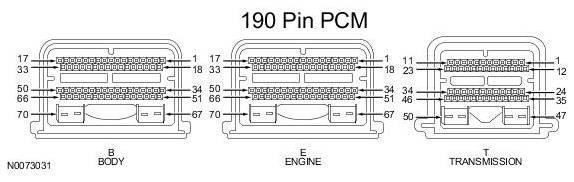

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
