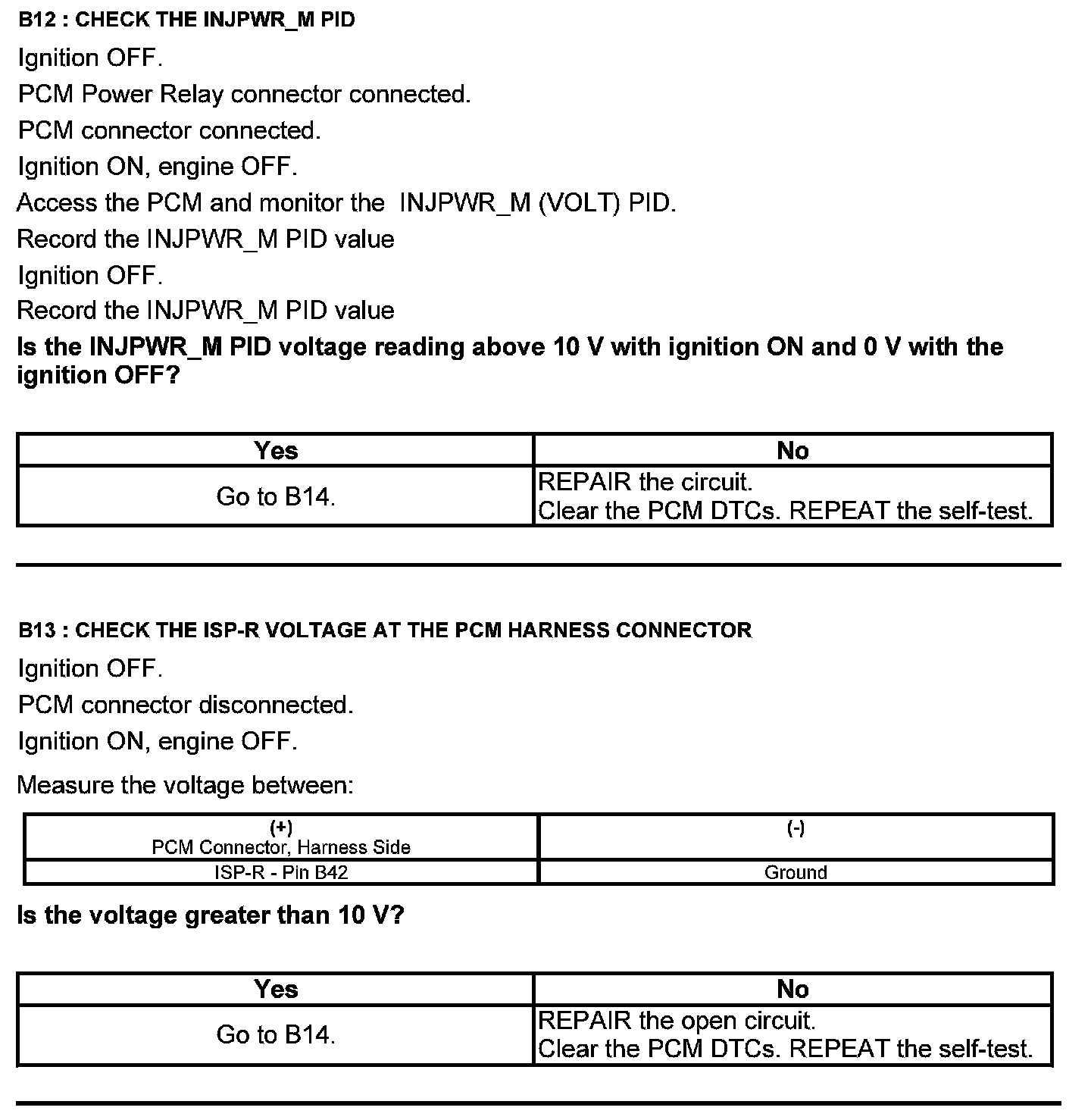

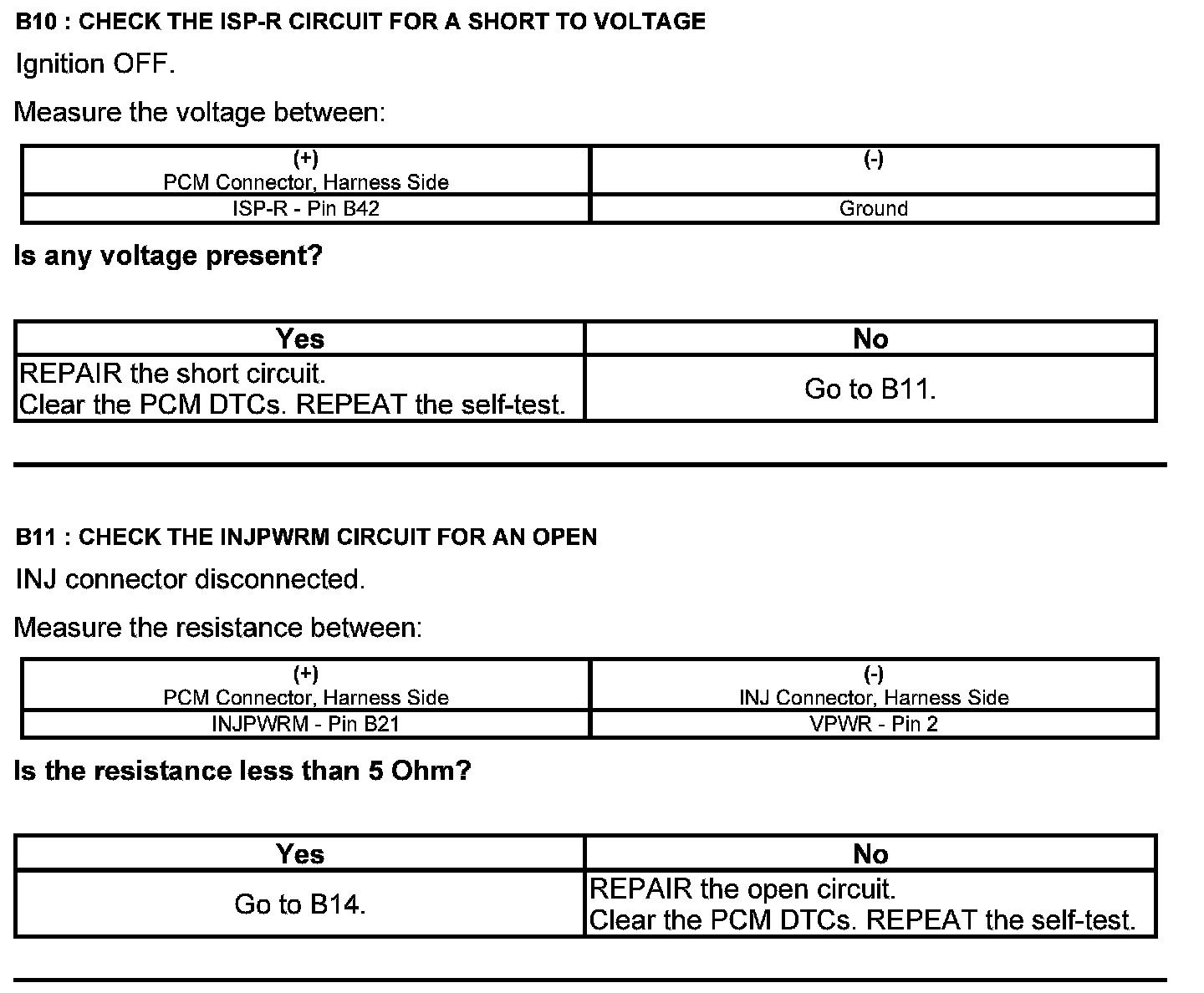

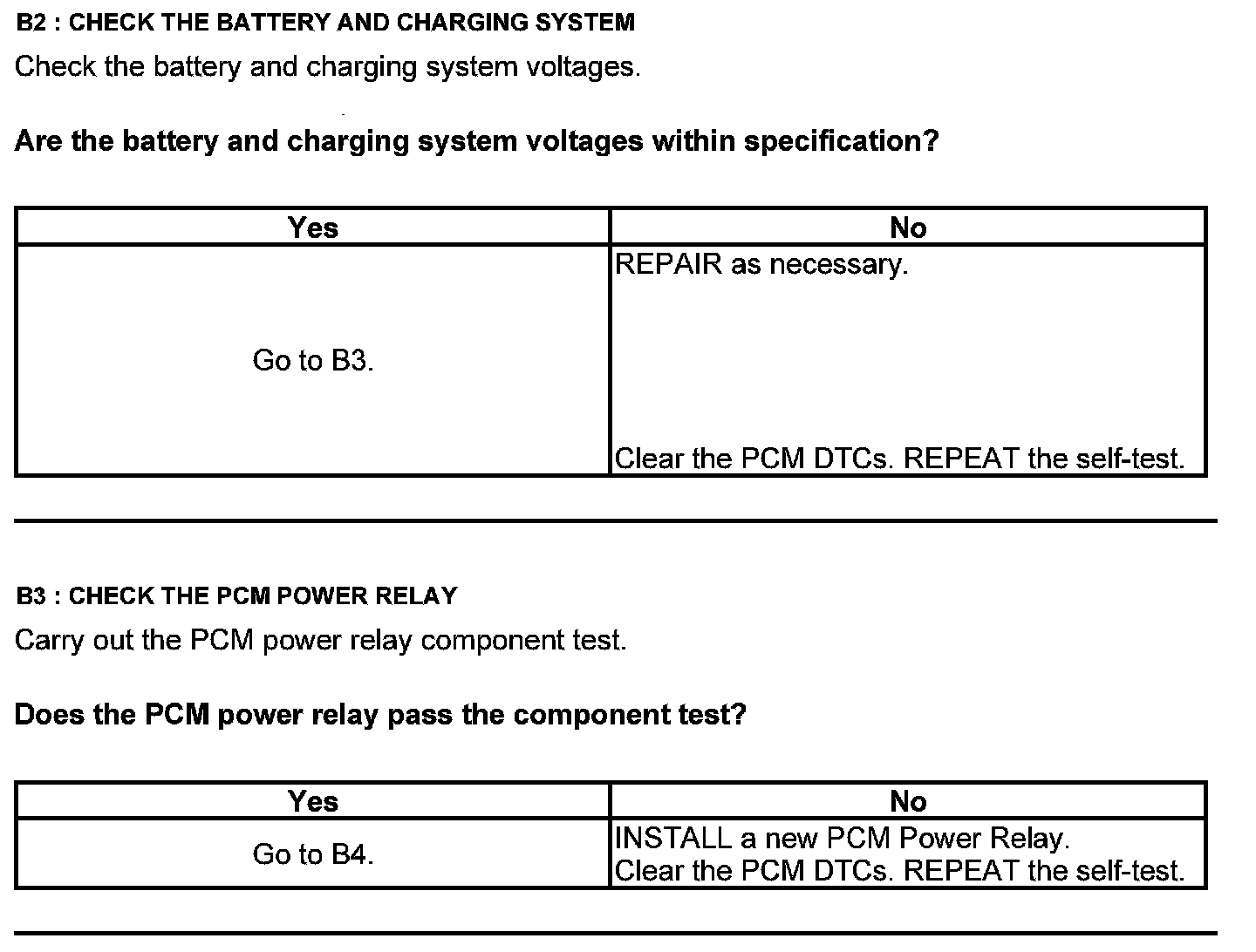

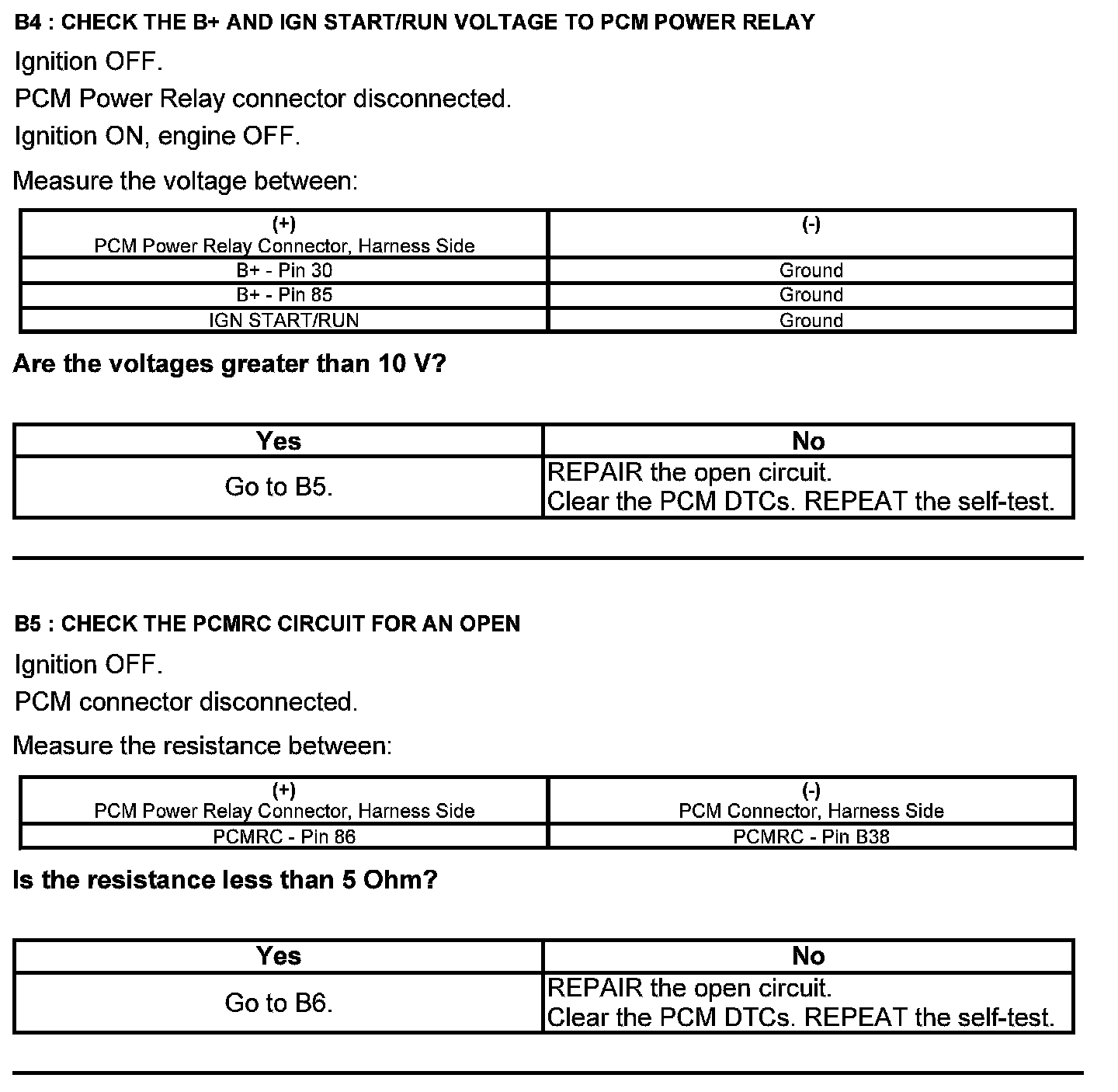

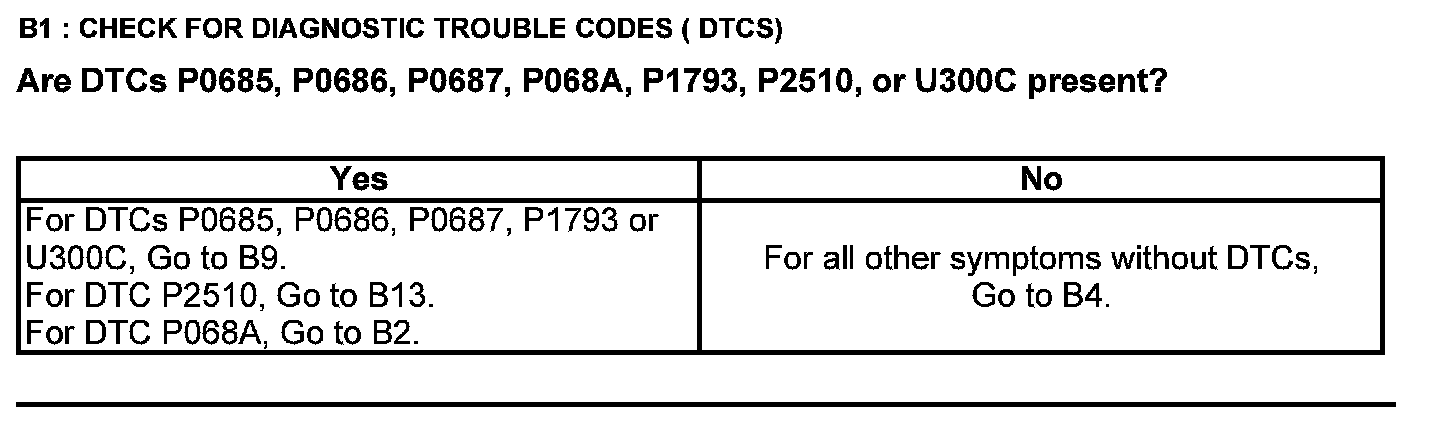

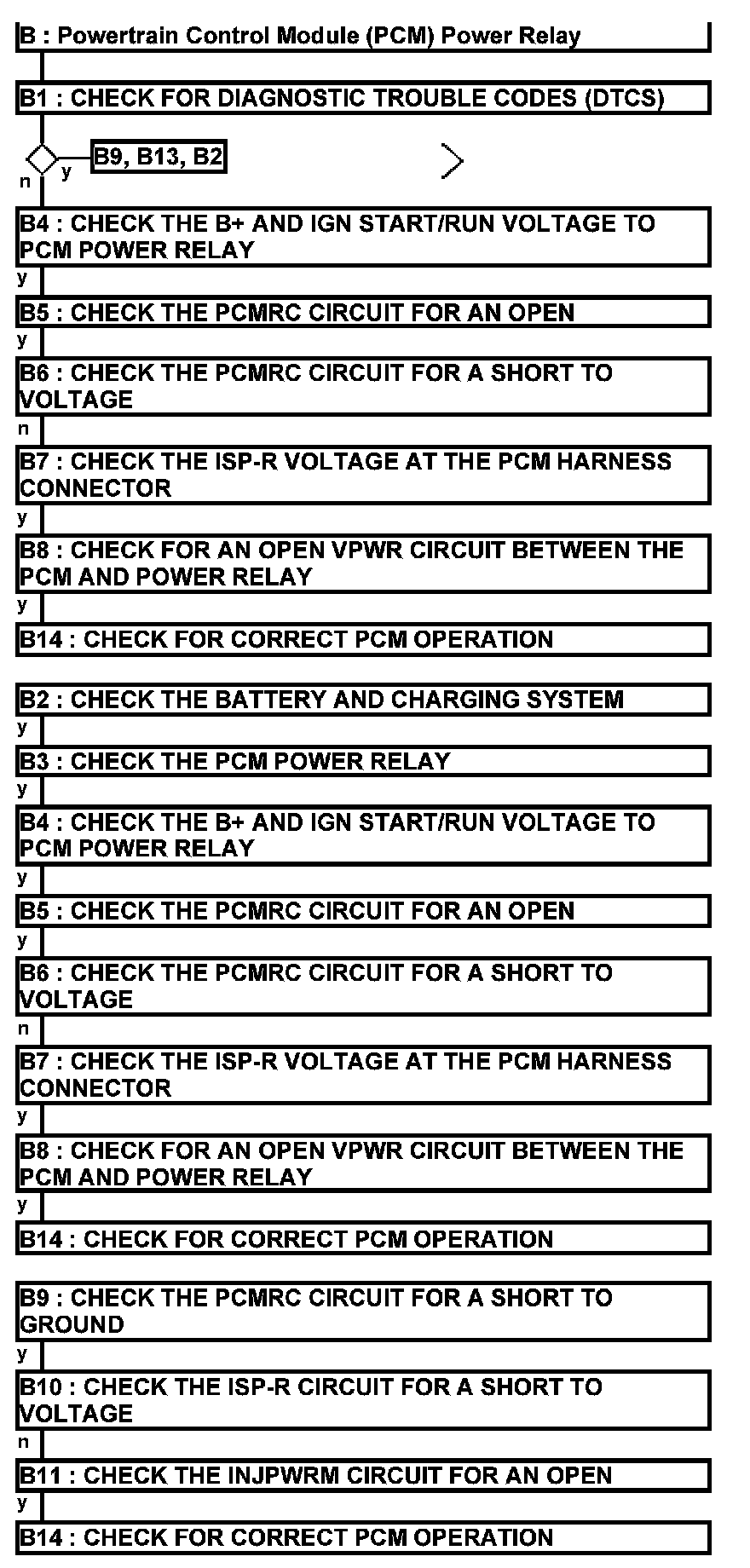

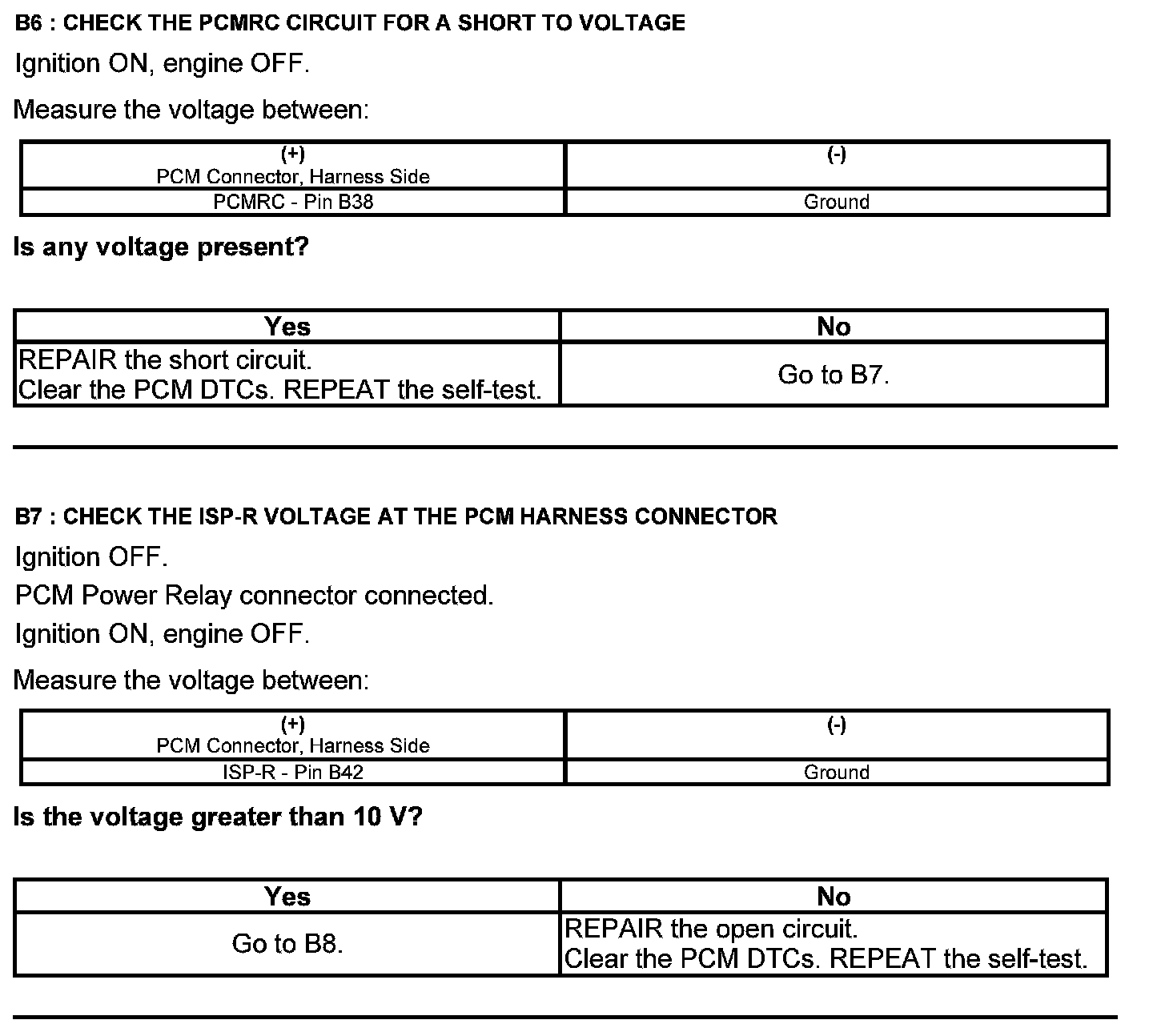

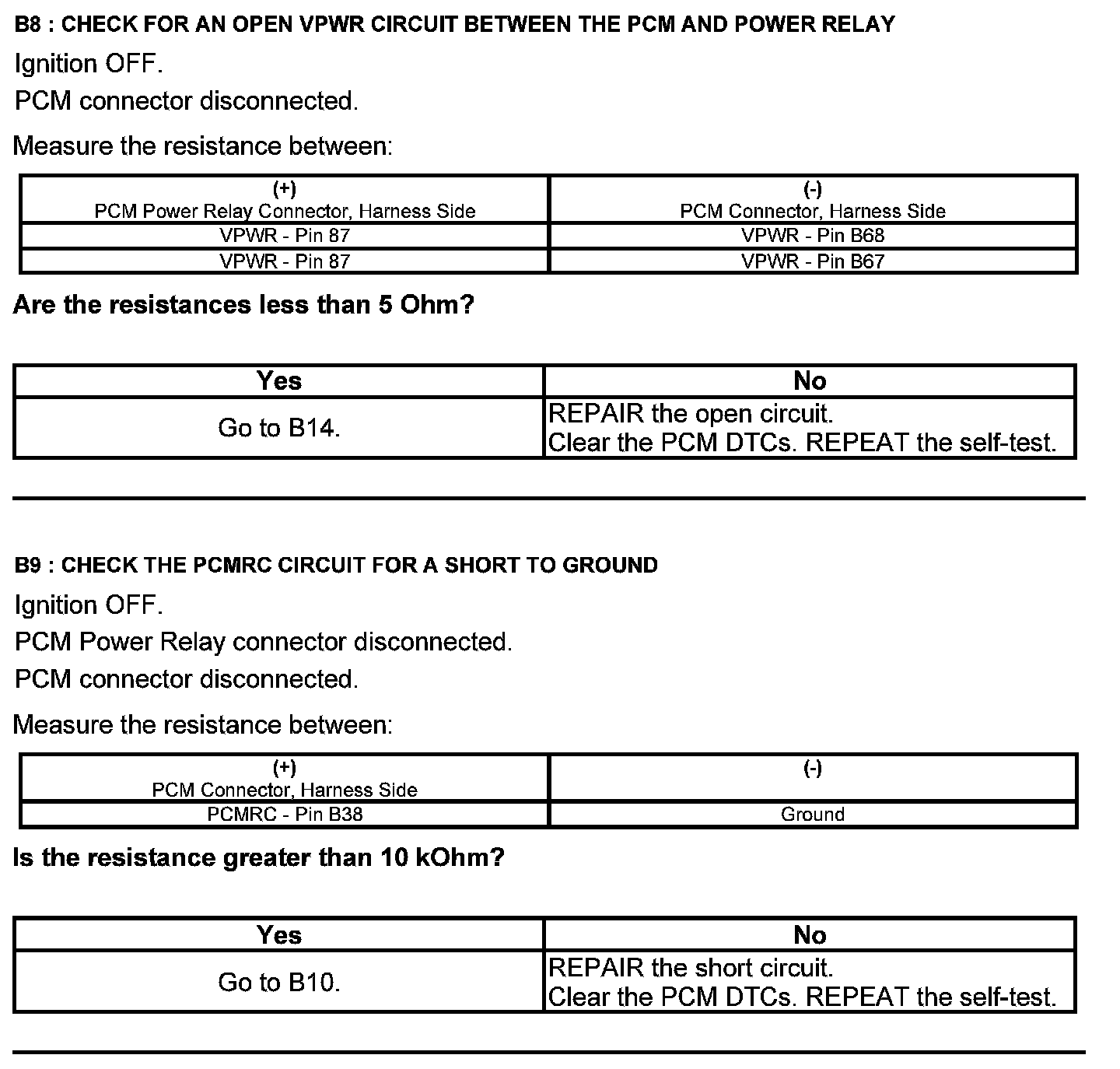

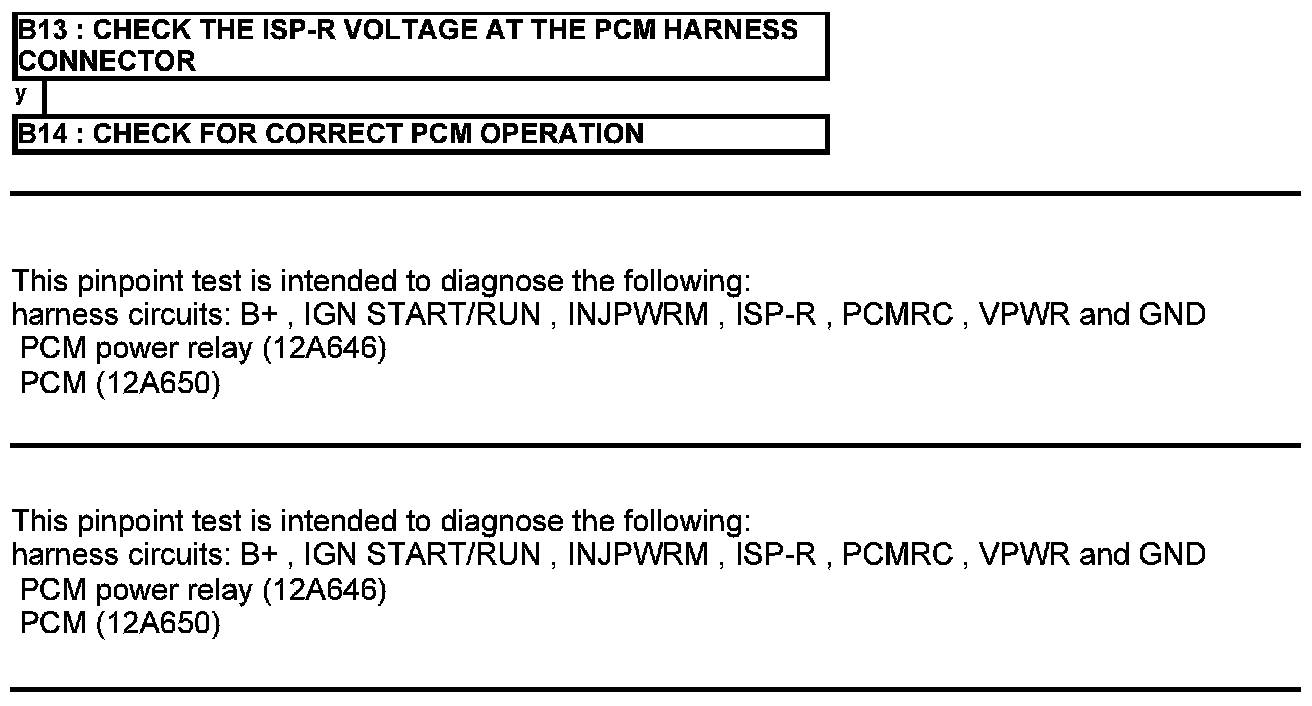

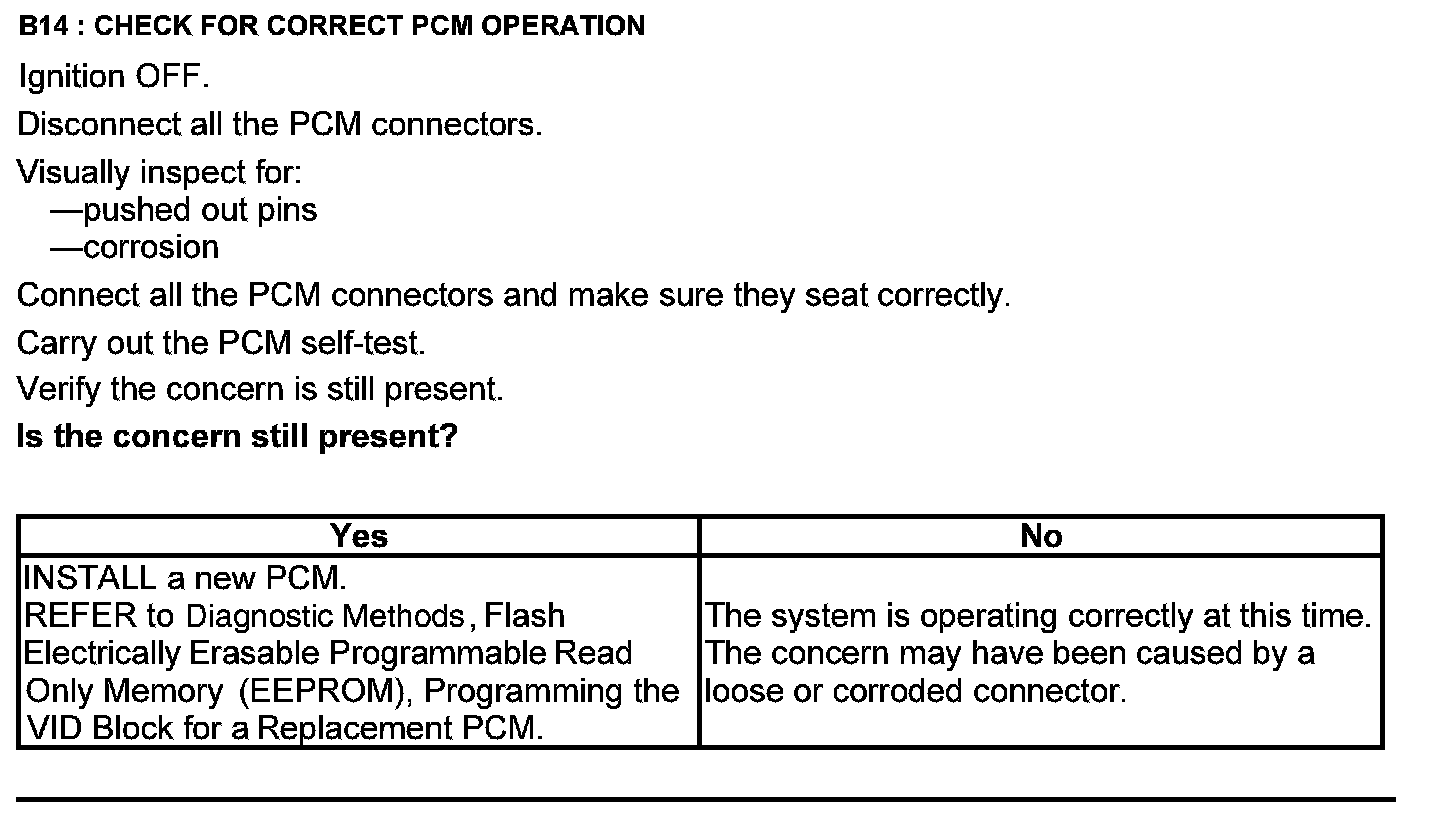

Powertrain Control Module (PCM) Power Relay - Automatic Transmission.

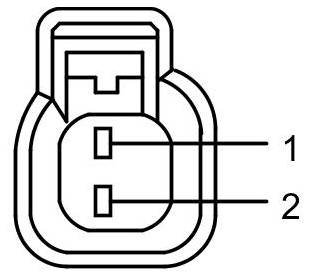

Injector (INJ) Connector





Harness Side

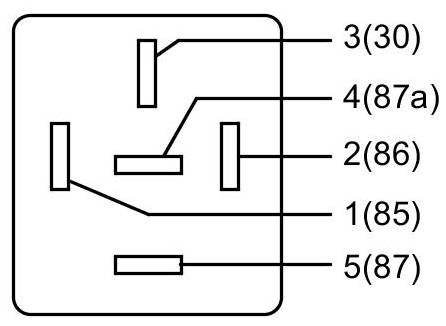

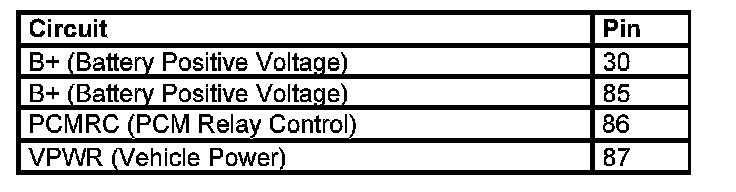

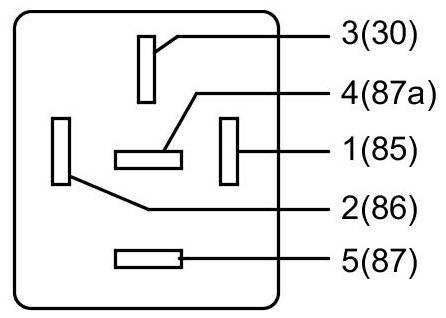

Powertrain Control Module Power (PCM Power) Relay Connector





Harness Side




Component side

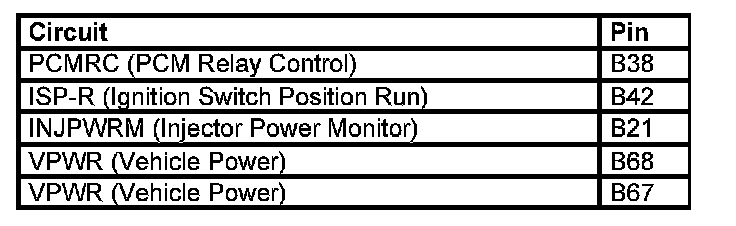

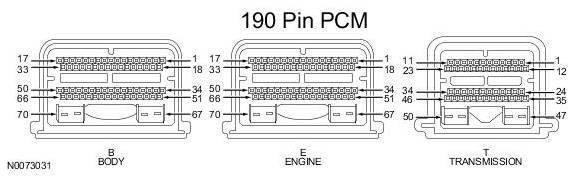

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
