Home >> Ford >> 2012 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

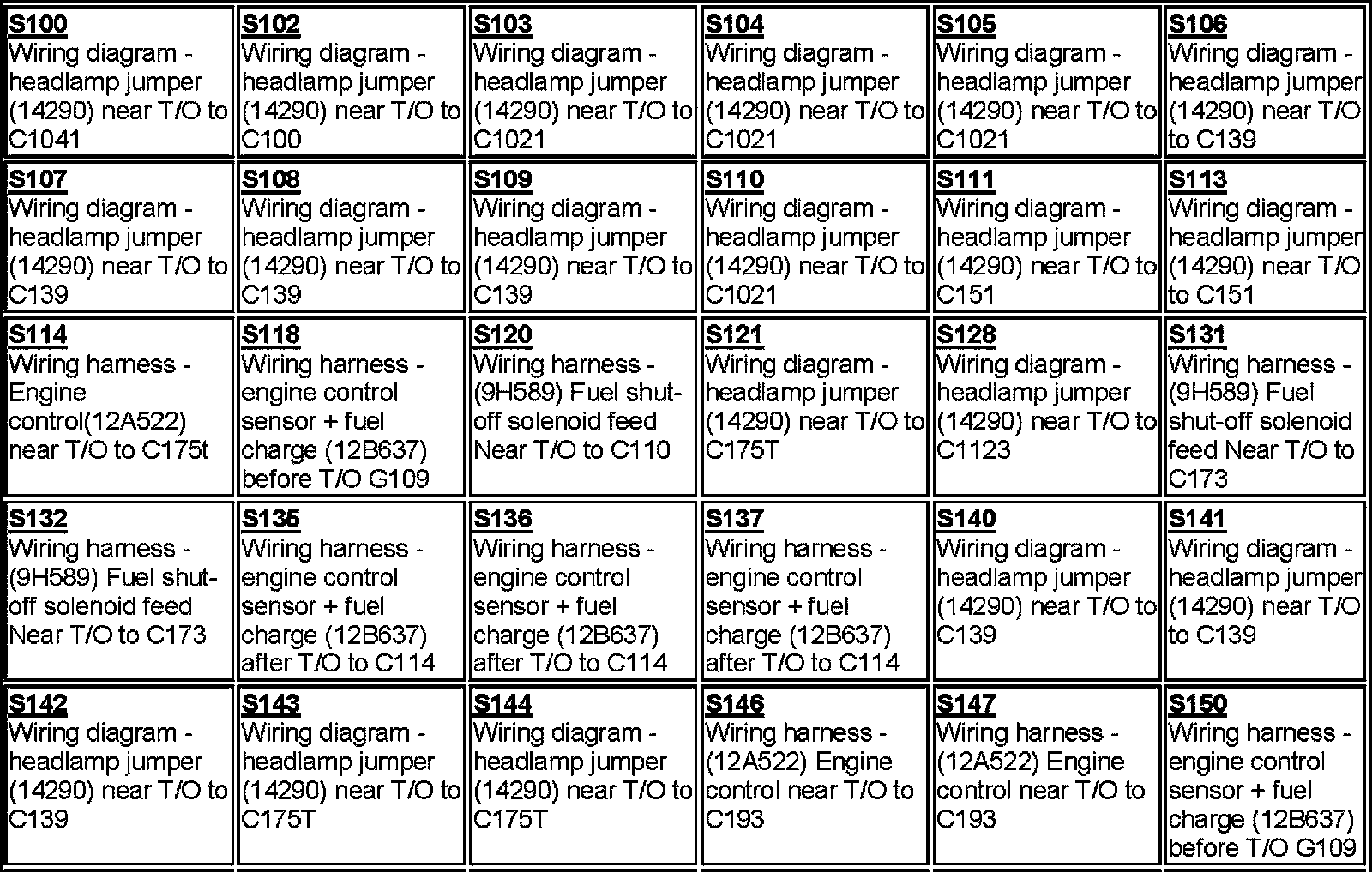

S100-S150:

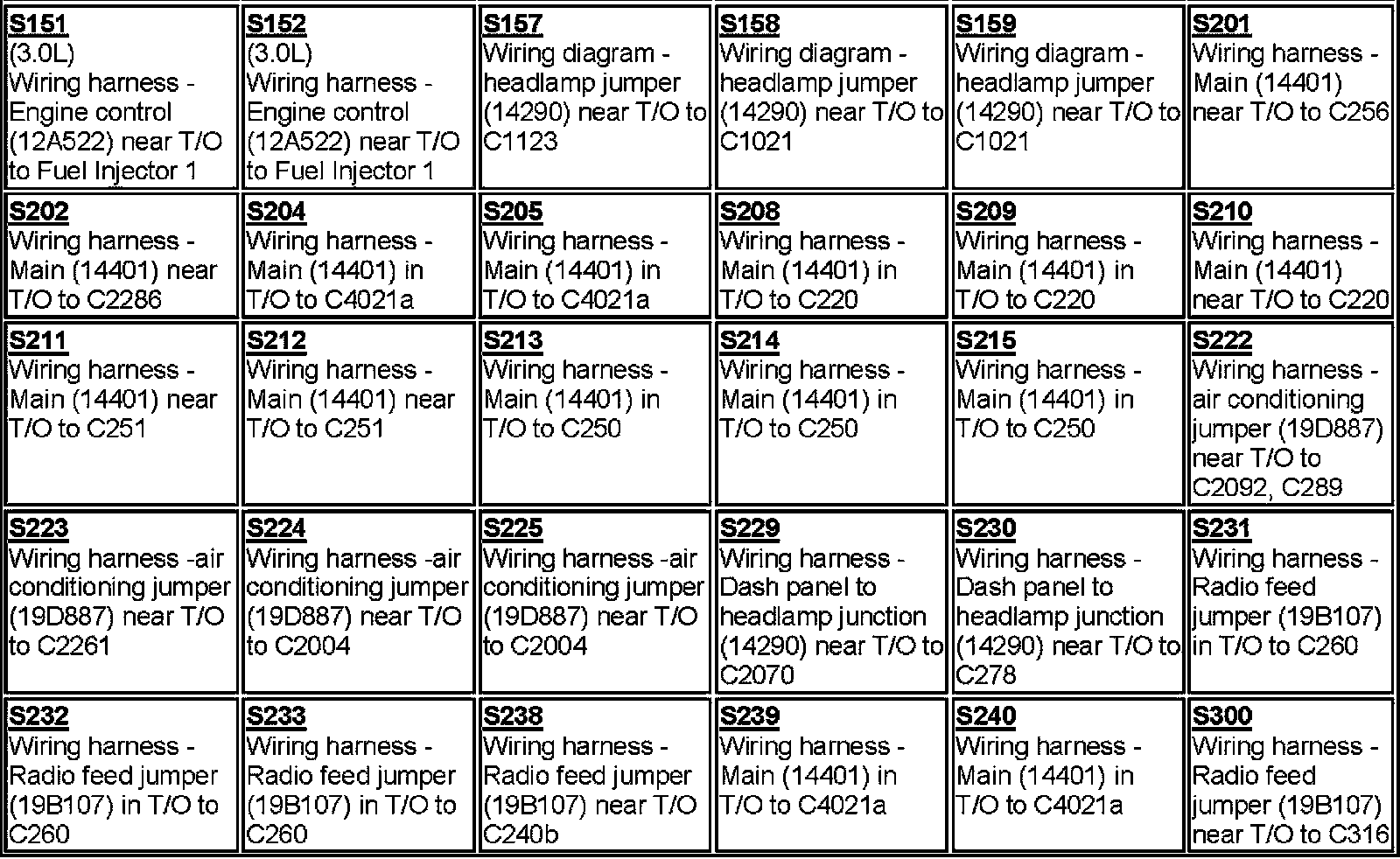

S151-S300:

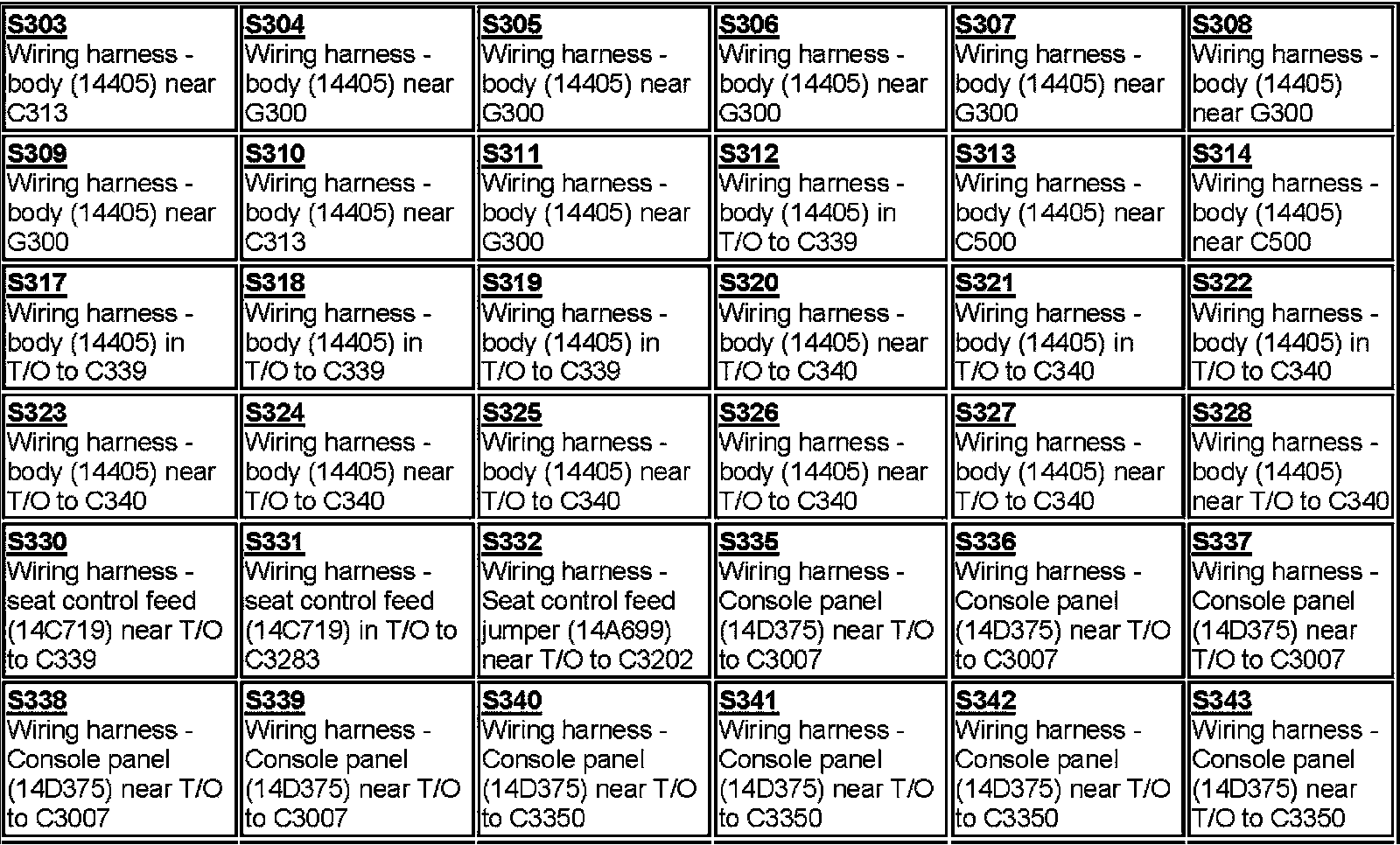

S303-S343:

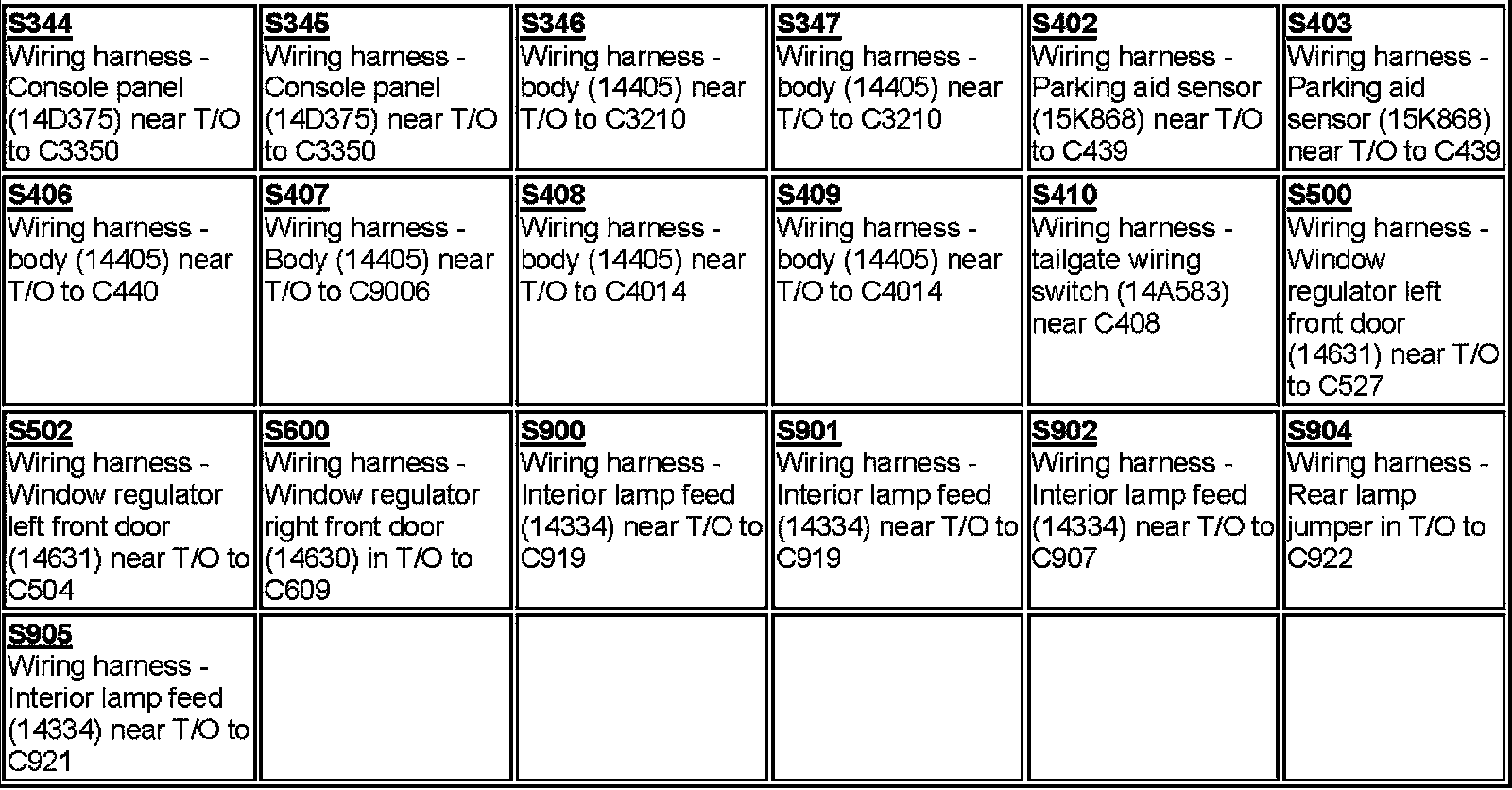

S344-S905:
