Connector Locations

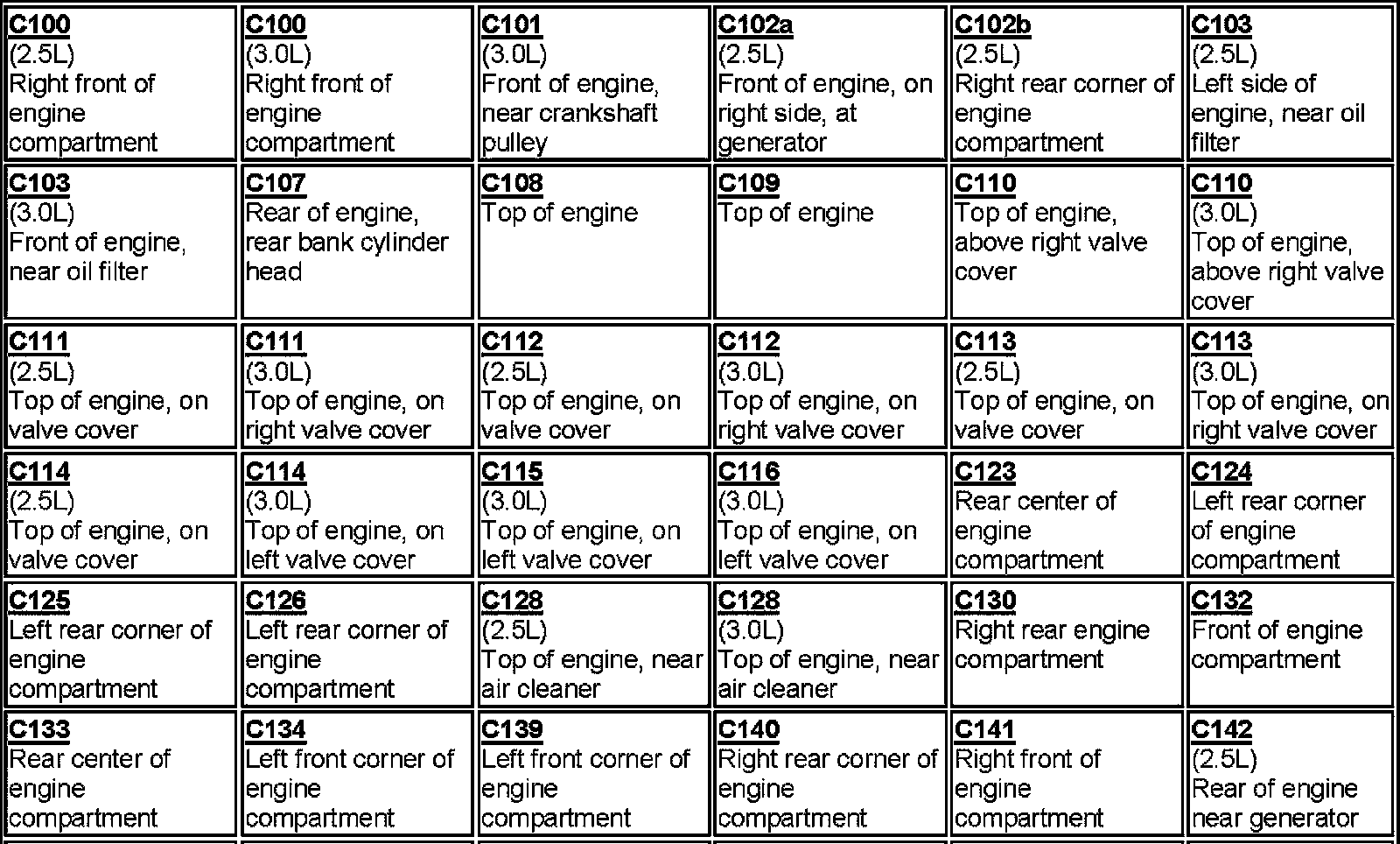

C100-C142:

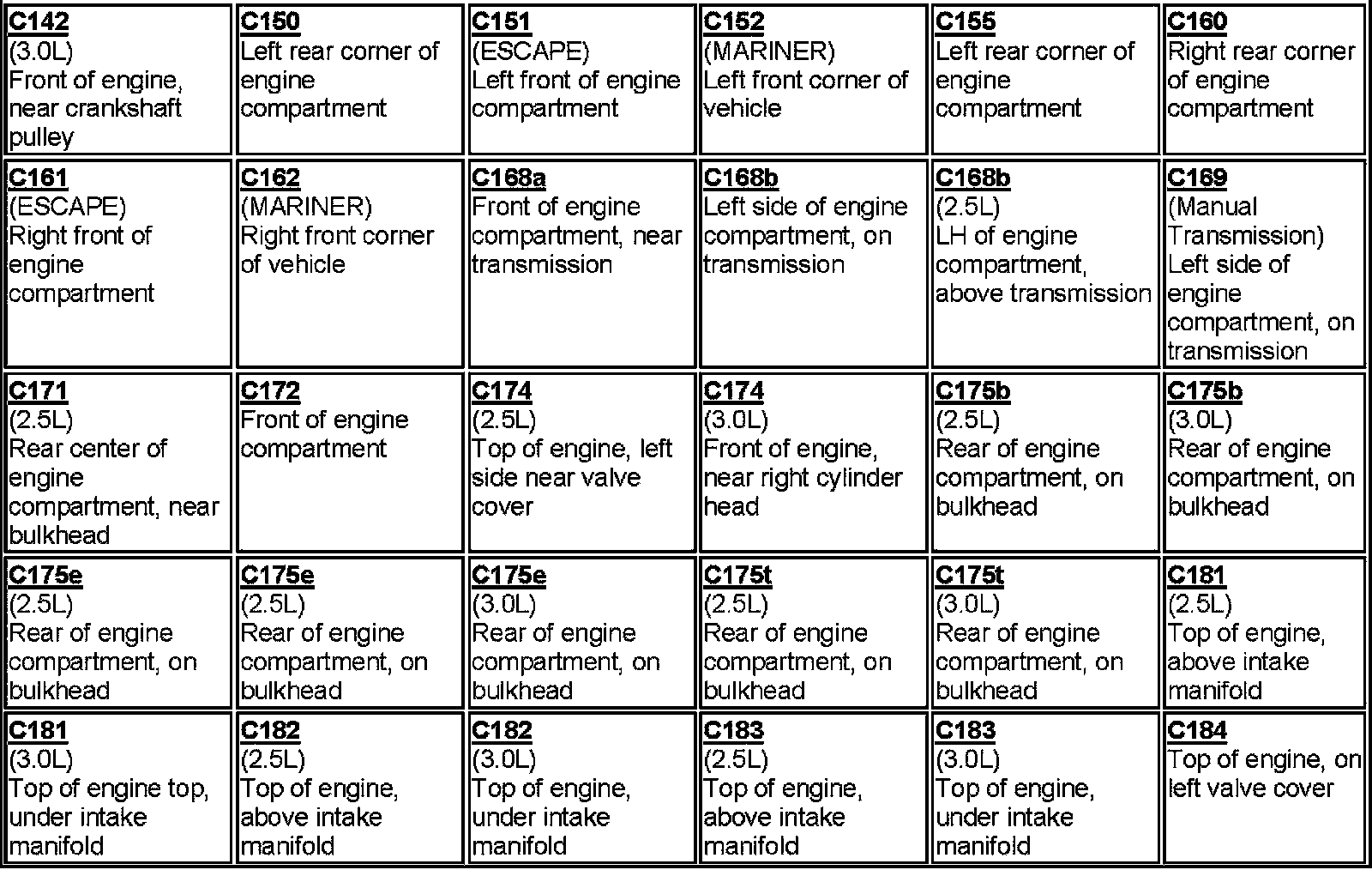

C142-C184:

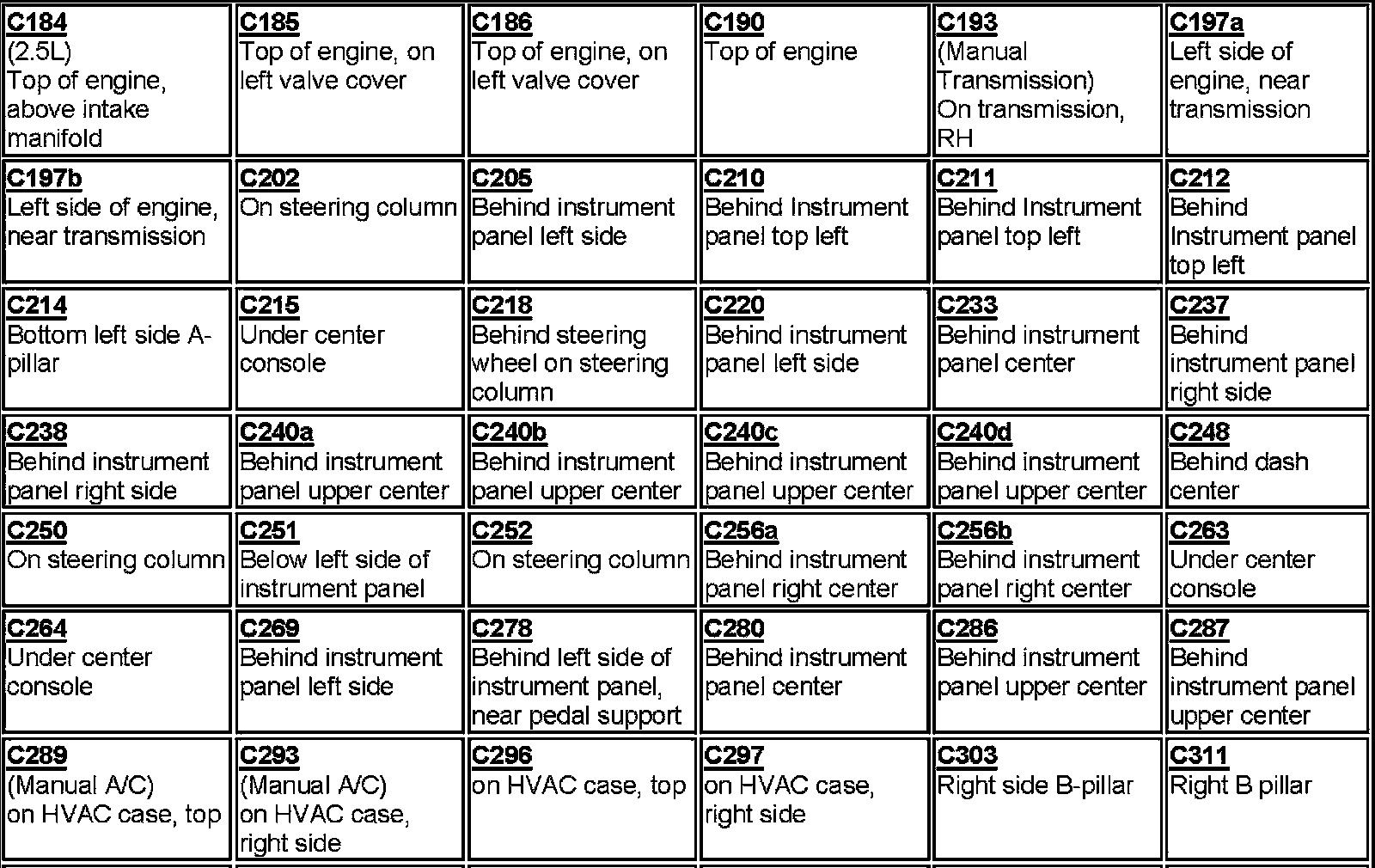

C184-C311:

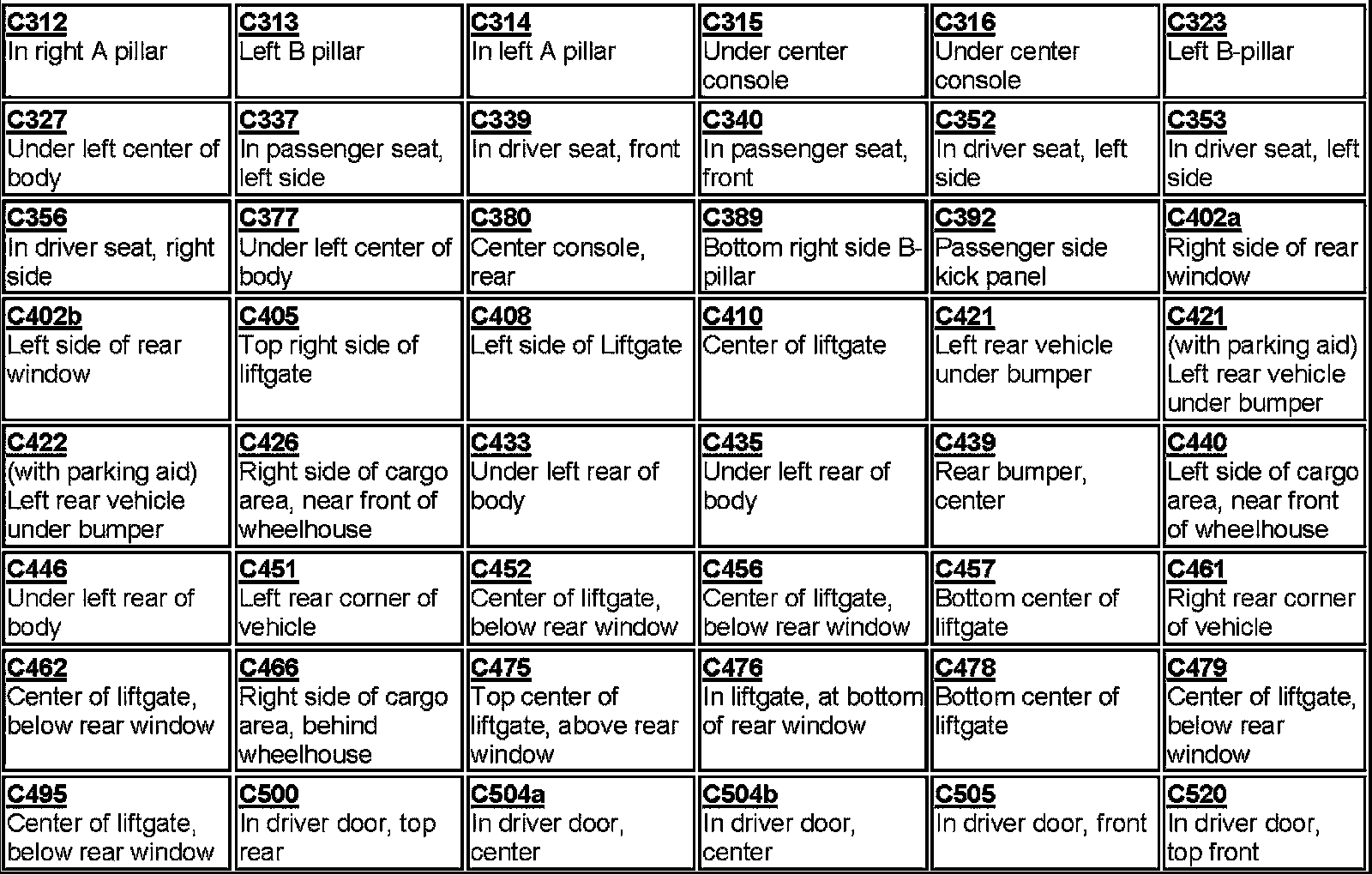

C312-C520:

C523-C1120:

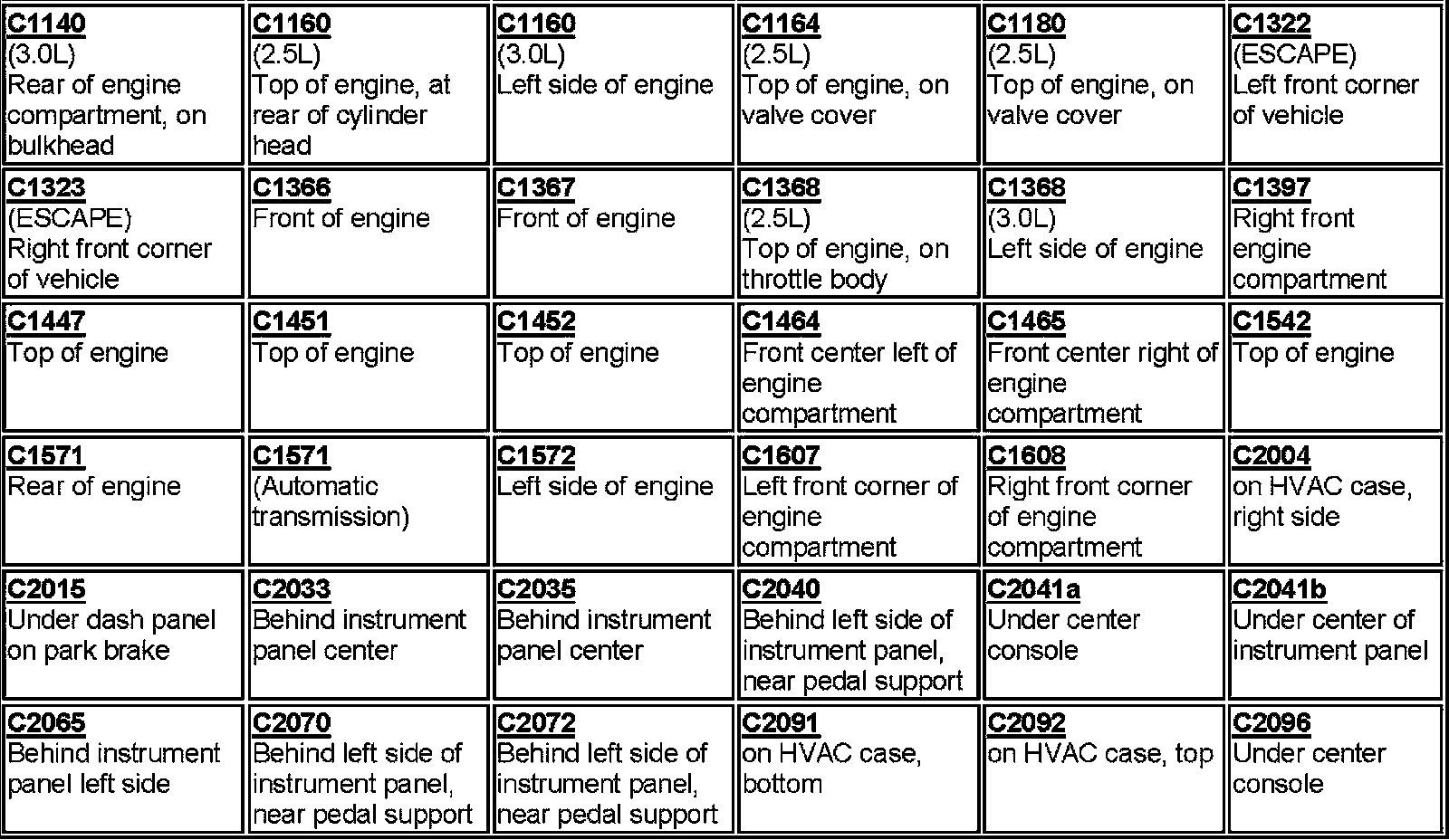

C1140-C2096:

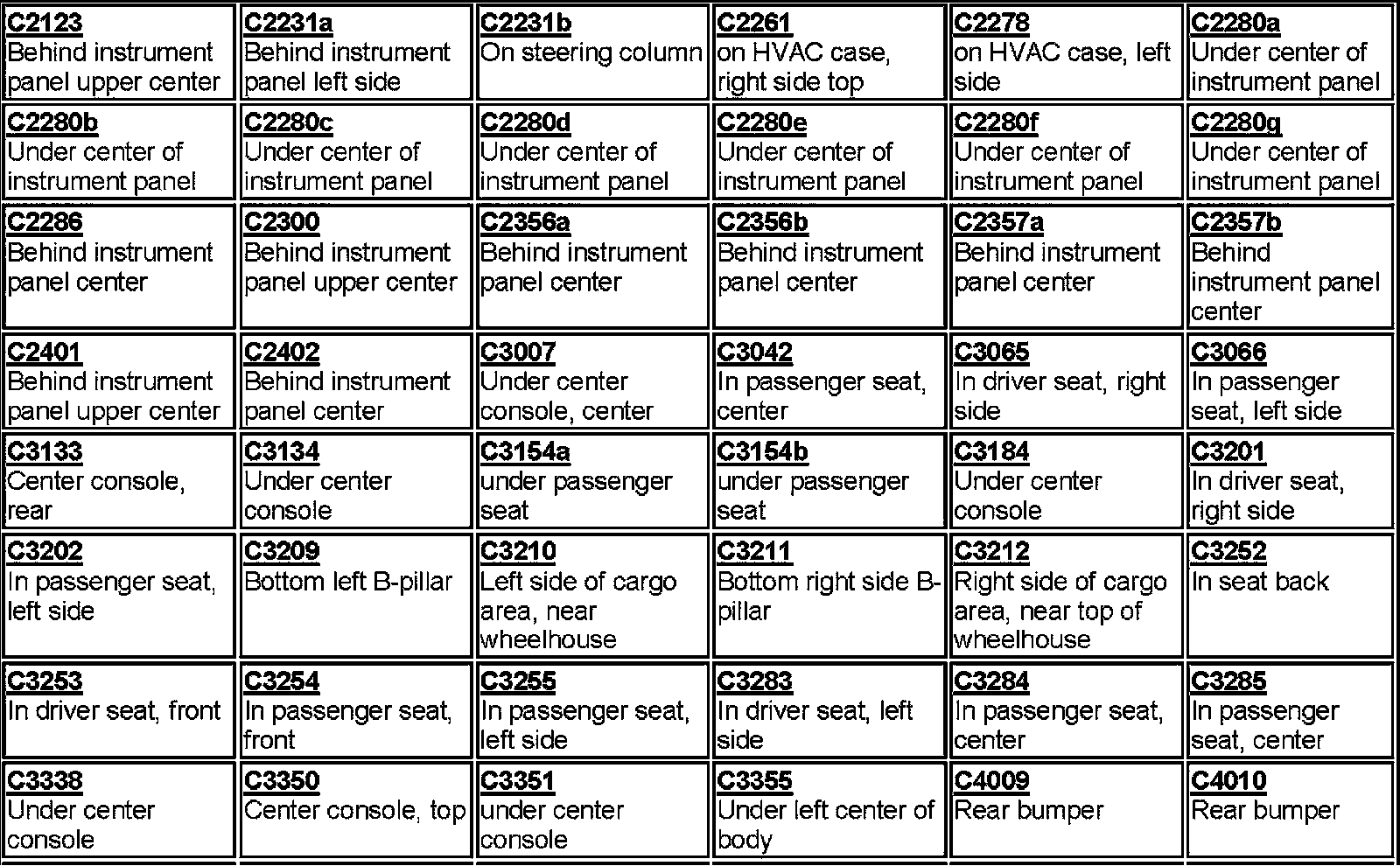

C2123-C4010:

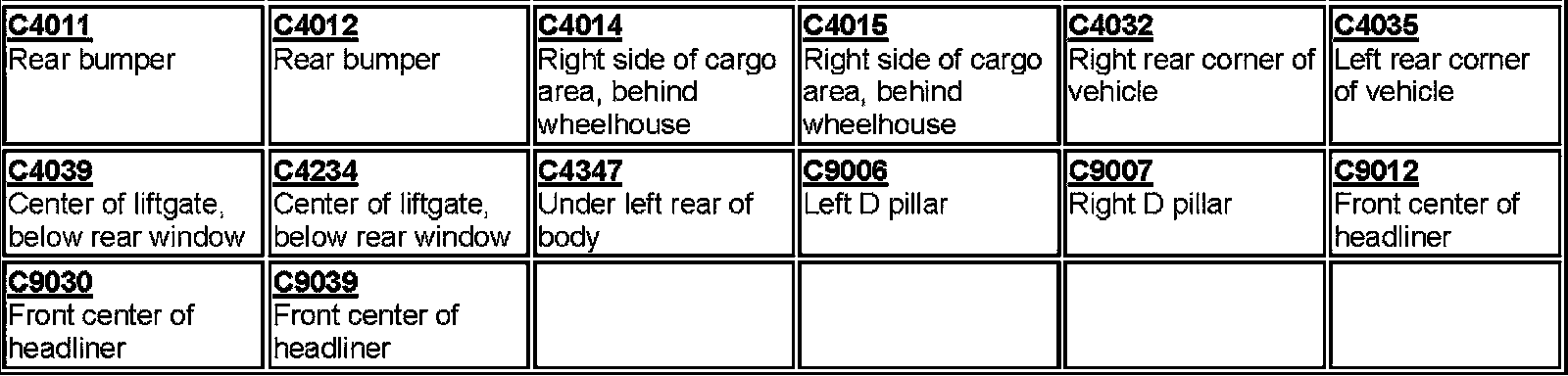

C4011-C9039:
