Exhaust System
Exhaust System
Exhaust System
- Exploded View

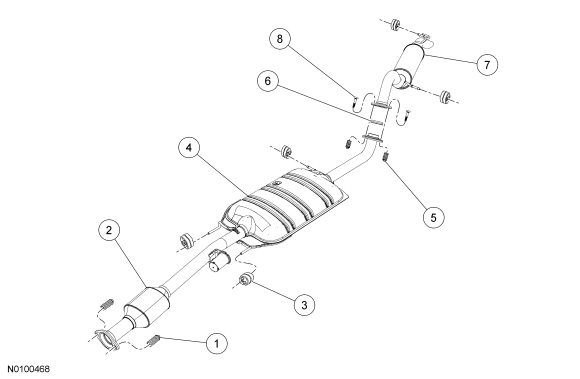

2.5L

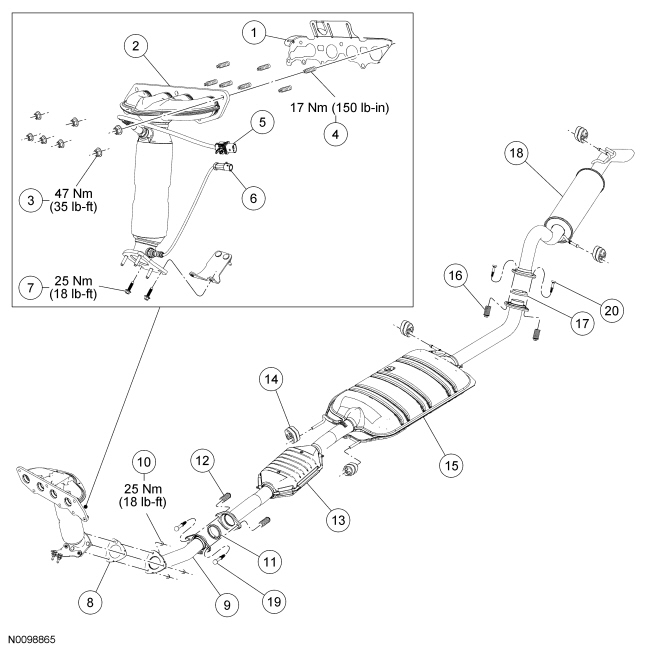

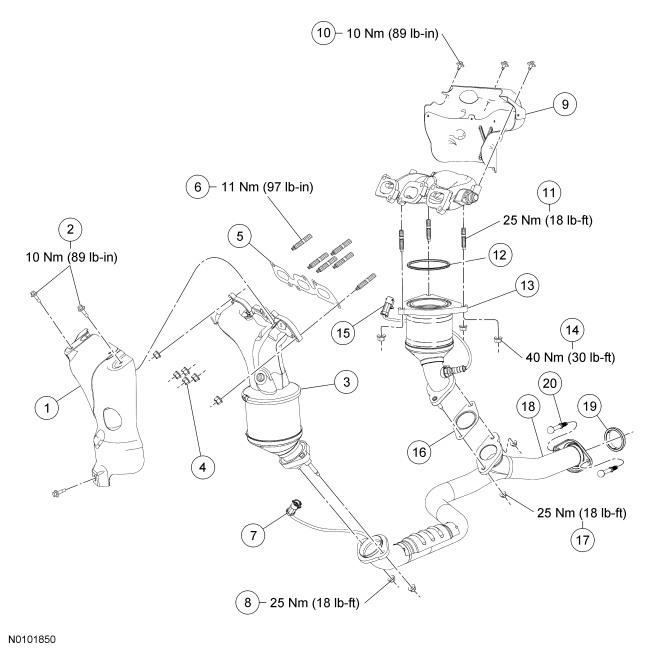

3.0L (View 1 of 2)

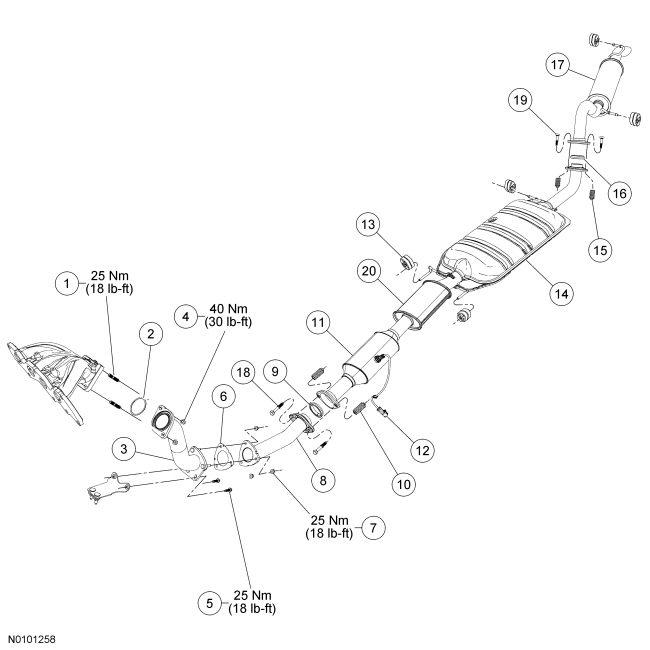

3.0L (View 2 of 2)
2.5L Hybrid
