Ford
>>
2012
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

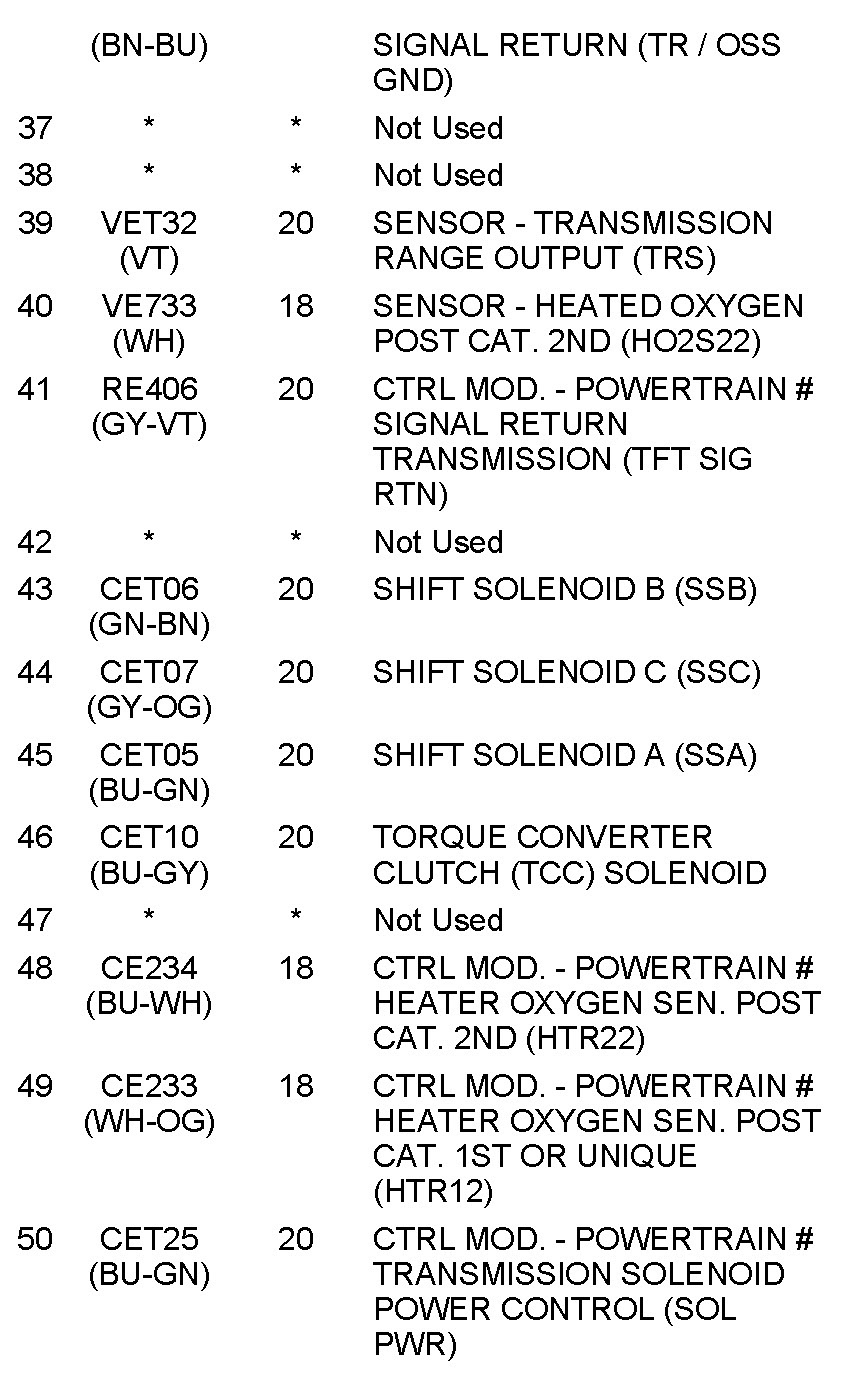

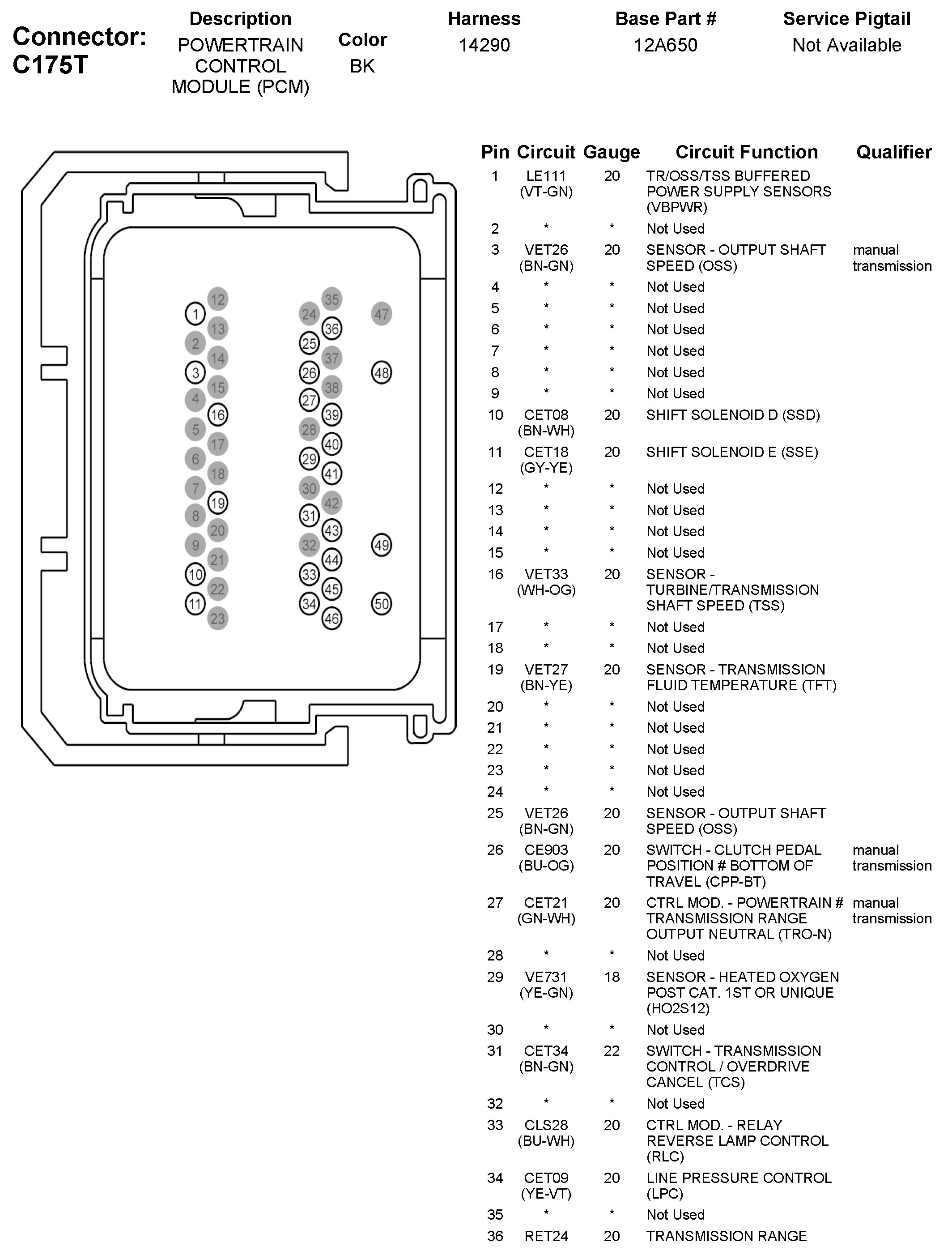

C175T Powertrain Control Module (PCM)
C175T Powertrain Control Module (PCM)
