Test HD: Misfire Detection Monitor

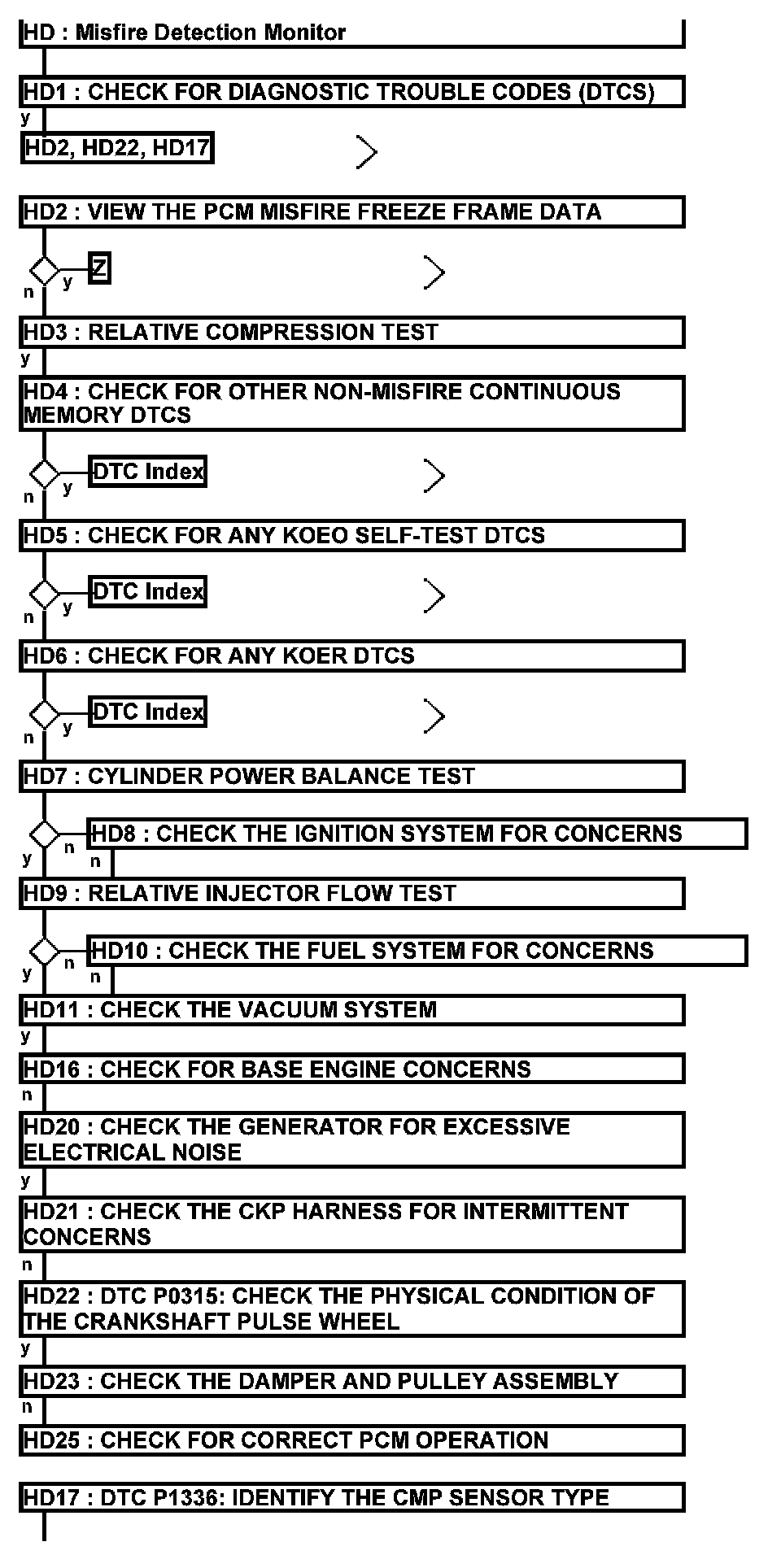

Misfire Detection Monitor

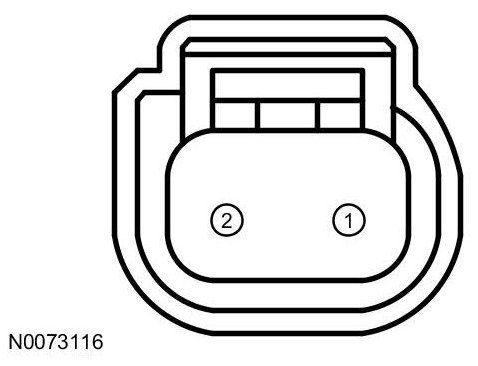

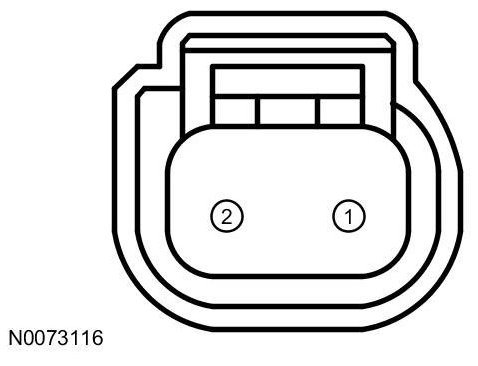

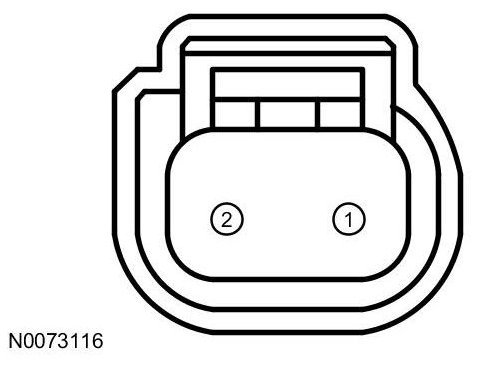

Camshaft Position 11 (CMP11) Sensor Connector
Harness Side
Camshaft Position 12 (CMP12) Sensor Connector
Harness Side
Camshaft Position 21 (CMP21) Sensor Connector
Harness Side

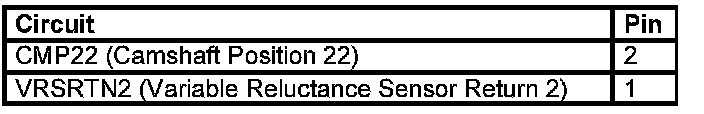

Camshaft Position 22 (CMP22) Sensor Connector
Harness Side

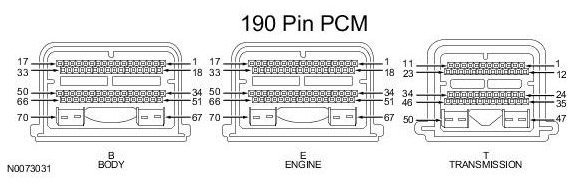

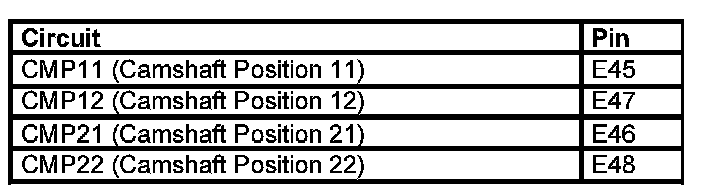

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
