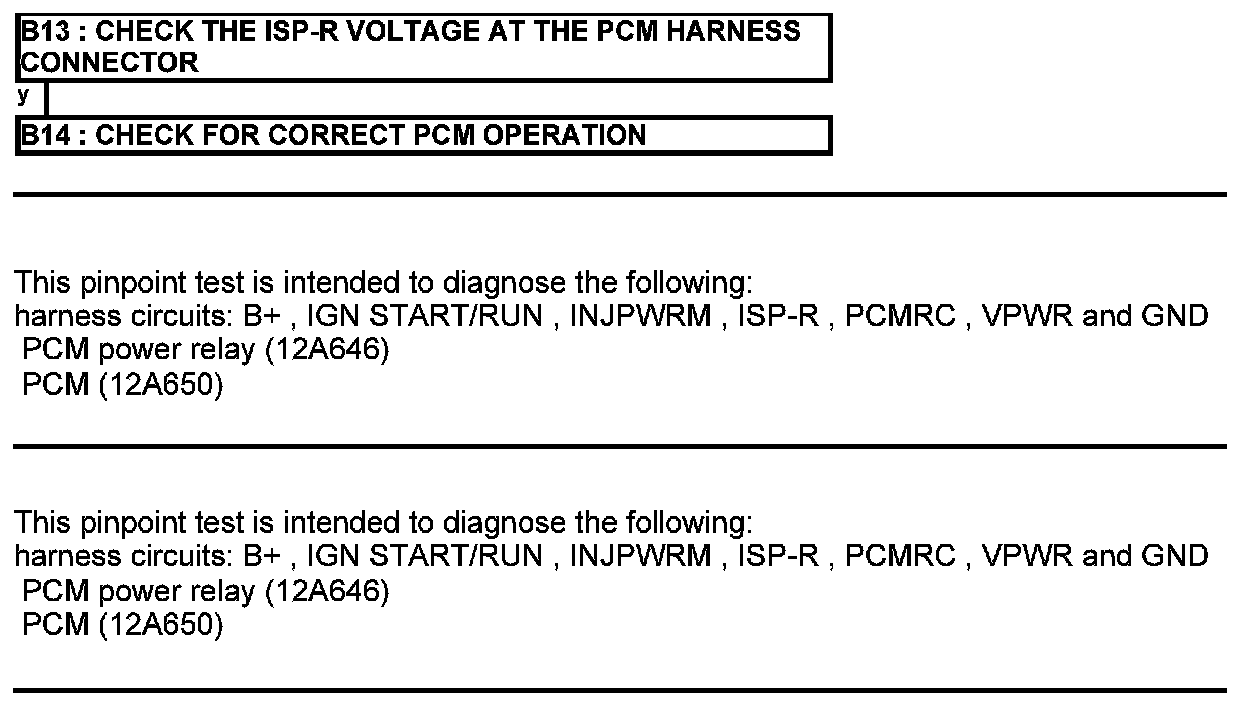

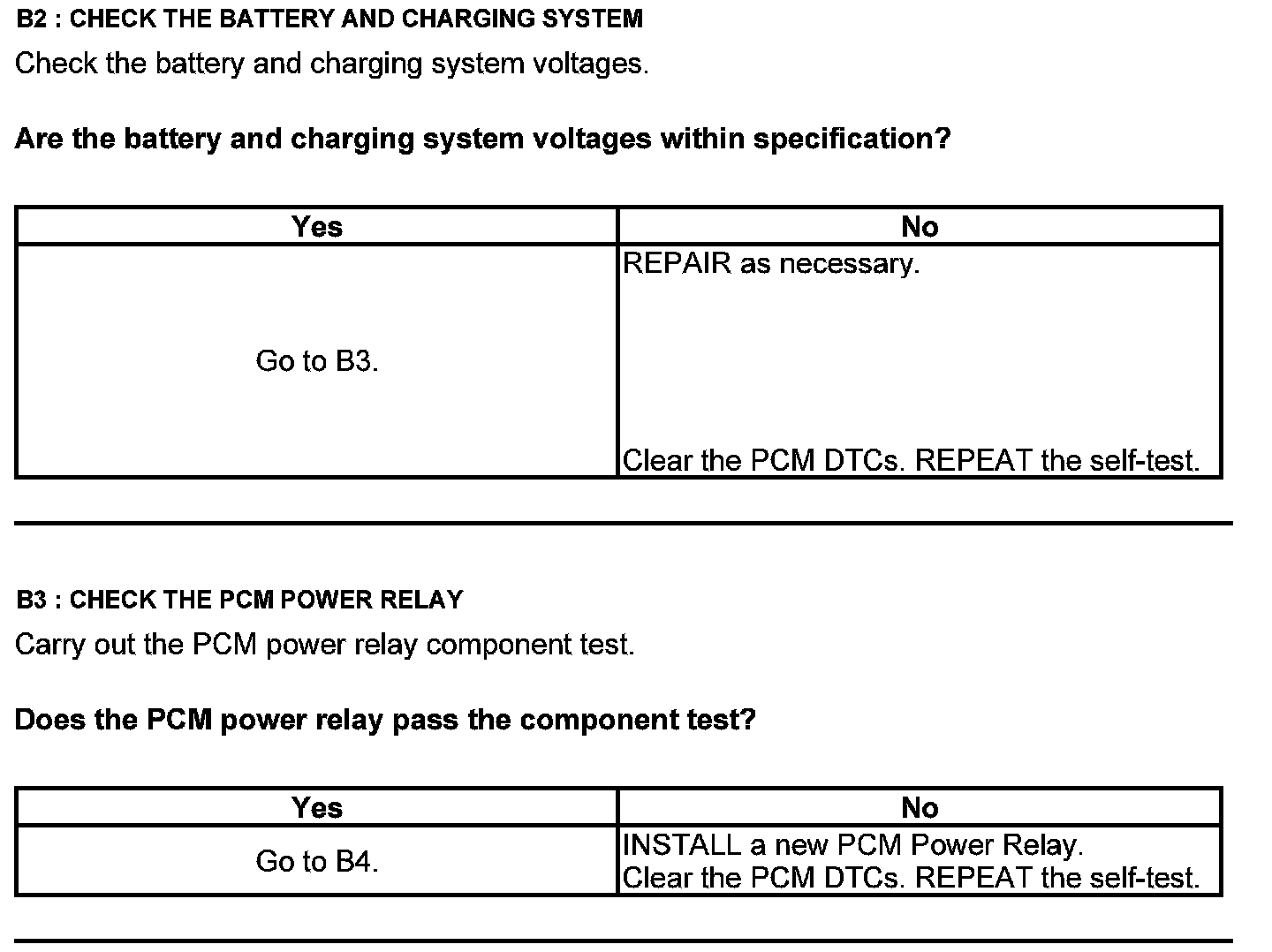

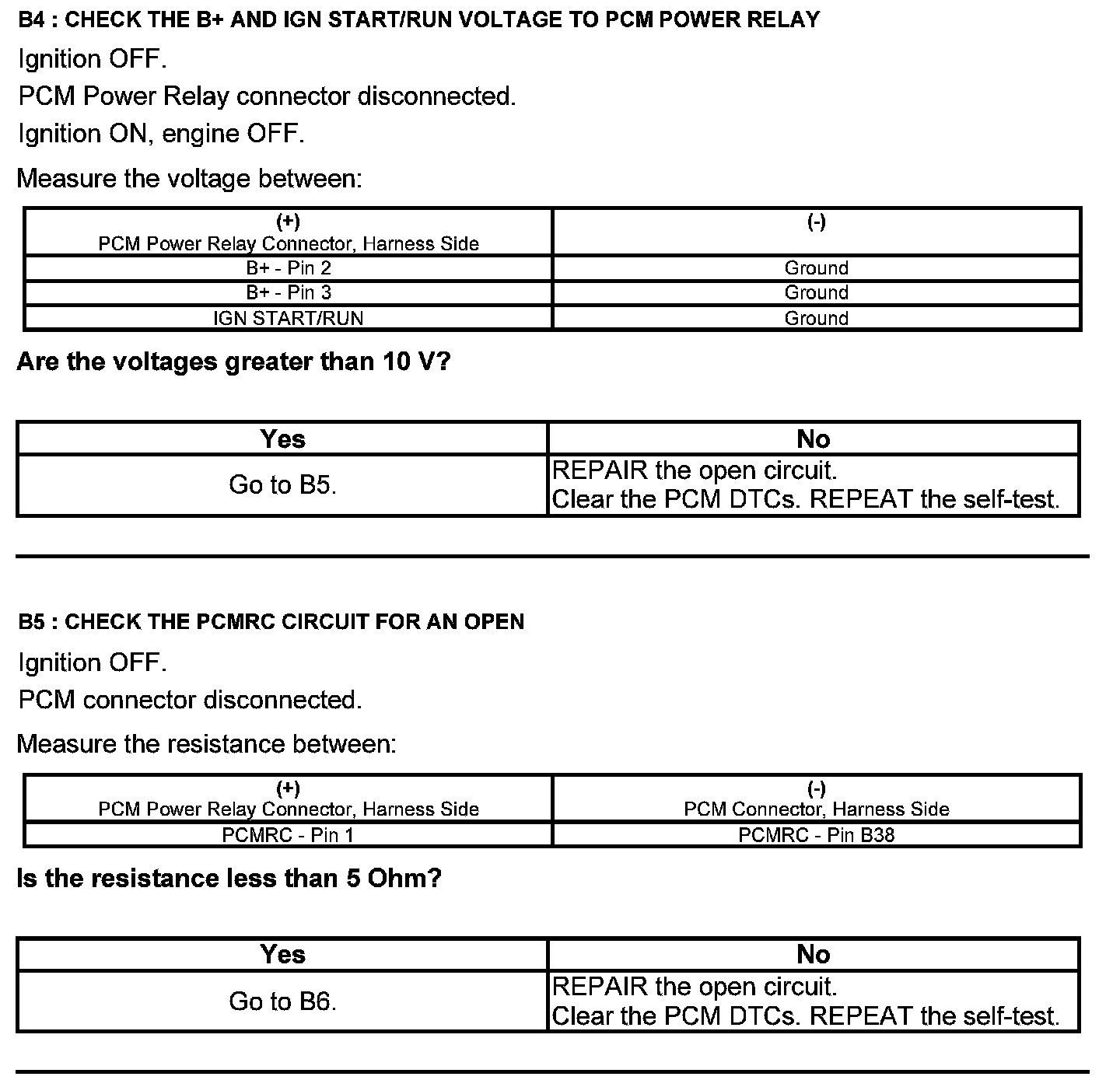

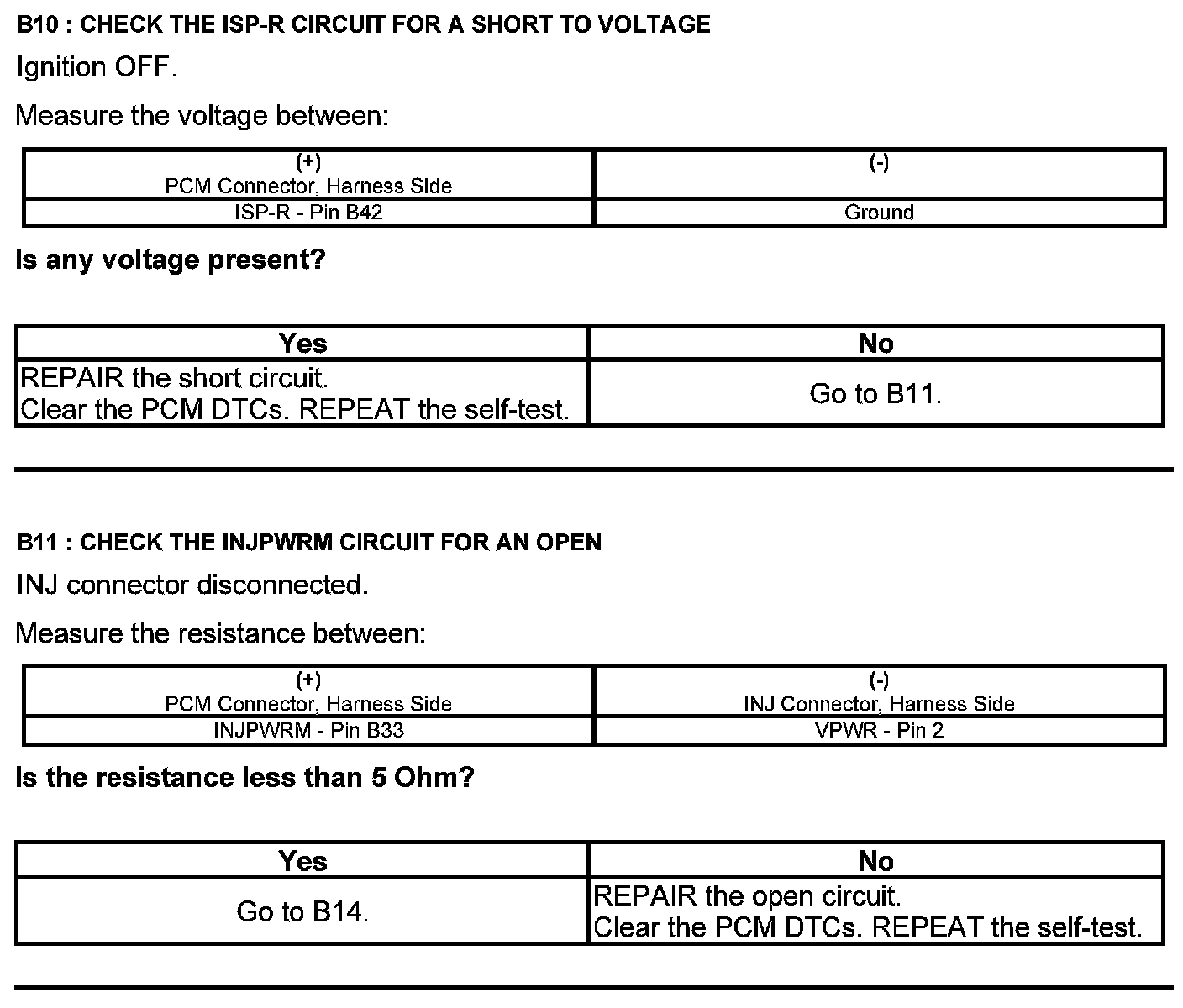

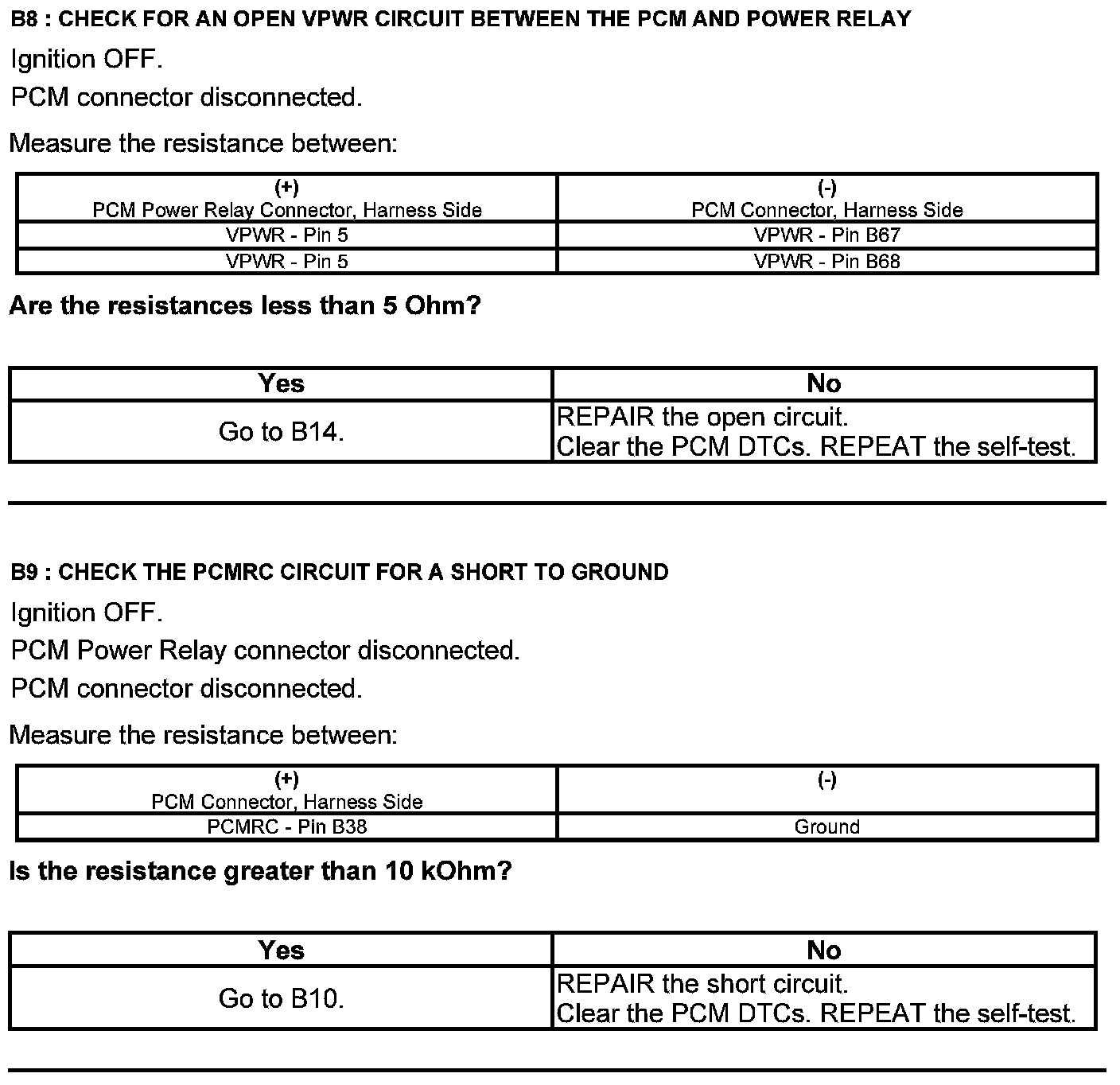

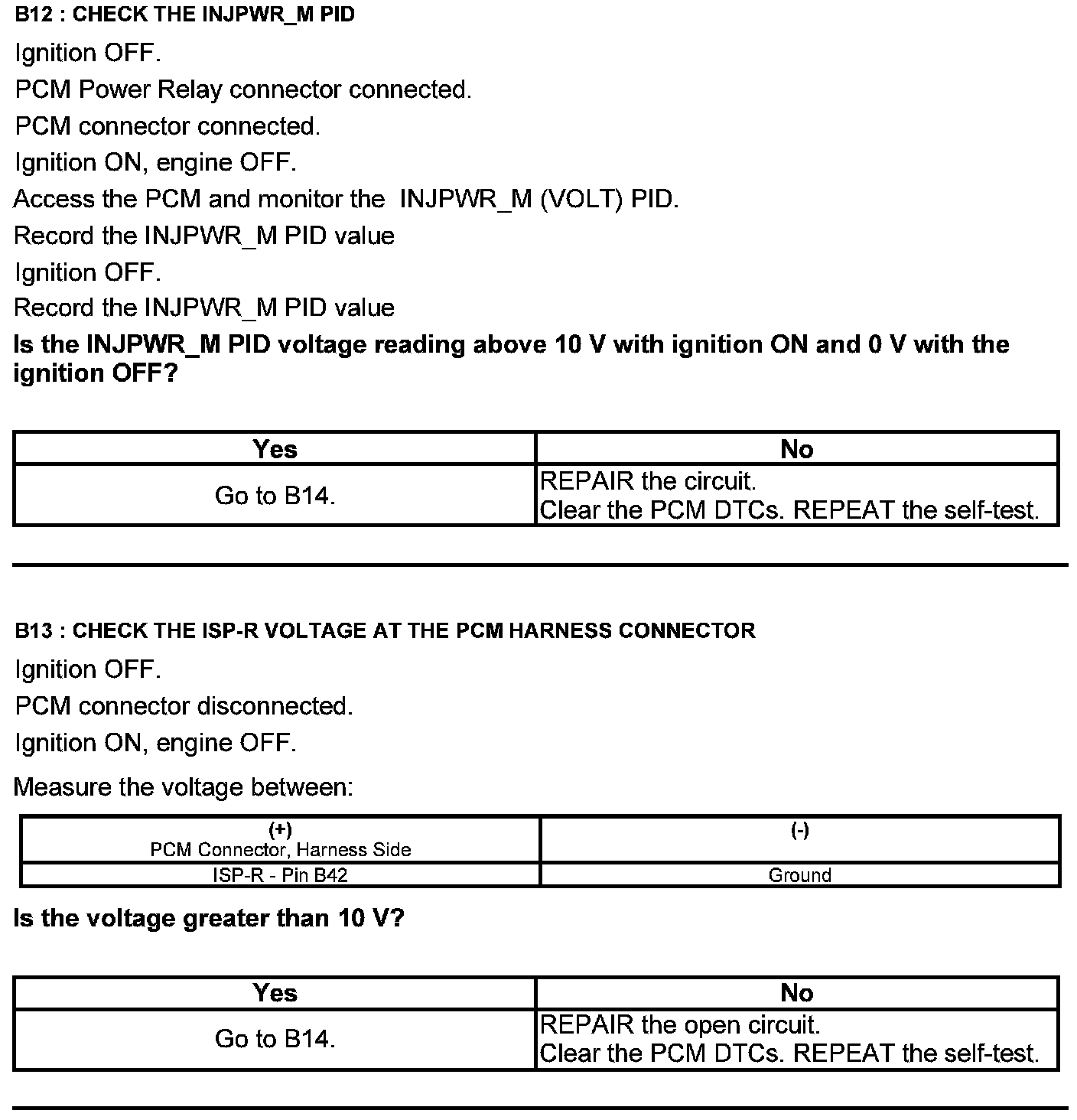

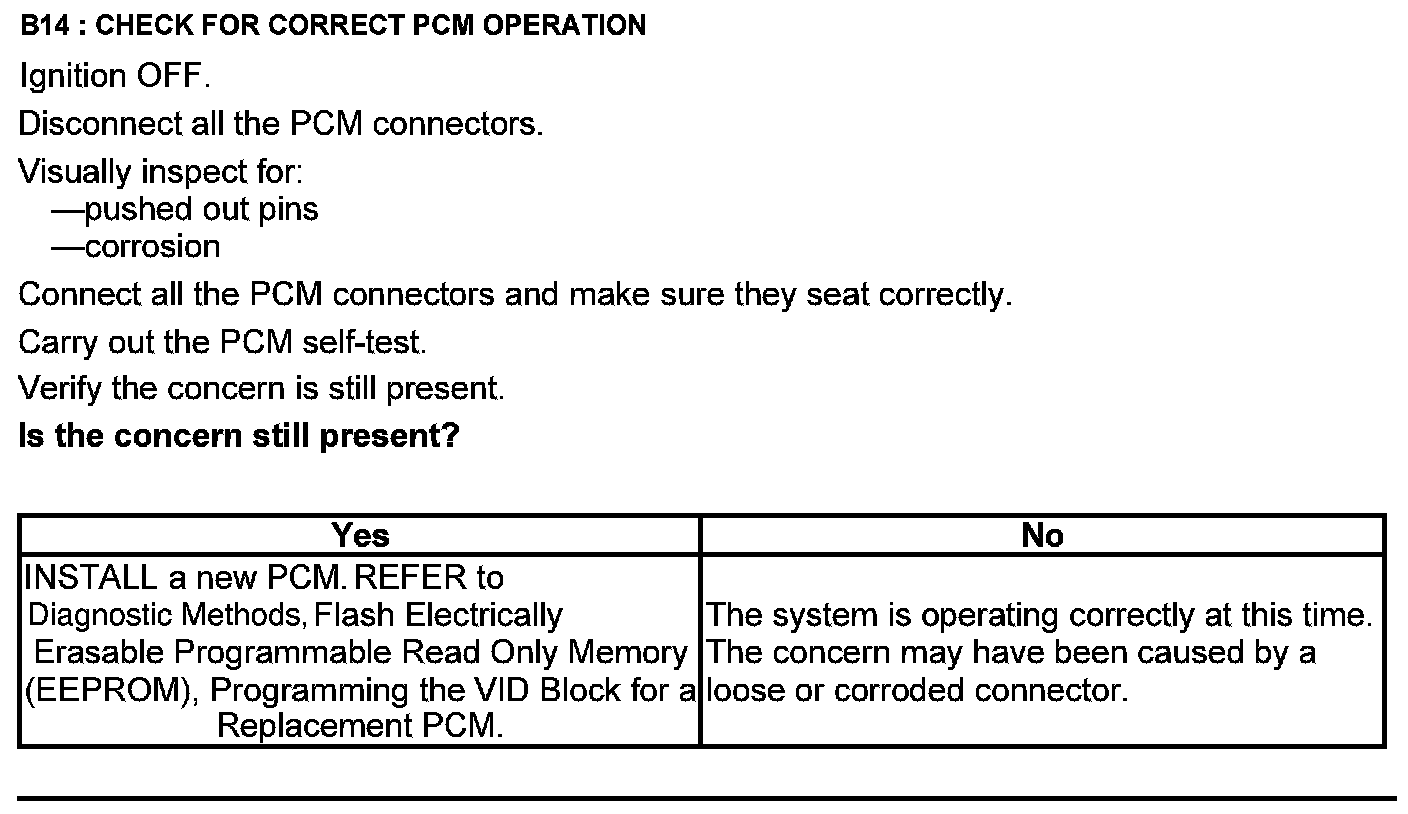

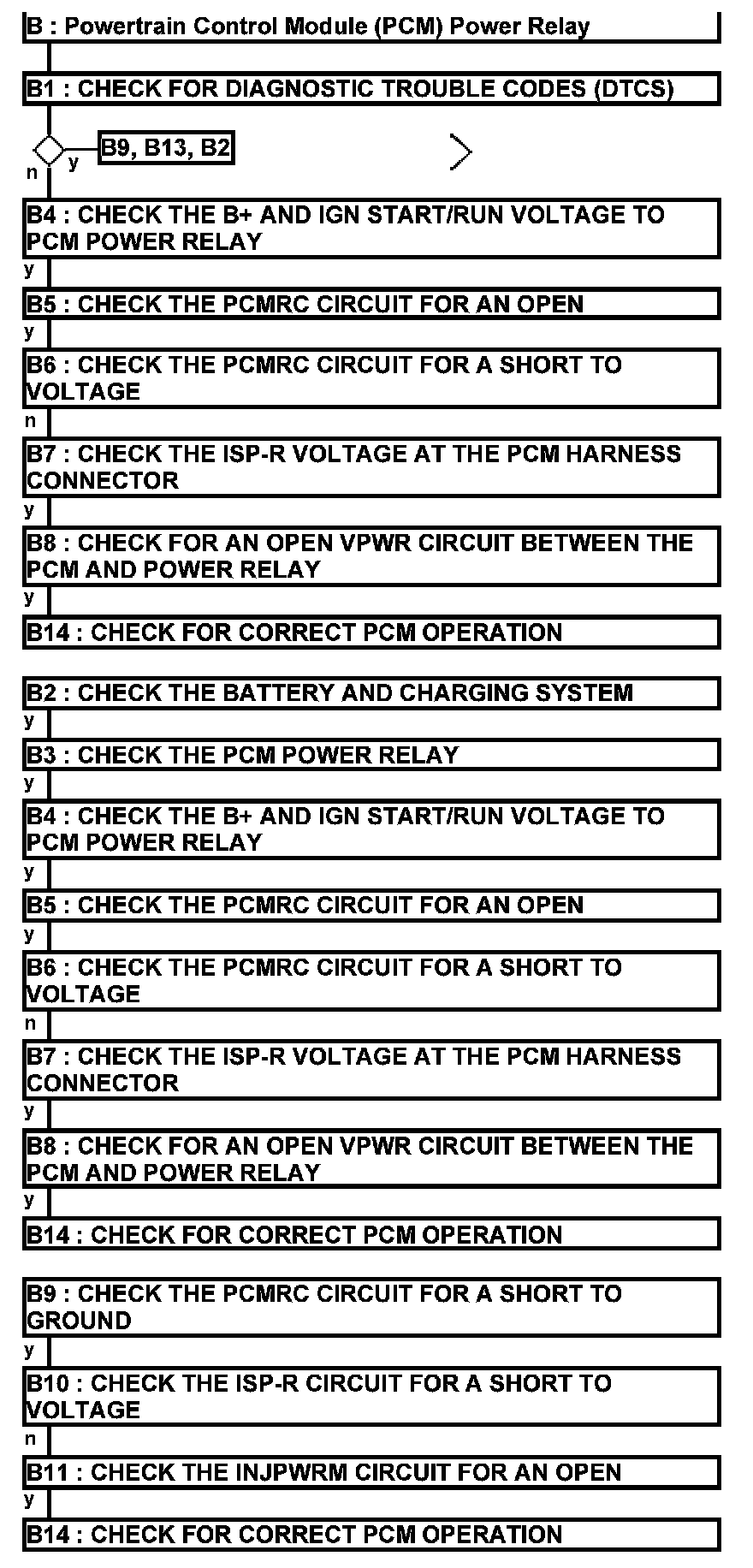

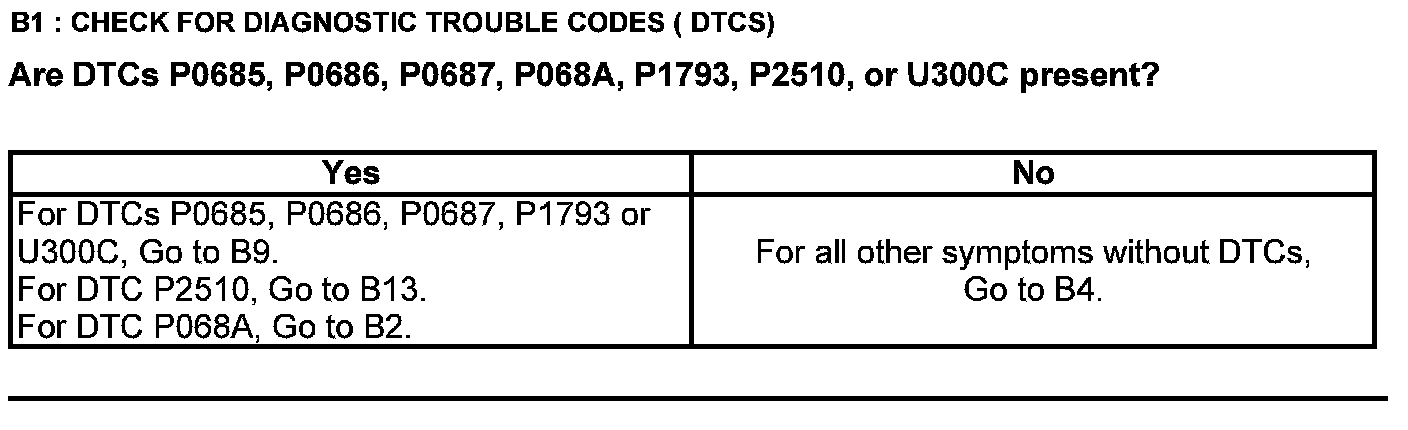

Test B: Powertrain Control Module (PCM) Power Relay



Powertrain Control Module (PCM) Power Relay

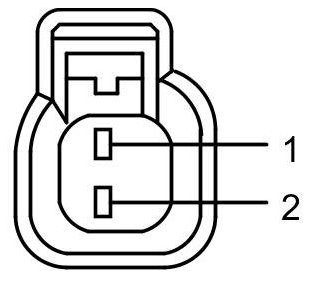

Injector (INJ) Connector






Harness Side

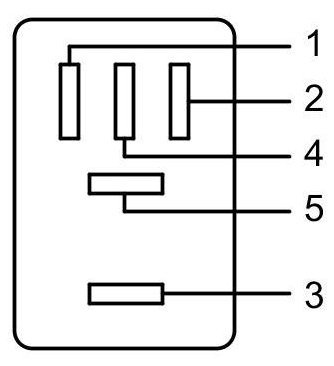

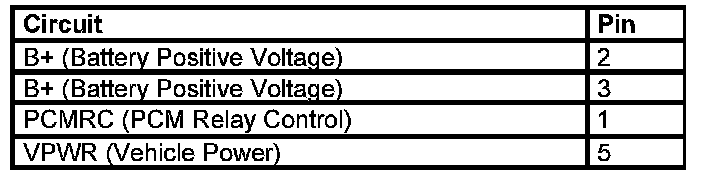

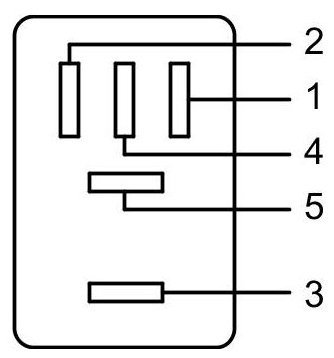

Powertrain Control Module Power (PCM Power) Relay Connector






Harness Side






Component side

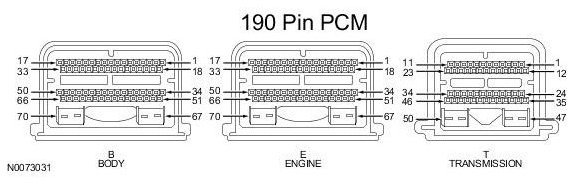

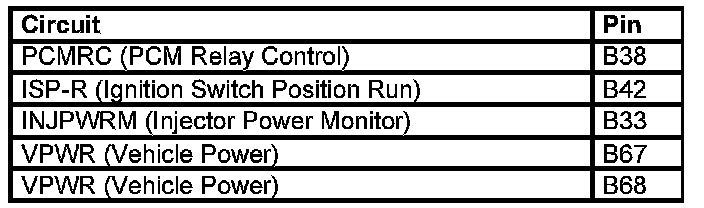

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
