Edge FWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Front Door Latch
Front Door Latch

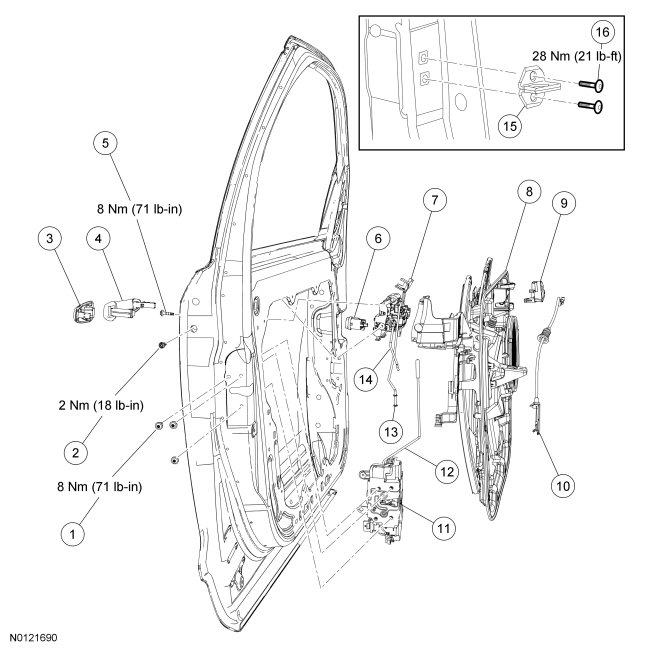

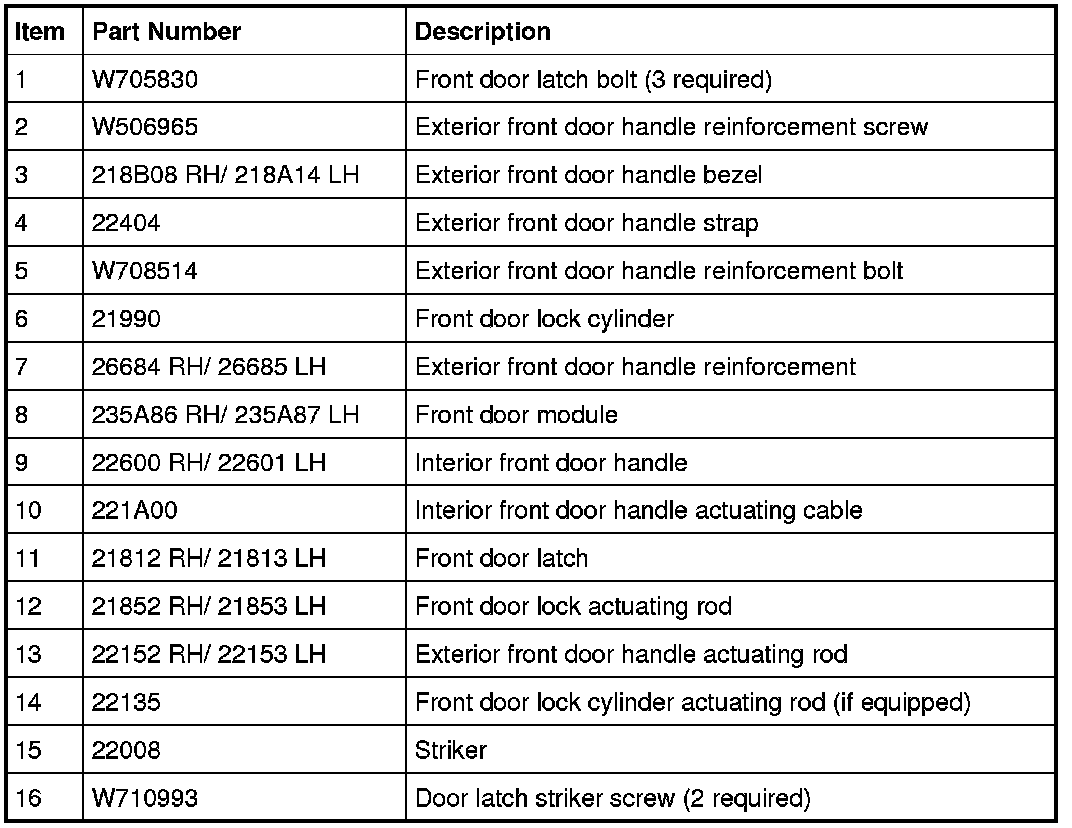

Front Door Handles, Locks and Latches - Exploded View
