Home >> Ford >> 2012 >> Edge FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3322 Climate Controlled Seat Backrest Module, Driver Side

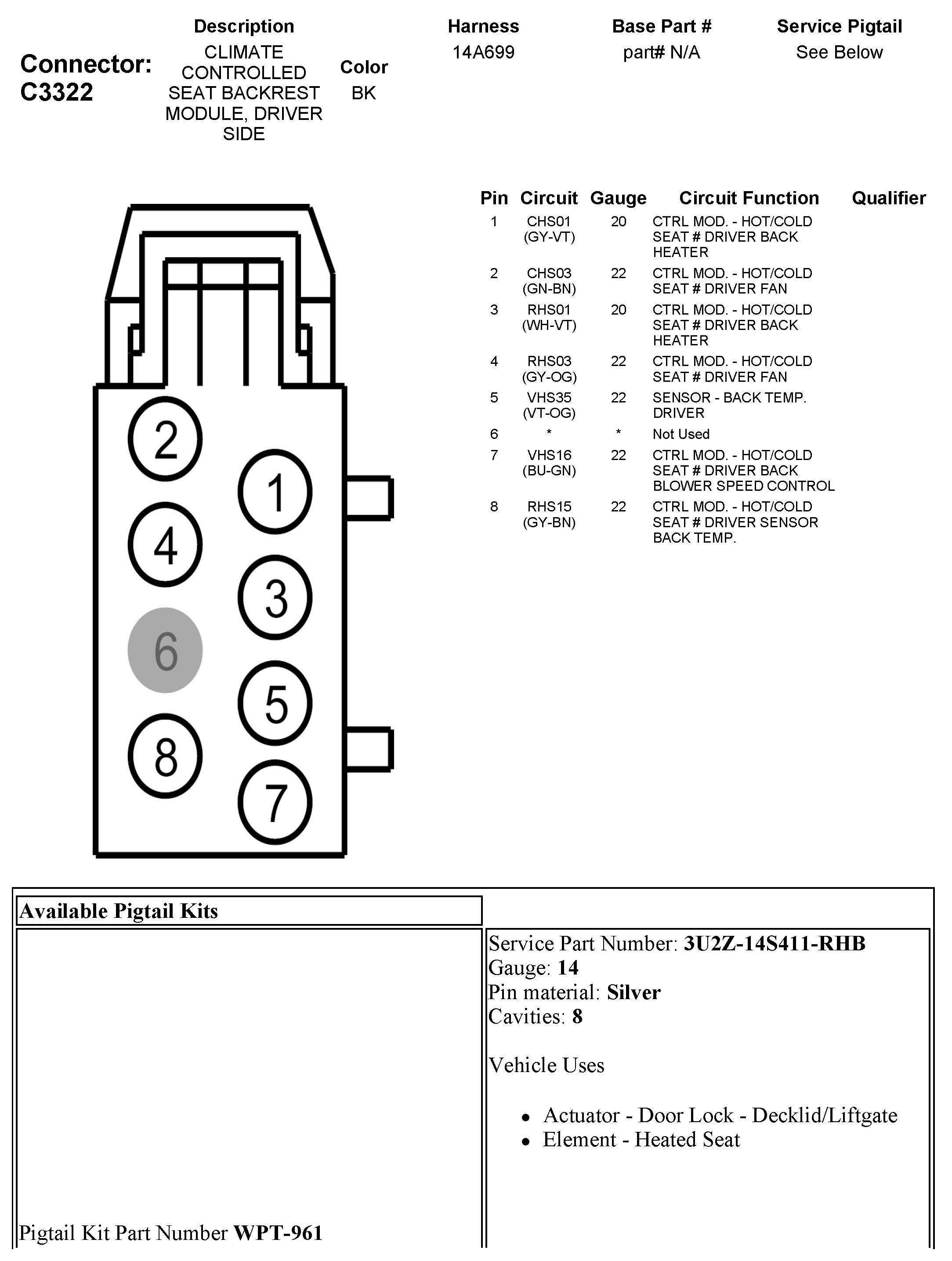

C3322 Climate Controlled Seat Backrest Module, Driver Side
