lemon-mirror
:
Home
>>
Ford
>>
2012
>>
Edge FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

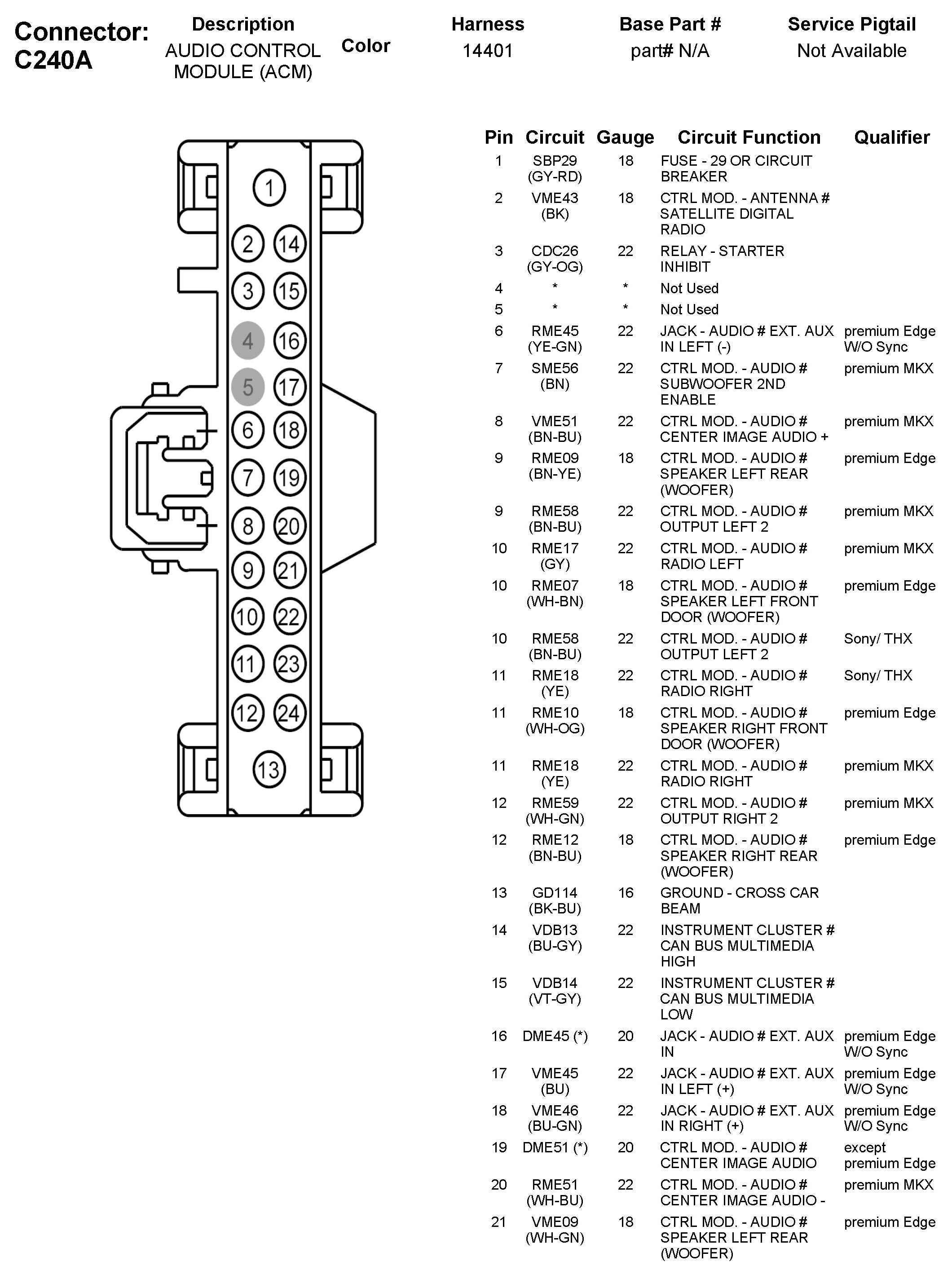

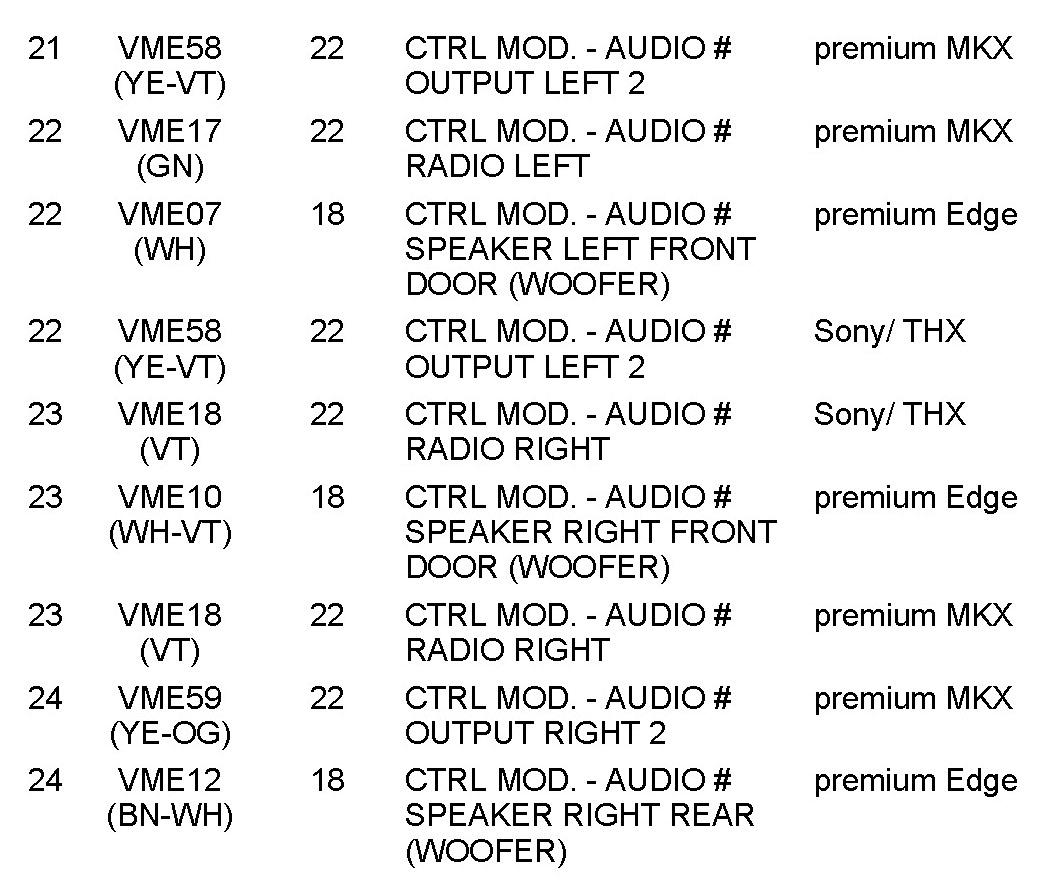

C240A Audio Control Module (ACM)
C240A Audio Control Module (ACM)
