Suspension System - General Information

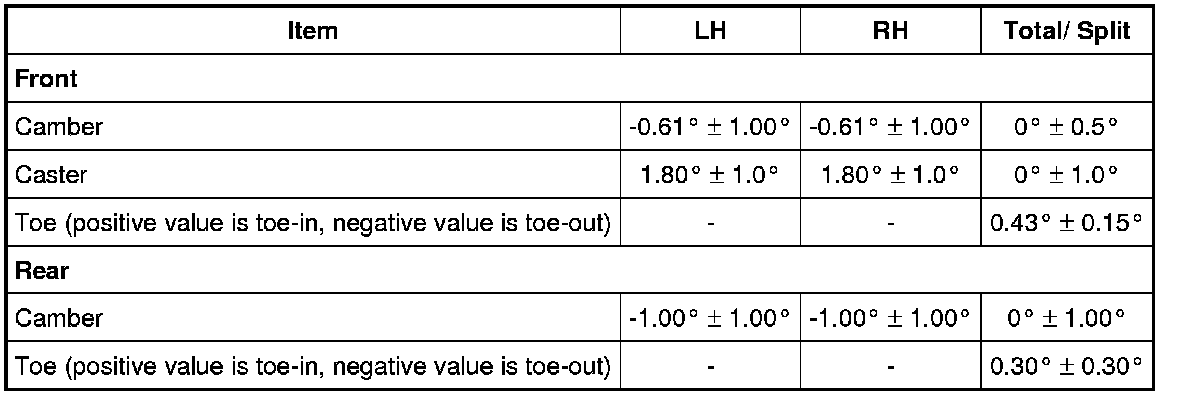

Alignment Specifications (at curb weight)

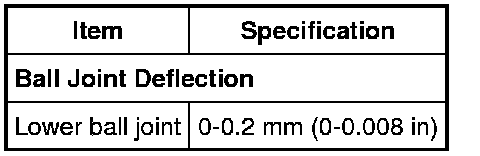

General Specifications

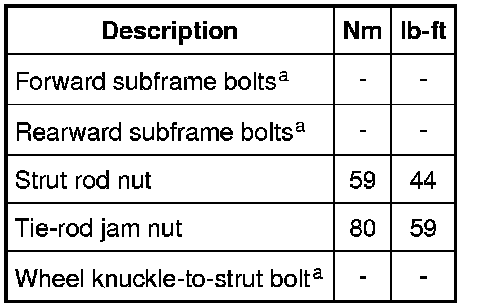

Torque Specifications





a Refer to the procedure.
