Locations
>>
Connector Locations
Connector Locations

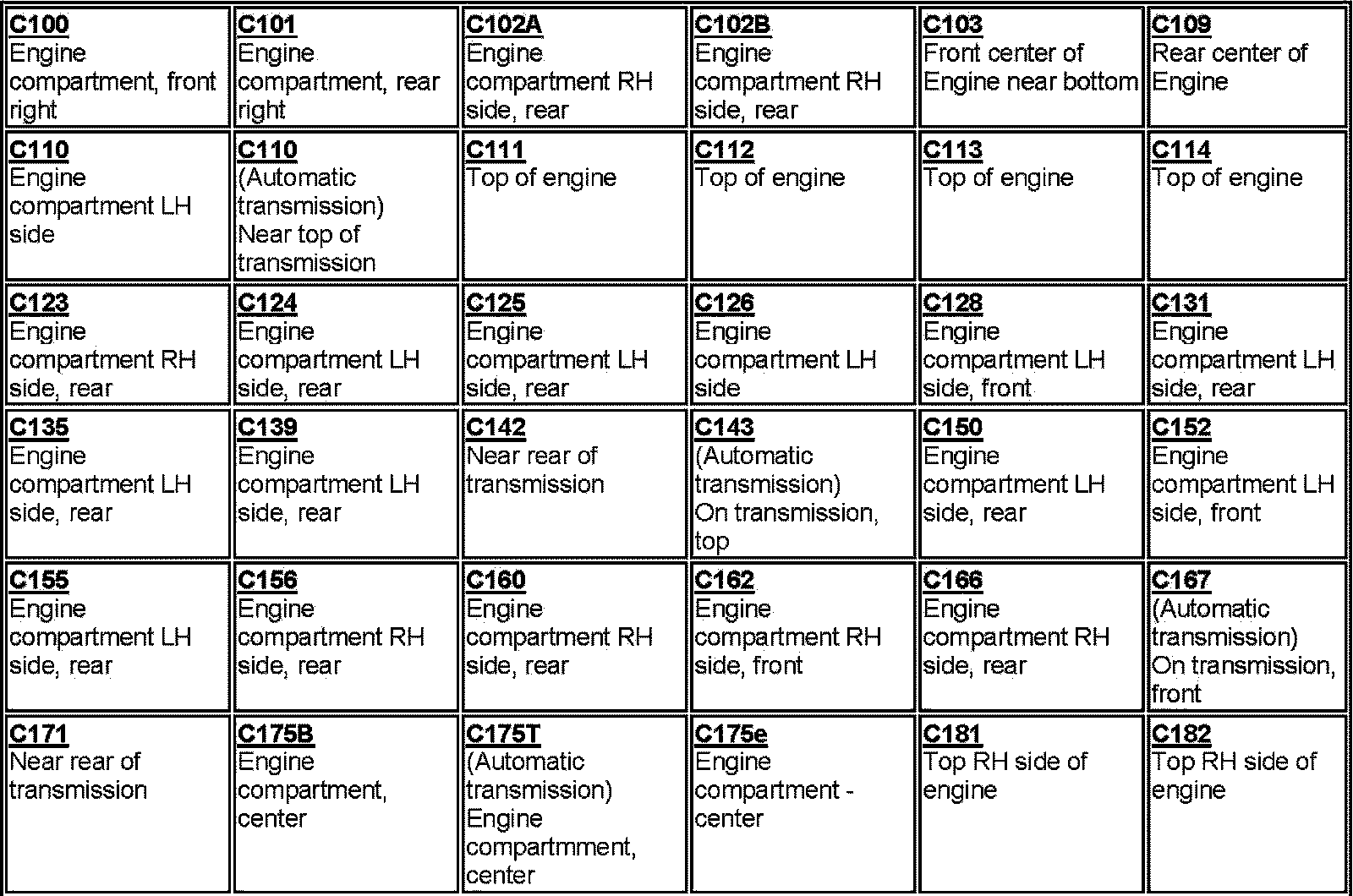

C100-C182:

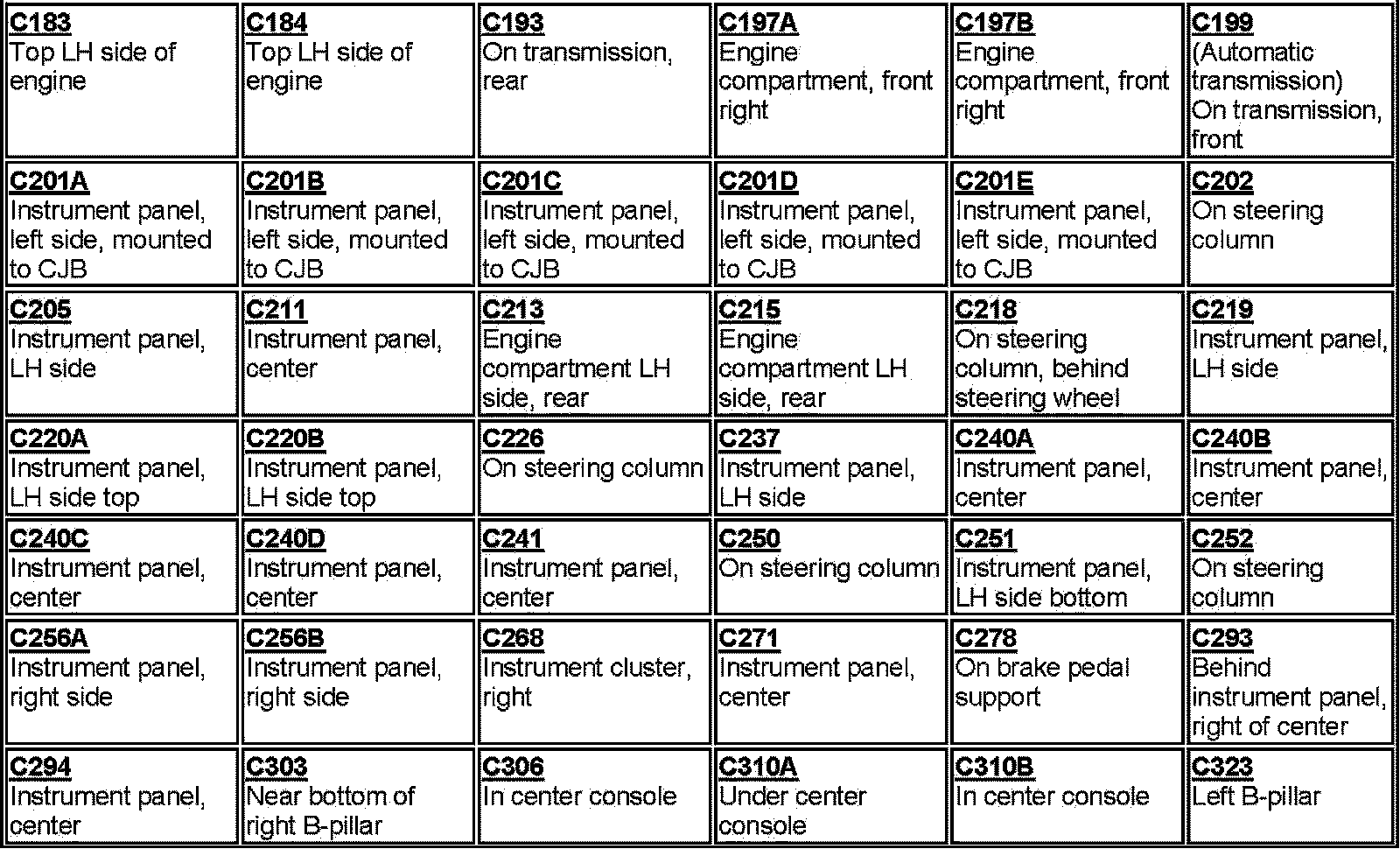

C183-C323:

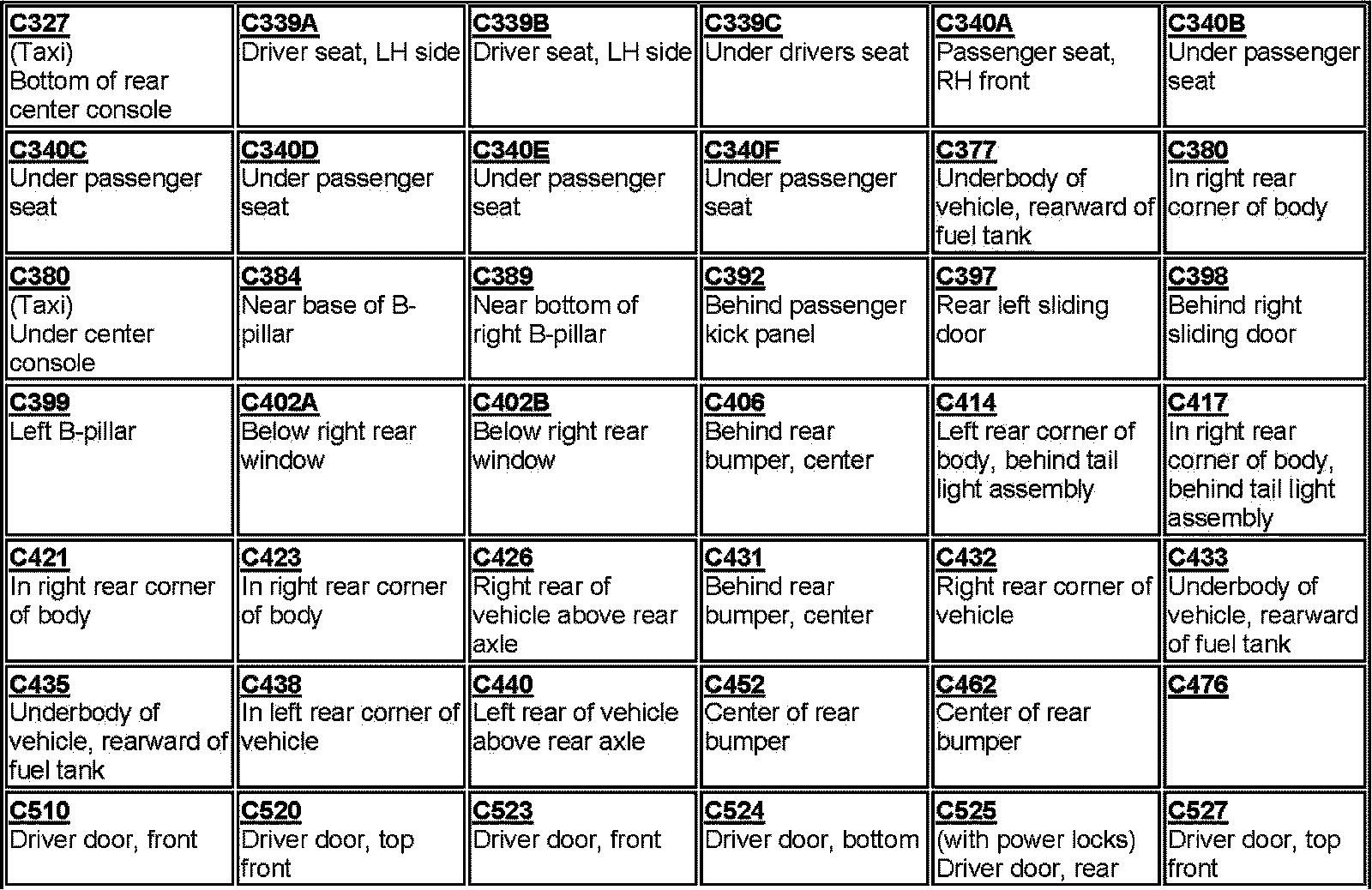

C327-C527:

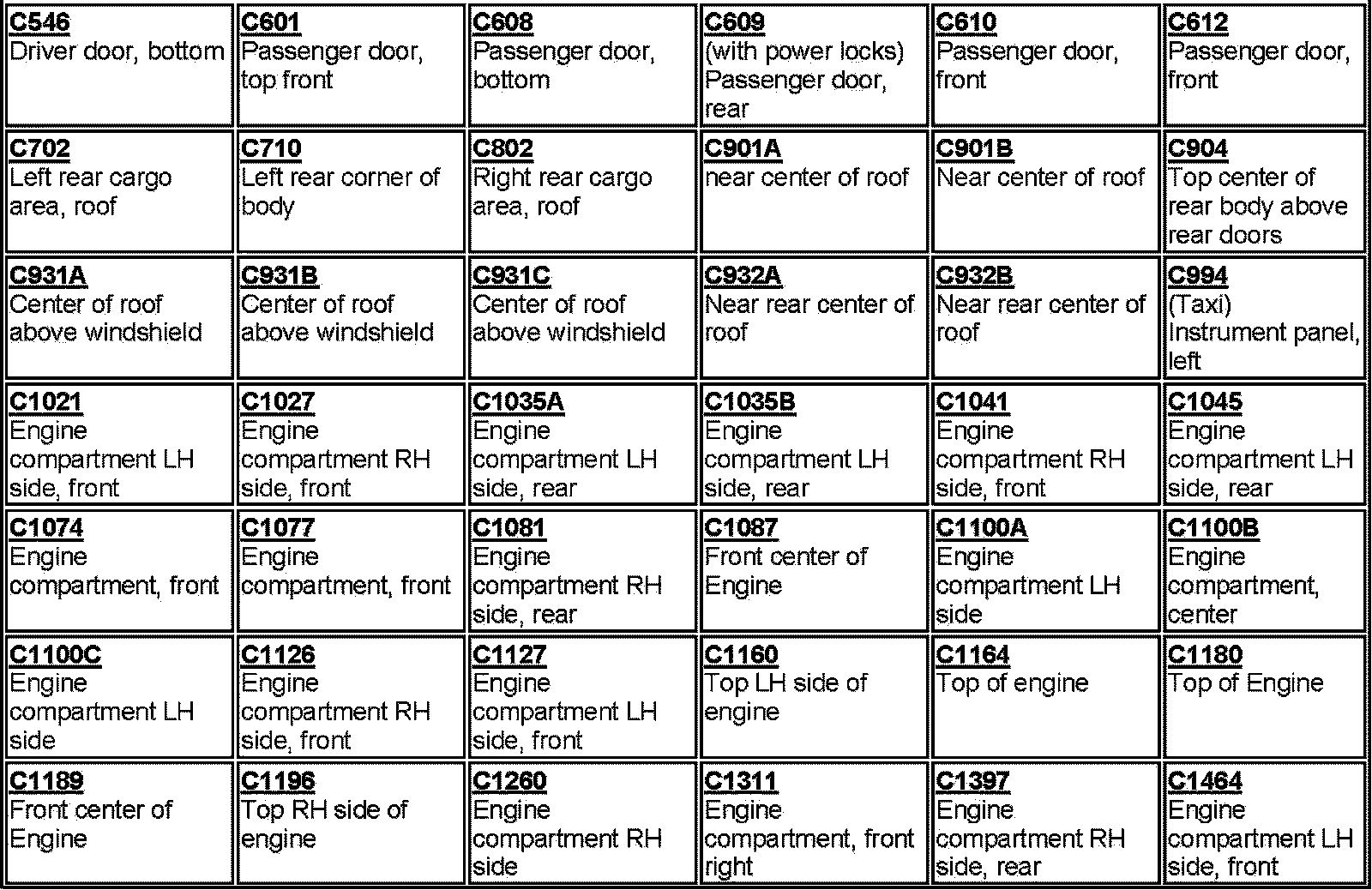

C546-C1464:

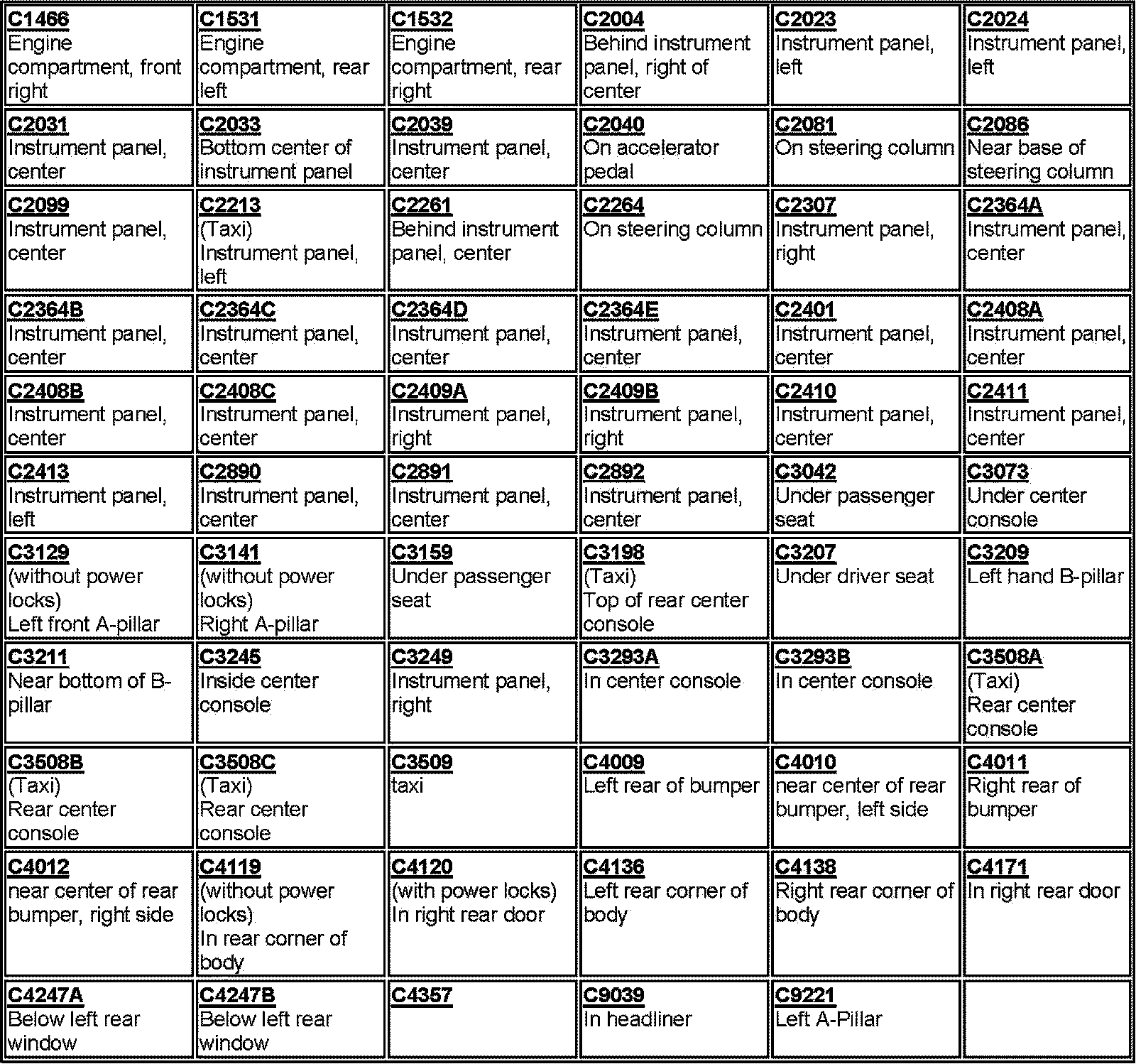

C1466-C9221:
