Ford
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Pressure Module
>>

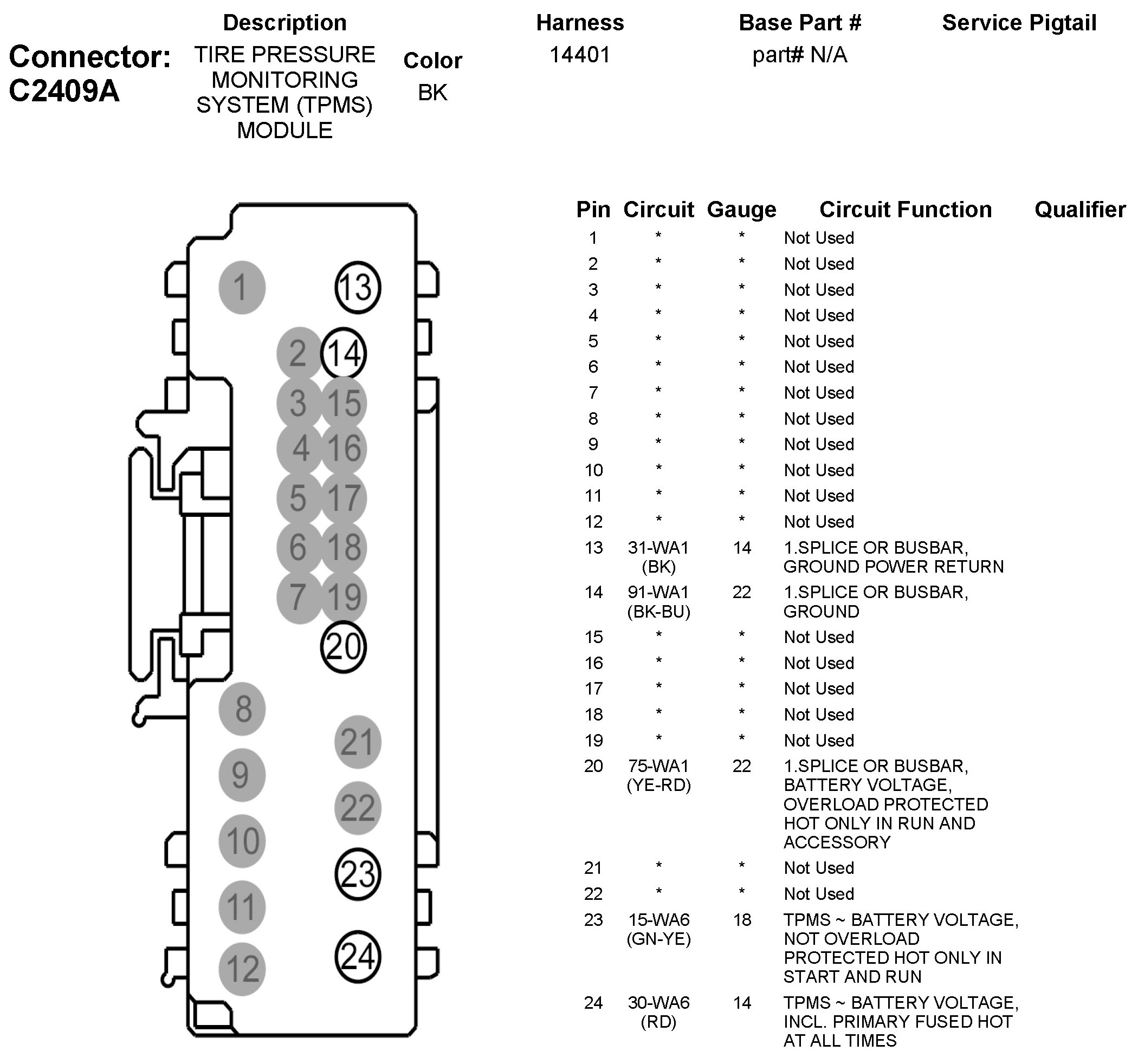

C2409A Tire Pressure Monitoring System (TPMS) Module
C2409A Tire Pressure Monitoring System (TPMS) Module
