Ford
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>

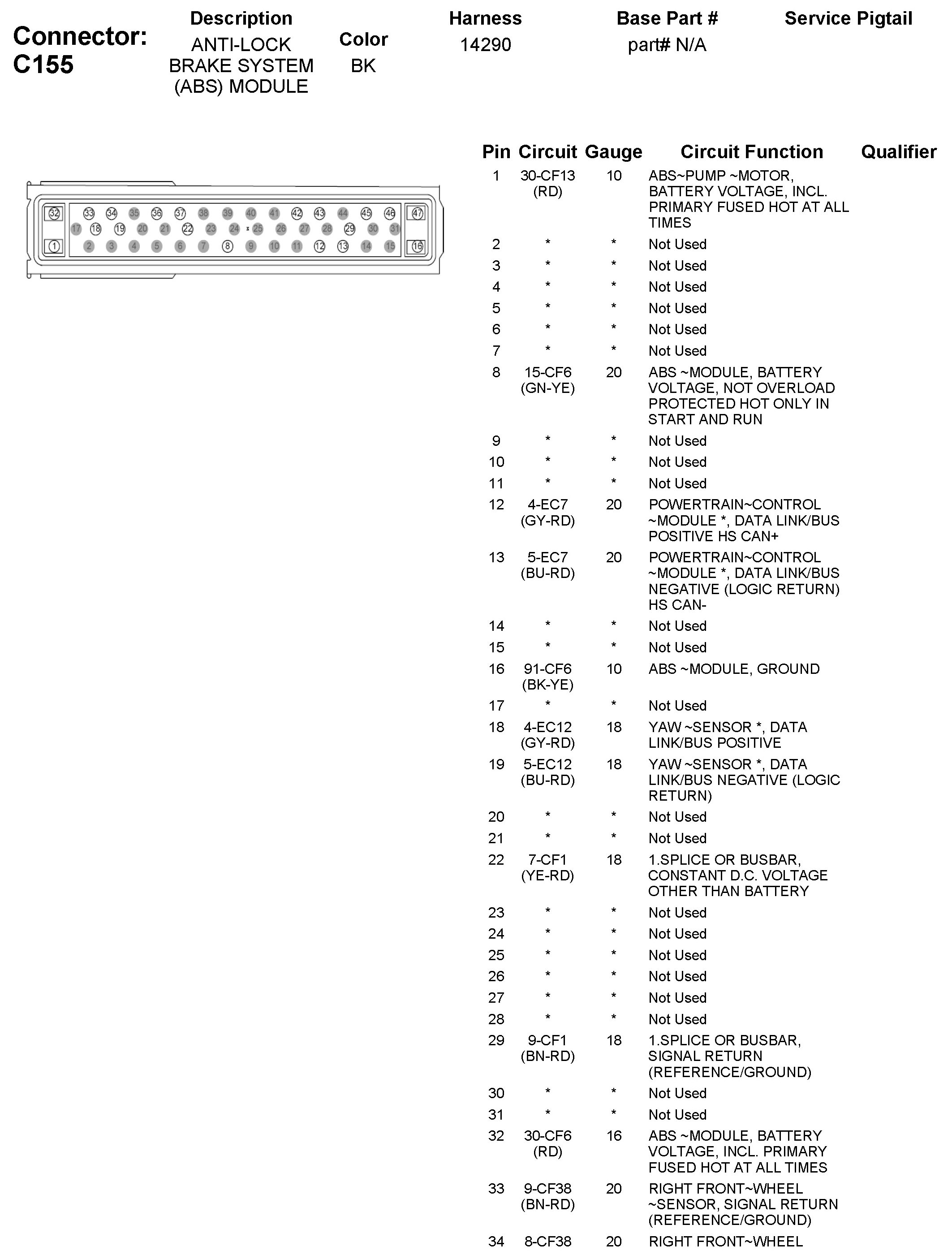

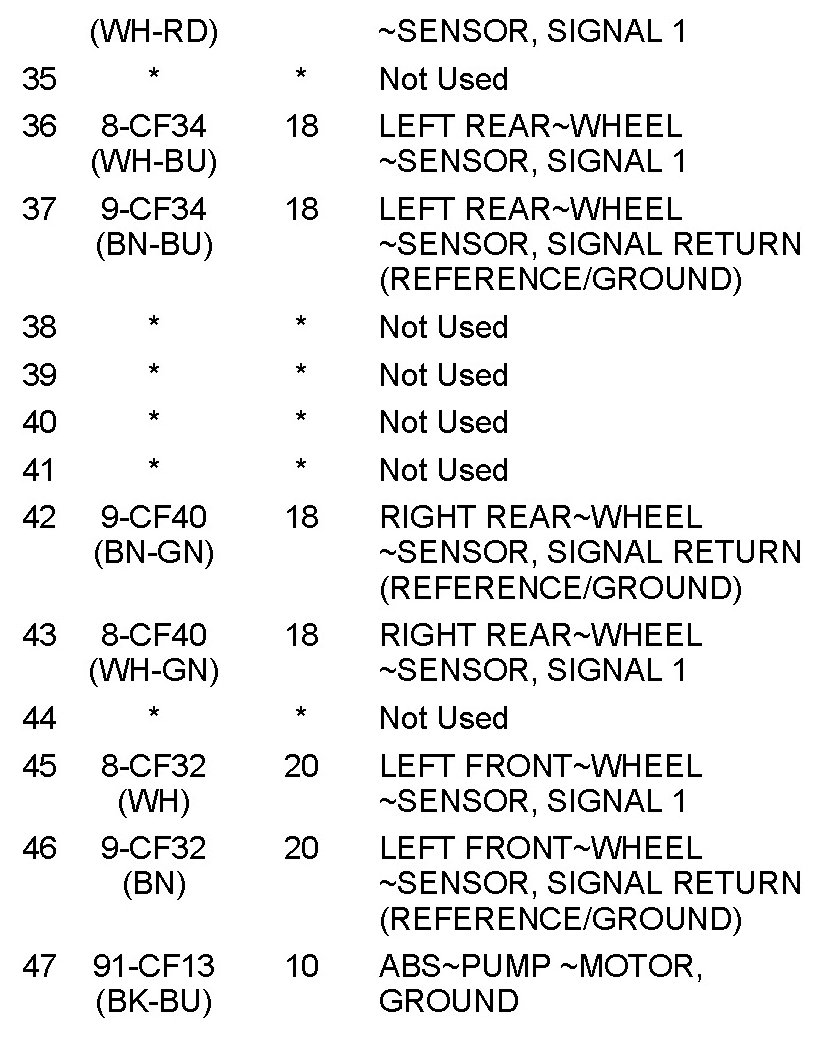

C155 Anti-Lock Brake System (ABS) Module
C155 Anti-Lock Brake System (ABS) Module
