Ford
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

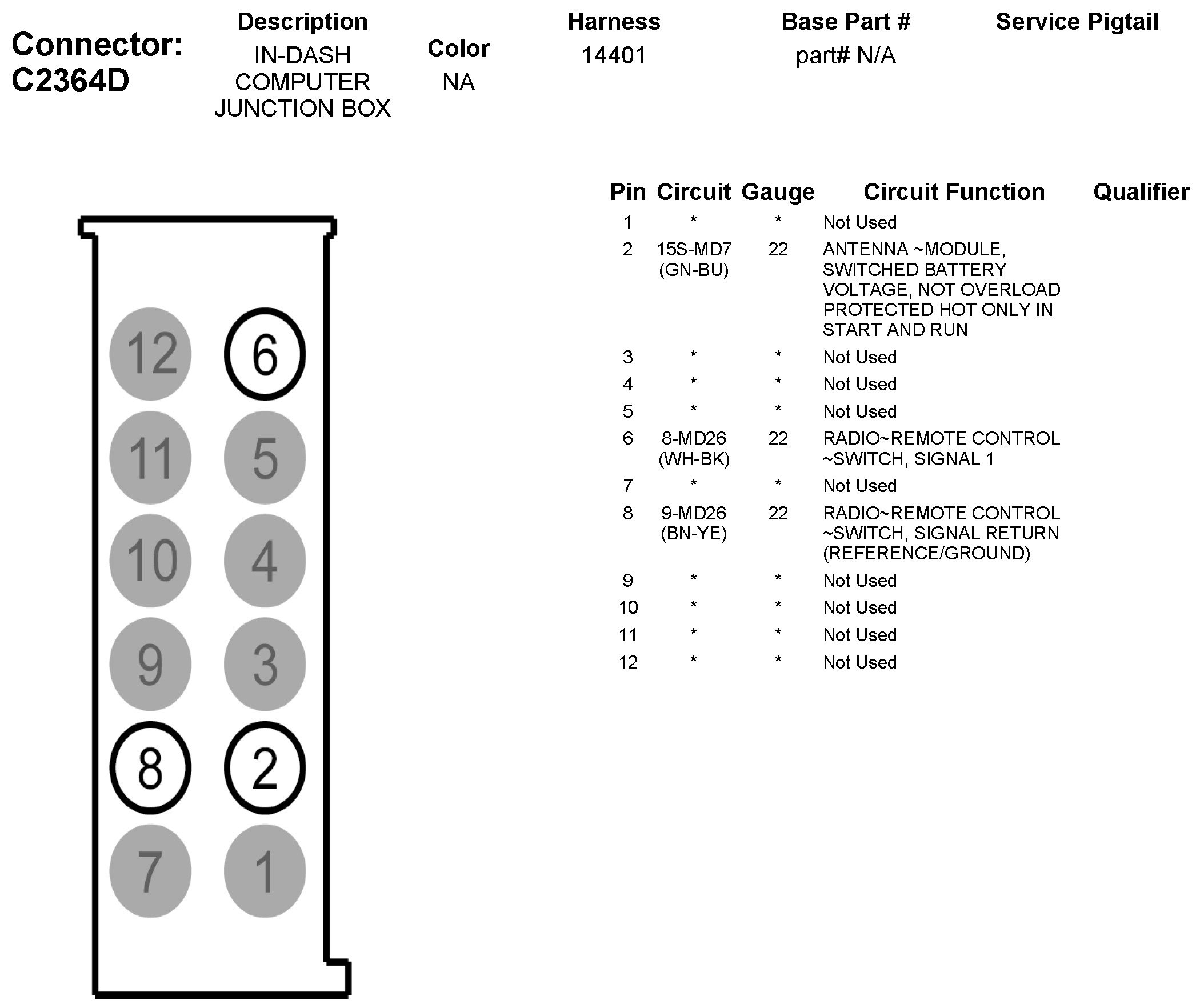

C2364D In-Dash Computer Junction Box
C2364D In-Dash Computer Junction Box
