Home >> Ford >> 2011 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

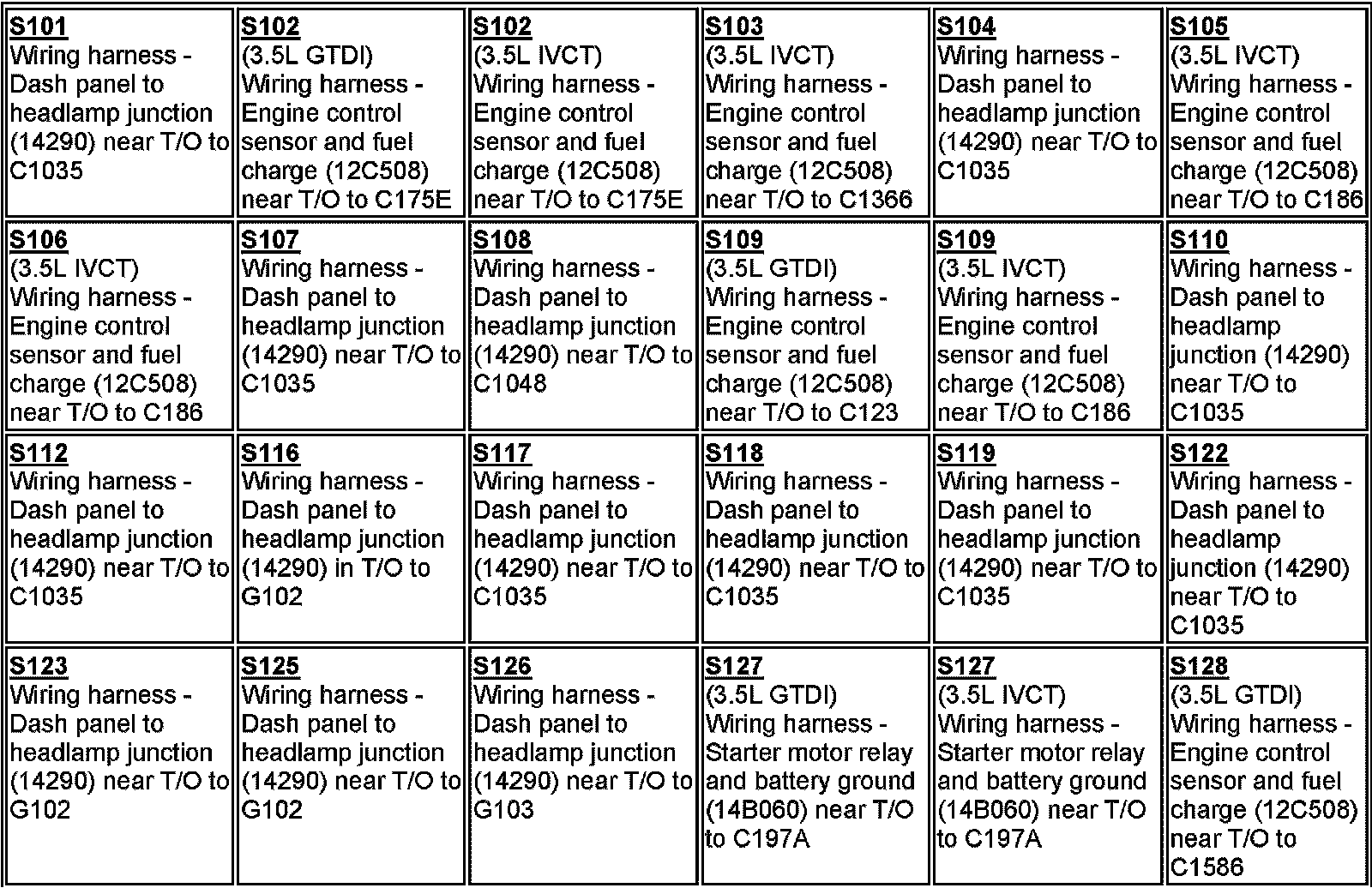

S101-S128:

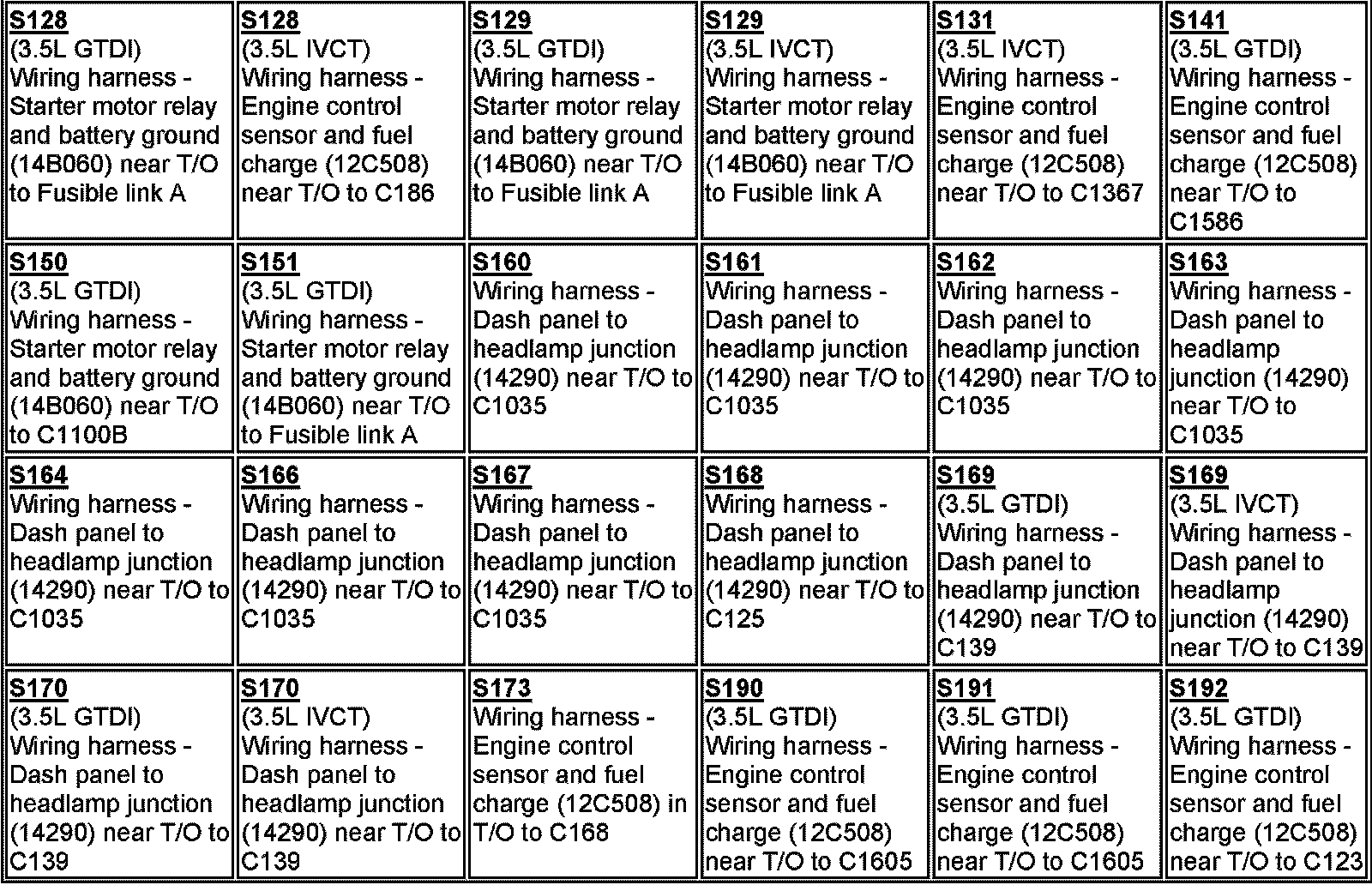

S128-S192:

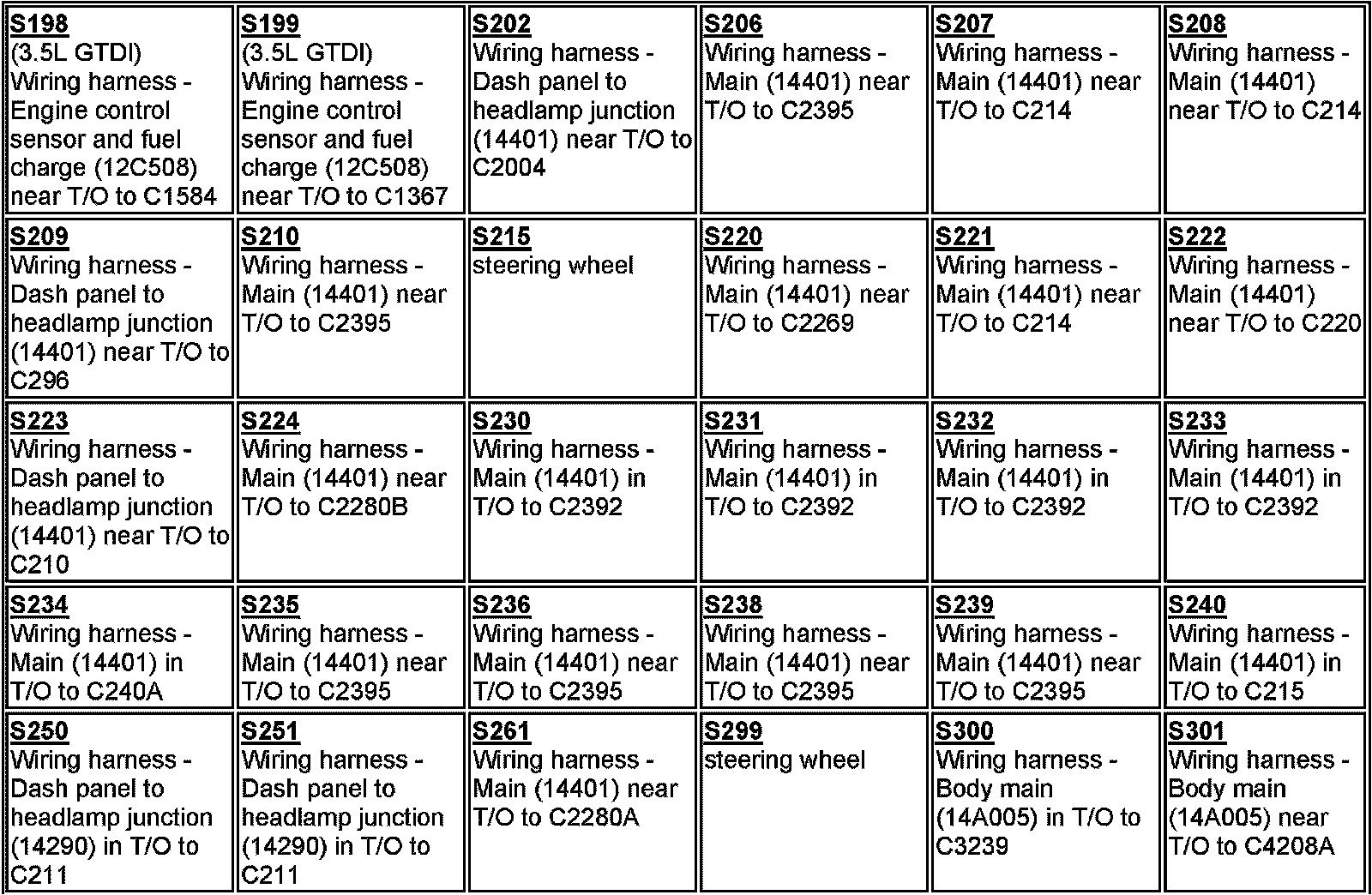

S198-S301:

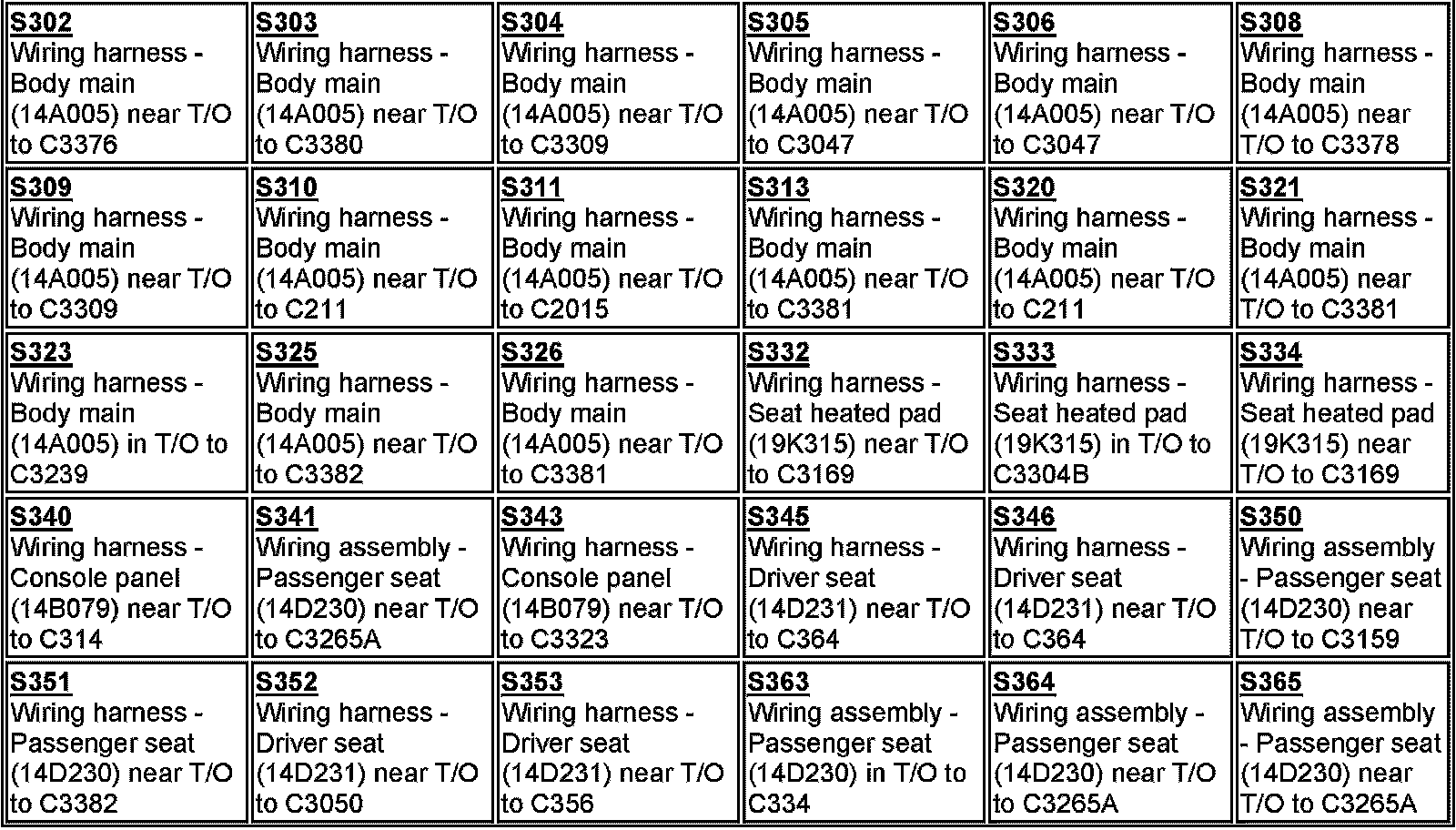

S302-S365:

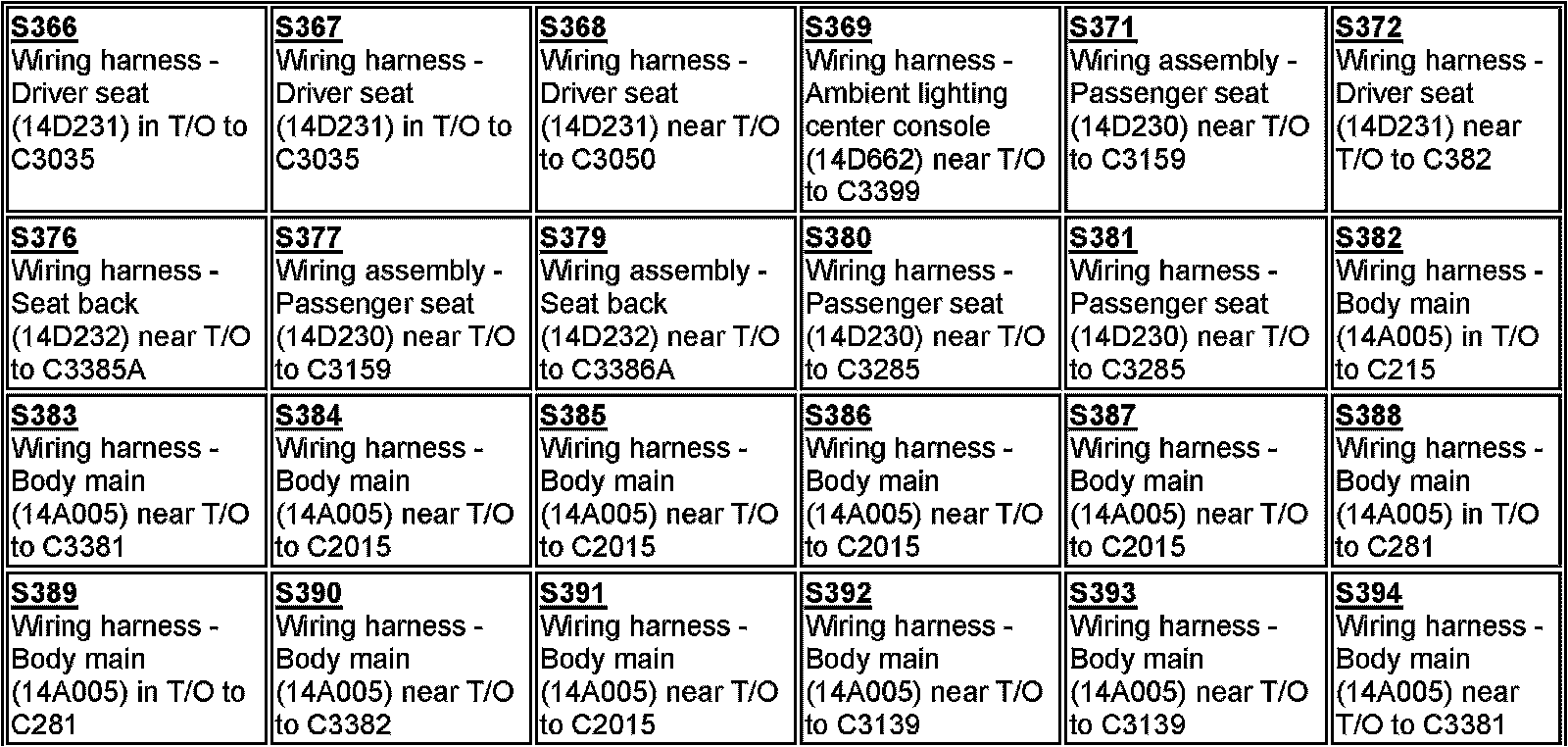

S366-S394:

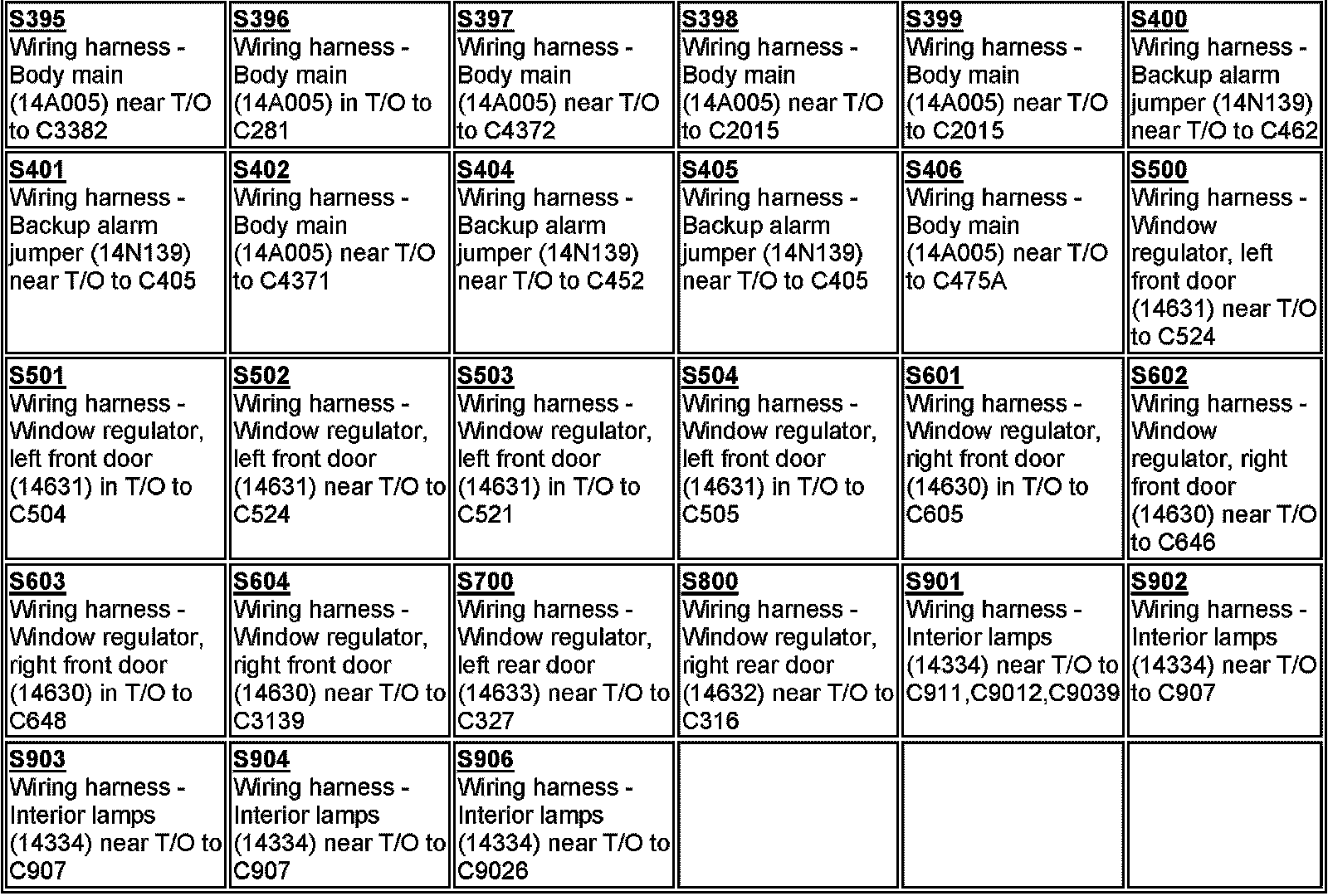

S395-S902:
