Exploded Views




Wiper and Washer System - Exploded View

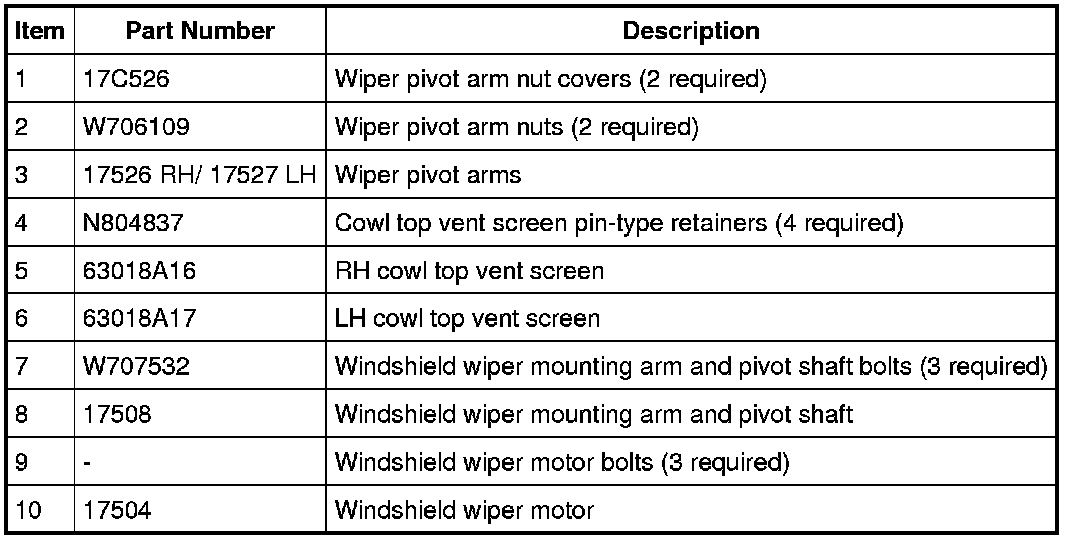

Windshield Wiper System

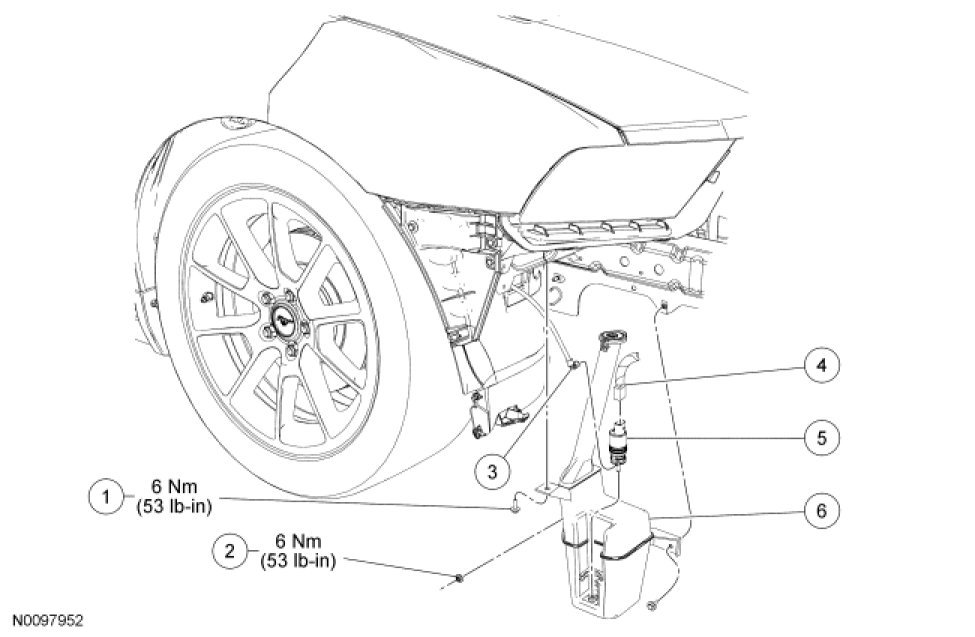

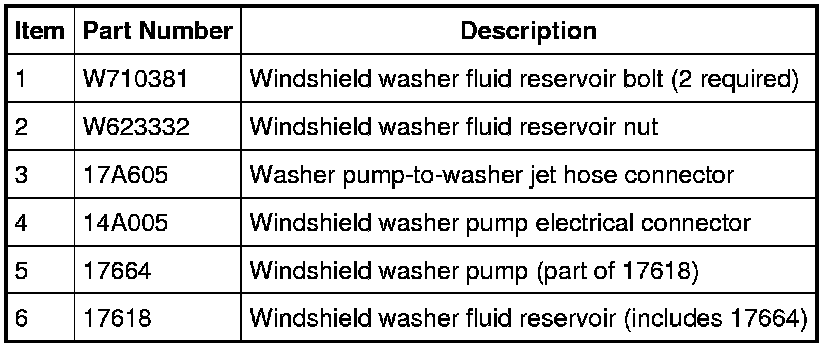

Windshield Washer Pump and Fluid Reservoir

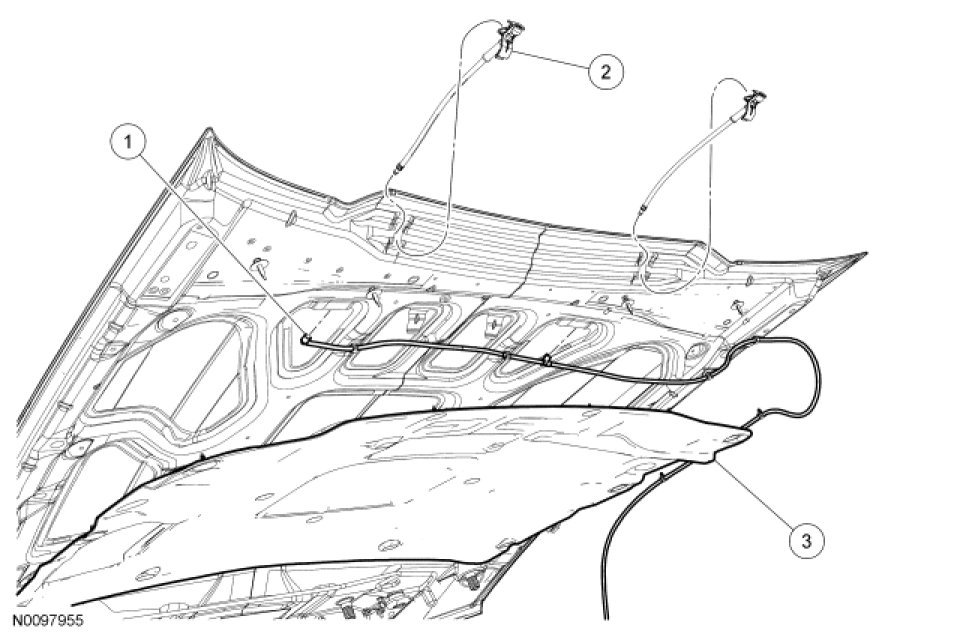

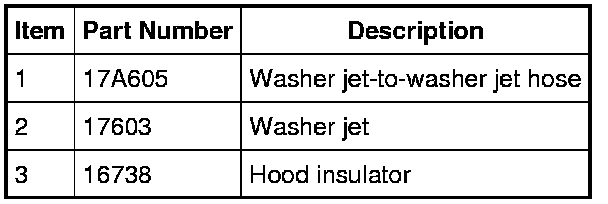

Washer Jet
