Home >> Ford >> 2011 >> Mustang V6-3.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram

System Diagram




Main Control

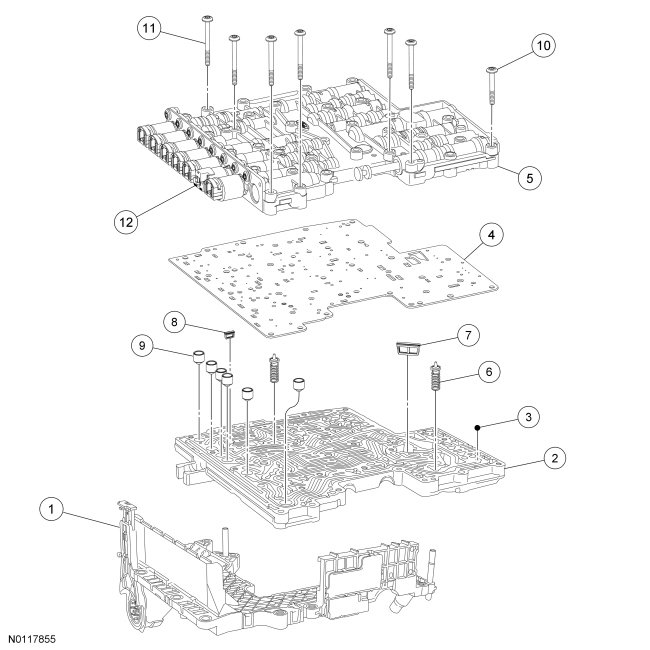

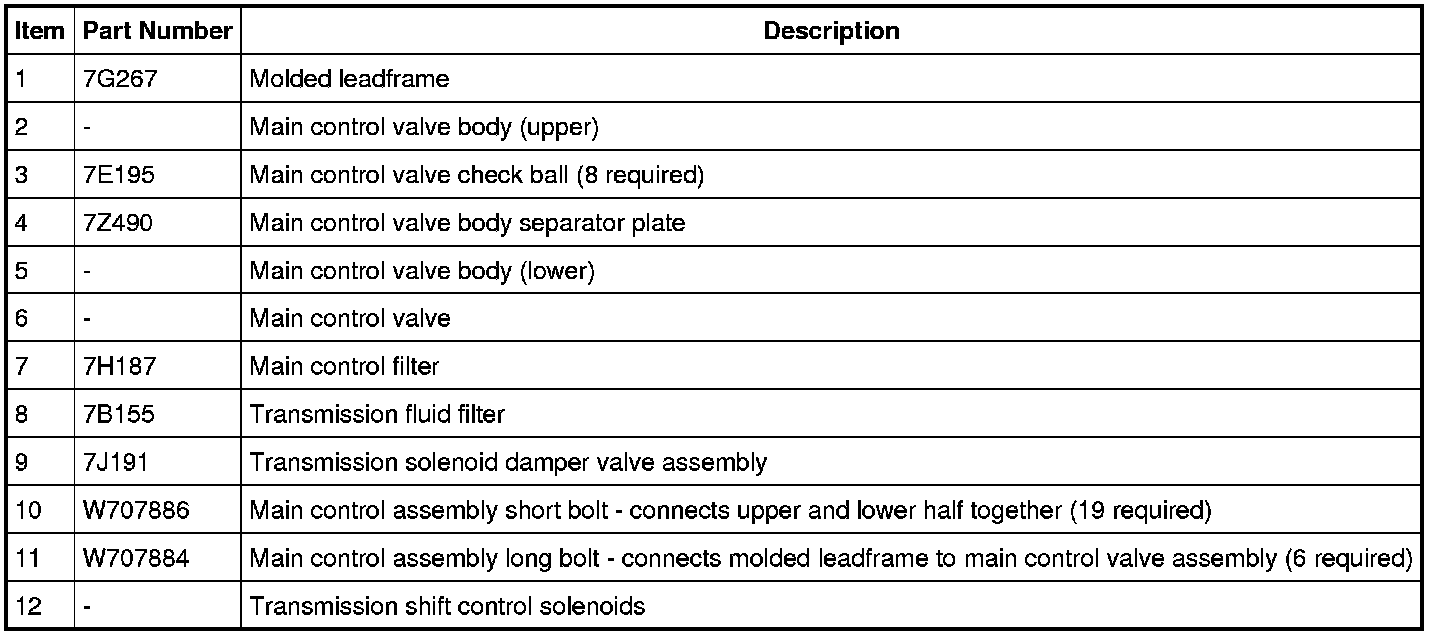

Main Control Assembly

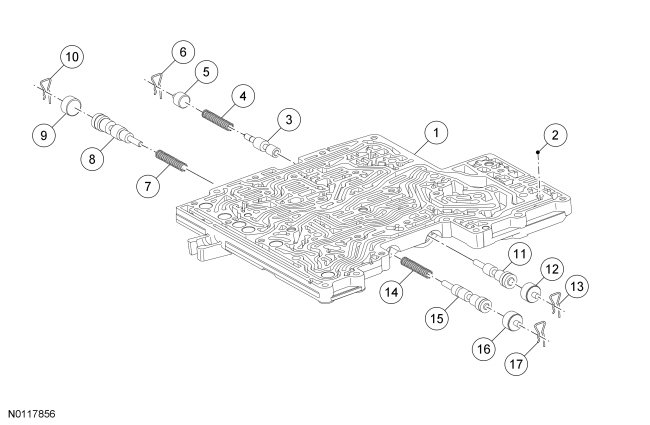

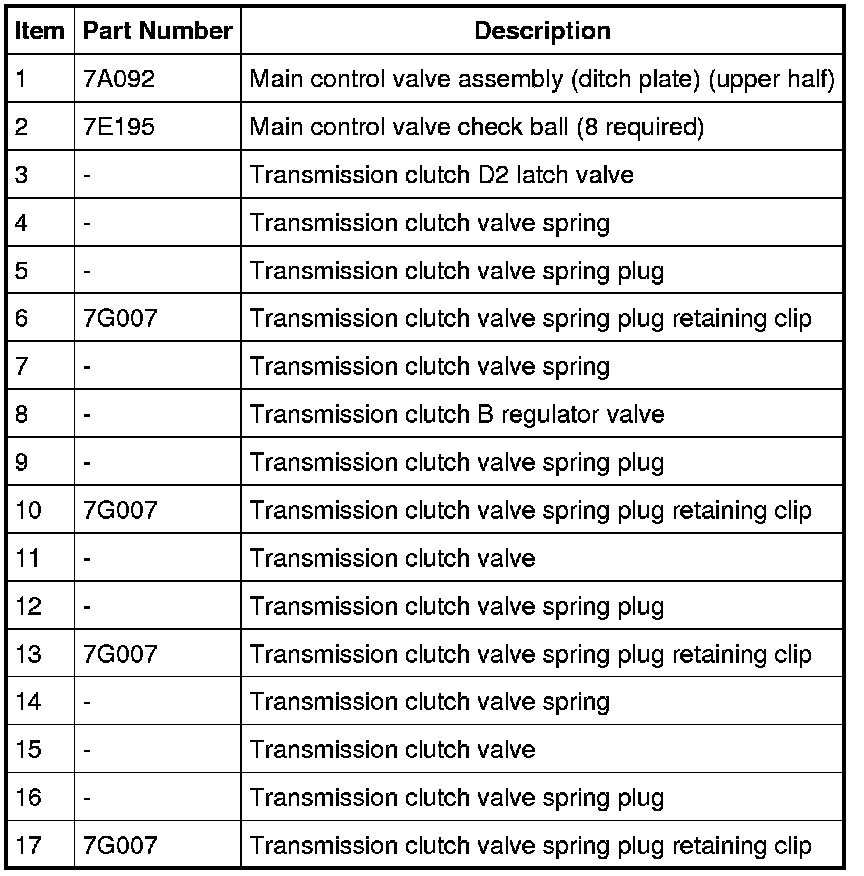

Main Control Upper Half

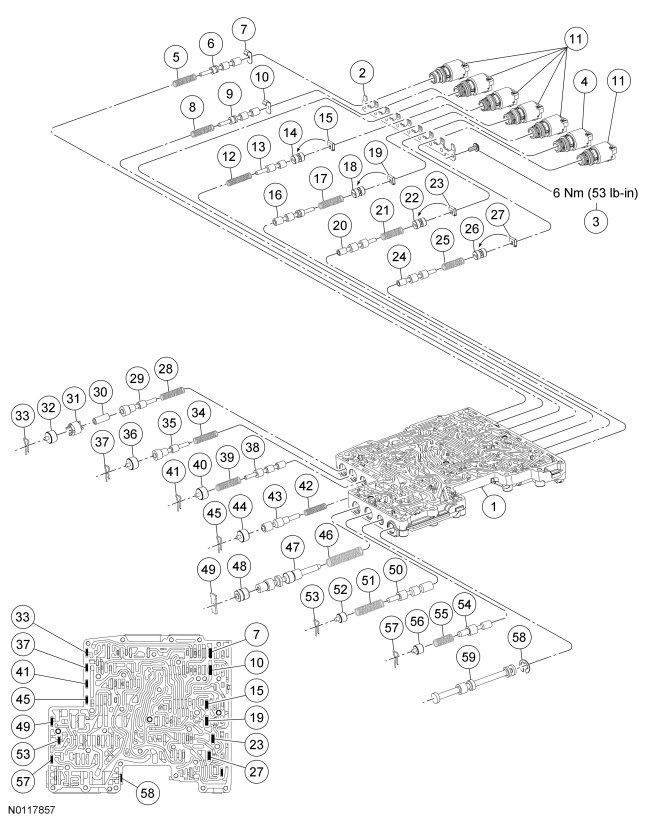

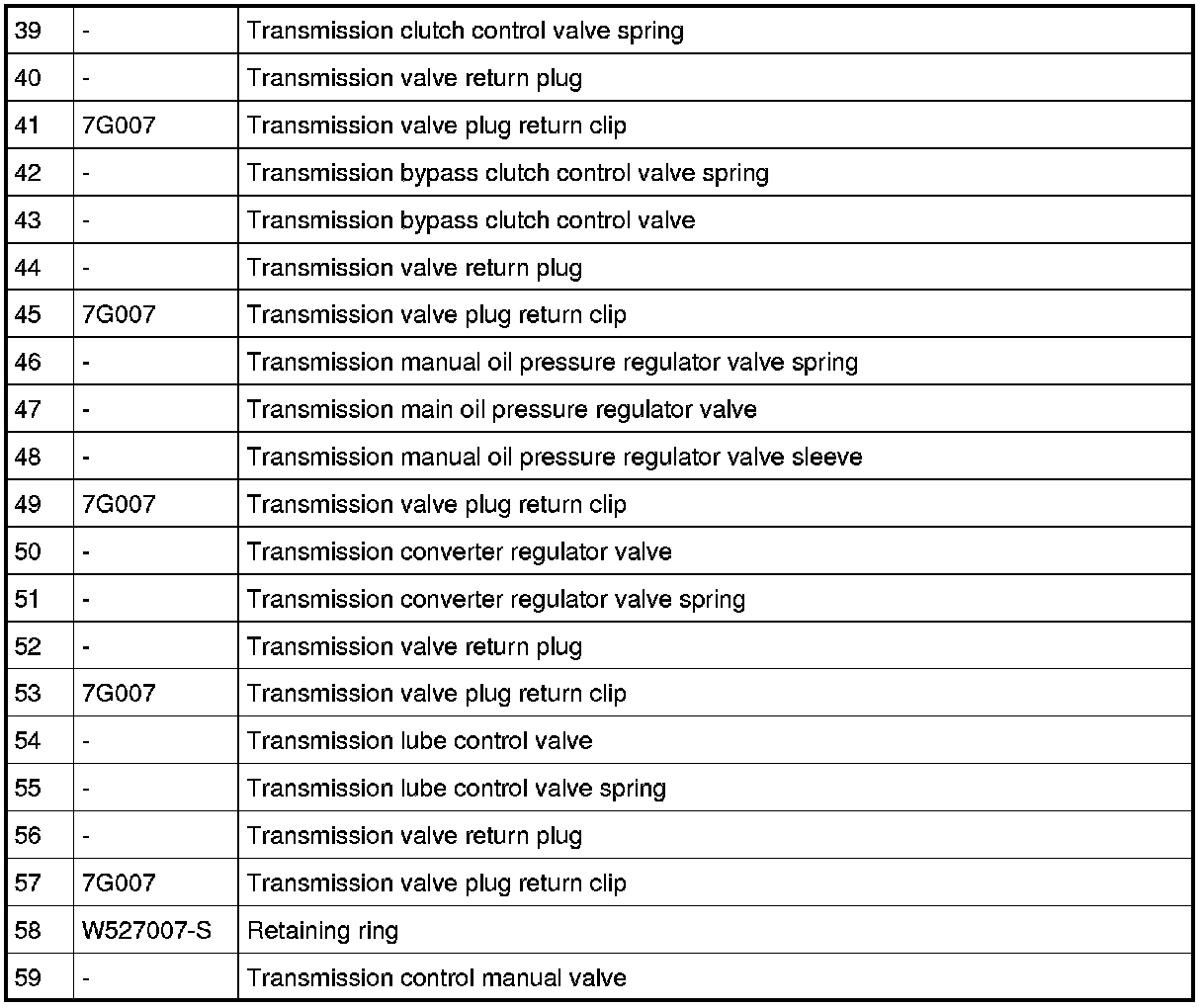

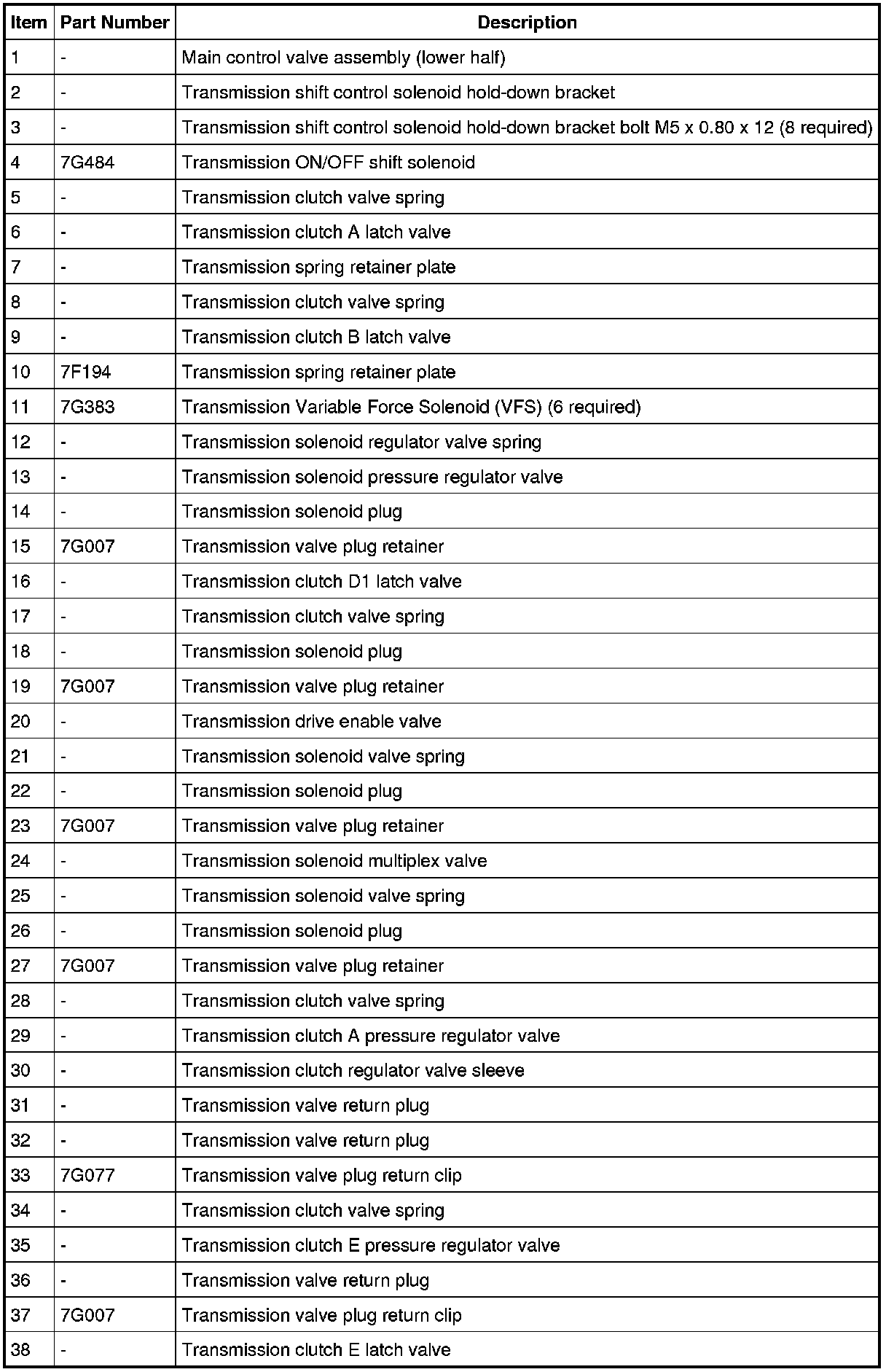

Main Control Lower Half

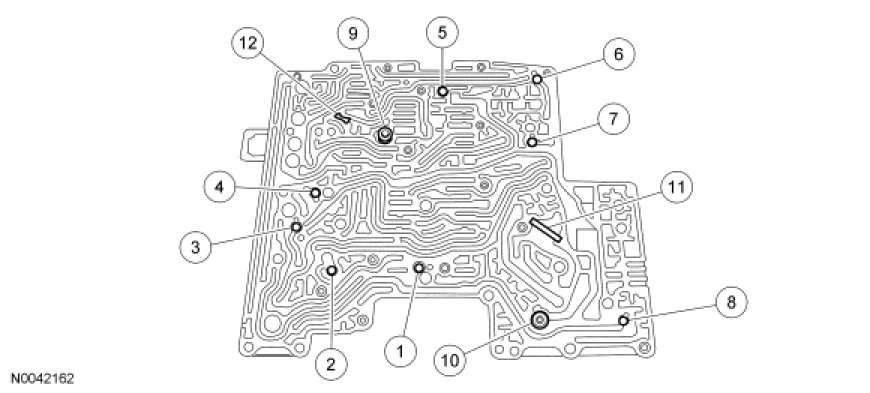

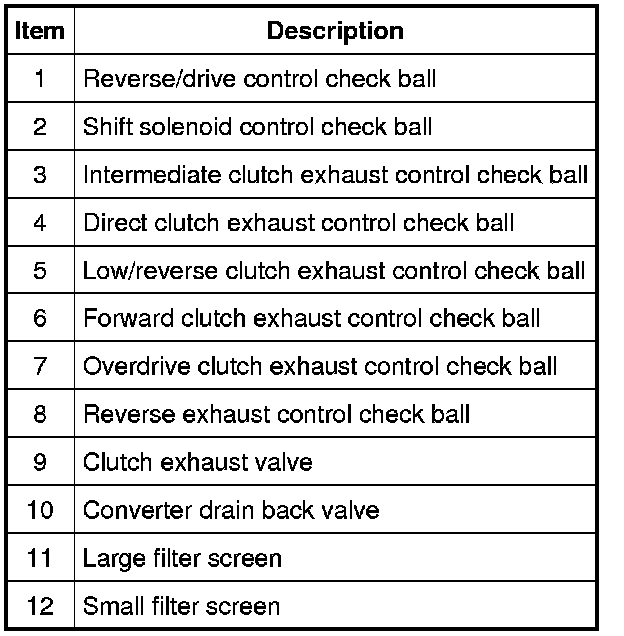

Check Ball Location

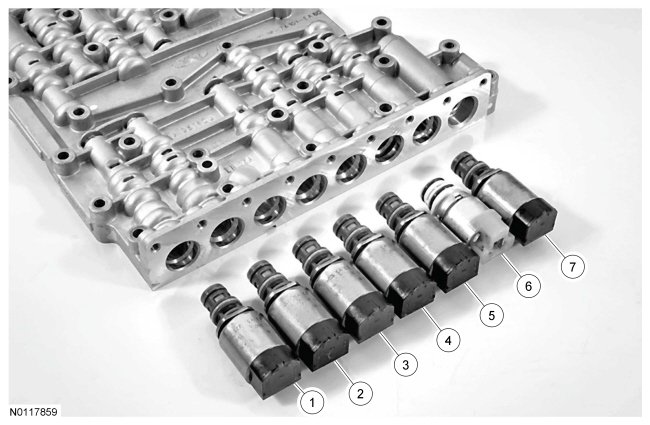

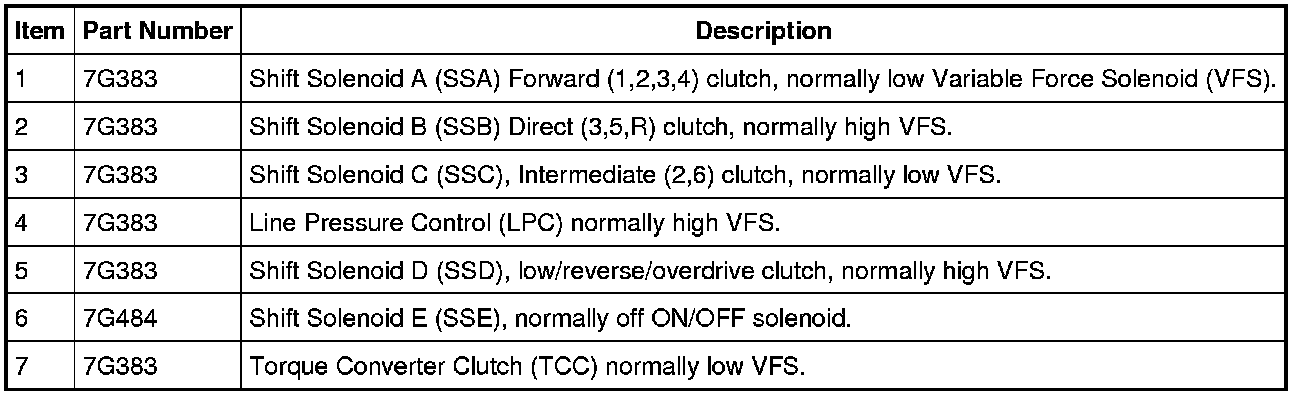

Shift Solenoid Location
