Engine Temperature Sensor: Service and Repair

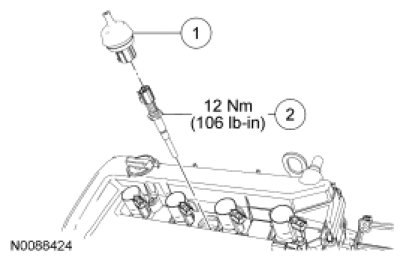

Cylinder Head Temperature (CHT) Sensor









Removal and Installation

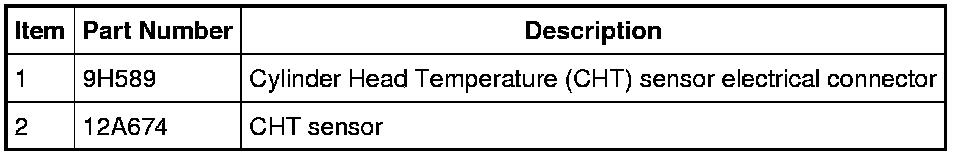

1. Pull back the Cylinder Head Temperature (CHT) sensor cover and disconnect the electrical connector.

2. Remove the CHT sensor.
- To install, tighten to 12 Nm (106 lb-in).

3. To install, reverse the removal procedure.
