Automatic Transmission/Transaxle
>>
System Diagram
>>

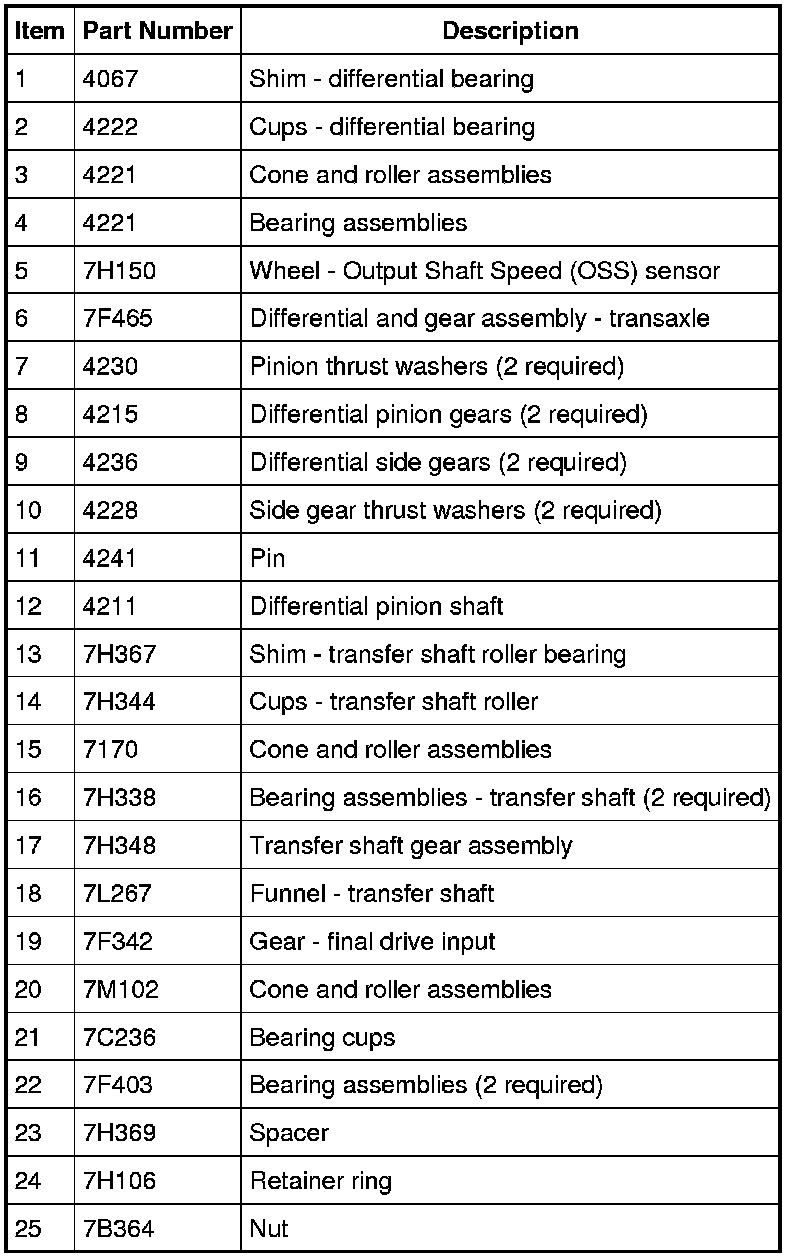

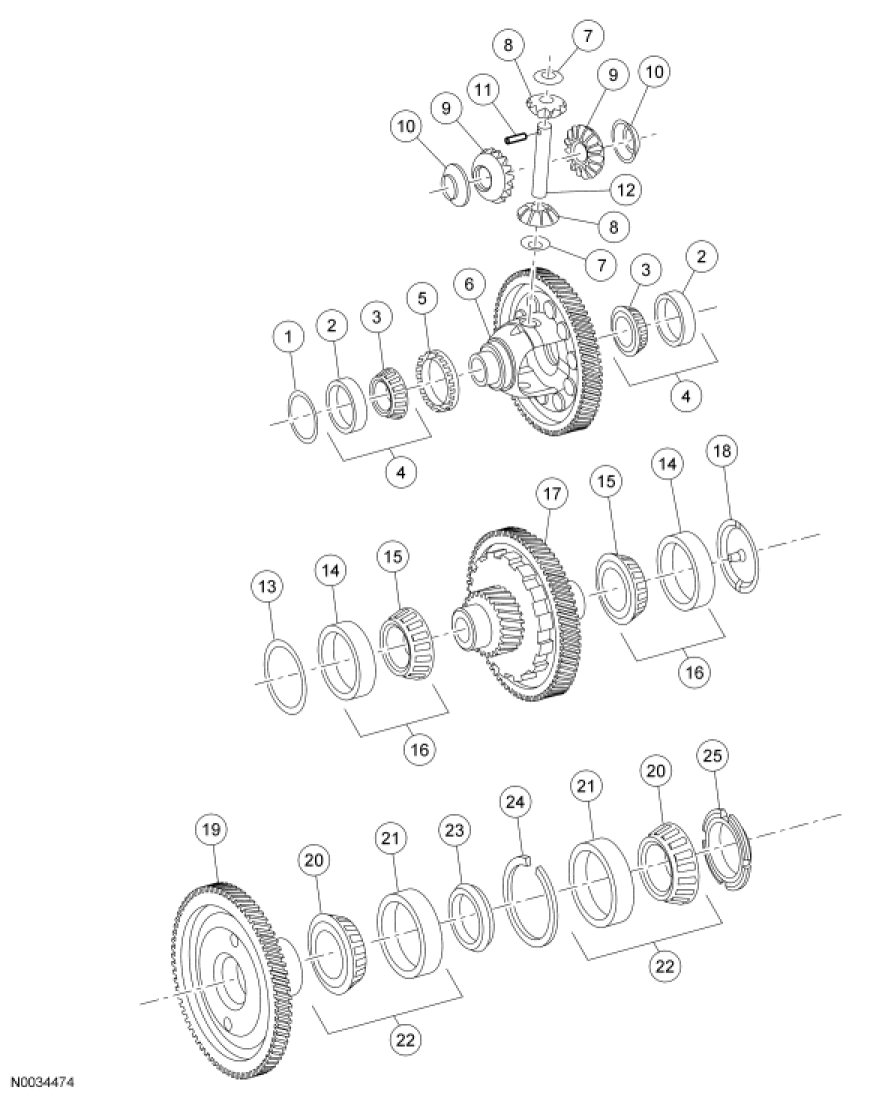

Differential Assembly and Final Drive Input
Differential Assembly and Final Drive Input
Differential Assembly
and Final Drive Input
