Ford
>>
2011
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>

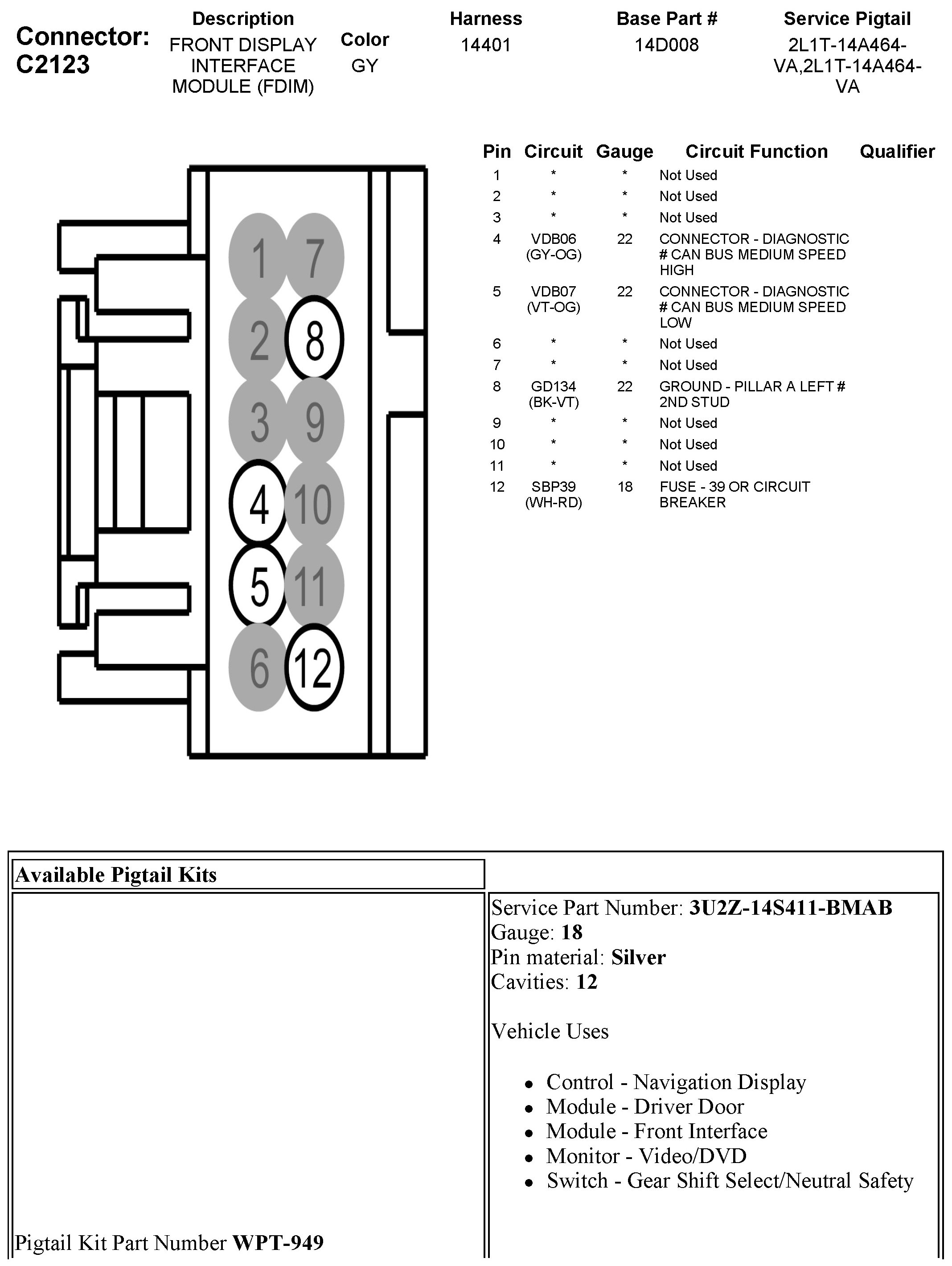

C2123 Front Display Interface Module (FDIM)
C2123 Front Display Interface Module (FDIM)
