Ford
>>
2011
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

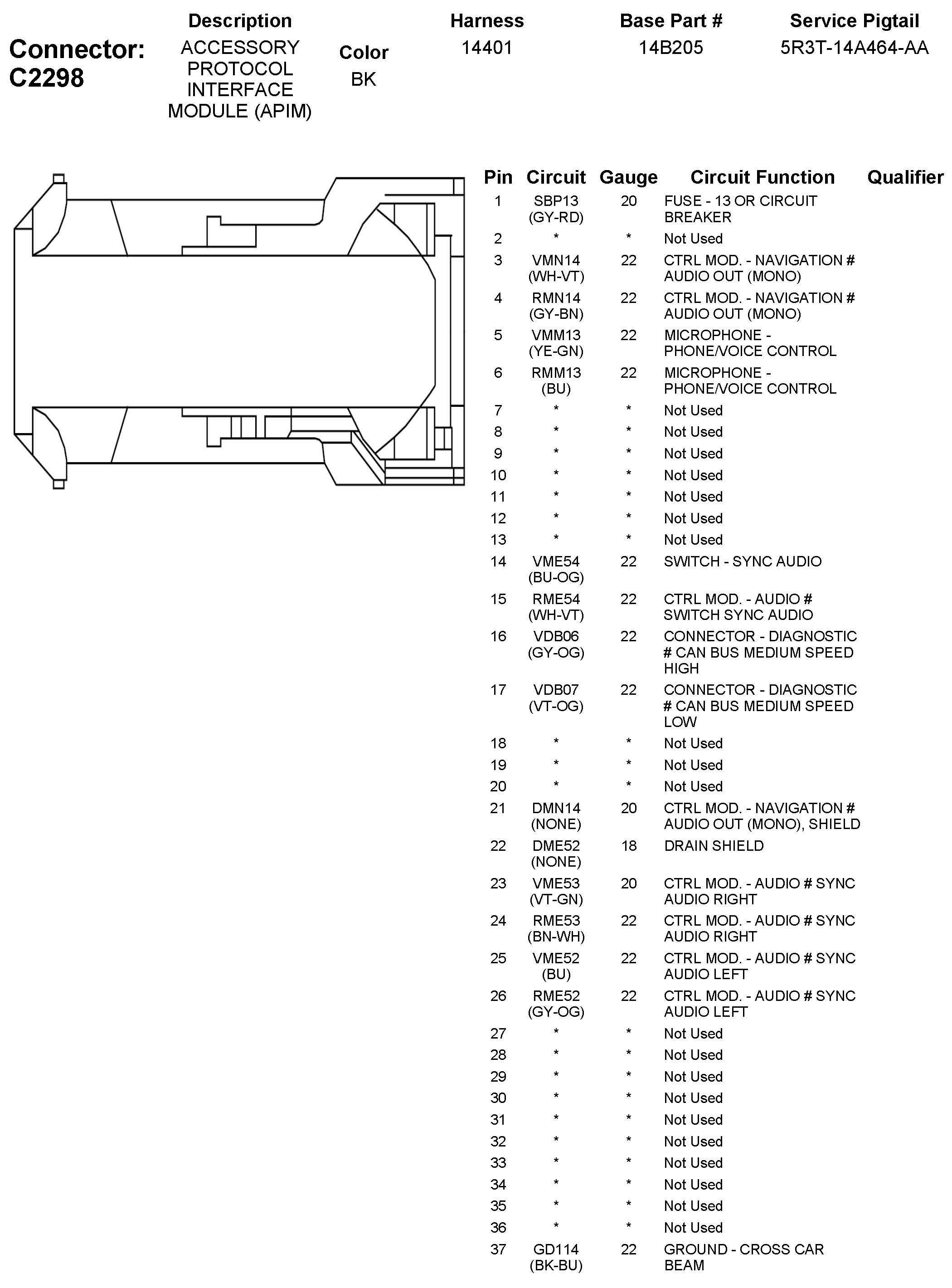

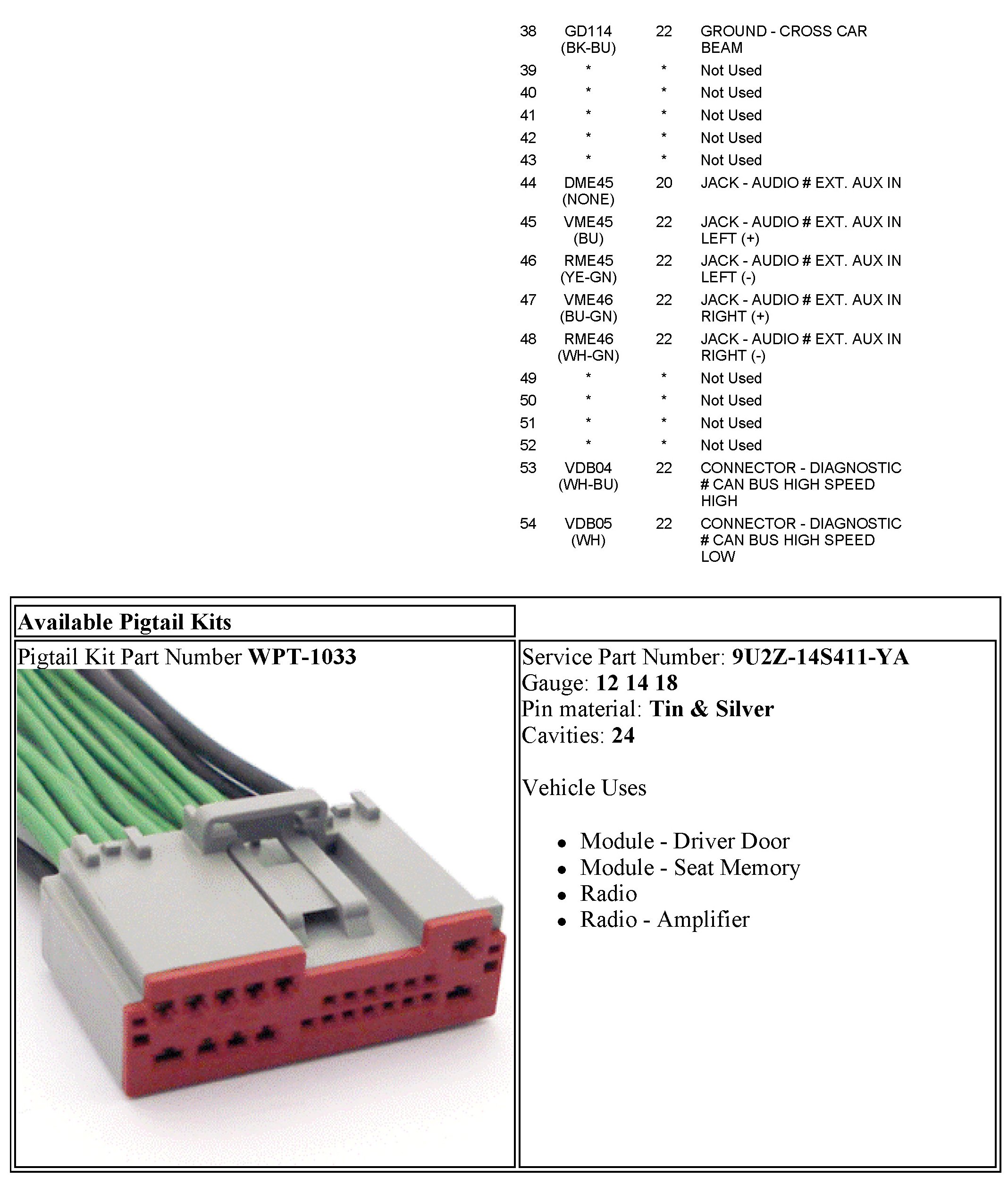

C2298 Accessory Protocol Interface Module (APIM)
C2298 Accessory Protocol Interface Module (APIM)
