Alignment

Suspension System - General Information

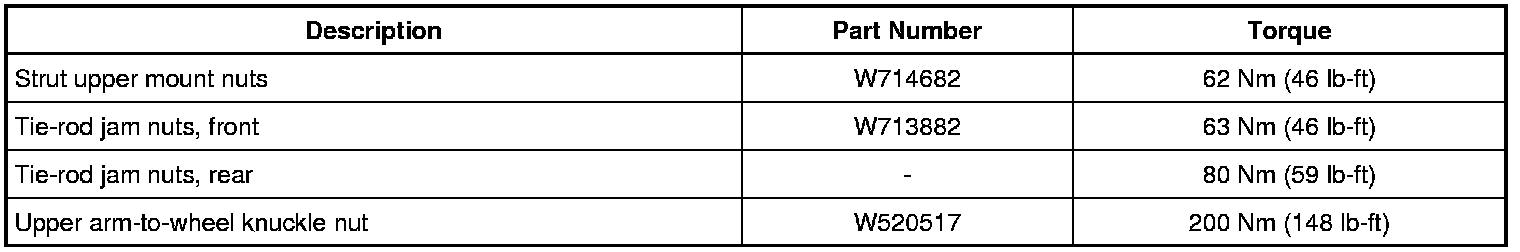

Torque Specifications

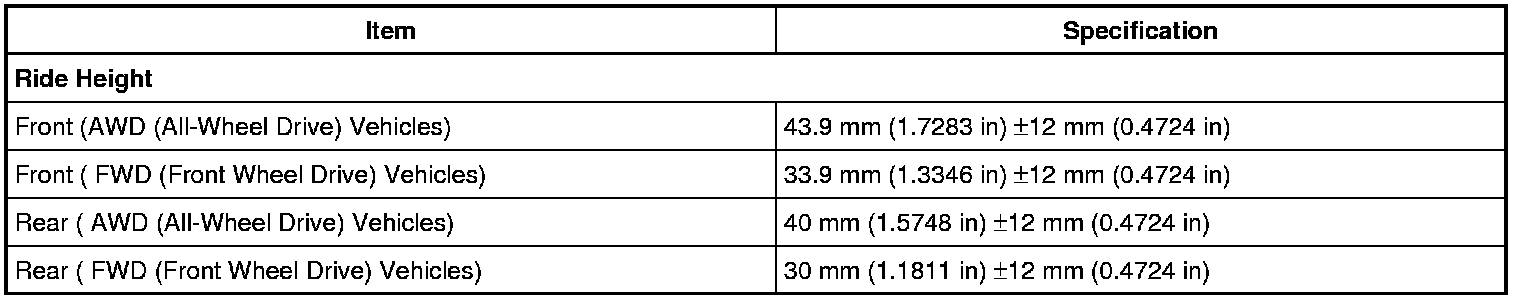

General Specifications

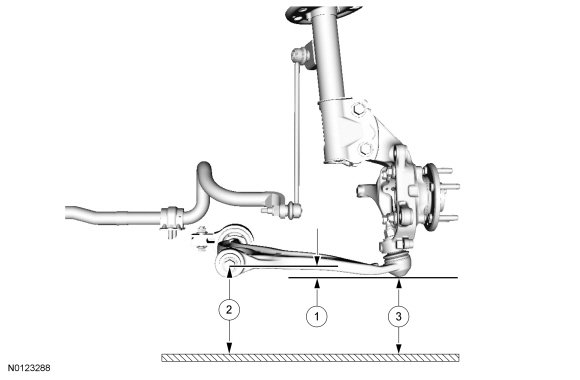

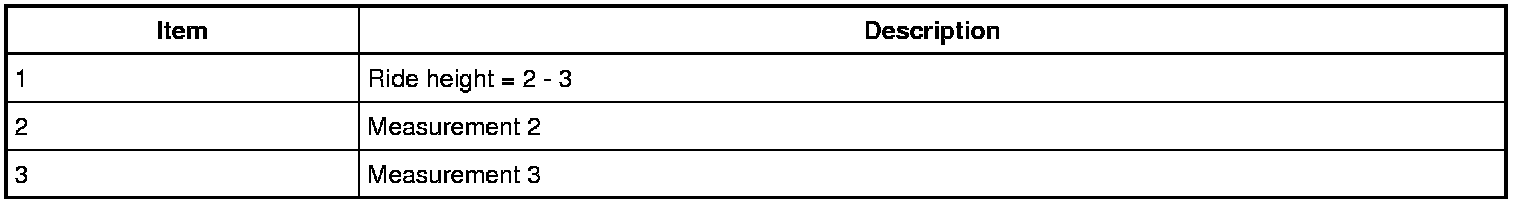

Front Ride Height Measurement

1. NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. The vehicle should have a full tank of fuel.

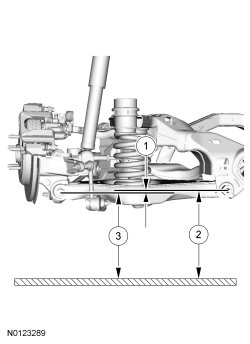

Ride Height Measurement - Rear

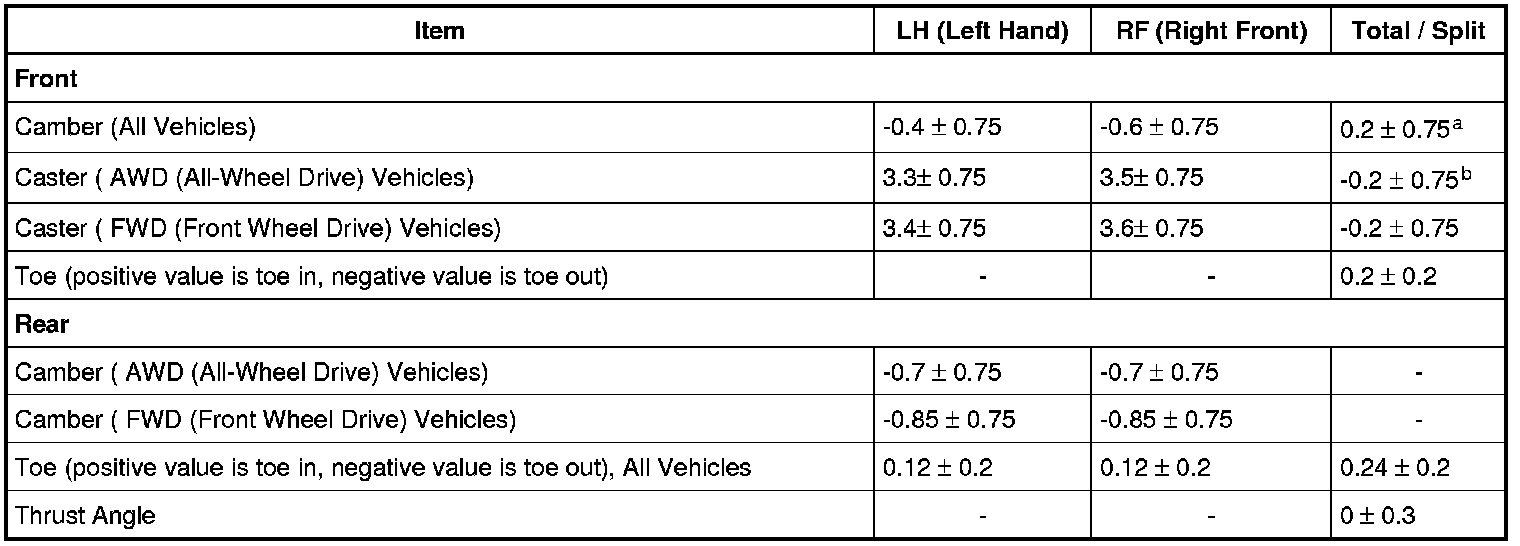

Alignment Specifications






a Camber Total/Split = LH (Left Hand) Camber - RH (Right Hand) Camber

b Caster Total/Split = LH (Left Hand) Caster - RH (Right Hand) Caster
