Home >> Ford >> 2011 >> Explorer FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

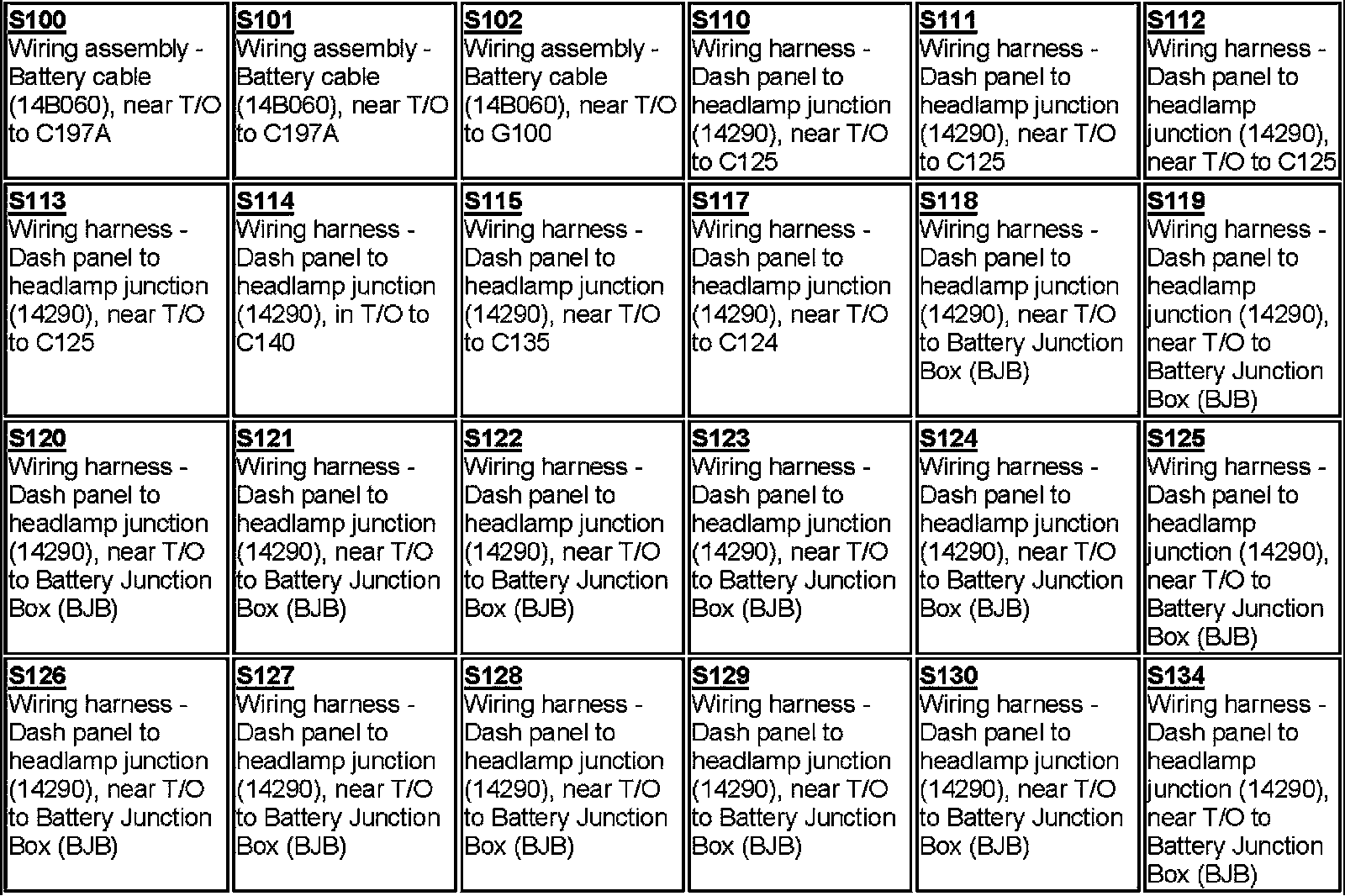

S100-S134:

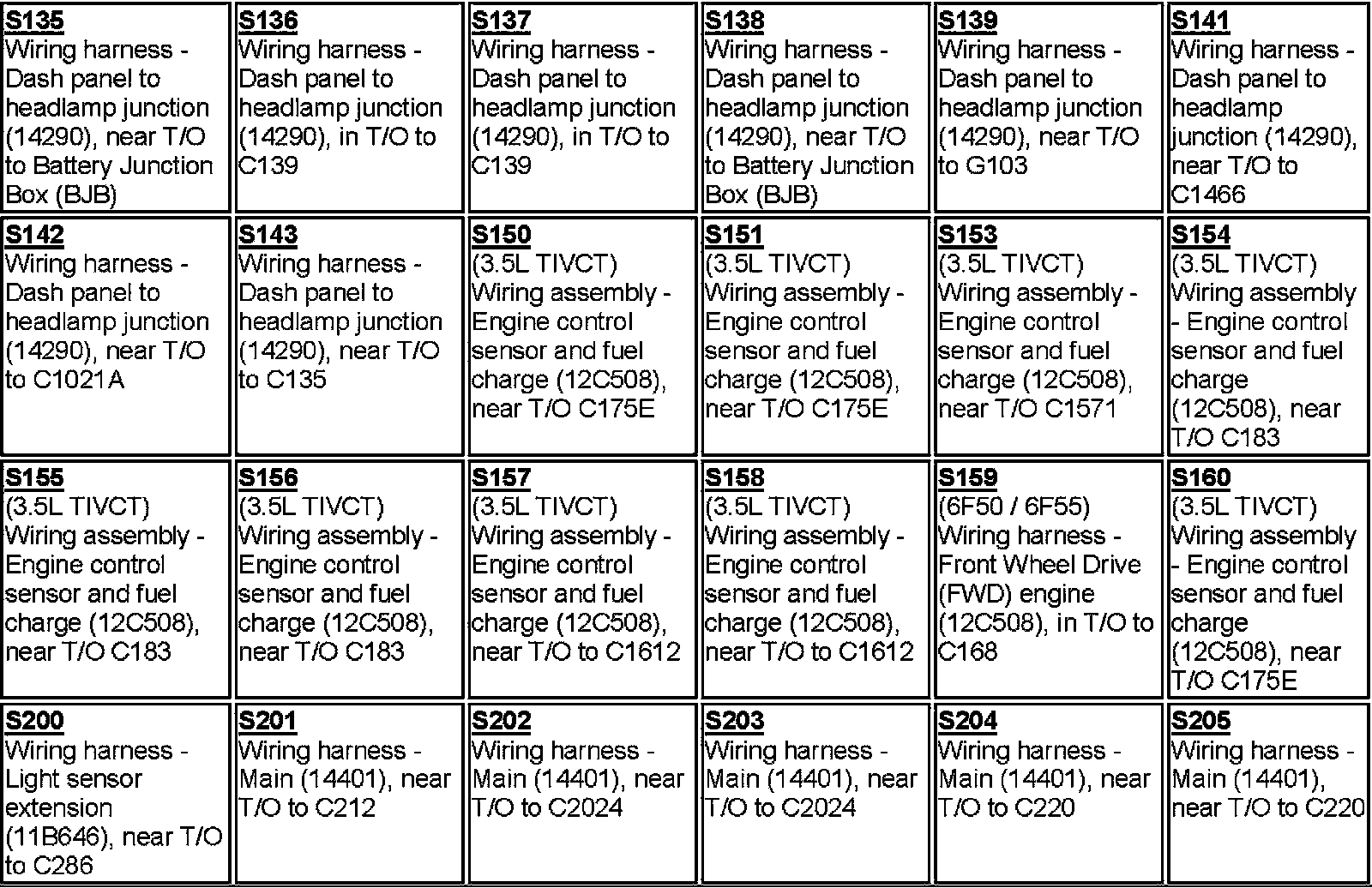

S135-S206:

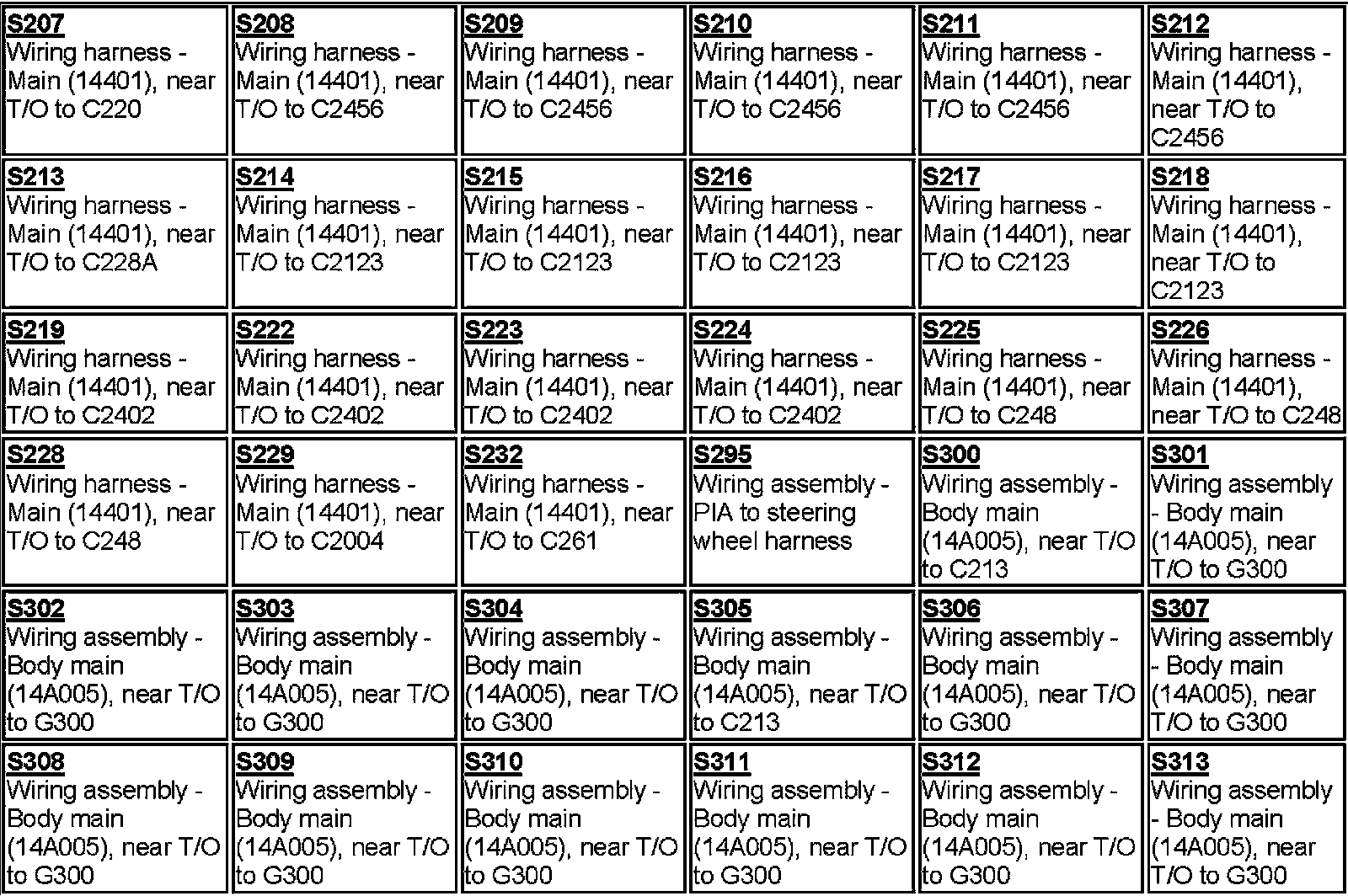

S207-S313:

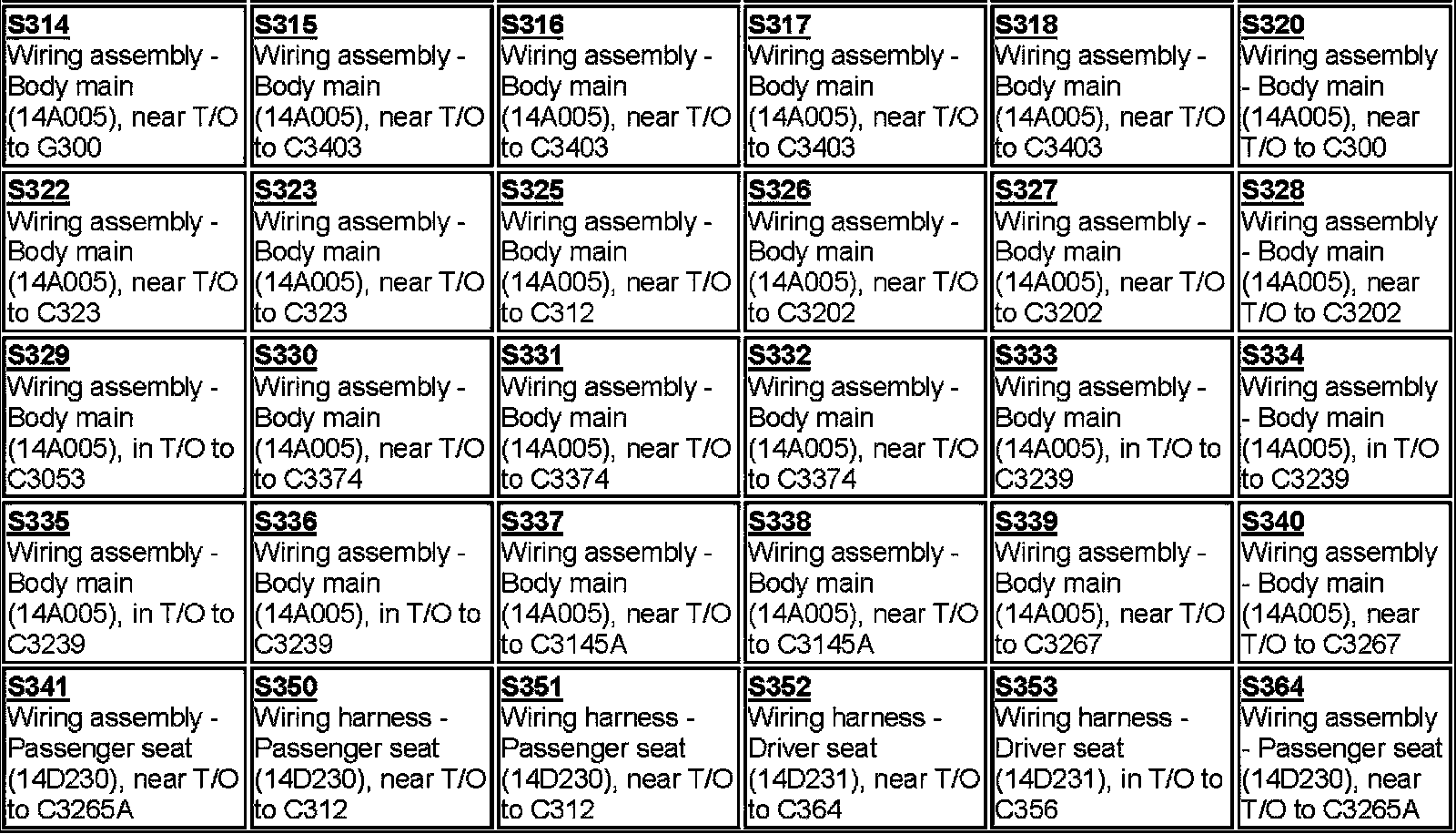

S314-S364:

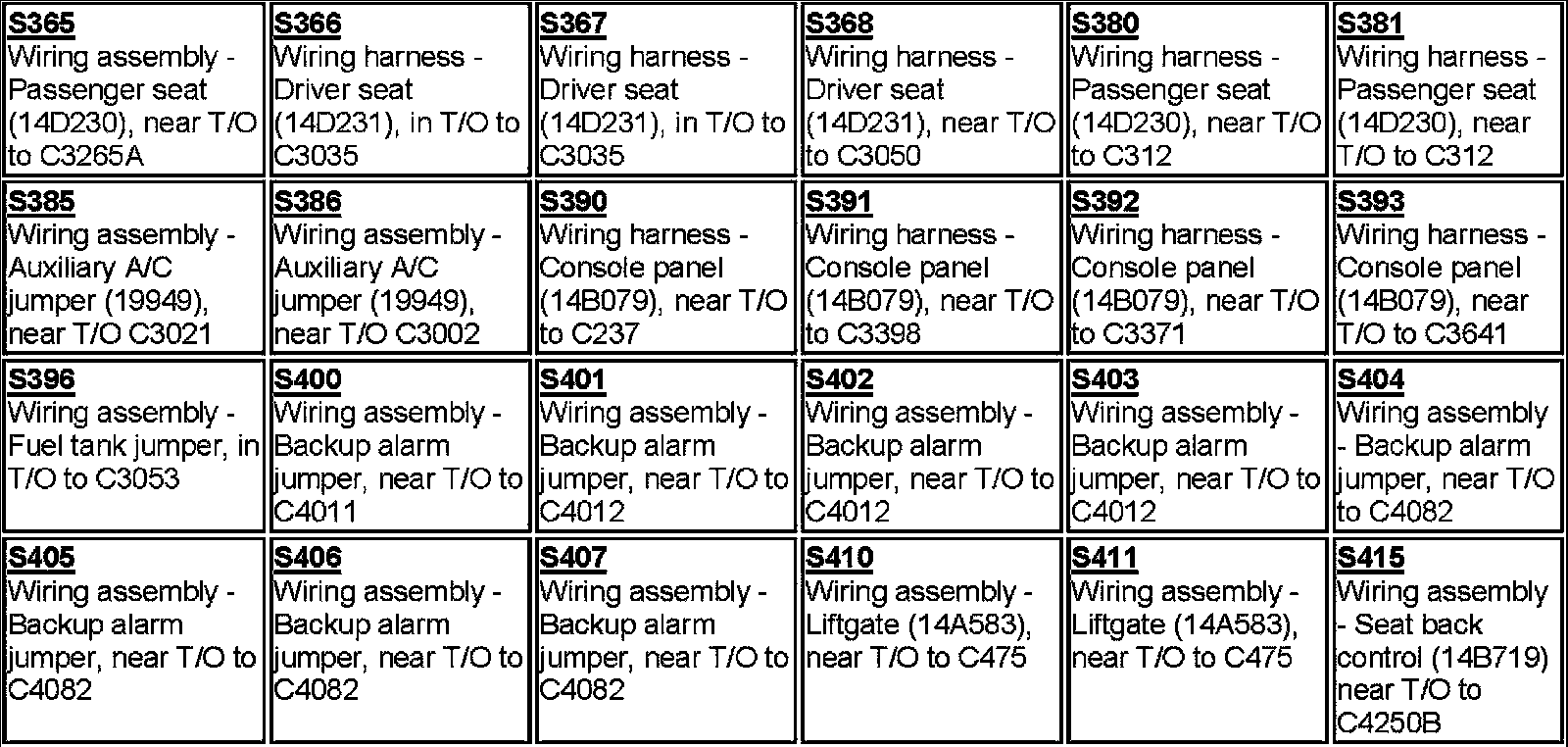

S365-S415:

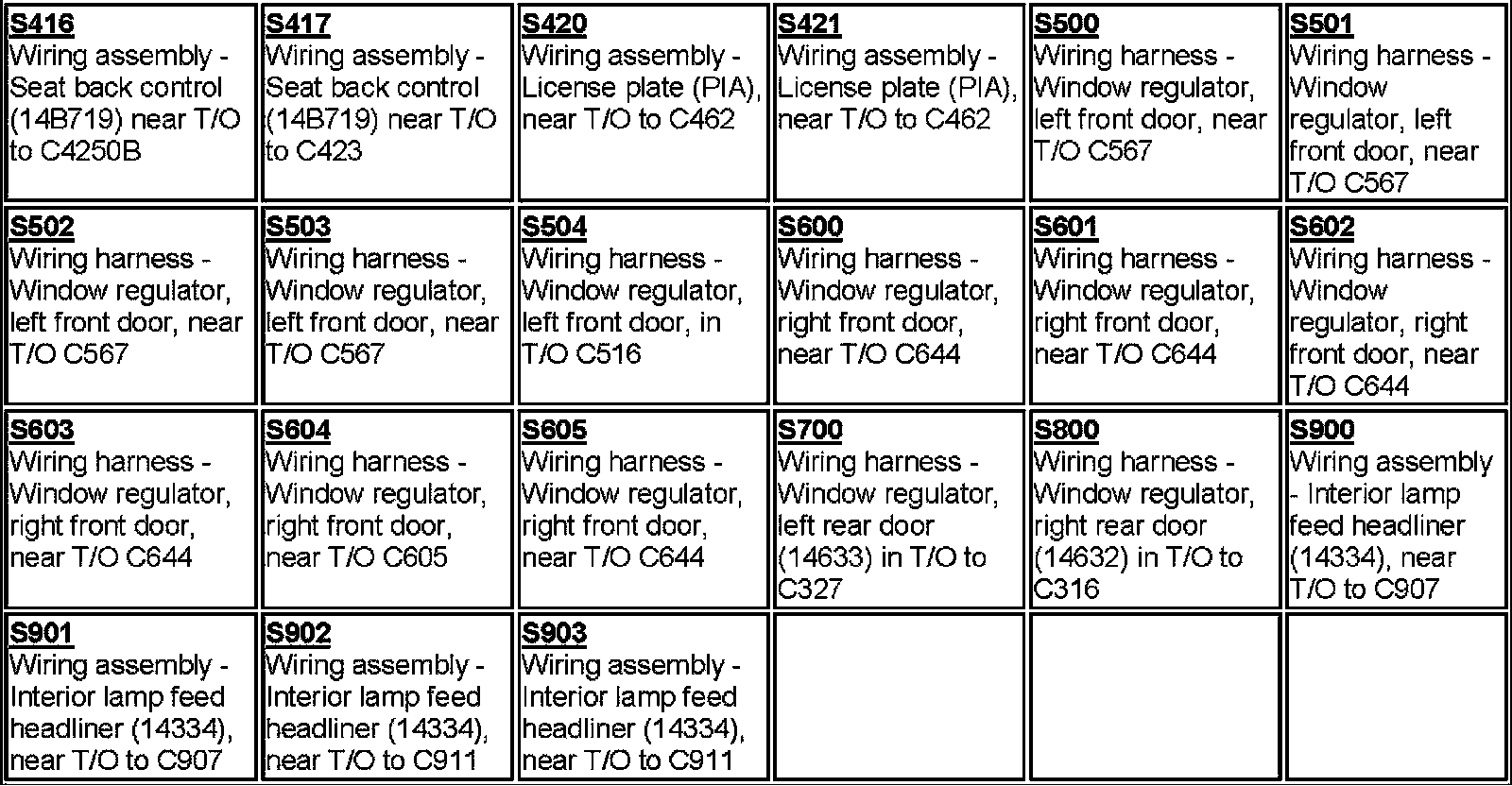

S416-S903:
