Ford
>>
2011
>>
Escape 4WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

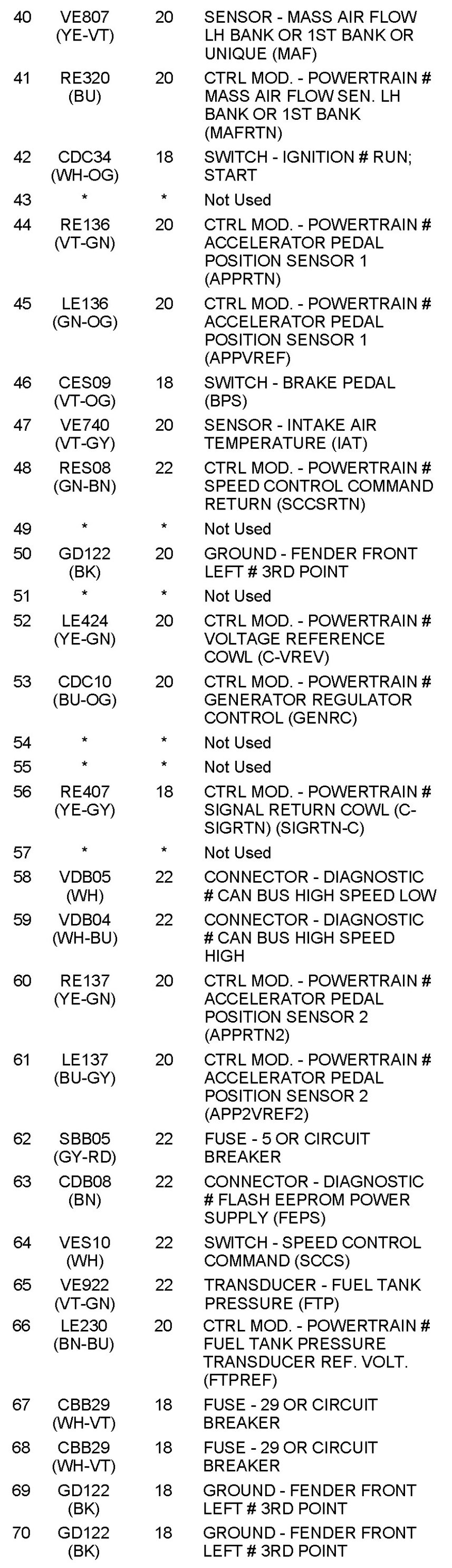

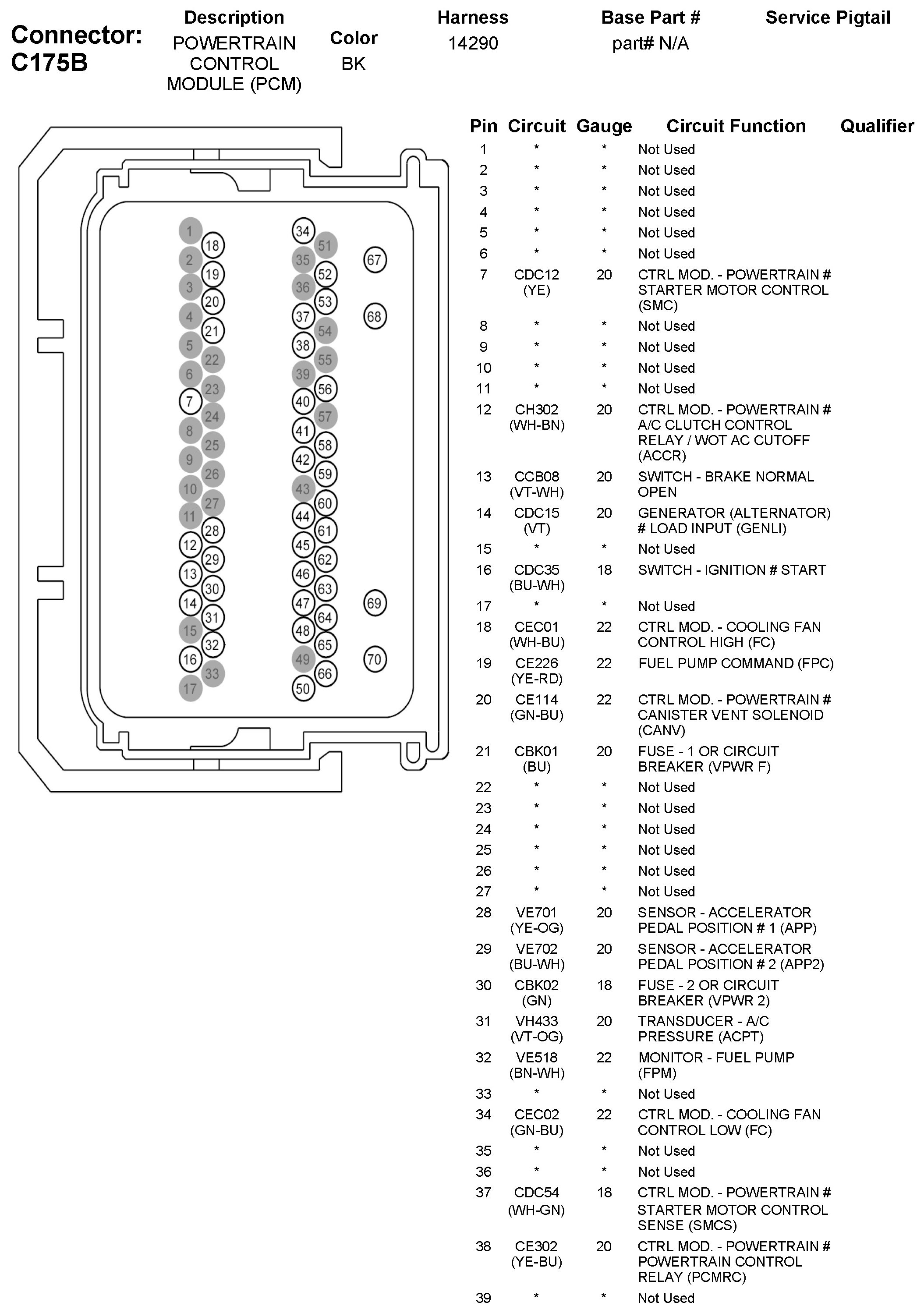

C175B Powertrain Control Module (PCM)
C175B Powertrain Control Module (PCM)
