Escape 4WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

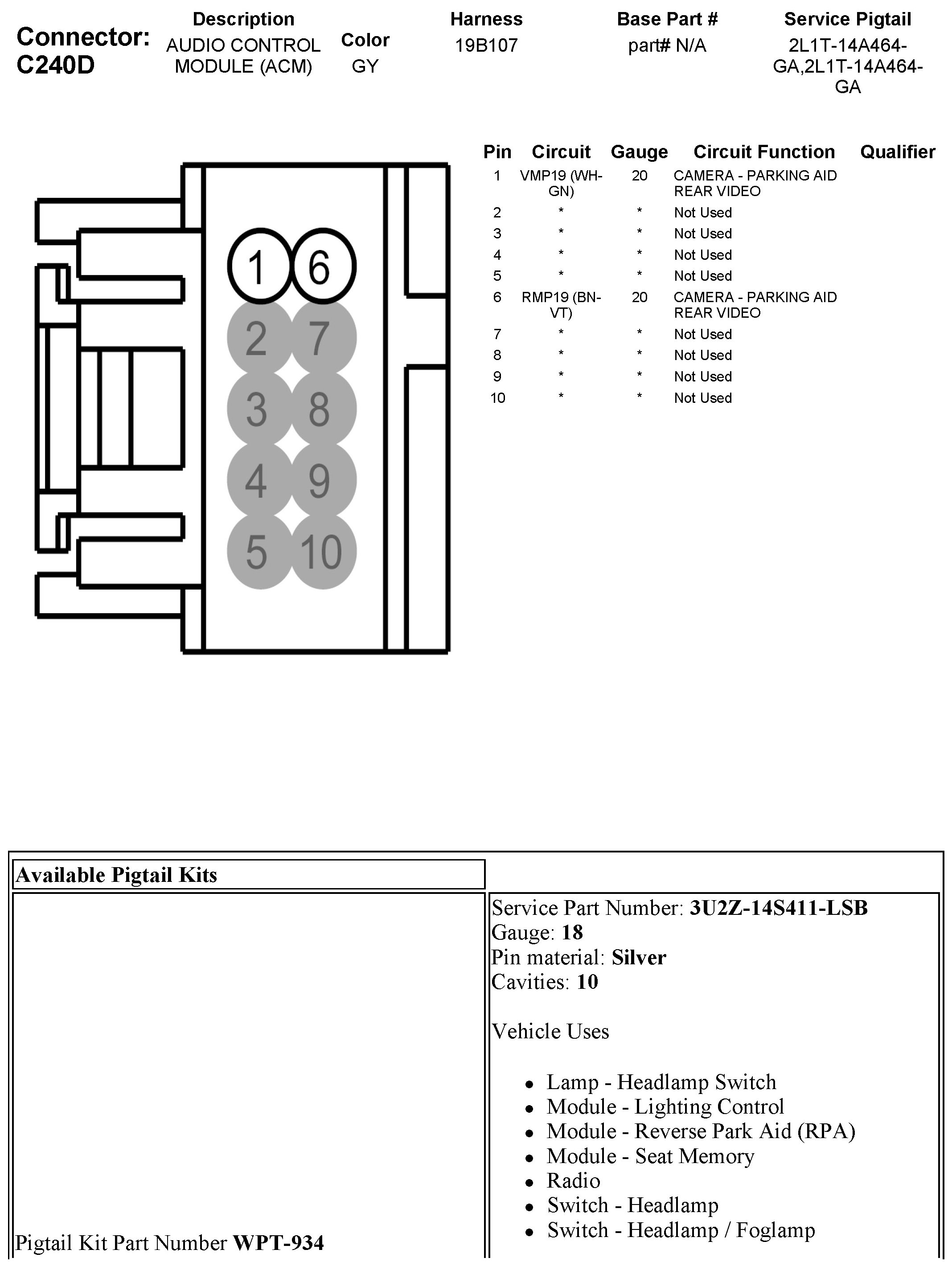

C240D Audio Control Module (ACM)
C240D Audio Control Module (ACM)
